ACE_MEM_IO Class Reference

Defines the methods for the ACE shared memeory wrapper I/O routines (e.g., send/recv). The shared memory transport uses ACE_SOCK_* class to implement the signaling mechanism so we can easily use the new mechanism with the Reactor pattern (which uses select under the hood.) ACE_MEM_Acceptor and ACE_MEM_Connector are used to establish connections. When a connection is established, ACE_MEM_Acceptor creates the MMAP file for data exchange and sends the location of the file (complete path name) to ACE_MEM_Connector thru the socket. ACE_MEM_Connector then reads the location of the file off the socket and opens up the same MMAP file. ACE_MEM_Stream at each side then contains a reference to the ACE_Mallo object using the same MMAP file. When sending information using methods provided in this class, ACE_MEM_IO requests a chunk of memory from the MALLOC_TYPE object, copy the data into the shared memory and send the memory offset (from the start of the ACE_Malloc) across the socket. This action also servers as a signal to the other end. The receiving side then reverses the procedures and copies the information into user buffer. More...

#include <MEM_IO.h>

Inheritance diagram for ACE_MEM_IO:

[legend]

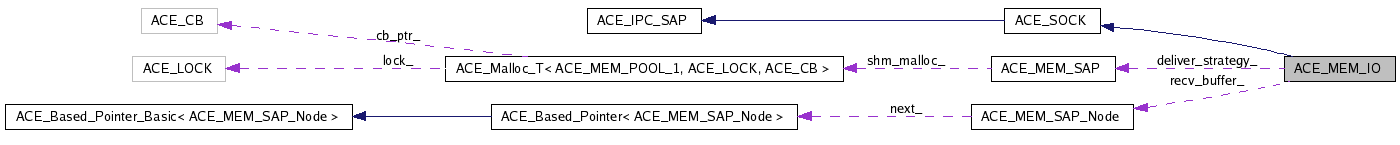

Collaboration diagram for ACE_MEM_IO:

[legend]

List of all members.

Public Types
enum	Signal_Strategy { Reactive, MT }
Public Member Functions
	ACE_MEM_IO (void)
	Constructor.
	~ACE_MEM_IO (void)
	Destructor.
int	init (const ACE_TCHAR name, ACE_MEM_IO::Signal_Strategy type=ACE_MEM_IO::Reactive, ACE_MEM_SAP::MALLOC_OPTIONS options=0)
int	fini (void)
ssize_t	send (const void *buf, size_t n, int flags)
ssize_t	recv (void *buf, size_t n, int flags)
	Recv an n byte buffer from the shm_malloc_ thru connected socket.
ssize_t	send (const void *buf, size_t n)
ssize_t	recv (void *buf, size_t n)
	Recv an n byte buffer from the shm_malloc_ thru connected socket.
ssize_t	send (const void buf, size_t n, const ACE_Time_Value timeout)
ssize_t	send (const void buf, size_t n, int flags, const ACE_Time_Value timeout)
ssize_t	send (const ACE_Message_Block message_block, const ACE_Time_Value timeout)
ssize_t	recv (void buf, size_t n, const ACE_Time_Value timeout)
ssize_t	recv (void buf, size_t n, int flags, const ACE_Time_Value timeout)
void	dump (void) const
	Dump the state of an object.
Public Attributes
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks.
Private Member Functions
ssize_t	fetch_recv_buf (int flag, const ACE_Time_Value *timeout)
Private Attributes
ACE_MEM_SAP *	deliver_strategy_
	Actual deliverying mechanism.
ACE_MEM_SAP_Node *	recv_buffer_
	Internal pointer for support recv/send.
ssize_t	buf_size_
	Record the current total buffer size of <recv_buffer_>.
ssize_t	cur_offset_
	Record the current read pointer location in <recv_buffer_>.

Detailed Description

Defines the methods for the ACE shared memeory wrapper I/O routines (e.g., send/recv). The shared memory transport uses ACE_SOCK_* class to implement the signaling mechanism so we can easily use the new mechanism with the Reactor pattern (which uses select under the hood.) ACE_MEM_Acceptor and ACE_MEM_Connector are used to establish connections. When a connection is established, ACE_MEM_Acceptor creates the MMAP file for data exchange and sends the location of the file (complete path name) to ACE_MEM_Connector thru the socket. ACE_MEM_Connector then reads the location of the file off the socket and opens up the same MMAP file. ACE_MEM_Stream at each side then contains a reference to the ACE_Mallo object using the same MMAP file. When sending information using methods provided in this class, ACE_MEM_IO requests a chunk of memory from the MALLOC_TYPE object, copy the data into the shared memory and send the memory offset (from the start of the ACE_Malloc) across the socket. This action also servers as a signal to the other end. The receiving side then reverses the procedures and copies the information into user buffer.

Member Enumeration Documentation

enum ACE_MEM_IO::Signal_Strategy

Enumerator:

Reactive
MT

Constructor & Destructor Documentation

ACE_MEM_IO::ACE_MEM_IO ( void ) [inline]

Constructor.

ACE_MEM_IO::~ACE_MEM_IO ( void ) [inline]

Destructor.

Member Function Documentation

void ACE_MEM_IO::dump ( void ) const

Dump the state of an object.

Reimplemented from ACE_SOCK.

Reimplemented in ACE_MEM_Stream.

ssize_t ACE_MEM_IO::fetch_recv_buf	(	int	flag,
		const ACE_Time_Value *	timeout
	)			`[inline, private]`

Return the local endpoint port number. Returns 0 if successful, else -1.

int ACE_MEM_IO::fini ( void )

Finalizing the MEM_IO object. This method doesn't invoke the <remove> method.

int ACE_MEM_IO::init	(	const ACE_TCHAR *	name,
		ACE_MEM_IO::Signal_Strategy	type = `ACE_MEM_IO::Reactive`,
		ACE_MEM_SAP::MALLOC_OPTIONS *	options = `0`
	)

Initialize the MEM_SAP object.

ssize_t ACE_MEM_IO::recv	(	void *	buf,
		size_t	n,
		int	flags,
		const ACE_Time_Value *	timeout
	)			`[inline]`

Wait up to timeout amount of time to receive up to n bytes into buf from <handle> (uses the <recv> call). If <recv> times out a -1 is returned with errno == ETIME. If it succeeds the number of bytes received is returned.

ssize_t ACE_MEM_IO::recv	(	void *	buf,
		size_t	n,
		const ACE_Time_Value *	timeout
	)			`[inline]`

Wait up to timeout amount of time to receive up to n bytes into buf from <handle> (uses the <recv> call). If <recv> times out a -1 is returned with errno == ETIME. If it succeeds the number of bytes received is returned.

ssize_t ACE_MEM_IO::recv	(	void *	buf,
		size_t	n
	)			`[inline]`

Recv an n byte buffer from the shm_malloc_ thru connected socket.

ssize_t ACE_MEM_IO::recv	(	void *	buf,
		size_t	n,
		int	flags
	)			`[inline]`

Recv an n byte buffer from the shm_malloc_ thru connected socket.

ssize_t ACE_MEM_IO::send	(	const ACE_Message_Block *	message_block,
		const ACE_Time_Value *	timeout
	)

Wait to to timeout amount of time to send the message_block. If <send> times out a -1 is returned with errno == ETIME. If it succeeds the number of bytes sent is returned.

ssize_t ACE_MEM_IO::send	(	const void *	buf,
		size_t	n,
		int	flags,
		const ACE_Time_Value *	timeout
	)			`[inline]`

Wait to to timeout amount of time to send up to n bytes into buf from <handle> (uses the <send> call). If <send> times out a -1 is returned with errno == ETIME. If it succeeds the number of bytes sent is returned.

ssize_t ACE_MEM_IO::send	(	const void *	buf,
		size_t	n,
		const ACE_Time_Value *	timeout
	)			`[inline]`

Wait to to timeout amount of time to send up to n bytes into buf from <handle> (uses the <send> call). If <send> times out a -1 is returned with errno == ETIME. If it succeeds the number of bytes sent is returned.
