OS_NS_Thread.h File Reference
#include "ace/config-all.h"#include "ace/Global_Macros.h"#include "ace/Basic_Types.h"#include "ace/Default_Constants.h"#include "ace/os_include/os_pthread.h"#include "ace/os_include/os_sched.h"#include "ace/Base_Thread_Adapter.h"#include "ace/os_include/sys/os_sem.h"#include "ace/os_include/os_semaphore.h"#include "ace/OS_Memory.h"#include "ace/OS_NS_signal.h"#include "ace/ACE_export.h"#include "ace/Object_Manager_Base.h"#include "ace/OS_NS_Thread.inl"

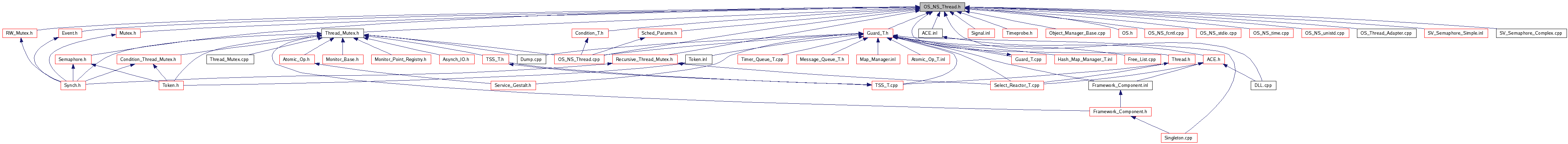

Include dependency graph for OS_NS_Thread.h:

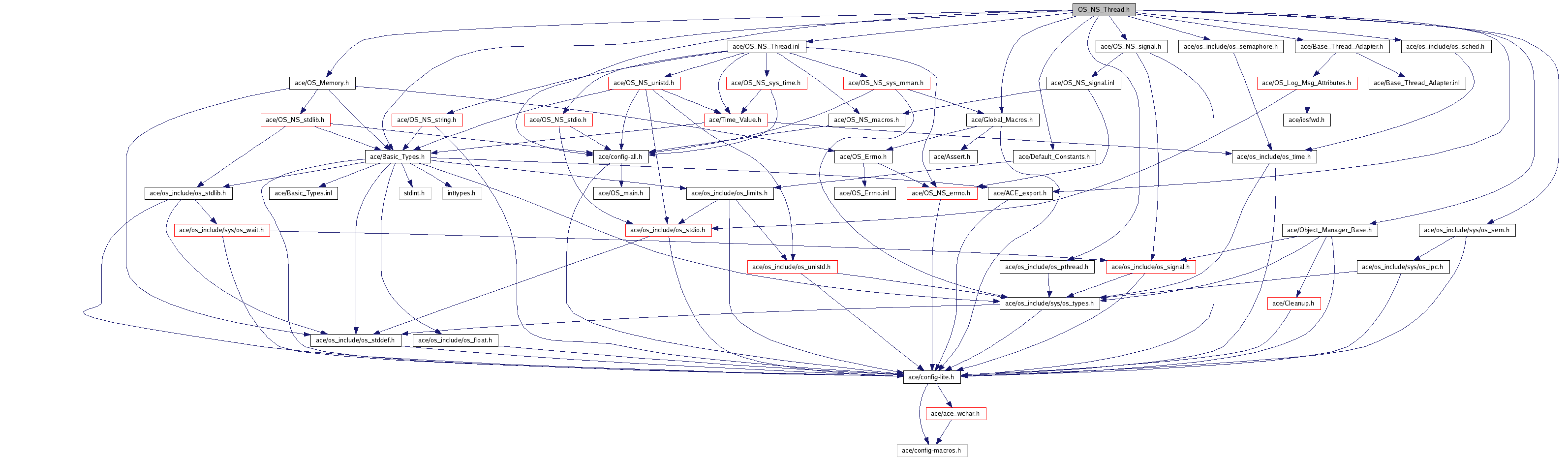

This graph shows which files directly or indirectly include this file:
Classes | |
| class | ACE_recursive_thread_mutex_t |
| Implement a thin C++ wrapper that allows nested acquisition and release of a mutex that occurs in the same thread. More... | |
| struct | ACE_recursive_mutex_state |
| class | ACE_Thread_ID |
| Defines a platform-independent thread ID class. Note that this class should be defined within the scope of a thread, rather than at global scope! More... | |
| class | ACE_TSS_Ref |
| "Reference count" for thread-specific storage keys. More... | |
| class | ACE_TSS_Info |
| Thread Specific Key management. More... | |
| class | ACE_TSS_Keys |
| Collection of in-use flags for a thread's TSS keys. For internal use only by ACE_TSS_Cleanup; it is public because some compilers can't use nested classes for template instantiation parameters. More... | |
Namespaces | |
| namespace | ACE_OS |
| This namespace defines an OS independent programming API that shields developers from nonportable aspects of writing efficient system programs on Win32, POSIX and other versions of UNIX, and various real-time operating systems. | |
Defines | |
| #define | ACE_EXPORT_MACRO ACE_Export |
| #define | ACE_SCOPE_PROCESS 0 |
| #define | ACE_SCOPE_LWP 1 |
| #define | ACE_SCOPE_THREAD 2 |
| #define | ACE_SCHED_OTHER 0 |
| #define | ACE_SCHED_FIFO 1 |
| #define | ACE_SCHED_RR 2 |
| #define | ACE_THR_PRI_FIFO_DEF 0 |
| #define | ACE_THR_PRI_OTHER_DEF 0 |
| #define | ACE_DEFAULT_SYNCH_TYPE USYNC_THREAD |
| #define | ACE_SELF (0) |
| #define | ACE_KEY_INDEX(OBJ, KEY) u_int OBJ = KEY |
| #define | ACE_PTHREAD_CLEANUP_PUSH(A) |
| #define | ACE_PTHREAD_CLEANUP_POP(A) |
| #define | ACE_OS_GUARD |
| #define | ACE_TSS_CLEANUP_GUARD |
| #define | ACE_TSS_BASE_GUARD |
| #define | ACE_INLINE inline |
Typedefs | |
| typedef DWORD | ACE_thread_t |
| typedef HANDLE | ACE_hthread_t |
| typedef DWORD | ACE_OS_thread_key_t |
| typedef ACE_OS_thread_key_t | ACE_thread_key_t |
| typedef int | ACE_Sched_Priority |
| typedef int | ACE_idtype_t |
| typedef DWORD | ACE_id_t |
| typedef int | ACE_pri_t |
Functions | |
| ACE_Export void | ACE_OS::cleanup_tss (const u_int main_thread) |
| ACE_Export int | ACE_OS::lwp_getparams (ACE_Sched_Params &) |
| ACE_Export int | ACE_OS::lwp_setparams (const ACE_Sched_Params &) |
| ACE_NAMESPACE_INLINE_FUNCTION long | ACE_OS::priority_control (ACE_idtype_t, ACE_id_t, int, void *) |
Low-level interface to priocntl(2). | |
| ACE_Export int | ACE_OS::scheduling_class (const char *class_name, ACE_id_t &) |
| Find the schedling class ID that corresponds to the class name. | |
| ACE_Export int | ACE_OS::set_scheduling_params (const ACE_Sched_Params &, ACE_id_t id=ACE_SELF) |
Friendly interface to priocntl(2). | |
| ACE_NAMESPACE_INLINE_FUNCTION int | ACE_OS::sigtimedwait (const sigset_t *set, siginfo_t *info, const ACE_Time_Value *timeout) |
| ACE_NAMESPACE_INLINE_FUNCTION int | ACE_OS::sigwait (sigset_t *set, int *sig=0) |
| ACE_NAMESPACE_INLINE_FUNCTION int | ACE_OS::sigwaitinfo (const sigset_t *set, siginfo_t *info) |
| ACE_NAMESPACE_INLINE_FUNCTION int | ACE_OS::thr_cancel (ACE_thread_t t_id) |
| ACE_NAMESPACE_INLINE_FUNCTION int | ACE_OS::thr_cmp (ACE_hthread_t t1, ACE_hthread_t t2) |
| ACE_NAMESPACE_INLINE_FUNCTION int | ACE_OS::thr_continue (ACE_hthread_t target_thread) |
| ACE_Export int | ACE_OS::thr_create (ACE_THR_FUNC func, void *args, long flags, ACE_thread_t *thr_id, ACE_hthread_t *t_handle=0, long priority=ACE_DEFAULT_THREAD_PRIORITY, void *stack=0, size_t stacksize=ACE_DEFAULT_THREAD_STACKSIZE, ACE_Base_Thread_Adapter *thread_adapter=0, const char **thr_name=0) |
| ACE_NAMESPACE_INLINE_FUNCTION int | ACE_OS::thr_equal (ACE_thread_t t1, ACE_thread_t t2) |
| ACE_Export void | ACE_OS::thr_exit (ACE_THR_FUNC_RETURN status=0) |
| ACE_NAMESPACE_INLINE_FUNCTION int | ACE_OS::thr_getconcurrency (void) |
| ACE_NAMESPACE_INLINE_FUNCTION int | ACE_OS::thr_getprio (ACE_hthread_t id, int &priority) |
| ACE_NAMESPACE_INLINE_FUNCTION int | ACE_OS::thr_getprio (ACE_hthread_t id, int &priority, int &policy) |
| ACE_NAMESPACE_INLINE_FUNCTION int | ACE_OS::thr_getspecific (ACE_thread_key_t key, void **data) |
| ACE_NAMESPACE_INLINE_FUNCTION int | ACE_OS::thr_join (ACE_hthread_t waiter_id, ACE_THR_FUNC_RETURN *status) |
| ACE_NAMESPACE_INLINE_FUNCTION int | ACE_OS::thr_join (ACE_thread_t waiter_id, ACE_thread_t *thr_id, ACE_THR_FUNC_RETURN *status) |
| ACE_Export int | ACE_OS::thr_get_affinity (ACE_hthread_t thr_id, size_t cpu_set_size, cpu_set_t *cpu_mask) |
| ACE_Export int | ACE_OS::thr_set_affinity (ACE_hthread_t thr_id, size_t cpu_set_size, const cpu_set_t *cpu_mask) |
| ACE_Export int | ACE_OS::thr_key_detach (ACE_thread_key_t key, void *inst) |
| ACE_Export int | ACE_OS::thr_key_used (ACE_thread_key_t key) |
| ACE_Export int | ACE_OS::thr_keycreate (ACE_thread_key_t *key, ACE_THR_DEST, void *inst=0) |
| ACE_Export int | ACE_OS::thr_keyfree (ACE_thread_key_t key) |
| ACE_NAMESPACE_INLINE_FUNCTION int | ACE_OS::thr_kill (ACE_thread_t thr_id, int signum) |
| ACE_NAMESPACE_INLINE_FUNCTION size_t | ACE_OS::thr_min_stack (void) |
| ACE_NAMESPACE_INLINE_FUNCTION ACE_thread_t | ACE_OS::thr_self (void) |
| ACE_NAMESPACE_INLINE_FUNCTION void | ACE_OS::thr_self (ACE_hthread_t &) |
| ACE_NAMESPACE_INLINE_FUNCTION const char * | ACE_OS::thr_name (void) |
| ACE_NAMESPACE_INLINE_FUNCTION int | ACE_OS::thr_setcancelstate (int new_state, int *old_state) |
| ACE_NAMESPACE_INLINE_FUNCTION int | ACE_OS::thr_setcanceltype (int new_type, int *old_type) |
| ACE_NAMESPACE_INLINE_FUNCTION int | ACE_OS::thr_setconcurrency (int hint) |
| ACE_NAMESPACE_INLINE_FUNCTION int | ACE_OS::thr_setprio (ACE_hthread_t ht_id, int priority, int policy=-1) |
| ACE_Export int | ACE_OS::thr_setprio (const ACE_Sched_Priority prio) |
| ACE_Export int | ACE_OS::thr_setspecific (ACE_thread_key_t key, void *data) |
| ACE_NAMESPACE_INLINE_FUNCTION int | ACE_OS::thr_sigsetmask (int how, const sigset_t *nsm, sigset_t *osm) |
| ACE_NAMESPACE_INLINE_FUNCTION int | ACE_OS::thr_suspend (ACE_hthread_t target_thread) |
| ACE_NAMESPACE_INLINE_FUNCTION void | ACE_OS::thr_testcancel (void) |
| ACE_NAMESPACE_INLINE_FUNCTION void | ACE_OS::thr_yield (void) |
| ACE_Export void | ACE_OS::unique_name (const void *object, char *name, size_t length) |
| ACE_NAMESPACE_INLINE_FUNCTION int | ACE_OS::condattr_init (ACE_condattr_t &attributes, int type=ACE_DEFAULT_SYNCH_TYPE) |
| ACE_NAMESPACE_INLINE_FUNCTION int | ACE_OS::condattr_destroy (ACE_condattr_t &attributes) |
| ACE_NAMESPACE_INLINE_FUNCTION int | ACE_OS::cond_broadcast (ACE_cond_t *cv) |
| ACE_NAMESPACE_INLINE_FUNCTION int | ACE_OS::cond_destroy (ACE_cond_t *cv) |
| ACE_Export int | ACE_OS::cond_init (ACE_cond_t *cv, short type=ACE_DEFAULT_SYNCH_TYPE, const char *name=0, void *arg=0) |
| ACE_NAMESPACE_INLINE_FUNCTION int | ACE_OS::cond_init (ACE_cond_t *cv, ACE_condattr_t &attributes, const char *name=0, void *arg=0) |
| ACE_NAMESPACE_INLINE_FUNCTION int | ACE_OS::cond_init (ACE_cond_t *cv, short type, const wchar_t *name, void *arg=0) |
| ACE_NAMESPACE_INLINE_FUNCTION int | ACE_OS::cond_init (ACE_cond_t *cv, ACE_condattr_t &attributes, const wchar_t *name, void *arg=0) |
| ACE_NAMESPACE_INLINE_FUNCTION int | ACE_OS::cond_signal (ACE_cond_t *cv) |
| ACE_NAMESPACE_INLINE_FUNCTION int | ACE_OS::cond_timedwait (ACE_cond_t *cv, ACE_mutex_t *m, ACE_Time_Value *timeout) |
| ACE_NAMESPACE_INLINE_FUNCTION int | ACE_OS::cond_wait (ACE_cond_t *cv, ACE_mutex_t *m) |
| ACE_Export int | ACE_OS::event_destroy (ACE_event_t *event) |
| ACE_Export int | ACE_OS::event_init (ACE_event_t *event, int manual_reset=0, int initial_state=0, int type=ACE_DEFAULT_SYNCH_TYPE, const char *name=0, void *arg=0, LPSECURITY_ATTRIBUTES sa=0) |
| ACE_NAMESPACE_INLINE_FUNCTION int | ACE_OS::event_init (ACE_event_t *event, int manual_reset, int initial_state, int type, const wchar_t *name, void *arg=0, LPSECURITY_ATTRIBUTES sa=0) |
| ACE_Export int | ACE_OS::event_pulse (ACE_event_t *event) |
| ACE_Export int | ACE_OS::event_reset (ACE_event_t *event) |
| ACE_Export int | ACE_OS::event_signal (ACE_event_t *event) |
| ACE_Export int | ACE_OS::event_timedwait (ACE_event_t *event, ACE_Time_Value *timeout, int use_absolute_time=1) |
| ACE_Export int | ACE_OS::event_wait (ACE_event_t *event) |
| ACE_Export int | ACE_OS::mutex_destroy (ACE_mutex_t *m) |
| ACE_Export int | ACE_OS::mutex_init (ACE_mutex_t *m, int lock_scope=ACE_DEFAULT_SYNCH_TYPE, const char *name=0, ACE_mutexattr_t *arg=0, LPSECURITY_ATTRIBUTES sa=0, int lock_type=0) |
| ACE_Export int | ACE_OS::mutex_init (ACE_mutex_t *m, int lock_scope, const wchar_t *name, ACE_mutexattr_t *arg=0, LPSECURITY_ATTRIBUTES sa=0, int lock_type=0) |
| ACE_Export int | ACE_OS::mutex_lock (ACE_mutex_t *m) |
| ACE_Export int | ACE_OS::mutex_lock (ACE_mutex_t *m, int &abandoned) |
| ACE_Export int | ACE_OS::mutex_lock (ACE_mutex_t *m, const ACE_Time_Value &timeout) |
| ACE_NAMESPACE_INLINE_FUNCTION int | ACE_OS::mutex_lock (ACE_mutex_t *m, const ACE_Time_Value *timeout) |
| ACE_Export void | ACE_OS::mutex_lock_cleanup (void *mutex) |
| Handle asynchronous thread cancellation cleanup. | |
| ACE_Export int | ACE_OS::mutex_trylock (ACE_mutex_t *m) |
| ACE_Export int | ACE_OS::mutex_trylock (ACE_mutex_t *m, int &abandoned) |
| ACE_Export int | ACE_OS::mutex_unlock (ACE_mutex_t *m) |
| ACE_NAMESPACE_INLINE_FUNCTION int | ACE_OS::recursive_mutex_cond_unlock (ACE_recursive_thread_mutex_t *m, ACE_recursive_mutex_state &state) |
| ACE_NAMESPACE_INLINE_FUNCTION void | ACE_OS::recursive_mutex_cond_relock (ACE_recursive_thread_mutex_t *m, ACE_recursive_mutex_state &state) |
| ACE_NAMESPACE_INLINE_FUNCTION int | ACE_OS::recursive_mutex_destroy (ACE_recursive_thread_mutex_t *m) |
| ACE_NAMESPACE_INLINE_FUNCTION int | ACE_OS::recursive_mutex_init (ACE_recursive_thread_mutex_t *m, const ACE_TCHAR *name=0, ACE_mutexattr_t *arg=0, LPSECURITY_ATTRIBUTES sa=0) |
| ACE_NAMESPACE_INLINE_FUNCTION int | ACE_OS::recursive_mutex_lock (ACE_recursive_thread_mutex_t *m) |
| ACE_NAMESPACE_INLINE_FUNCTION int | ACE_OS::recursive_mutex_lock (ACE_recursive_thread_mutex_t *m, const ACE_Time_Value &timeout) |
| ACE_NAMESPACE_INLINE_FUNCTION int | ACE_OS::recursive_mutex_lock (ACE_recursive_thread_mutex_t *m, const ACE_Time_Value *timeout) |
| ACE_NAMESPACE_INLINE_FUNCTION int | ACE_OS::recursive_mutex_trylock (ACE_recursive_thread_mutex_t *m) |
| ACE_NAMESPACE_INLINE_FUNCTION int | ACE_OS::recursive_mutex_unlock (ACE_recursive_thread_mutex_t *m) |
| ACE_NAMESPACE_INLINE_FUNCTION int | ACE_OS::rw_rdlock (ACE_rwlock_t *rw) |
| ACE_NAMESPACE_INLINE_FUNCTION int | ACE_OS::rw_tryrdlock (ACE_rwlock_t *rw) |
| ACE_NAMESPACE_INLINE_FUNCTION int | ACE_OS::rw_trywrlock (ACE_rwlock_t *rw) |
| ACE_NAMESPACE_INLINE_FUNCTION int | ACE_OS::rw_trywrlock_upgrade (ACE_rwlock_t *rw) |
| ACE_NAMESPACE_INLINE_FUNCTION int | ACE_OS::rw_unlock (ACE_rwlock_t *rw) |
| ACE_NAMESPACE_INLINE_FUNCTION int | ACE_OS::rw_wrlock (ACE_rwlock_t *rw) |
| ACE_NAMESPACE_INLINE_FUNCTION int | ACE_OS::rwlock_destroy (ACE_rwlock_t *rw) |
| ACE_Export int | ACE_OS::rwlock_init (ACE_rwlock_t *rw, int type=ACE_DEFAULT_SYNCH_TYPE, const ACE_TCHAR *name=0, void *arg=0) |
| ACE_Export int | ACE_OS::sched_params (const ACE_Sched_Params &, ACE_id_t id=ACE_SELF) |
| ACE_NAMESPACE_INLINE_FUNCTION int | ACE_OS::sema_destroy (ACE_sema_t *s) |
| ACE_NAMESPACE_INLINE_FUNCTION int | ACE_OS::sema_init (ACE_sema_t *s, u_int count, int type=ACE_DEFAULT_SYNCH_TYPE, const char *name=0, void *arg=0, int max=0x7fffffff, LPSECURITY_ATTRIBUTES sa=0) |
| ACE_NAMESPACE_INLINE_FUNCTION int | ACE_OS::sema_init (ACE_sema_t *s, u_int count, int type, const wchar_t *name, void *arg=0, int max=0x7fffffff, LPSECURITY_ATTRIBUTES sa=0) |
| ACE_NAMESPACE_INLINE_FUNCTION int | ACE_OS::sema_post (ACE_sema_t *s) |
| ACE_NAMESPACE_INLINE_FUNCTION int | ACE_OS::sema_post (ACE_sema_t *s, u_int release_count) |
| ACE_NAMESPACE_INLINE_FUNCTION int | ACE_OS::sema_trywait (ACE_sema_t *s) |
| ACE_NAMESPACE_INLINE_FUNCTION int | ACE_OS::sema_wait (ACE_sema_t *s) |
| ACE_NAMESPACE_INLINE_FUNCTION int | ACE_OS::sema_wait (ACE_sema_t *s, ACE_Time_Value &tv) |
| ACE_NAMESPACE_INLINE_FUNCTION int | ACE_OS::sema_wait (ACE_sema_t *s, ACE_Time_Value *tv) |
| ACE_NAMESPACE_INLINE_FUNCTION int | ACE_OS::semctl (int int_id, int semnum, int cmd, semun) |
| ACE_NAMESPACE_INLINE_FUNCTION int | ACE_OS::semget (key_t key, int nsems, int flags) |
| ACE_NAMESPACE_INLINE_FUNCTION int | ACE_OS::semop (int int_id, struct sembuf *sops, size_t nsops) |
| ACE_NAMESPACE_INLINE_FUNCTION int | ACE_OS::thread_mutex_destroy (ACE_thread_mutex_t *m) |
| ACE_NAMESPACE_INLINE_FUNCTION int | ACE_OS::thread_mutex_init (ACE_thread_mutex_t *m, int lock_type=0, const char *name=0, ACE_mutexattr_t *arg=0) |
| ACE_NAMESPACE_INLINE_FUNCTION int | ACE_OS::thread_mutex_init (ACE_thread_mutex_t *m, int lock_type, const wchar_t *name, ACE_mutexattr_t *arg=0) |
| ACE_NAMESPACE_INLINE_FUNCTION int | ACE_OS::thread_mutex_lock (ACE_thread_mutex_t *m) |
| ACE_NAMESPACE_INLINE_FUNCTION int | ACE_OS::thread_mutex_lock (ACE_thread_mutex_t *m, const ACE_Time_Value &timeout) |
| ACE_NAMESPACE_INLINE_FUNCTION int | ACE_OS::thread_mutex_lock (ACE_thread_mutex_t *m, const ACE_Time_Value *timeout) |
| ACE_NAMESPACE_INLINE_FUNCTION int | ACE_OS::thread_mutex_trylock (ACE_thread_mutex_t *m) |
| ACE_NAMESPACE_INLINE_FUNCTION int | ACE_OS::thread_mutex_unlock (ACE_thread_mutex_t *m) |
Variables | |
| ACE_Export ACE_thread_t | ACE_OS::NULL_thread |
| ACE_Export ACE_hthread_t | ACE_OS::NULL_hthread |
| ACE_Export ACE_thread_key_t | ACE_OS::NULL_key |
Detailed Description
- Id
- OS_NS_Thread.h 85547 2009-06-07 17:57:11Z johnnyw
Originally in OS.h.
Define Documentation
| #define ACE_DEFAULT_SYNCH_TYPE USYNC_THREAD |
| #define ACE_EXPORT_MACRO ACE_Export |
| #define ACE_INLINE inline |
| #define ACE_KEY_INDEX | ( | OBJ, | |||
| KEY | ) | u_int OBJ = KEY |
| #define ACE_OS_GUARD |
| #define ACE_PTHREAD_CLEANUP_POP | ( | A | ) |
| #define ACE_PTHREAD_CLEANUP_PUSH | ( | A | ) |
| #define ACE_SCHED_FIFO 1 |
| #define ACE_SCHED_OTHER 0 |
| #define ACE_SCHED_RR 2 |
| #define ACE_SCOPE_LWP 1 |
| #define ACE_SCOPE_PROCESS 0 |
| #define ACE_SCOPE_THREAD 2 |
| #define ACE_SELF (0) |
| #define ACE_THR_PRI_FIFO_DEF 0 |
| #define ACE_THR_PRI_OTHER_DEF 0 |
| #define ACE_TSS_BASE_GUARD |
| #define ACE_TSS_CLEANUP_GUARD |
Typedef Documentation
| typedef HANDLE ACE_hthread_t |
| typedef DWORD ACE_id_t |
| typedef int ACE_idtype_t |
| typedef DWORD ACE_OS_thread_key_t |
| typedef int ACE_pri_t |
| typedef int ACE_Sched_Priority |
| typedef ACE_OS_thread_key_t ACE_thread_key_t |
| typedef DWORD ACE_thread_t |
