ACE.h File Reference

#include "ace/config-lite.h"
#include "ace/OS_NS_math.h"
#include "ace/Flag_Manip.h"
#include "ace/Handle_Ops.h"
#include "ace/Lib_Find.h"
#include "ace/Init_ACE.h"
#include "ace/Sock_Connect.h"
#include "ace/Default_Constants.h"
#include "ace/ACE.inl"

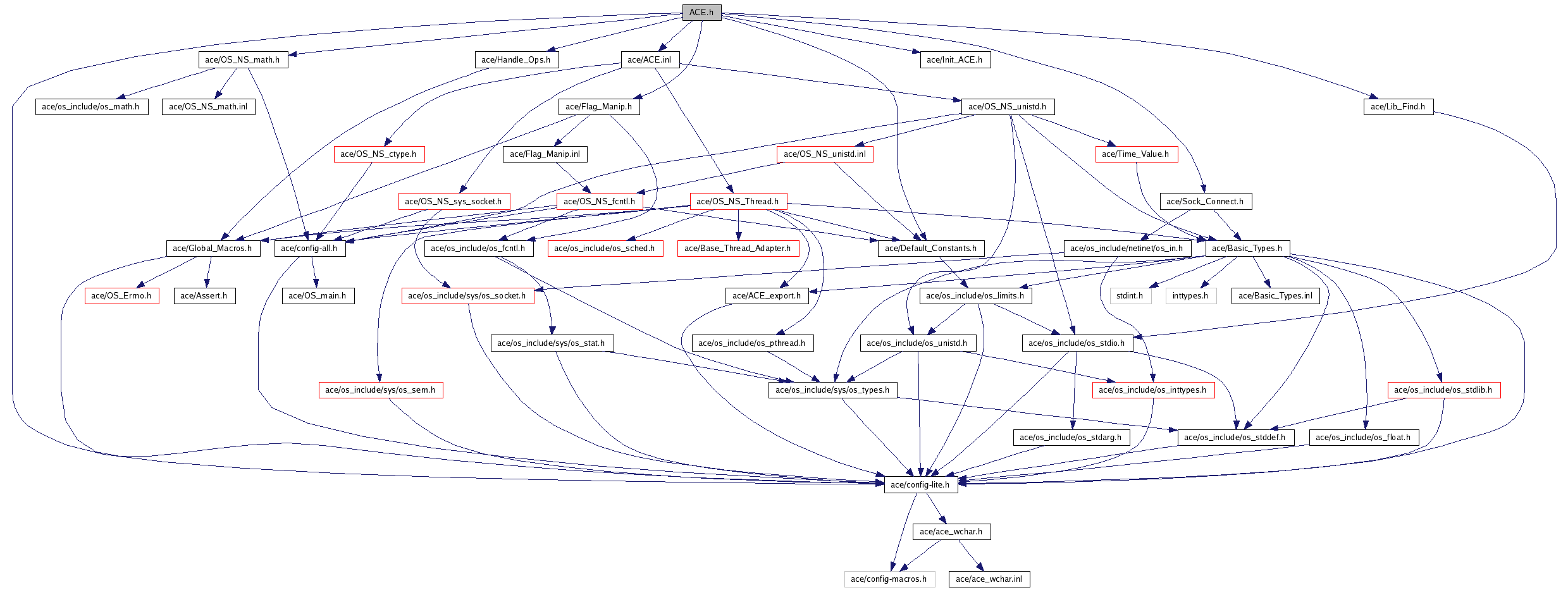

Include dependency graph for ACE.h:


Namespaces

namespace  ACE
 The namespace containing the ACE framework itself.

Defines

#define ACE_EXPORT_MACRO   ACE_Export

Functions

ACE_Export u_int ACE::major_version (void)
 e.g., the "5" in ACE 5.1.12.
ACE_Export u_int ACE::minor_version (void)
 e.g., the "1" in ACE 5.1.12.
ACE_Export u_int ACE::beta_version (void)
ACE_Export const ACE_TCHARACE::compiler_name (void)
 E.g., the "SunPro C++" in SunPro C++ 4.32.0.
ACE_Export u_int ACE::compiler_major_version (void)
 E.g., the "4" in SunPro C++ 4.32.0.
ACE_Export u_int ACE::compiler_minor_version (void)
 E.g., the "32" in SunPro C++ 4.32.0.
ACE_Export u_int ACE::compiler_beta_version (void)
 E.g., the "0" in SunPro C++ 4.32.0.
ACE_Export int ACE::out_of_handles (int error)
ACE_Export bool ACE::wild_match (const char *s, const char *pattern, bool case_sensitive=true, bool character_classes=false)
ACE_Export int ACE::handle_timed_accept (ACE_HANDLE listener, ACE_Time_Value *timeout, bool restart)
ACE_Export ACE_HANDLE ACE::handle_timed_complete (ACE_HANDLE listener, const ACE_Time_Value *timeout, int is_tli=0)
ACE_Export int ACE::set_handle_limit (int new_limit=-1, int increase_limit_only=0)
ACE_Export int ACE::max_handles (void)
ACE_Export ACE_TCHARACE::strenvdup (const ACE_TCHAR *str)
ACE_Export const char * ACE::strend (const char *s)
ACE_Export char * ACE::strnew (const char *s)
ACE_NAMESPACE_INLINE_FUNCTION void ACE::strdelete (char *s)
 Delete the memory allocated by strnew.
ACE_Export char * ACE::strndup (const char *str, size_t n)
ACE_Export char * ACE::strnnew (const char *str, size_t n)
ACE_NAMESPACE_INLINE_FUNCTION bool ACE::isdotdir (const char *s)
 Determine if a specified pathname is "dot dir" (ie. "." or "..").
ACE_Export const wchar_t * ACE::strend (const wchar_t *s)
ACE_Export wchar_t * ACE::strnew (const wchar_t *s)
ACE_NAMESPACE_INLINE_FUNCTION void ACE::strdelete (wchar_t *s)
ACE_Export wchar_t * ACE::strndup (const wchar_t *str, size_t n)
ACE_Export wchar_t * ACE::strnnew (const wchar_t *str, size_t n)
ACE_NAMESPACE_INLINE_FUNCTION bool ACE::isdotdir (const wchar_t *s)
ACE_Export const ACE_TCHARACE::execname (const ACE_TCHAR *pathname)
ACE_Export const ACE_TCHARACE::basename (const ACE_TCHAR *pathname, ACE_TCHAR delim=ACE_DIRECTORY_SEPARATOR_CHAR)
ACE_Export const ACE_TCHARACE::dirname (const ACE_TCHAR *pathname, ACE_TCHAR delim=ACE_DIRECTORY_SEPARATOR_CHAR)
ACE_Export ACE_TCHARACE::timestamp (ACE_TCHAR date_and_time[], size_t time_len, bool return_pointer_to_first_digit=false)
ACE_Export pid_t ACE::fork (const ACE_TCHAR *program_name=ACE_TEXT("<unknown>"), int avoid_zombies=0)
ACE_Export int ACE::daemonize (const ACE_TCHAR pathname[]=ACE_TEXT("/"), bool close_all_handles=ACE_DEFAULT_CLOSE_ALL_HANDLES, const ACE_TCHAR program_name[]=ACE_TEXT("<unknown>"))
ACE_Export size_t ACE::round_to_pagesize (size_t len)
 Rounds the request to a multiple of the page size.
ACE_Export size_t ACE::round_to_allocation_granularity (size_t len)
 Rounds the request to a multiple of the allocation granularity.
ACE_Export size_t ACE::format_hexdump (const char *buffer, size_t size, ACE_TCHAR *obuf, size_t obuf_sz)
ACE_Export u_long ACE::hash_pjw (const char *str)
 Computes the hash value of {str} using the "Hash PJW" routine.
ACE_Export u_long ACE::hash_pjw (const char *str, size_t len)
 Computes the hash value of {str} using the "Hash PJW" routine.
ACE_Export u_long ACE::hash_pjw (const wchar_t *str)
 Computes the hash value of {str} using the "Hash PJW" routine.
ACE_Export u_long ACE::hash_pjw (const wchar_t *str, size_t len)
 Computes the hash value of {str} using the "Hash PJW" routine.
ACE_Export ACE_UINT16 ACE::crc_ccitt (const char *str)
 Computes CRC-CCITT for the string.
ACE_Export ACE_UINT16 ACE::crc_ccitt (const void *buf, size_t len, ACE_UINT16 crc=0)
 Computes CRC-CCITT for the buffer.
ACE_Export ACE_UINT16 ACE::crc_ccitt (const iovec *iov, int len, ACE_UINT16 crc=0)
 Computes CRC-CCITT for the @ len iovec buffers.
ACE_Export ACE_UINT32 ACE::crc32 (const char *str)
 Computes the ISO 8802-3 standard 32 bits CRC for the string.
ACE_Export ACE_UINT32 ACE::crc32 (const void *buf, size_t len, ACE_UINT32 crc=0)
 Computes the ISO 8802-3 standard 32 bits CRC for the buffer.
ACE_Export ACE_UINT32 ACE::crc32 (const iovec *iov, int len, ACE_UINT32 crc=0)
ACE_Export u_long ACE::gcd (u_long x, u_long y)
 Euclid's greatest common divisor algorithm.
ACE_Export u_long ACE::minimum_frame_size (u_long period1, u_long period2)
 Calculates the minimum enclosing frame size for the given values.
ACE_Export u_long ACE::is_prime (const u_long n, const u_long min_factor, const u_long max_factor)
ACE_Export int ACE::map_errno (int error)
ACE_Export const ACE_TCHARACE::sock_error (int error)
ACE_Export bool ACE::is_sock_error (int error)
ACE_Export int ACE::process_active (pid_t pid)
ACE_Export int ACE::terminate_process (pid_t pid)
ACE_NAMESPACE_INLINE_FUNCTION void ACE::unique_name (const void *object, ACE_TCHAR *name, size_t length)
ACE_NAMESPACE_INLINE_FUNCTION
u_long
ACE::log2 (u_long num)
 Computes the base 2 logarithm of {num}.
ACE_NAMESPACE_INLINE_FUNCTION
ACE_TCHAR
ACE::nibble2hex (u_int n)
 Hex conversion utility.
ACE_NAMESPACE_INLINE_FUNCTION
u_char
ACE::hex2byte (ACE_TCHAR c)
 Convert a hex character to its byte representation.
ACE_Export bool ACE::debug (void)
ACE_Export void ACE::debug (bool onoff)
ACE_Export int ACE::select (int width, ACE_Handle_Set *readfds, ACE_Handle_Set *writefds=0, ACE_Handle_Set *exceptfds=0, const ACE_Time_Value *timeout=0)
 Wrapper facade for select that uses ACE_Handle_Sets.
ACE_Export int ACE::select (int width, ACE_Handle_Set &readfds, const ACE_Time_Value *timeout=0)
ACE_NAMESPACE_INLINE_FUNCTION int ACE::handle_read_ready (ACE_HANDLE handle, const ACE_Time_Value *timeout)
 Timed wait for handle to get read ready.
ACE_NAMESPACE_INLINE_FUNCTION int ACE::handle_write_ready (ACE_HANDLE handle, const ACE_Time_Value *timeout)
 Timed wait for handle to get write ready.
ACE_NAMESPACE_INLINE_FUNCTION int ACE::handle_exception_ready (ACE_HANDLE handle, const ACE_Time_Value *timeout)
 Timed wait for handle to get exception ready.
ACE_Export int ACE::handle_ready (ACE_HANDLE handle, const ACE_Time_Value *timeout, int read_ready, int write_ready, int exception_ready)
 Timed wait for handle to get read, write, or exception ready.
ACE_Export int ACE::enter_recv_timedwait (ACE_HANDLE handle, const ACE_Time_Value *timeout, int &val)
ACE_Export int ACE::enter_send_timedwait (ACE_HANDLE handle, const ACE_Time_Value *timeout, int &val)
ACE_Export void ACE::record_and_set_non_blocking_mode (ACE_HANDLE handle, int &val)
ACE_Export void ACE::restore_non_blocking_mode (ACE_HANDLE handle, int val)
ACE_NAMESPACE_INLINE_FUNCTION
ssize_t
ACE::recv_i (ACE_HANDLE handle, void *buf, size_t len)
ACE_Export ssize_t ACE::recv_n_i (ACE_HANDLE handle, void *buf, size_t len, int flags, size_t *bytes_transferred)
ACE_Export ssize_t ACE::recv_n_i (ACE_HANDLE handle, void *buf, size_t len, int flags, const ACE_Time_Value *timeout, size_t *bytes_transferred)
ACE_Export ssize_t ACE::t_rcv_n_i (ACE_HANDLE handle, void *buf, size_t len, int *flags, size_t *bytes_transferred)
ACE_Export ssize_t ACE::t_rcv_n_i (ACE_HANDLE handle, void *buf, size_t len, int *flags, const ACE_Time_Value *timeout, size_t *bytes_transferred)
ACE_Export ssize_t ACE::recv_n_i (ACE_HANDLE handle, void *buf, size_t len, size_t *bytes_transferred)
ACE_Export ssize_t ACE::recv_n_i (ACE_HANDLE handle, void *buf, size_t len, const ACE_Time_Value *timeout, size_t *bytes_transferred)
ACE_Export ssize_t ACE::recvv_n_i (ACE_HANDLE handle, iovec *iov, int iovcnt, size_t *bytes_transferred)
ACE_Export ssize_t ACE::recvv_n_i (ACE_HANDLE handle, iovec *iov, int iovcnt, const ACE_Time_Value *timeout, size_t *bytes_transferred)
ACE_NAMESPACE_INLINE_FUNCTION
ssize_t
ACE::send_i (ACE_HANDLE handle, const void *buf, size_t len)
ACE_Export ssize_t ACE::send_n_i (ACE_HANDLE handle, const void *buf, size_t len, int flags, size_t *bytes_transferred)
ACE_Export ssize_t ACE::send_n_i (ACE_HANDLE handle, const void *buf, size_t len, int flags, const ACE_Time_Value *timeout, size_t *bytes_transferred)
ACE_Export ssize_t ACE::t_snd_n_i (ACE_HANDLE handle, const void *buf, size_t len, int flags, size_t *bytes_transferred)
ACE_Export ssize_t ACE::t_snd_n_i (ACE_HANDLE handle, const void *buf, size_t len, int flags, const ACE_Time_Value *timeout, size_t *bytes_transferred)
ACE_Export ssize_t ACE::send_n_i (ACE_HANDLE handle, const void *buf, size_t len, size_t *bytes_transferred)
ACE_Export ssize_t ACE::send_n_i (ACE_HANDLE handle, const void *buf, size_t len, const ACE_Time_Value *timeout, size_t *bytes_transferred)
ACE_Export ssize_t ACE::sendv_n_i (ACE_HANDLE handle, const iovec *iov, int iovcnt, size_t *bytes_transferred)
ACE_Export ssize_t ACE::sendv_n_i (ACE_HANDLE handle, const iovec *iov, int iovcnt, const ACE_Time_Value *timeout, size_t *bytes_transferred)
I/O operations
Notes on common parameters:

handle is the connected endpoint that will be used for I/O.

buf is the buffer to write from or receive into.

len is the number of bytes to transfer.

The timeout parameter in the following methods indicates how long to blocking trying to transfer data. If timeout == 0, then the call behaves as a normal send/recv call, i.e., for blocking sockets, the call will block until action is possible; for non-blocking sockets, EWOULDBLOCK will be returned if no action is immediately possible.

If timeout != 0, the call will wait until the relative time specified in *timeout elapses.

The "_n()" I/O methods keep looping until all the data has been transferred. These methods also work for sockets in non-blocking mode i.e., they keep looping on EWOULDBLOCK. timeout is used to make sure we keep making progress, i.e., the same timeout value is used for every I/O operation in the loop and the timeout is not counted down.

The return values for the "*_n()" methods match the return values from the non "_n()" methods and are specified as follows:

  • On complete transfer, the number of bytes transferred is returned.
  • On timeout, -1 is returned, errno == ETIME.
  • On error, -1 is returned, errno is set to appropriate error.
  • On EOF, 0 is returned, errno is irrelevant.

On partial transfers, i.e., if any data is transferred before timeout / error / EOF, bytes_transferred> will contain the number of bytes transferred.

Methods with iovec parameter are I/O vector variants of the I/O operations.

Methods with the extra flags argument will always result in send getting called. Methods without the extra flags argument will result in send getting called on Win32 platforms, and write getting called on non-Win32 platforms.

ACE_Export ssize_t ACE::recv (ACE_HANDLE handle, void *buf, size_t len, int flags, const ACE_Time_Value *timeout=0)
 Receive into a variable number of pieces.
ACE_Export ssize_t ACE::t_rcv (ACE_HANDLE handle, void *buf, size_t len, int *flags, const ACE_Time_Value *timeout=0)
 Receive into a variable number of pieces.
ACE_Export ssize_t ACE::recv (ACE_HANDLE handle, void *buf, size_t len, const ACE_Time_Value *timeout=0)
 Receive into a variable number of pieces.
ACE_Export ssize_t ACE::recvmsg (ACE_HANDLE handle, struct msghdr *msg, int flags, const ACE_Time_Value *timeout=0)
 Receive into a variable number of pieces.
ACE_Export ssize_t ACE::recvfrom (ACE_HANDLE handle, char *buf, int len, int flags, struct sockaddr *addr, int *addrlen, const ACE_Time_Value *timeout=0)
 Receive into a variable number of pieces.
ACE_NAMESPACE_INLINE_FUNCTION
ssize_t
ACE::recv_n (ACE_HANDLE handle, void *buf, size_t len, int flags, const ACE_Time_Value *timeout=0, size_t *bytes_transferred=0)
 Receive into a variable number of pieces.
ACE_NAMESPACE_INLINE_FUNCTION
ssize_t
ACE::t_rcv_n (ACE_HANDLE handle, void *buf, size_t len, int *flags, const ACE_Time_Value *timeout=0, size_t *bytes_transferred=0)
 Receive into a variable number of pieces.
ACE_NAMESPACE_INLINE_FUNCTION
ssize_t
ACE::recv_n (ACE_HANDLE handle, void *buf, size_t len, const ACE_Time_Value *timeout=0, size_t *bytes_transferred=0)
 Receive into a variable number of pieces.
ACE_Export ssize_t ACE::recv (ACE_HANDLE handle, size_t n,...)
 Receive into a variable number of pieces.
ACE_Export ssize_t ACE::recvv (ACE_HANDLE handle, iovec *iov, int iovcnt, const ACE_Time_Value *timeout=0)
 Receive into a variable number of pieces.
ACE_NAMESPACE_INLINE_FUNCTION
ssize_t
ACE::recvv_n (ACE_HANDLE handle, iovec *iov, int iovcnt, const ACE_Time_Value *timeout=0, size_t *bytes_transferred=0)
 Receive into a variable number of pieces.
ACE_Export ssize_t ACE::recv_n (ACE_HANDLE handle, ACE_Message_Block *message_block, const ACE_Time_Value *timeout=0, size_t *bytes_transferred=0)
 Receive into a variable number of pieces.
ACE_Export ssize_t ACE::send (ACE_HANDLE handle, const void *buf, size_t len, int flags, const ACE_Time_Value *timeout=0)
 Receive into a variable number of pieces.
ACE_Export ssize_t ACE::t_snd (ACE_HANDLE handle, const void *buf, size_t len, int flags, const ACE_Time_Value *timeout=0)
 Receive into a variable number of pieces.
ACE_Export ssize_t ACE::send (ACE_HANDLE handle, const void *buf, size_t len, const ACE_Time_Value *timeout=0)
 Receive into a variable number of pieces.
ACE_Export ssize_t ACE::sendmsg (ACE_HANDLE handle, const struct msghdr *msg, int flags, const ACE_Time_Value *timeout=0)
 Receive into a variable number of pieces.
ACE_Export ssize_t ACE::sendto (ACE_HANDLE handle, const char *buf, int len, int flags, const struct sockaddr *addr, int addrlen, const ACE_Time_Value *timeout=0)
 Receive into a variable number of pieces.
ACE_NAMESPACE_INLINE_FUNCTION
ssize_t
ACE::send_n (ACE_HANDLE handle, const void *buf, size_t len, int flags, const ACE_Time_Value *timeout=0, size_t *bytes_transferred=0)
 Receive into a variable number of pieces.
ACE_NAMESPACE_INLINE_FUNCTION
ssize_t
ACE::t_snd_n (ACE_HANDLE handle, const void *buf, size_t len, int flags, const ACE_Time_Value *timeout=0, size_t *bytes_transferred=0)
 Receive into a variable number of pieces.
ACE_NAMESPACE_INLINE_FUNCTION
ssize_t
ACE::send_n (ACE_HANDLE handle, const void *buf, size_t len, const ACE_Time_Value *timeout=0, size_t *bytes_transferred=0)
 Receive into a variable number of pieces.
ACE_Export ssize_t ACE::send (ACE_HANDLE handle, size_t n,...)
 Varargs variant.
ACE_Export ssize_t ACE::sendv (ACE_HANDLE handle, const iovec *iov, int iovcnt, const ACE_Time_Value *timeout=0)
 Receive into a variable number of pieces.
ACE_NAMESPACE_INLINE_FUNCTION
ssize_t
ACE::sendv_n (ACE_HANDLE handle, const iovec *iov, int iovcnt, const ACE_Time_Value *timeout=0, size_t *bytes_transferred=0)
 Receive into a variable number of pieces.
ACE_Export ssize_t ACE::send_n (ACE_HANDLE handle, const ACE_Message_Block *message_block, const ACE_Time_Value *timeout=0, size_t *bytes_transferred=0)
ACE_NAMESPACE_INLINE_FUNCTION
ssize_t
ACE::read_n (ACE_HANDLE handle, void *buf, size_t len, size_t *bytes_transferred=0)
 Receive into a variable number of pieces.
ACE_NAMESPACE_INLINE_FUNCTION
ssize_t
ACE::write_n (ACE_HANDLE handle, const void *buf, size_t len, size_t *bytes_transferred=0)
 Receive into a variable number of pieces.
ACE_Export ssize_t ACE::write_n (ACE_HANDLE handle, const ACE_Message_Block *message_block, size_t *bytes_transferred=0)
ACE_Export ssize_t ACE::readv_n (ACE_HANDLE handle, iovec *iov, int iovcnt, size_t *bytes_transferred=0)
 Receive into a variable number of pieces.
ACE_Export ssize_t ACE::writev_n (ACE_HANDLE handle, const iovec *iov, int iovcnt, size_t *bytes_transferred=0)
 Receive into a variable number of pieces.

Detailed Description

Id
ACE.h 84025 2008-12-15 09:22:15Z olli

This file contains value added ACE functions that extend the behavior of the UNIX and Win32 OS calls.

All these ACE static functions are consolidated in a single place in order to manage the namespace better. These functions are put here rather than in ACE_OS in order to separate concerns.

Author:
Douglas C. Schmidt <schmidt@cs.wustl.edu>

Define Documentation

#define ACE_EXPORT_MACRO   ACE_Export


Generated on Mon Jul 13 16:00:40 2009 for ACE by  doxygen 1.5.8
