ACE_Timer_Wheel_T< TYPE, FUNCTOR, ACE_LOCK > Class Template Reference

Provides a Timing Wheel version of ACE_Timer_Queue. More...

#include <Timer_Wheel_T.h>

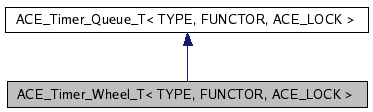

Inheritance diagram for ACE_Timer_Wheel_T< TYPE, FUNCTOR, ACE_LOCK >:

Inheritance graph
[legend]

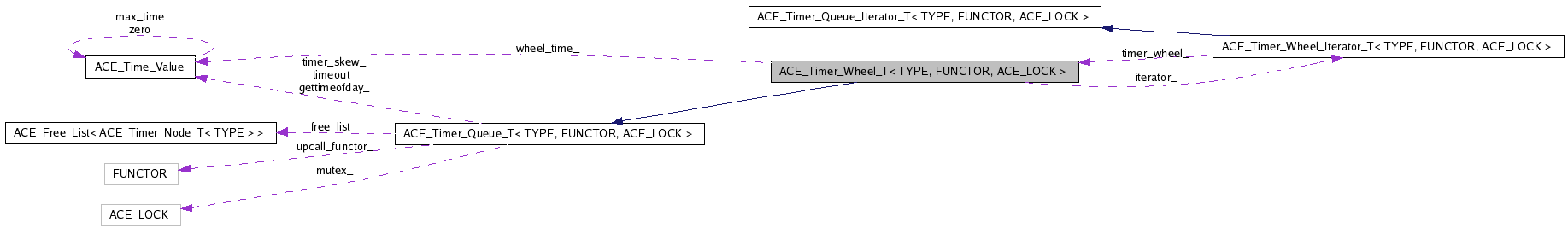

Collaboration diagram for ACE_Timer_Wheel_T< TYPE, FUNCTOR, ACE_LOCK >:

Collaboration graph
[legend]

List of all members.

Public Types

typedef
ACE_Timer_Wheel_Iterator_T
< TYPE, FUNCTOR, ACE_LOCK >
Iterator
 Type of iterator.
typedef ACE_Timer_Node_T< TYPE > Node
typedef ACE_Timer_Queue_T
< TYPE, FUNCTOR, ACE_LOCK >
Base
 Type inherited from.
typedef ACE_Free_List< NodeFreeList

Public Member Functions

 ACE_Timer_Wheel_T (FUNCTOR *upcall_functor=0, FreeList *freelist=0)
 Default constructor.
 ACE_Timer_Wheel_T (u_int spoke_count, u_int resolution, size_t prealloc=0, FUNCTOR *upcall_functor=0, FreeList *freelist=0)
 Constructor with opportunities to set the wheelsize and resolution.
virtual ~ACE_Timer_Wheel_T (void)
 Destructor.
virtual bool is_empty (void) const
 True if queue is empty, else false.
virtual const ACE_Time_Valueearliest_time (void) const
virtual int reset_interval (long timer_id, const ACE_Time_Value &interval)
virtual int cancel (const TYPE &type, int dont_call_handle_close=1)
virtual int cancel (long timer_id, const void **act=0, int dont_call_handle_close=1)
virtual int expire (void)
int expire (const ACE_Time_Value &current_time)
virtual
ACE_Timer_Queue_Iterator_T
< TYPE, FUNCTOR, ACE_LOCK > &
iter (void)
 Returns a pointer to this <ACE_Timer_Queue_T>'s iterator.
virtual ACE_Timer_Node_T< TYPE > * remove_first (void)
 Removes the earliest node from the queue and returns it.
virtual void dump (void) const
 Dump the state of an object.
virtual ACE_Timer_Node_T< TYPE > * get_first (void)
 Reads the earliest node from the queue and returns it.

Protected Member Functions

virtual long schedule_i (const TYPE &type, const void *act, const ACE_Time_Value &future_time, const ACE_Time_Value &interval)
 Schedules a timer.

Private Member Functions

ACE_Timer_Node_T< TYPE > * get_first_i (void) const
ACE_Timer_Node_T< TYPE > * remove_first_expired (const ACE_Time_Value &now)
void open_i (size_t prealloc, u_int spokes, u_int res)
virtual void reschedule (ACE_Timer_Node_T< TYPE > *)
ACE_Timer_Node_T< TYPE > * find_spoke_node (u_int spoke, long timer_id) const
 Searches for a node by timer_id within one spoke.
ACE_Timer_Node_T< TYPE > * find_node (long timer_id) const
u_int calculate_spoke (const ACE_Time_Value &expire) const
long generate_timer_id (u_int spoke)
void schedule_i (ACE_Timer_Node_T< TYPE > *n, u_int spoke, const ACE_Time_Value &expire)
 The shared scheduling functionality between schedule() and reschedule().
void cancel_i (ACE_Timer_Node_T< TYPE > *n)
 Shared subset of the two cancel() methods.
void unlink (ACE_Timer_Node_T< TYPE > *n)
void recalc_earliest (const ACE_Time_Value &last)
int power2bits (int n, int min_bits, int max_bits)
 ACE_Timer_Wheel_T (const ACE_Timer_Wheel_T< TYPE, FUNCTOR, ACE_LOCK > &)
void operator= (const ACE_Timer_Wheel_T< TYPE, FUNCTOR, ACE_LOCK > &)

Private Attributes

ACE_Timer_Node_T< TYPE > ** spokes_
 Timing Wheel.
u_int spoke_count_
 Size of the timing wheel.
int spoke_bits_
 Number of timer_id bits used for the spoke.
u_int max_per_spoke_
 Maximum number of timers per spoke.
int res_bits_
 Resolution (in microsoconds) of the timing wheel.
u_int earliest_spoke_
 Index of the list with the earliest time.
Iteratoriterator_
 Iterator used to expire timers.
ACE_Time_Value wheel_time_
 The total amount of time in one iteration of the wheel. (resolution * spoke_count).
u_int timer_count_
 The total number of timers currently scheduled.

Friends

class ACE_Timer_Wheel_Iterator_T< TYPE, FUNCTOR, ACE_LOCK >
 Iterator is a friend.


Detailed Description

template<class TYPE, class FUNCTOR, class ACE_LOCK>
class ACE_Timer_Wheel_T< TYPE, FUNCTOR, ACE_LOCK >

Provides a Timing Wheel version of ACE_Timer_Queue.

This implementation uses a hash table of ordered doubly- linked lists of absolute times. The enhancements over the ACE_Timer_List include adding a free list and the ability to preallocate nodes. Timer Wheel is based on the timing wheel implementation used in Adam M. Costello and George Varghese's paper "Redesigning the BSD Callout and Timer Facilities" (http://dworkin.wustl.edu/~varghese/PAPERS/newbsd.ps.Z)


Member Typedef Documentation

template<class TYPE , class FUNCTOR , class ACE_LOCK >
typedef ACE_Timer_Queue_T<TYPE, FUNCTOR, ACE_LOCK> ACE_Timer_Wheel_T< TYPE, FUNCTOR, ACE_LOCK >::Base

Type inherited from.

template<class TYPE , class FUNCTOR , class ACE_LOCK >
typedef ACE_Free_List<Node> ACE_Timer_Wheel_T< TYPE, FUNCTOR, ACE_LOCK >::FreeList

template<class TYPE , class FUNCTOR , class ACE_LOCK >
typedef ACE_Timer_Wheel_Iterator_T<TYPE, FUNCTOR, ACE_LOCK> ACE_Timer_Wheel_T< TYPE, FUNCTOR, ACE_LOCK >::Iterator

Type of iterator.

template<class TYPE , class FUNCTOR , class ACE_LOCK >
typedef ACE_Timer_Node_T<TYPE> ACE_Timer_Wheel_T< TYPE, FUNCTOR, ACE_LOCK >::Node


Constructor & Destructor Documentation

template<class TYPE , class FUNCTOR , class ACE_LOCK >
ACE_Timer_Wheel_T< TYPE, FUNCTOR, ACE_LOCK >::ACE_Timer_Wheel_T ( FUNCTOR *  upcall_functor = 0,
FreeList freelist = 0
) [inline]

Default constructor.

Default Constructor that sets defaults for spoke_count_ and resolution_ and doesn't do any preallocation.

Parameters:
upcall_functor A pointer to a functor to use instead of the default
freelist A pointer to a freelist to use instead of the default

template<class TYPE , class FUNCTOR , class ACE_LOCK >
ACE_Timer_Wheel_T< TYPE, FUNCTOR, ACE_LOCK >::ACE_Timer_Wheel_T ( u_int  spoke_count,
u_int  resolution,
size_t  prealloc = 0,
FUNCTOR *  upcall_functor = 0,
FreeList freelist = 0
) [inline]

Constructor with opportunities to set the wheelsize and resolution.

Constructor that sets up the timing wheel and also may preallocate some nodes on the free list

Parameters:
spoke_count The number of lists in the timer wheel
resolution The time resolution in milliseconds used by the hashing function
prealloc The number of entries to prealloc in the free_list
upcall_functor A pointer to a functor to use instead of the default
freelist A pointer to a freelist to use instead of the default

template<class TYPE , class FUNCTOR , class ACE_LOCK >
ACE_Timer_Wheel_T< TYPE, FUNCTOR, ACE_LOCK >::~ACE_Timer_Wheel_T ( void   )  [inline, virtual]

Destructor.

Destructor just cleans up its memory.

template<class TYPE , class FUNCTOR , class ACE_LOCK >
ACE_Timer_Wheel_T< TYPE, FUNCTOR, ACE_LOCK >::ACE_Timer_Wheel_T ( const ACE_Timer_Wheel_T< TYPE, FUNCTOR, ACE_LOCK > &   )  [private]


Member Function Documentation

template<class TYPE , class FUNCTOR , class ACE_LOCK >
u_int ACE_Timer_Wheel_T< TYPE, FUNCTOR, ACE_LOCK >::calculate_spoke ( const ACE_Time_Value t  )  const [inline, private]

Uses a simple hash to find which spoke to use based on when the timer is due to expire. Hopefully the 64bit int operations avoid any overflow problems.

template<class TYPE , class FUNCTOR , class ACE_LOCK >
int ACE_Timer_Wheel_T< TYPE, FUNCTOR, ACE_LOCK >::cancel ( long  timer_id,
const void **  act = 0,
int  skip_close = 1
) [inline, virtual]

Cancels the single timer that is specified by the timer_id. In this case the timer_id is actually a pointer to the node, so we cast it to the node. This can be dangerous if the timer_id is made up (or deleted twice) so we do a little sanity check. Finally we update the earliest time in case the earliest timer was removed.

Parameters:
timer_id Timer Identifier
act Asychronous Completion Token (AKA magic cookie): If this is non-zero, stores the magic cookie of the cancelled timer here.
skip_close If this non-zero, the cancellation method of the functor will not be called.
Returns:
1 for sucess and 0 if the timer_id wasn't found (or was found to be invalid)

Implements ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >.

template<class TYPE , class FUNCTOR , class ACE_LOCK >
int ACE_Timer_Wheel_T< TYPE, FUNCTOR, ACE_LOCK >::cancel ( const TYPE &  type,
int  skip_close = 1
) [inline, virtual]

Cancel all timer associated with type. If dont_call_handle_close is 0 then the <functor> will be invoked. Returns number of timers cancelled.

Goes through every list in the wheel and whenever we find one with the correct type value, we remove it and continue. At the end make sure we reset the earliest time value in case the earliest timers were removed.

Parameters:
type The value to search for.
skip_close If this non-zero, the cancellation method of the functor will not be called for each cancelled timer.
Returns:
Number of timers cancelled

Implements ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >.

template<class TYPE , class FUNCTOR , class ACE_LOCK >
void ACE_Timer_Wheel_T< TYPE, FUNCTOR, ACE_LOCK >::cancel_i ( ACE_Timer_Node_T< TYPE > *  n  )  [inline, private]

Shared subset of the two cancel() methods.

template<class TYPE , class FUNCTOR , class ACE_LOCK >
void ACE_Timer_Wheel_T< TYPE, FUNCTOR, ACE_LOCK >::dump ( void   )  const [inline, virtual]

Dump the state of an object.

Dumps out the size of the wheel, the resolution, and the contents of the wheel.

Reimplemented from ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >.

template<class TYPE , class FUNCTOR , class ACE_LOCK >
const ACE_Time_Value & ACE_Timer_Wheel_T< TYPE, FUNCTOR, ACE_LOCK >::earliest_time ( void   )  const [inline, virtual]

Returns the time of the earlier node in the ACE_Timer_Wheel. Must be called on a non-empty queue.

Returns:
First (earliest) node in the wheel_'s earliest_spoke_ list

Implements ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >.

template<class TYPE , class FUNCTOR , class ACE_LOCK >
int ACE_Timer_Wheel_T< TYPE, FUNCTOR, ACE_LOCK >::expire ( const ACE_Time_Value cur_time  )  [inline, virtual]

This is a specialized version of expire that is more suited for the internal data representation.

Parameters:
cur_time The time to expire timers up to.
Returns:
Number of timers expired

Reimplemented from ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >.

template<class TYPE , class FUNCTOR , class ACE_LOCK >
int ACE_Timer_Wheel_T< TYPE, FUNCTOR, ACE_LOCK >::expire ( void   )  [inline, virtual]

Run the <functor> for all timers whose values are <= <ACE_OS::gettimeofday>. Also accounts for <timer_skew>. Returns the number of timers canceled.

Dummy version of expire to get rid of warnings in Sun CC 4.2 Just call the expire of the base class.

Reimplemented from ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >.

template<class TYPE , class FUNCTOR , class ACE_LOCK >
ACE_Timer_Node_T< TYPE > * ACE_Timer_Wheel_T< TYPE, FUNCTOR, ACE_LOCK >::find_node ( long  timer_id  )  const [inline, private]

Searches all spokes for a node matching the specified timer_id Uses the spoke encoded in the timer_id as a starting place.

template<class TYPE , class FUNCTOR , class ACE_LOCK >
ACE_Timer_Node_T< TYPE > * ACE_Timer_Wheel_T< TYPE, FUNCTOR, ACE_LOCK >::find_spoke_node ( u_int  spoke,
long  timer_id
) const [inline, private]

Searches for a node by timer_id within one spoke.

template<class TYPE , class FUNCTOR , class ACE_LOCK >
long ACE_Timer_Wheel_T< TYPE, FUNCTOR, ACE_LOCK >::generate_timer_id ( u_int  spoke  )  [inline, private]

Generates a unique timer_id for the given spoke. It should be pretty fast until the point where the counter overflows. At that time you have to do exhaustive searches within the spoke to ensure that a particular timer id is not already in use. Some optimizations are in place so that this hopefully doesn't have to happen often.

template<class TYPE , class FUNCTOR , class ACE_LOCK >
ACE_Timer_Node_T< TYPE > * ACE_Timer_Wheel_T< TYPE, FUNCTOR, ACE_LOCK >::get_first ( void   )  [inline, virtual]

Reads the earliest node from the queue and returns it.

Returns the earliest node without removing it

Returns:
The earliest timer node.

Implements ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >.

template<class TYPE , class FUNCTOR , class ACE_LOCK >
ACE_Timer_Node_T< TYPE > * ACE_Timer_Wheel_T< TYPE, FUNCTOR, ACE_LOCK >::get_first_i ( void   )  const [inline, private]

template<class TYPE , class FUNCTOR , class ACE_LOCK >
bool ACE_Timer_Wheel_T< TYPE, FUNCTOR, ACE_LOCK >::is_empty ( void   )  const [inline, virtual]

True if queue is empty, else false.

Check to see if the wheel is empty

Returns:
True if empty

Implements ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >.

template<class TYPE , class FUNCTOR , class ACE_LOCK >
ACE_Timer_Queue_Iterator_T< TYPE, FUNCTOR, ACE_LOCK > & ACE_Timer_Wheel_T< TYPE, FUNCTOR, ACE_LOCK >::iter ( void   )  [inline, virtual]

Returns a pointer to this <ACE_Timer_Queue_T>'s iterator.

Returns:
The iterator

Implements ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >.

template<class TYPE , class FUNCTOR , class ACE_LOCK >
void ACE_Timer_Wheel_T< TYPE, FUNCTOR, ACE_LOCK >::open_i ( size_t  prealloc,
u_int  spokes,
u_int  res
) [inline, private]

Initialize the queue. Uses the established members for all needed information.

template<class TYPE , class FUNCTOR , class ACE_LOCK >
void ACE_Timer_Wheel_T< TYPE, FUNCTOR, ACE_LOCK >::operator= ( const ACE_Timer_Wheel_T< TYPE, FUNCTOR, ACE_LOCK > &   )  [private]

template<class TYPE , class FUNCTOR , class ACE_LOCK >
int ACE_Timer_Wheel_T< TYPE, FUNCTOR, ACE_LOCK >::power2bits ( int  n,
int  min_bits,
int  max_bits
) [inline, private]

template<class TYPE , class FUNCTOR , class ACE_LOCK >
void ACE_Timer_Wheel_T< TYPE, FUNCTOR, ACE_LOCK >::recalc_earliest ( const ACE_Time_Value last  )  [inline, private]

There are a few places where we have to figure out which timer will expire next. This method makes the assumption that spokes are always sorted, and that timers are always in the correct spoke determined from their expiration time. The last time is always passed in, even though you can often calculate it as get_first()->get_timer_value().

template<class TYPE , class FUNCTOR , class ACE_LOCK >
ACE_Timer_Node_T< TYPE > * ACE_Timer_Wheel_T< TYPE, FUNCTOR, ACE_LOCK >::remove_first ( void   )  [inline, virtual]

Removes the earliest node from the queue and returns it.

Removes the earliest node and then find the new <earliest_spoke_>

Returns:
The earliest timer node.

Implements ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >.

template<class TYPE , class FUNCTOR , class ACE_LOCK >
ACE_Timer_Node_T< TYPE > * ACE_Timer_Wheel_T< TYPE, FUNCTOR, ACE_LOCK >::remove_first_expired ( const ACE_Time_Value now  )  [inline, private]

template<class TYPE , class FUNCTOR , class ACE_LOCK >
void ACE_Timer_Wheel_T< TYPE, FUNCTOR, ACE_LOCK >::reschedule ( ACE_Timer_Node_T< TYPE > *  n  )  [inline, private, virtual]

Takes an ACE_Timer_Node and inserts it into the correct position in the correct list. Also makes sure to update the earliest time.

Parameters:
n The timer node to reschedule

Implements ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >.

template<class TYPE , class FUNCTOR , class ACE_LOCK >
int ACE_Timer_Wheel_T< TYPE, FUNCTOR, ACE_LOCK >::reset_interval ( long  timer_id,
const ACE_Time_Value interval
) [inline, virtual]

Changes the interval of a timer (and can make it periodic or non periodic by setting it to ACE_Time_Value::zero or not).

Find the timer node by using the id as a pointer. Then use set_interval() on the node to update the interval.

Parameters:
timer_id The timer identifier
interval The new interval
Returns:
0 if successful, -1 if no.

Implements ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >.

template<class TYPE , class FUNCTOR , class ACE_LOCK >
void ACE_Timer_Wheel_T< TYPE, FUNCTOR, ACE_LOCK >::schedule_i ( ACE_Timer_Node_T< TYPE > *  n,
u_int  spoke,
const ACE_Time_Value expire
) [inline, private]

The shared scheduling functionality between schedule() and reschedule().

template<class TYPE , class FUNCTOR , class ACE_LOCK >
long ACE_Timer_Wheel_T< TYPE, FUNCTOR, ACE_LOCK >::schedule_i ( const TYPE &  type,
const void *  act,
const ACE_Time_Value future_time,
const ACE_Time_Value interval
) [inline, protected, virtual]

Schedules a timer.

Creates a ACE_Timer_Node_T based on the input parameters. Then inserts the node into the wheel using reschedule (). Then returns a timer_id.

Parameters:
type The data of the timer node
act Asynchronous Completion Token (AKA magic cookie)
future_time The time the timer is scheduled for (absolute time)
interval If not ACE_Time_Value::zero, then this is a periodic timer and interval is the time period
Returns:
Unique identifier (can be used to cancel the timer). -1 on failure.

Implements ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >.

template<class TYPE , class FUNCTOR , class ACE_LOCK >
void ACE_Timer_Wheel_T< TYPE, FUNCTOR, ACE_LOCK >::unlink ( ACE_Timer_Node_T< TYPE > *  n  )  [inline, private]


Friends And Related Function Documentation

template<class TYPE , class FUNCTOR , class ACE_LOCK >
friend class ACE_Timer_Wheel_Iterator_T< TYPE, FUNCTOR, ACE_LOCK > [friend]

Iterator is a friend.


Member Data Documentation

template<class TYPE , class FUNCTOR , class ACE_LOCK >
u_int ACE_Timer_Wheel_T< TYPE, FUNCTOR, ACE_LOCK >::earliest_spoke_ [private]

Index of the list with the earliest time.

template<class TYPE , class FUNCTOR , class ACE_LOCK >
Iterator* ACE_Timer_Wheel_T< TYPE, FUNCTOR, ACE_LOCK >::iterator_ [private]

Iterator used to expire timers.

template<class TYPE , class FUNCTOR , class ACE_LOCK >
u_int ACE_Timer_Wheel_T< TYPE, FUNCTOR, ACE_LOCK >::max_per_spoke_ [private]

Maximum number of timers per spoke.

template<class TYPE , class FUNCTOR , class ACE_LOCK >
int ACE_Timer_Wheel_T< TYPE, FUNCTOR, ACE_LOCK >::res_bits_ [private]

Resolution (in microsoconds) of the timing wheel.

template<class TYPE , class FUNCTOR , class ACE_LOCK >
int ACE_Timer_Wheel_T< TYPE, FUNCTOR, ACE_LOCK >::spoke_bits_ [private]

Number of timer_id bits used for the spoke.

template<class TYPE , class FUNCTOR , class ACE_LOCK >
u_int ACE_Timer_Wheel_T< TYPE, FUNCTOR, ACE_LOCK >::spoke_count_ [private]

Size of the timing wheel.

template<class TYPE , class FUNCTOR , class ACE_LOCK >
ACE_Timer_Node_T<TYPE>** ACE_Timer_Wheel_T< TYPE, FUNCTOR, ACE_LOCK >::spokes_ [private]

Timing Wheel.

template<class TYPE , class FUNCTOR , class ACE_LOCK >
u_int ACE_Timer_Wheel_T< TYPE, FUNCTOR, ACE_LOCK >::timer_count_ [private]

The total number of timers currently scheduled.

template<class TYPE , class FUNCTOR , class ACE_LOCK >
ACE_Time_Value ACE_Timer_Wheel_T< TYPE, FUNCTOR, ACE_LOCK >::wheel_time_ [private]

The total amount of time in one iteration of the wheel. (resolution * spoke_count).


The documentation for this class was generated from the following files:

Generated on Mon Jul 13 16:13:42 2009 for ACE by  doxygen 1.5.8
