TAO_CEC_Dispatching Class Reference

Define the interface for the dispatching strategies. More...

#include <CEC_Dispatching.h>

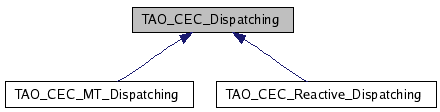

Inheritance diagram for TAO_CEC_Dispatching:

[legend]

List of all members.

Public Member Functions
virtual	~TAO_CEC_Dispatching (void)
	destructor...
virtual void	activate (void)=0
virtual void	shutdown (void)=0
virtual void	push (TAO_CEC_ProxyPushSupplier *proxy, const CORBA::Any &event)=0
	The consumer represented by <proxy> should receive <event>.
virtual void	push_nocopy (TAO_CEC_ProxyPushSupplier *proxy, CORBA::Any &event)=0

---

Detailed Description

Define the interface for the dispatching strategies.

The EC may be configured with different dispatching strategies, for instance, it can use a pool of threads to dispatch the events, or a set of queues with threads at different priorities for each queue or can simply push the event to the consumer in FIFO order.

---

Constructor & Destructor Documentation

TAO_BEGIN_VERSIONED_NAMESPACE_DECL TAO_CEC_Dispatching::~TAO_CEC_Dispatching

(

void

)

[virtual]

destructor...

---

Member Function Documentation

virtual void TAO_CEC_Dispatching::activate

(

void

)

[pure virtual]

Initialize all the data structures, activate any internal threads, etc.

Implemented in TAO_CEC_Reactive_Dispatching, and TAO_CEC_MT_Dispatching.

virtual void TAO_CEC_Dispatching::shutdown

(

void

)

[pure virtual]

Deactivate any internal threads and cleanup internal data structures, it should only return once the threads have finished their jobs.

Implemented in TAO_CEC_Reactive_Dispatching, and TAO_CEC_MT_Dispatching.

virtual void TAO_CEC_Dispatching::push	(	TAO_CEC_ProxyPushSupplier *	proxy,
		const CORBA::Any &	event
	)			[pure virtual]

The consumer represented by <proxy> should receive <event>.

Implemented in TAO_CEC_Reactive_Dispatching, and TAO_CEC_MT_Dispatching.

virtual void TAO_CEC_Dispatching::push_nocopy	(	TAO_CEC_ProxyPushSupplier *	proxy,
		CORBA::Any &	event
	)			[pure virtual]

Implemented in TAO_CEC_Reactive_Dispatching, and TAO_CEC_MT_Dispatching.

---

The documentation for this class was generated from the following files:

• CEC_Dispatching.h
• CEC_Dispatching.cpp

---
