CIAO_ServerResources.idl File Reference

A collection of IDL data types for. More...

import "orb.idl";

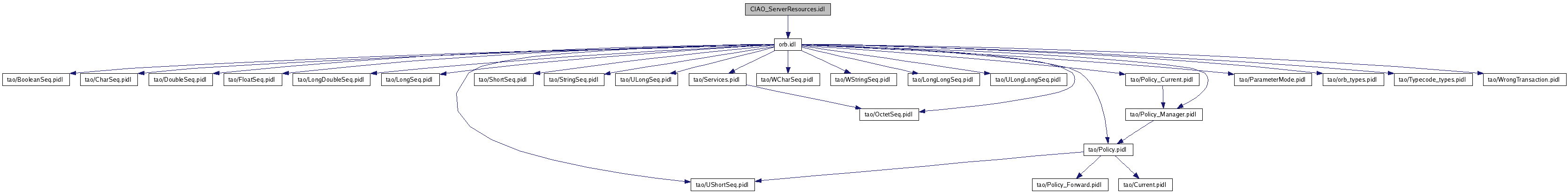

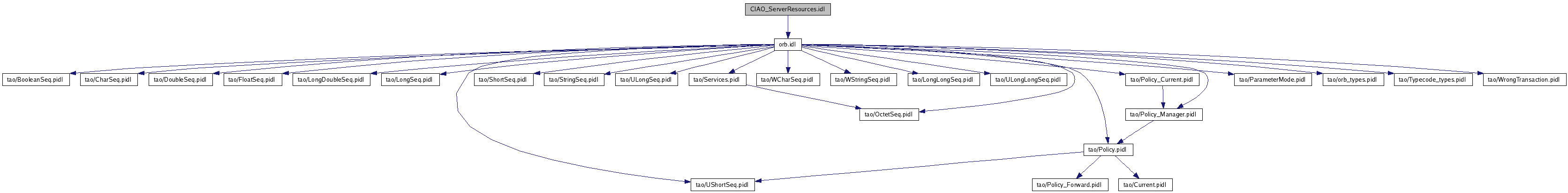

Include dependency graph for CIAO_ServerResources.idl:

Namespaces
namespace	CIAO
namespace	CIAO::DAnCE
Classes
struct	CIAO::DAnCE::ORS_Threadpool
	Define a threadpool resource that an ORB must provide. More...
struct	CIAO::DAnCE::ORS_ThreadpoolLane
	Defines the configuration of a threadpool lane. We need to redefine it here to avoid dependency to RTCORBA library. More...
struct	CIAO::DAnCE::ORS_ThreadpoolWithLanes
	Defines a Threadpool with Lanes resource that an ORB must provide. More...
struct	CIAO::DAnCE::ORS_PriorityBand
	Define a priority band for BandedConnection policies. More...
struct	CIAO::DAnCE::ORS_ConnectionBands
	Define the information needed to create a BandedConnection policy. This info can be referred to via its name (Id). More...
struct	CIAO::DAnCE::ORBResource
	Collection of resources managed by the NodeApplication ORB. More...
struct	CIAO::DAnCE::PriorityModelPolicyDef
	Defines data required for creating a PriorityModel Policy. More...
struct	CIAO::DAnCE::NWPriorityModelPolicyDef
	Defines data required for creating a server side DiffServ policy. More...
struct	CIAO::DAnCE::CNWPriorityModelPolicyDef
	Defines data required for creating a client side DiffServ policy. More...
struct	CIAO::DAnCE::ThreadpoolPolicyDef
	Define data required for creating a Threadpool policy. More...
struct	CIAO::DAnCE::PriorityBandedConnectionPolicyDef
	Define data required for creating a PriorityBandedConnection policy. More...
union	CIAO::DAnCE::PolicyDef
struct	CIAO::DAnCE::PolicySet
	A policy set is named. More...
struct	CIAO::DAnCE::ORBConfigs
struct	CIAO::DAnCE::ServerResource
Defines
#define	CIAO_SERVERRESOURCES_IDL
Typedefs
typedef string	CIAO::DAnCE::CommandlineArg
	A single command line argument corresponds to a string as in the case of "argv".
typedef sequence < CommandlineArg >	CIAO::DAnCE::CommandlineArgs
	A list of command line arguments which a NodeApplicationManager will use to start up the NodeApplication this list is associated to. The command line arguments will be appended to the command line in order.
typedef string	CIAO::DAnCE::SvcconfURI
	A string containing the filename of the svc.conf file the NodeApplication uses. The current approach of specifying svc.conf filename directly some harder problems such as distribution of svc.conf files and the relative/absolute path to the svc.conf file (the ServerResrouces xml document will have to assume the svc.conf file will be available at specific location.).
typedef short	CIAO::DAnCE::Priority
typedef sequence < ORS_Threadpool >	CIAO::DAnCE::ORS_ThreadpoolSeq
typedef sequence < ORS_ThreadpoolLane >	CIAO::DAnCE::ORS_ThreadpoolLanes
	Defines a set of threadpool lanes. We need to redefine it here to avoid dependency to RTCORBA library.
typedef sequence < ORS_ThreadpoolWithLanes >	CIAO::DAnCE::ORS_ThreadpoolWithLanesSeq
typedef sequence < ORS_PriorityBand >	CIAO::DAnCE::ORS_PriorityBands
	Define a list of priority bands for BandedConnection policies.
typedef sequence < ORS_ConnectionBands >	CIAO::DAnCE::ORS_ConnectionBandsSeq
typedef sequence < ORBResource, 1 >	CIAO::DAnCE::ORBResources
typedef sequence < PolicyDef >	CIAO::DAnCE::PolicyDefs
	Define a set of policy definitions.
typedef sequence < PolicySet >	CIAO::DAnCE::PolicySets
	A list of all policy sets.
Enumerations
enum	CIAO::DAnCE::ORBResourceType { CIAO::DAnCE::ORT_THREADPOOL, CIAO::DAnCE::ORT_THREADPOOLWITHLANES, CIAO::DAnCE::ORT_CONNECTIONBANDS }
	enumeration of ORB Resource Types (ORT) supported in RT extension. More...
enum	CIAO::DAnCE::PriorityModel { CIAO::DAnCE::CLIENT_PROPAGATED, CIAO::DAnCE::SERVER_DECLARED }
enum	CIAO::DAnCE::NWPriorityModel { CIAO::DAnCE::CLIENT_PROPAGATED_NWPRIORITY, CIAO::DAnCE::SERVER_DECLARED_NWPRIORITY }
Variables
const CORBA::PolicyType	CIAO::DAnCE::PRIORITY_MODEL_POLICY_TYPE = 40
	PolicyType supported by DAnCE extension. Again, we are redefining these value to avoid dependencies to various ORB modules such as RTCORBA and DiffServ policy libraries.
const CORBA::PolicyType	CIAO::DAnCE::THREADPOOL_POLICY_TYPE = 41
const CORBA::PolicyType	CIAO::DAnCE::PRIORITY_BANDED_CONNECTION_POLICY_TYPE = 45
const CORBA::PolicyType	CIAO::DAnCE::CLIENT_NETWORK_PRIORITY_TYPE = 86
const CORBA::PolicyType	CIAO::DAnCE::NETWORK_PRIORITY_TYPE = 87

---

Detailed Description

A collection of IDL data types for.

Author:

Nanbor Wang

---

Define Documentation

#define CIAO_SERVERRESOURCES_IDL

---
