ACE_Service_Manager Class Reference

Provide a standard ACE service for managing all the services configured in an ACE_Service_Repository. More...

#include <Service_Manager.h>

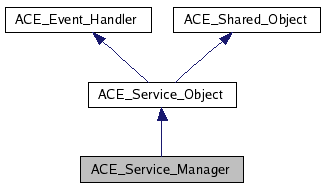

Inheritance diagram for ACE_Service_Manager:

[legend]

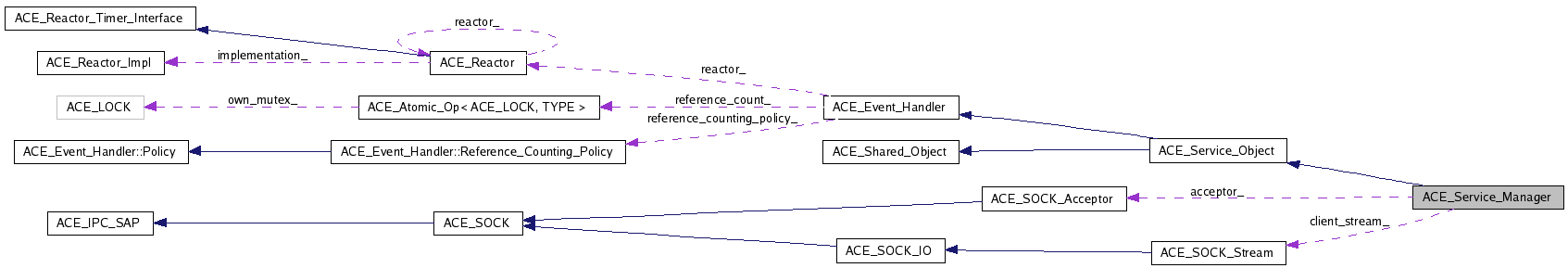

Collaboration diagram for ACE_Service_Manager:

[legend]

List of all members.

Public Member Functions
	ACE_Service_Manager (void)
	Constructor.
	~ACE_Service_Manager (void)
	Destructor.
Protected Member Functions
virtual int	reconfigure_services (void)
virtual int	list_services (void)
virtual int	init (int argc, ACE_TCHAR *argv[])
	Initializes object when dynamic linking occurs.
virtual int	info (ACE_TCHAR **info_string, size_t length) const
	Returns information on a service object.
virtual int	fini (void)
	Terminates object when dynamic unlinking occurs.
virtual int	suspend (void)
	Temporarily disable a service without removing it completely.
virtual int	resume (void)
	Re-enable a previously suspended service.
void	dump (void) const
	Dump the state of an object.
int	open (const ACE_INET_Addr &sia)
virtual ACE_HANDLE	get_handle (void) const
	Get the I/O handle.
virtual int	handle_input (ACE_HANDLE fd)
	Called when input events occur (e.g., connection or data).
virtual int	handle_close (ACE_HANDLE fd, ACE_Reactor_Mask)
virtual int	handle_signal (int signum, siginfo_t *, ucontext_t *)
virtual void	process_request (ACE_TCHAR *request)
	Handle one request.
Protected Attributes
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks.
ACE_SOCK_Stream	client_stream_
ACE_SOCK_Acceptor	acceptor_
	Acceptor instance.
bool	debug_
	Keep track whether we debug or not.
int	signum_
	The signal used to trigger reconfiguration.
Static Protected Attributes
static u_short	DEFAULT_PORT_ = 10000
	Default port for the Acceptor to listen on.

---

Detailed Description

Provide a standard ACE service for managing all the services configured in an ACE_Service_Repository.

This implementation is simple and just handles each client request one at a time. There are currently 3 types of requests:

• List services: If the string "help" is sent, return a list of all the services supported by the Service Configurator.
• Reconfigure: If the string "reconfigure" is sent trigger a reconfiguration, which will re-read the local <svc.conf> file.
• Process directive: If neither "help" nor "reconfigure" is sent, simply treat the incoming string as a process directive and pass it along to <ACE_Service_Config::process_directive>. This allows remote configuration via command-line instructions like % echo suspend My_Remote_Service | telnet hostname 3911

Each request is associated with a new connection, which is closed when the request is processed. In addition, you must be using the singleton <ACE_Reactor::instance> in order to trigger reconfigurations.

---

Constructor & Destructor Documentation

ACE_Service_Manager::ACE_Service_Manager

(

void

)

Constructor.

ACE_Service_Manager::~ACE_Service_Manager

(

void

)

Destructor.

---

Member Function Documentation

int ACE_Service_Manager::reconfigure_services

(

void

)

[protected, virtual]

Trigger a reconfiguration of the Service Configurator by re-reading its local <svc.conf> file.

int ACE_Service_Manager::list_services

(

void

)

[protected, virtual]

Determine all the services offered by this daemon and return the information back to the client.

int ACE_Service_Manager::init	(	int	argc,
		ACE_TCHAR *	argv[]
	)			[protected, virtual]

Initializes object when dynamic linking occurs.

Reimplemented from ACE_Shared_Object.

int ACE_Service_Manager::info	(	ACE_TCHAR **	info_string,
		size_t	length
	)			const [protected, virtual]

Returns information on a service object.

Reimplemented from ACE_Shared_Object.

int ACE_Service_Manager::fini

(

void

)

[protected, virtual]

Terminates object when dynamic unlinking occurs.

Reimplemented from ACE_Shared_Object.

int ACE_Service_Manager::suspend

(

void

)

[protected, virtual]

Temporarily disable a service without removing it completely.

Reimplemented from ACE_Service_Object.

int ACE_Service_Manager::resume

(

void

)

[protected, virtual]

Re-enable a previously suspended service.

Reimplemented from ACE_Service_Object.

ACE_BEGIN_VERSIONED_NAMESPACE_DECL void ACE_Service_Manager::dump

(

void

)

const [protected]

Dump the state of an object.

int ACE_Service_Manager::open

(

const ACE_INET_Addr &

sia

)

[protected]

ACE_HANDLE ACE_Service_Manager::get_handle

(

void

)

const [protected, virtual]

Get the I/O handle.

Reimplemented from ACE_Event_Handler.

int ACE_Service_Manager::handle_input

(

ACE_HANDLE

fd

)

[protected, virtual]

Called when input events occur (e.g., connection or data).

Reimplemented from ACE_Event_Handler.

int ACE_Service_Manager::handle_close	(	ACE_HANDLE	handle,
		ACE_Reactor_Mask	close_mask
	)			[protected, virtual]

Called when a <handle_*()> method returns -1 or when the <remove_handler> method is called on an ACE_Reactor. The <close_mask> indicates which event has triggered the <handle_close> method callback on a particular handle.

Reimplemented from ACE_Event_Handler.

int ACE_Service_Manager::handle_signal	(	int	signum,
		siginfo_t *	,
		ucontext_t *
	)			[protected, virtual]

Called when object is signaled by OS (either via UNIX signals or when a Win32 object becomes signaled).

Reimplemented from ACE_Event_Handler.

void ACE_Service_Manager::process_request

(

ACE_TCHAR *

request

)

[protected, virtual]

Handle one request.

---

Member Data Documentation

ACE_Service_Manager::ACE_ALLOC_HOOK_DECLARE [protected]

Declare the dynamic allocation hooks.

ACE_SOCK_Stream ACE_Service_Manager::client_stream_ [protected]

Connection to the client (we only support one client connection at a time).

ACE_SOCK_Acceptor ACE_Service_Manager::acceptor_ [protected]

Acceptor instance.

bool ACE_Service_Manager::debug_ [protected]

Keep track whether we debug or not.

int ACE_Service_Manager::signum_ [protected]

The signal used to trigger reconfiguration.

u_short ACE_Service_Manager::DEFAULT_PORT_ = 10000 [static, protected]

Default port for the Acceptor to listen on.

---

The documentation for this class was generated from the following files:

• Service_Manager.h
• Service_Manager.cpp

---
