ACE_GQoS_Session Class Reference

A GQoS session object. More...

#include <QoS_Session_Impl.h>

Inheritance diagram for ACE_GQoS_Session:

[legend]

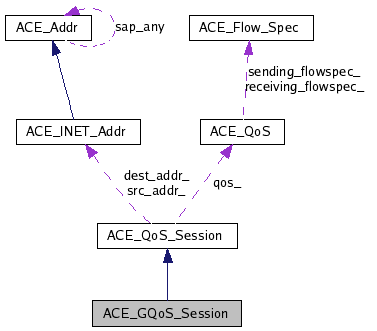

Collaboration diagram for ACE_GQoS_Session:

[legend]

List of all members.

Public Member Functions
	~ACE_GQoS_Session (void)
	Default destructor.
virtual int	open (ACE_INET_Addr dest_addr, ACE_Protocol_ID protocol_id)
	Open a GQoS session [dest IP, dest port, Protocol ID].
virtual int	close (void)
	Close the GQoS Session.
virtual ACE_QoS	qos (void) const
	Returns the QoS for this GQoS session.
virtual int	qos (ACE_SOCK *socket, ACE_QoS_Manager *qos_manager, const ACE_QoS &ace_qos)
virtual void	qos (const ACE_QoS &ace_qos)
virtual int	update_qos (void)
virtual ACE_End_Point_Type	flags (void) const
	Get/Set methods for the flags_.
virtual void	flags (const ACE_End_Point_Type flags)
virtual ACE_INET_Addr	dest_addr (void) const
	Get the destination address for this GQoS session.
virtual void	dest_addr (const ACE_INET_Addr &dest_addr)
	Set the destination address for this GQoS session.
virtual u_short	source_port (void) const
	Get the source port for this session.
virtual void	source_port (const u_short &source_port)
	Set the source port for this session.
virtual ACE_INET_Addr *	source_addr (void) const
virtual void	source_addr (ACE_INET_Addr *source_addr)
	Set the source port for this session.
virtual int	session_id (void) const
	Get the GQoS session id.
virtual void	session_id (const int session_id)
	Set the GQoS session id.
virtual ACE_HANDLE	rsvp_events_handle (void)
	Get the file descriptor of the underlying socket.
virtual void	rsvp_event_type (RSVP_Event_Type event_type)
virtual RSVP_Event_Type	rsvp_event_type (void)
	Set the RAPI event that last occured.
virtual int	version ()
	Get the RAPI event that last occured.
Static Public Attributes
static int	GQoS_session_id = 0
Private Member Functions
	ACE_GQoS_Session (void)
Friends
class	ACE_QoS_Session_Factory

---

Detailed Description

A GQoS session object.

This class is a GQoS (Generic QoS, an implementation of RSVP on Win2K) implementation of the ACE_QoS_Session interface.

---

Constructor & Destructor Documentation

ACE_GQoS_Session::~ACE_GQoS_Session

(

void

)

Default destructor.

ACE_GQoS_Session::ACE_GQoS_Session

(

void

)

[private]

Default constructor. Constructor is defined private so that only the friend factory can instantiate this class.

---

Member Function Documentation

int ACE_GQoS_Session::close

(

void

)

[virtual]

Close the GQoS Session.

Implements ACE_QoS_Session.

void ACE_GQoS_Session::dest_addr

(

const ACE_INET_Addr &

dest_addr

)

[virtual]

Set the destination address for this GQoS session.

Implements ACE_QoS_Session.

ACE_INET_Addr ACE_GQoS_Session::dest_addr

(

void

)

const [virtual]

Get the destination address for this GQoS session.

Implements ACE_QoS_Session.

void ACE_GQoS_Session::flags

(

const ACE_End_Point_Type

flags

)

[virtual]

Implements ACE_QoS_Session.

ACE_QoS_Session::ACE_End_Point_Type ACE_GQoS_Session::flags

(

void

)

const [virtual]

Get/Set methods for the flags_.

Implements ACE_QoS_Session.

int ACE_GQoS_Session::open	(	ACE_INET_Addr	dest_addr,
		ACE_Protocol_ID	protocol_id
	)			[virtual]

Open a GQoS session [dest IP, dest port, Protocol ID].

Implements ACE_QoS_Session.

void ACE_GQoS_Session::qos

(

const ACE_QoS &

ace_qos

)

[virtual]

Sets the QoS for this session object to ace_qos. Does not interfere with the QoS in the underlying socket. This call is useful to update the QoS object when the underlying socket QoS is being set through a mechanism other than the previous qos () method e.g. inside the dgram_mcast.subscribe () where the QoS for the socket is set through ACE_OS::join_leaf ().

Implements ACE_QoS_Session.

int ACE_GQoS_Session::qos	(	ACE_SOCK *	socket,
		ACE_QoS_Manager *	qos_manager,
		const ACE_QoS &	ace_qos
	)			[virtual]

Set QoS for this GQoS session. The socket parameter is used to confirm if this QoS session was subscribed to by the socket.

Implements ACE_QoS_Session.

ACE_QoS ACE_GQoS_Session::qos

(

void

)

const [virtual]

Returns the QoS for this GQoS session.

Implements ACE_QoS_Session.

ACE_QoS_Session::RSVP_Event_Type ACE_GQoS_Session::rsvp_event_type

(

void

)

[virtual]

Set the RAPI event that last occured.

Implements ACE_QoS_Session.

void ACE_GQoS_Session::rsvp_event_type

(

ACE_QoS_Session::RSVP_Event_Type

event_type

)

[virtual]

Implements ACE_QoS_Session.

ACE_HANDLE ACE_GQoS_Session::rsvp_events_handle

(

void

)

[virtual]

Get the file descriptor of the underlying socket.

Implements ACE_QoS_Session.

void ACE_GQoS_Session::session_id

(

const int

session_id

)

[virtual]

Set the GQoS session id.

Implements ACE_QoS_Session.

int ACE_GQoS_Session::session_id

(

void

)

const [virtual]

Get the GQoS session id.

Implements ACE_QoS_Session.

void ACE_GQoS_Session::source_addr

(

ACE_INET_Addr *

source_addr

)

[virtual]

Set the source port for this session.

Implements ACE_QoS_Session.

ACE_INET_Addr * ACE_GQoS_Session::source_addr

(

void

)

const [virtual]

Implements ACE_QoS_Session.

void ACE_GQoS_Session::source_port

(

const u_short &

source_port

)

[virtual]

Set the source port for this session.

Implements ACE_QoS_Session.

u_short ACE_GQoS_Session::source_port

(

void

)

const [virtual]

Get the source port for this session.

Implements ACE_QoS_Session.

int ACE_GQoS_Session::update_qos

(

void

)

[virtual]

Calls the ioctl (ACE_SIO_GET_QOS). It is a mechanism of updating the QoS for this session asynchronously, as RSVP events occur.

Implements ACE_QoS_Session.

int ACE_GQoS_Session::version

(

void

)

[virtual]

Get the RAPI event that last occured.

GQoS version.

Implements ACE_QoS_Session.

---

Friends And Related Function Documentation

friend class ACE_QoS_Session_Factory [friend]

The factory is a friend so it can create this object through the only private constructor.

---

Member Data Documentation

int ACE_GQoS_Session::GQoS_session_id = 0 [static]

This is a session ID generator. It does a lot more than expected from an int!.

---

The documentation for this class was generated from the following files:

• QoS_Session_Impl.h
• QoS_Session_Impl.cpp
• QoS_Session_Impl.inl
