TAO_UIPMC_Transport< CONNECTION_HANDLER > Class Template Reference

Specialization of the base TAO_Transport class to handle the MIOP protocol. More...

#include <UIPMC_Transport.h>

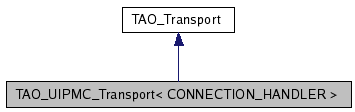

Inheritance diagram for TAO_UIPMC_Transport< CONNECTION_HANDLER >:

[legend]

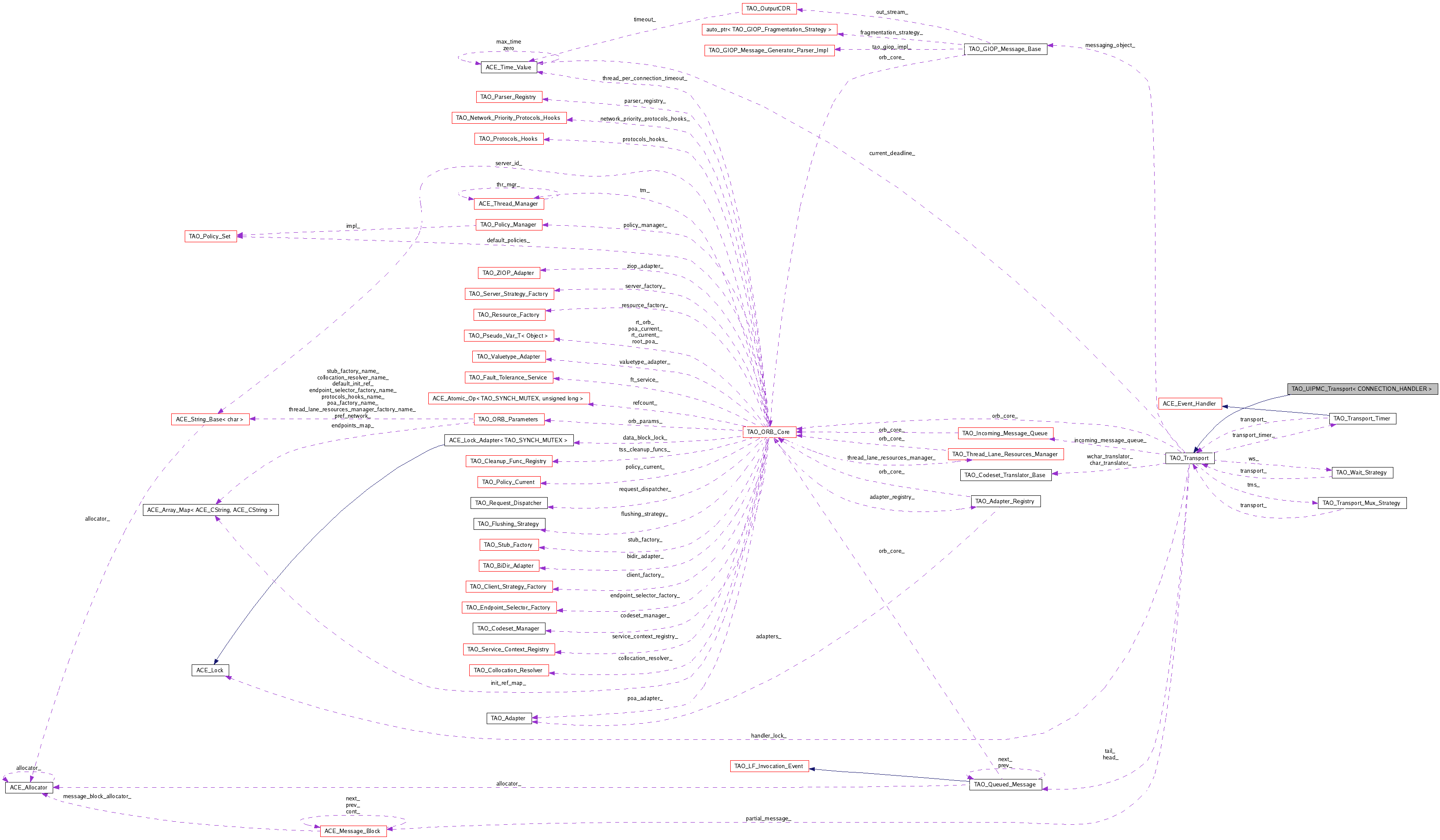

Collaboration diagram for TAO_UIPMC_Transport< CONNECTION_HANDLER >:

[legend]

List of all members.

Public Member Functions
	TAO_UIPMC_Transport (CONNECTION_HANDLER *handler, TAO_ORB_Core *orb_core)
	Constructor.
	~TAO_UIPMC_Transport (void)
	Default destructor.
virtual int	handle_input (TAO_Resume_Handle &rh, ACE_Time_Value *max_wait_time=0)
	Look for the documentation in Transport.h.
Private Member Functions
void	write_unique_id (TAO_OutputCDR &miop_hdr, unsigned long unique)
	Construct and write a unique ID to the MIOP header.
Private Attributes
CONNECTION_HANDLER *	connection_handler_
Overridden Template Methods
These are implementations of template methods declared by TAO_Transport.
virtual int	send_request (TAO_Stub *stub, TAO_ORB_Core *orb_core, TAO_OutputCDR &stream, TAO_Message_Semantics message_semantics, ACE_Time_Value *max_wait_time)
virtual int	send_message (TAO_OutputCDR &stream, TAO_Stub *stub=0, TAO_Message_Semantics message_semantics=TAO_TWOWAY_REQUEST, ACE_Time_Value *max_time_wait=0)
virtual ACE_Event_Handler *	event_handler_i (void)
virtual TAO_Connection_Handler *	connection_handler_i (void)
virtual ssize_t	send (iovec *iov, int iovcnt, size_t &bytes_transferred, const ACE_Time_Value *max_wait_time)
	Write the complete Message_Block chain to the connection.
virtual ssize_t	recv (char *buf, size_t len, const ACE_Time_Value *s=0)
	Read len bytes from into buf.
virtual int	register_handler (void)

---

Detailed Description

template<typename CONNECTION_HANDLER>
class TAO_UIPMC_Transport< CONNECTION_HANDLER >

Specialization of the base TAO_Transport class to handle the MIOP protocol.

---

Constructor & Destructor Documentation

template<typename CONNECTION_HANDLER >

TAO_UIPMC_Transport< CONNECTION_HANDLER >::TAO_UIPMC_Transport	(	CONNECTION_HANDLER *	handler,
		TAO_ORB_Core *	orb_core
	)			[inline]

Constructor.

template<typename CONNECTION_HANDLER >

TAO_UIPMC_Transport< CONNECTION_HANDLER >::~TAO_UIPMC_Transport

(

void

)

[inline]

Default destructor.

---

Member Function Documentation

template<typename CONNECTION_HANDLER >

TAO_Connection_Handler * TAO_UIPMC_Transport< CONNECTION_HANDLER >::connection_handler_i

(

void

)

[inline, protected, virtual]

@TODO: These methods IMHO should have more meaningful names. The names seem to indicate nothing.

Implements TAO_Transport.

template<typename CONNECTION_HANDLER >

ACE_Event_Handler * TAO_UIPMC_Transport< CONNECTION_HANDLER >::event_handler_i

(

void

)

[inline, protected, virtual]

@TODO: These methods IMHO should have more meaningful names. The names seem to indicate nothing.

Implements TAO_Transport.

template<typename CONNECTION_HANDLER >

int TAO_UIPMC_Transport< CONNECTION_HANDLER >::handle_input	(	TAO_Resume_Handle &	rh,
		ACE_Time_Value *	max_wait_time = 0
	)			[inline, virtual]

Look for the documentation in Transport.h.

Reimplemented from TAO_Transport.

template<typename CONNECTION_HANDLER >

ssize_t TAO_UIPMC_Transport< CONNECTION_HANDLER >::recv	(	char *	buf,
		size_t	len,
		const ACE_Time_Value *	s = 0
	)			[inline, protected, virtual]

Read len bytes from into buf.

Implements TAO_Transport.

template<typename CONNECTION_HANDLER >

int TAO_UIPMC_Transport< CONNECTION_HANDLER >::register_handler

(

void

)

[inline, protected, virtual]

@TODO: These methods IMHO should have more meaningful names. The names seem to indicate nothing.

Reimplemented from TAO_Transport.

template<typename CONNECTION_HANDLER >

ssize_t TAO_UIPMC_Transport< CONNECTION_HANDLER >::send	(	iovec *	iov,
		int	iovcnt,
		size_t &	bytes_transferred,
		const ACE_Time_Value *	max_wait_time
	)			[inline, protected, virtual]

Write the complete Message_Block chain to the connection.

Implements TAO_Transport.

template<typename CONNECTION_HANDLER >

int TAO_UIPMC_Transport< CONNECTION_HANDLER >::send_message	(	TAO_OutputCDR &	stream,
		TAO_Stub *	stub = 0,
		TAO_Message_Semantics	message_semantics = TAO_TWOWAY_REQUEST,
		ACE_Time_Value *	max_time_wait = 0
	)			[inline, virtual]

@TODO: These methods IMHO should have more meaningful names. The names seem to indicate nothing.

Implements TAO_Transport.

template<typename CONNECTION_HANDLER >

int TAO_UIPMC_Transport< CONNECTION_HANDLER >::send_request	(	TAO_Stub *	stub,
		TAO_ORB_Core *	orb_core,
		TAO_OutputCDR &	stream,
		TAO_Message_Semantics	message_semantics,
		ACE_Time_Value *	max_wait_time
	)			[inline, virtual]

@TODO: These methods IMHO should have more meaningful names. The names seem to indicate nothing.

Implements TAO_Transport.

template<typename CONNECTION_HANDLER >

void TAO_UIPMC_Transport< CONNECTION_HANDLER >::write_unique_id	(	TAO_OutputCDR &	miop_hdr,
		unsigned long	unique
	)			[inline, private]

Construct and write a unique ID to the MIOP header.

---

Member Data Documentation

template<typename CONNECTION_HANDLER >

CONNECTION_HANDLER* TAO_UIPMC_Transport< CONNECTION_HANDLER >::connection_handler_ [private]

The connection service handler used for accessing lower layer communication protocols.

---

The documentation for this class was generated from the following files:

• UIPMC_Transport.h
• UIPMC_Transport.cpp
