TAO_CEC_Reactive_SupplierControl Class Reference

SupplierControl. More...

#include <CEC_Reactive_SupplierControl.h>

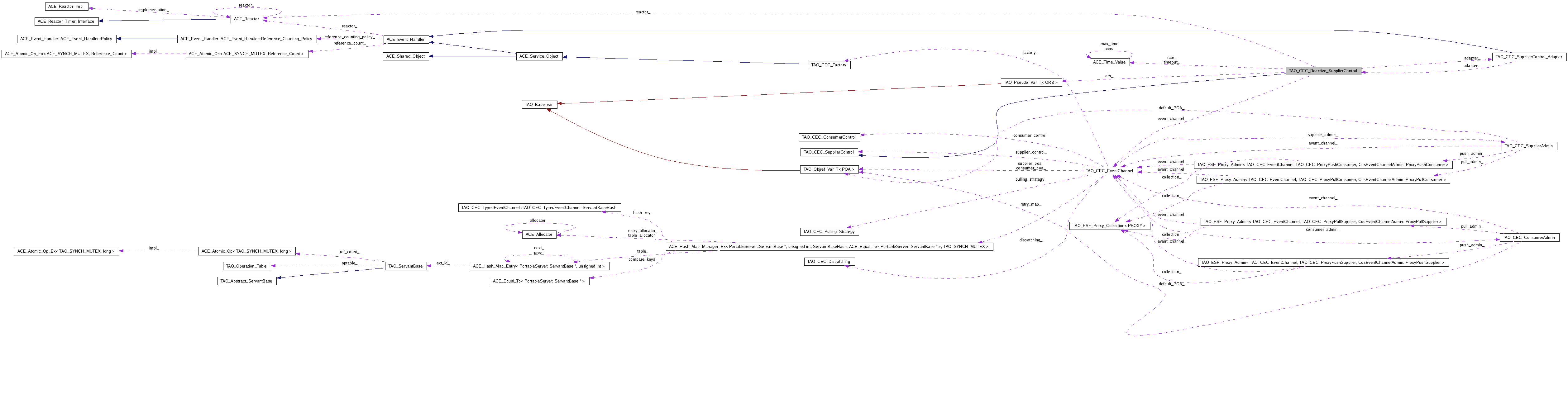

Inheritance diagram for TAO_CEC_Reactive_SupplierControl:

Collaboration diagram for TAO_CEC_Reactive_SupplierControl:

List of all members.

Public Member Functions

TAO_CEC_Reactive_SupplierControl (const ACE_Time_Value &rate, const ACE_Time_Value &timeout, unsigned int retries, TAO_CEC_EventChannel *event_channel, CORBA::ORB_ptr orb)

virtual ~TAO_CEC_Reactive_SupplierControl (void)

Constructor for the typed ec.

void handle_timeout (const ACE_Time_Value &tv, const void *arg)

Receive the timeout from the adapter.

virtual int activate (void)

virtual int shutdown (void)

virtual void supplier_not_exist (TAO_CEC_ProxyPushConsumer *proxy)

virtual void supplier_not_exist (TAO_CEC_ProxyPullConsumer *proxy)

virtual void system_exception (TAO_CEC_ProxyPullConsumer *proxy, CORBA::SystemException &)

Some system exception was rasied while trying to push an event.

virtual bool need_to_disconnect (PortableServer::ServantBase *proxy)

virtual void successful_transmission (PortableServer::ServantBase *proxy)

Allow others to inform us when a send or receive was successful.

Private Member Functions

void query_suppliers (void)

Private Attributes

ACE_Time_Value rate_

The polling rate.

ACE_Time_Value timeout_

The polling timeout.

unsigned int retries_

The number of retries per proxy until it is disconnected.

TAO_CEC_SupplierControl_Adapter adapter_

The Adapter for the reactor events.

TAO_CEC_EventChannel * event_channel_

The event channel.

CORBA::ORB_var orb_

The typed event channel.

CORBA::PolicyCurrent_var policy_current_

To control the timeout policy in the thread.

CORBA::PolicyList policy_list_

Precomputed policy list to the set timeout.

ACE_Reactor * reactor_

The ORB reactor.

long timer_id_

The timer id.

Detailed Description

SupplierControl.

Defines the interface for the supplier control strategy. This strategy handles misbehaving or failing suppliers. = MEMORY MANAGMENT = LOCKING = TODO

Constructor & Destructor Documentation

TAO_BEGIN_VERSIONED_NAMESPACE_DECL TAO_CEC_Reactive_SupplierControl::TAO_CEC_Reactive_SupplierControl	(	const ACE_Time_Value &	rate,
		const ACE_Time_Value &	timeout,
		unsigned int	retries,
		TAO_CEC_EventChannel *	event_channel,
		CORBA::ORB_ptr	orb
	)

Constructor. It does not assume ownership of the <event_channel> parameter.

TAO_CEC_Reactive_SupplierControl::~TAO_CEC_Reactive_SupplierControl ( void ) [virtual]

Constructor for the typed ec.

destructor...

Member Function Documentation

int TAO_CEC_Reactive_SupplierControl::activate ( void ) [virtual]

Activate any internal threads or timers used to poll the state of the suppliers

Reimplemented from TAO_CEC_SupplierControl.

void TAO_CEC_Reactive_SupplierControl::handle_timeout	(	const ACE_Time_Value &	tv,
		const void *	arg
	)

Receive the timeout from the adapter.

bool TAO_CEC_Reactive_SupplierControl::need_to_disconnect ( PortableServer::ServantBase * proxy ) [virtual]

Do we need to disconnect this supplier? The parameter type for proxy is PortableServer::ServantBase* due to the fact that this method will be used for TAO_CEC_ProxyPushSupplier's and TAO_CEC_ProxyPullSupplier's.

Reimplemented from TAO_CEC_SupplierControl.

void TAO_CEC_Reactive_SupplierControl::query_suppliers ( void ) [private]

Check if the suppliers still exists. It is a helper method for handle_timeout() to isolate the exceptions.

int TAO_CEC_Reactive_SupplierControl::shutdown ( void ) [virtual]

Reimplemented from TAO_CEC_SupplierControl.

void TAO_CEC_Reactive_SupplierControl::successful_transmission ( PortableServer::ServantBase * proxy ) [virtual]

Allow others to inform us when a send or receive was successful.

Reimplemented from TAO_CEC_SupplierControl.

void TAO_CEC_Reactive_SupplierControl::supplier_not_exist ( TAO_CEC_ProxyPullConsumer * proxy ) [virtual]

Invoked by helper classes when they detect that a supplier does not exists (i.e. _non_existent() returns true and/or the CORBA::OBJECT_NOT_EXIST exception has been raised).

Reimplemented from TAO_CEC_SupplierControl.

void TAO_CEC_Reactive_SupplierControl::supplier_not_exist ( TAO_CEC_ProxyPushConsumer * proxy ) [virtual]

Invoked by helper classes when they detect that a supplier does not exists (i.e. _non_existent() returns true and/or the CORBA::OBJECT_NOT_EXIST exception has been raised).

Reimplemented from TAO_CEC_SupplierControl.

void TAO_CEC_Reactive_SupplierControl::system_exception	(	TAO_CEC_ProxyPullConsumer *	proxy,
		CORBA::SystemException &
	)			`[virtual]`

Some system exception was rasied while trying to push an event.

Reimplemented from TAO_CEC_SupplierControl.

Member Data Documentation

TAO_CEC_SupplierControl_Adapter TAO_CEC_Reactive_SupplierControl::adapter_ [private]

The Adapter for the reactor events.

TAO_CEC_EventChannel* TAO_CEC_Reactive_SupplierControl::event_channel_ [private]

The event channel.

CORBA::ORB_var TAO_CEC_Reactive_SupplierControl::orb_ [private]

The typed event channel.

The ORB

CORBA::PolicyCurrent_var TAO_CEC_Reactive_SupplierControl::policy_current_ [private]

To control the timeout policy in the thread.

CORBA::PolicyList TAO_CEC_Reactive_SupplierControl::policy_list_ [private]

Precomputed policy list to the set timeout.

ACE_Time_Value TAO_CEC_Reactive_SupplierControl::rate_ [private]

The polling rate.

ACE_Reactor* TAO_CEC_Reactive_SupplierControl::reactor_ [private]

The ORB reactor.

unsigned int TAO_CEC_Reactive_SupplierControl::retries_ [private]

The number of retries per proxy until it is disconnected.

ACE_Time_Value TAO_CEC_Reactive_SupplierControl::timeout_ [private]

The polling timeout.

long TAO_CEC_Reactive_SupplierControl::timer_id_ [private]

The timer id.

The documentation for this class was generated from the following files:
