TAO_Default_Server_Strategy_Factory Class Reference

This is the default strategy factory for CORBA servers. It allows developers to choose strategies via argument flags. This design gives substantial freedom for experimentation. More...

#include <default_server.h>

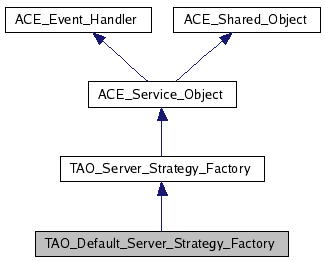

Inheritance diagram for TAO_Default_Server_Strategy_Factory:

[legend]

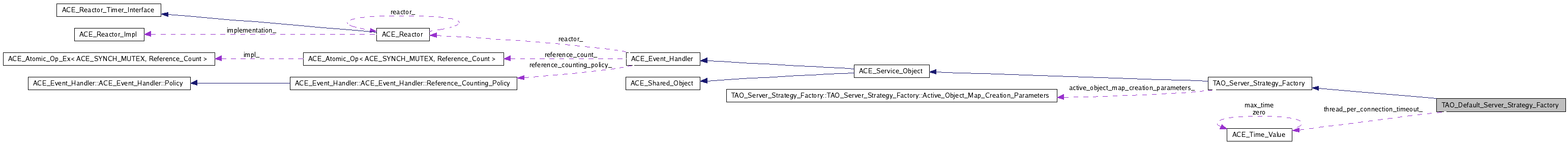

Collaboration diagram for TAO_Default_Server_Strategy_Factory:

[legend]

List of all members.

Public Member Functions

TAO_Default_Server_Strategy_Factory (void)

virtual ~TAO_Default_Server_Strategy_Factory (void)

virtual int init (int argc, ACE_TCHAR *argv[])

virtual int open (TAO_ORB_Core *)

virtual int enable_poa_locking (void)

Enable POA locking?

virtual int activate_server_connections (void)

Are server connections active (i.e. run in their own thread).

virtual int thread_per_connection_timeout (ACE_Time_Value &timeout)

virtual int server_connection_thread_flags (void)

The thread activation parameters.

virtual int server_connection_thread_count (void)

int parse_args (int argc, ACE_TCHAR *argv[])

Protected Types

enum Lock_Type { TAO_NULL_LOCK, TAO_THREAD_LOCK }

Protected Member Functions

void tokenize (ACE_TCHAR *flag_string)

void report_option_value_error (const ACE_TCHAR *option_name, const ACE_TCHAR *option_value)

Protected Attributes

int activate_server_connections_

Should the server connection handlers run in their own thread?

int thread_flags_

Default thread flags passed to thr_create().

Lock_Type poa_lock_type_

The type of lock to be returned by <create_poa_lock()>.

int thread_per_connection_use_timeout_

The timeout flag and value for the thread-per-connection model.

ACE_Time_Value thread_per_connection_timeout_

Detailed Description

This is the default strategy factory for CORBA servers. It allows developers to choose strategies via argument flags. This design gives substantial freedom for experimentation.

Member Enumeration Documentation

enum TAO_Default_Server_Strategy_Factory::Lock_Type [protected]

Enumerator:

TAO_NULL_LOCK
TAO_THREAD_LOCK

Constructor & Destructor Documentation

TAO_BEGIN_VERSIONED_NAMESPACE_DECL TAO_Default_Server_Strategy_Factory::TAO_Default_Server_Strategy_Factory ( void )

TAO_Default_Server_Strategy_Factory::~TAO_Default_Server_Strategy_Factory ( void ) [virtual]

Member Function Documentation

int TAO_Default_Server_Strategy_Factory::activate_server_connections ( void ) [virtual]

Are server connections active (i.e. run in their own thread).

Reimplemented from TAO_Server_Strategy_Factory.

int TAO_Default_Server_Strategy_Factory::enable_poa_locking ( void ) [virtual]

Enable POA locking?

Reimplemented from TAO_Server_Strategy_Factory.

int TAO_Default_Server_Strategy_Factory::init	(	int	argc,
		ACE_TCHAR *	argv[]
	)			`[virtual]`

Reimplemented from ACE_Shared_Object.

int TAO_Default_Server_Strategy_Factory::open ( TAO_ORB_Core * orb_core ) [virtual]

Call <open> on various strategies. This is not performed in <init> so that the other portions of the ORB have a chance to "settle" in their initialization since the streategies herein might need some of that information.

Reimplemented from TAO_Server_Strategy_Factory.

int TAO_Default_Server_Strategy_Factory::parse_args	(	int	argc,
		ACE_TCHAR *	argv[]
	)

Parse the arguments, check the documentation in $TAO_ROOT/docs/Options.html for details

void TAO_Default_Server_Strategy_Factory::report_option_value_error	(	const ACE_TCHAR *	option_name,
		const ACE_TCHAR *	option_value
	)			`[protected]`

int TAO_Default_Server_Strategy_Factory::server_connection_thread_count ( void ) [virtual]

Reimplemented from TAO_Server_Strategy_Factory.

int TAO_Default_Server_Strategy_Factory::server_connection_thread_flags ( void ) [virtual]

The thread activation parameters.

Reimplemented from TAO_Server_Strategy_Factory.

int TAO_Default_Server_Strategy_Factory::thread_per_connection_timeout ( ACE_Time_Value & timeout ) [virtual]

Obtain the timeout value used by the thread-per-connection server threads to poll the shutdown flag in the ORB. Return -1 if the ORB should use the compile-time defaults. If the return value is zero then the threads block without timeouts.

Reimplemented from TAO_Server_Strategy_Factory.

void TAO_Default_Server_Strategy_Factory::tokenize ( ACE_TCHAR * flag_string ) [protected]

Member Data Documentation

int TAO_Default_Server_Strategy_Factory::activate_server_connections_ [protected]

Should the server connection handlers run in their own thread?

Lock_Type TAO_Default_Server_Strategy_Factory::poa_lock_type_ [protected]

The type of lock to be returned by <create_poa_lock()>.

int TAO_Default_Server_Strategy_Factory::thread_flags_ [protected]

Default thread flags passed to thr_create().

ACE_Time_Value TAO_Default_Server_Strategy_Factory::thread_per_connection_timeout_ [protected]

int TAO_Default_Server_Strategy_Factory::thread_per_connection_use_timeout_ [protected]

The timeout flag and value for the thread-per-connection model.

The documentation for this class was generated from the following files:
