TAO_EC_Filter_Builder Class Reference
Abstract base class for the filter builders. More...
#include <EC_Filter_Builder.h>

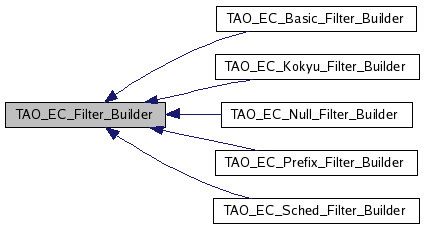

Inheritance diagram for TAO_EC_Filter_Builder:
Public Member Functions | |
| virtual | ~TAO_EC_Filter_Builder (void) |
| destructor... | |
| virtual TAO_EC_Filter * | build (TAO_EC_ProxyPushSupplier *supplier, RtecEventChannelAdmin::ConsumerQOS &qos) const =0 |
Detailed Description
Abstract base class for the filter builders.The creation of a filter hierarchy is controlled by a Filter_Builder. The relationship between TAO_EC_Filter and TAO_EC_Filter_Builder follows the "Builder Pattern" (Gamma et al.)
Constructor & Destructor Documentation
| TAO_BEGIN_VERSIONED_NAMESPACE_DECL TAO_EC_Filter_Builder::~TAO_EC_Filter_Builder | ( | void | ) | [virtual] |
destructor...
Member Function Documentation
| virtual TAO_EC_Filter* TAO_EC_Filter_Builder::build | ( | TAO_EC_ProxyPushSupplier * | supplier, | |
| RtecEventChannelAdmin::ConsumerQOS & | qos | |||
| ) | const [pure virtual] |
Create the filter, the caller must assume ownership of the filter returned.
Implemented in TAO_EC_Basic_Filter_Builder, TAO_EC_Null_Filter_Builder, TAO_EC_Kokyu_Filter_Builder, TAO_EC_Prefix_Filter_Builder, and TAO_EC_Sched_Filter_Builder.
The documentation for this class was generated from the following files:
