TAO_Notify_Consumer Class Reference

Astract Base class for wrapping consumer objects that connect to the EventChannel. More...

#include <Consumer.h>

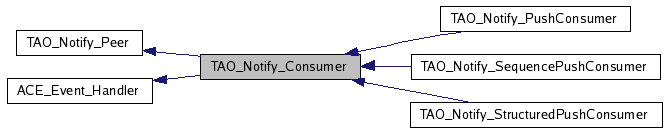

Inheritance diagram for TAO_Notify_Consumer:

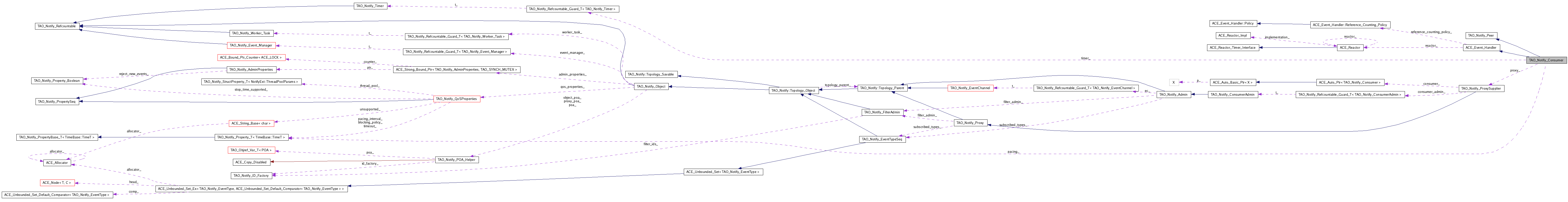

Collaboration diagram for TAO_Notify_Consumer:

List of all members.

Public Types

enum DispatchStatus {
DISPATCH_SUCCESS, DISPATCH_RETRY, DISPATCH_DISCARD, DISPATCH_FAIL,
DISPATCH_FAIL_TIMEOUT
}

Status returned from dispatch attempts. More...

Public Member Functions

TAO_Notify_Consumer (TAO_Notify_ProxySupplier *proxy)

Constructor.

virtual ~TAO_Notify_Consumer ()

Destructor.

TAO_Notify_ProxySupplier * proxy_supplier (void)

Access Specific Proxy.

virtual TAO_Notify_Proxy * proxy (void)

Access Base Proxy.

void deliver (TAO_Notify_Method_Request_Event *request)

Dispatch Event to consumer.

virtual void push (const CORBA::Any &event)=0

Push event to this consumer.

virtual void push (const CosNotification::StructuredEvent &event)=0

Push event to this consumer.

virtual void push (const CosNotification::EventBatch &event)=0

Push a batch of events to this consumer.

DispatchStatus dispatch_batch (const CosNotification::EventBatch &batch)

Dispatch the batch of events to the attached consumer.

void dispatch_pending (void)

Dispatch the pending events.

CORBA::Boolean is_suspended (void)

Is the connection suspended?

void suspend (void)

Suspend Connection.

void resume (void)

Resume Connection.

virtual void shutdown (void)

Shutdown the consumer.

virtual void reconnect_from_consumer (TAO_Notify_Consumer *old_consumer)=0

virtual void qos_changed (const TAO_Notify_QoSProperties &qos_properties)

Override, Peer::qos_changed.

void assume_pending_events (TAO_Notify_Consumer &rhs)

Protected Types

typedef ACE_Unbounded_Queue
< TAO_Notify_Method_Request_Event_Queueable * > Request_Queue

Protected Member Functions

DispatchStatus dispatch_request (TAO_Notify_Method_Request_Event *request)

virtual bool dispatch_from_queue (Request_Queue &requests, ACE_Guard< TAO_SYNCH_MUTEX > &ace_mon)

Attempt to dispatch event from a queue.

void enqueue_request (TAO_Notify_Method_Request_Event *request)

virtual bool enqueue_if_necessary (TAO_Notify_Method_Request_Event *request)

virtual void dispatch_updates_i (const CosNotification::EventTypeSeq &added, const CosNotification::EventTypeSeq &removed)

Implementation of Peer specific dispatch_updates.

TAO_SYNCH_MUTEX * proxy_lock (void)

Get the shared Proxy Lock.

virtual int handle_timeout (const ACE_Time_Value &current_time, const void *act=0)

void schedule_timer (bool is_error=false)

Schedule timer.

void cancel_timer (void)

Cancel timer.

Request_Queue & pending_events ()

= Protected Data Members

Protected Attributes

TAO_Notify_ProxySupplier * proxy_

The Proxy that we associate with.

CORBA::Boolean is_suspended_

Suspended Flag.

CosNotifyComm::NotifyPublish_var publish_

Interface that accepts offer_changes.

bool have_not_yet_verified_publish_

const TAO_Notify_Property_Time & pacing_

The Pacing Interval.

TAO_Notify_Property_Long max_batch_size_

Max. batch size.

long timer_id_

Timer Id.

TAO_Notify_Timer::Ptr timer_

The Timer Manager that we use.

Private Attributes

ACE_Auto_Ptr< Request_Queue > pending_events_

Events pending to be delivered.

Detailed Description

Astract Base class for wrapping consumer objects that connect to the EventChannel.

Member Typedef Documentation

typedef ACE_Unbounded_Queue<TAO_Notify_Method_Request_Event_Queueable *> TAO_Notify_Consumer::Request_Queue [protected]

Member Enumeration Documentation

enum TAO_Notify_Consumer::DispatchStatus

Status returned from dispatch attempts.

Enumerator:

DISPATCH_SUCCESS
DISPATCH_RETRY
DISPATCH_DISCARD
DISPATCH_FAIL
DISPATCH_FAIL_TIMEOUT

Constructor & Destructor Documentation

TAO_BEGIN_VERSIONED_NAMESPACE_DECL TAO_Notify_Consumer::TAO_Notify_Consumer ( TAO_Notify_ProxySupplier * proxy )

Constructor.

TAO_Notify_Consumer::~TAO_Notify_Consumer ( ) [virtual]

Destructor.

Member Function Documentation

TAO_Notify_ProxySupplier * TAO_Notify_Consumer::proxy_supplier ( void )

Access Specific Proxy.

TAO_Notify_Proxy * TAO_Notify_Consumer::proxy ( void ) [virtual]

Access Base Proxy.

Implements TAO_Notify_Peer.

void TAO_Notify_Consumer::deliver ( TAO_Notify_Method_Request_Event * request )

Dispatch Event to consumer.

virtual void TAO_Notify_Consumer::push ( const CORBA::Any & event ) [pure virtual]

Push event to this consumer.

Implemented in TAO_Notify_PushConsumer, TAO_Notify_SequencePushConsumer, and TAO_Notify_StructuredPushConsumer.

virtual void TAO_Notify_Consumer::push ( const CosNotification::StructuredEvent & event ) [pure virtual]

Push event to this consumer.

Implemented in TAO_Notify_PushConsumer, TAO_Notify_SequencePushConsumer, and TAO_Notify_StructuredPushConsumer.

virtual void TAO_Notify_Consumer::push ( const CosNotification::EventBatch & event ) [pure virtual]

Push a batch of events to this consumer.

Implemented in TAO_Notify_PushConsumer, TAO_Notify_SequencePushConsumer, and TAO_Notify_StructuredPushConsumer.

TAO_Notify_Consumer::DispatchStatus TAO_Notify_Consumer::dispatch_batch ( const CosNotification::EventBatch & batch )

Dispatch the batch of events to the attached consumer.

void TAO_Notify_Consumer::dispatch_pending ( void )

Dispatch the pending events.

ACE_INLINE CORBA::Boolean TAO_Notify_Consumer::is_suspended ( void )

Is the connection suspended?

ACE_INLINE void TAO_Notify_Consumer::suspend ( void )

Suspend Connection.

void TAO_Notify_Consumer::resume ( void )

Resume Connection.

void TAO_Notify_Consumer::shutdown ( void ) [virtual]

Shutdown the consumer.

Reimplemented from TAO_Notify_Peer.

virtual void TAO_Notify_Consumer::reconnect_from_consumer ( TAO_Notify_Consumer * old_consumer ) [pure virtual]

On reconnect we need to move events from the old consumer to the new one

Implemented in TAO_Notify_PushConsumer, TAO_Notify_SequencePushConsumer, and TAO_Notify_StructuredPushConsumer.

void TAO_Notify_Consumer::qos_changed ( const TAO_Notify_QoSProperties & qos_properties ) [virtual]

Override, Peer::qos_changed.

Reimplemented from TAO_Notify_Peer.

void TAO_Notify_Consumer::assume_pending_events ( TAO_Notify_Consumer & rhs )

Take the pending queue from the rhs, cancel it's timer and schedule our timer. The caller should have locked the proxy lock before calling this method.

TAO_Notify_Consumer::DispatchStatus TAO_Notify_Consumer::dispatch_request ( TAO_Notify_Method_Request_Event * request ) [protected]

bool TAO_Notify_Consumer::dispatch_from_queue	(	Request_Queue &	requests,
		ACE_Guard< TAO_SYNCH_MUTEX > &	ace_mon
	)			`[protected, virtual]`

Attempt to dispatch event from a queue.

Called by dispatch_pending. Deliver one or more events to the Consumer. If delivery fails, events are left in the queue (or discarded depending on QoS parameters.) Undelivered, undiscarded requests are left at the front of the queue. Overridden in sequence consumer to dispatch as an EventBatch.

Returns:: false if delivery failed and the request(s) cannot be discarded.

Reimplemented in TAO_Notify_SequencePushConsumer.

void TAO_Notify_Consumer::enqueue_request ( TAO_Notify_Method_Request_Event * request ) [protected]

bool TAO_Notify_Consumer::enqueue_if_necessary ( TAO_Notify_Method_Request_Event * request ) [protected, virtual]

Add request to a queue if necessary. Overridden by sequence consumer to "always" put incoming events into the queue.

Returns:: true the request has been enqueued; false the request should be handled now.

Reimplemented in TAO_Notify_SequencePushConsumer.

void TAO_Notify_Consumer::dispatch_updates_i	(	const CosNotification::EventTypeSeq &	added,
		const CosNotification::EventTypeSeq &	removed
	)			`[protected, virtual]`

Implementation of Peer specific dispatch_updates.

Implements TAO_Notify_Peer.

TAO_SYNCH_MUTEX * TAO_Notify_Consumer::proxy_lock ( void ) [protected]

Get the shared Proxy Lock.

int TAO_Notify_Consumer::handle_timeout	(	const ACE_Time_Value &	current_time,
		const void *	act = `0`
	)			`[protected, virtual]`

Reimplemented from ACE_Event_Handler.

void TAO_Notify_Consumer::schedule_timer ( bool is_error = false ) [protected]

Schedule timer.

void TAO_Notify_Consumer::cancel_timer ( void ) [protected]

Cancel timer.

TAO_BEGIN_VERSIONED_NAMESPACE_DECL ACE_INLINE TAO_Notify_Consumer::Request_Queue & TAO_Notify_Consumer::pending_events ( ) [protected]

= Protected Data Members

Member Data Documentation

TAO_Notify_ProxySupplier* TAO_Notify_Consumer::proxy_ [protected]

The Proxy that we associate with.

CORBA::Boolean TAO_Notify_Consumer::is_suspended_ [protected]

Suspended Flag.

CosNotifyComm::NotifyPublish_var TAO_Notify_Consumer::publish_ [protected]

Interface that accepts offer_changes.

bool TAO_Notify_Consumer::have_not_yet_verified_publish_ [protected]

const TAO_Notify_Property_Time& TAO_Notify_Consumer::pacing_ [protected]

The Pacing Interval.

TAO_Notify_Property_Long TAO_Notify_Consumer::max_batch_size_ [protected]

Max. batch size.

long TAO_Notify_Consumer::timer_id_ [protected]

Timer Id.

TAO_Notify_Timer::Ptr TAO_Notify_Consumer::timer_ [protected]

The Timer Manager that we use.

ACE_Auto_Ptr< Request_Queue > TAO_Notify_Consumer::pending_events_ [private]

Events pending to be delivered.

The documentation for this class was generated from the following files:
