TAO_MMDevice Class Reference
Implements a factory to create Endpoints and VDevs. More...
#include <AVStreams_i.h>

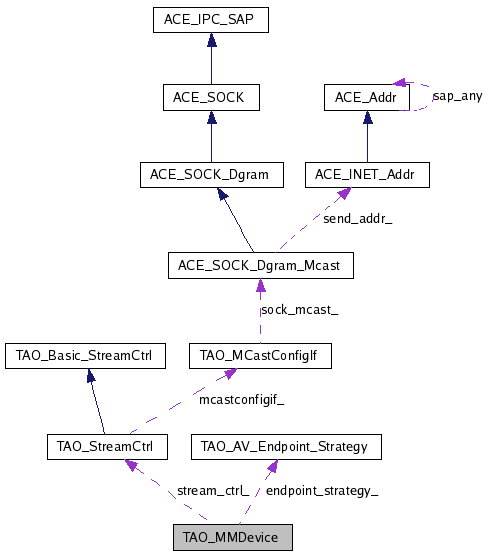

Collaboration diagram for TAO_MMDevice:
Public Types | |
| enum | MMDevice_Type { MMDEVICE_A = 0, MMDEVICE_B = 1 } |
| Constructor. More... | |
Public Member Functions | |
| TAO_MMDevice (TAO_AV_Endpoint_Strategy *endpoint_strategy_) | |
| virtual AVStreams::StreamEndPoint_ptr | create_A_B (MMDevice_Type type, AVStreams::StreamCtrl_ptr the_requester, AVStreams::VDev_out the_vdev, AVStreams::streamQoS &the_qos, CORBA::Boolean_out met_qos, char *&named_vdev, const AVStreams::flowSpec &the_spec) |
| virtual AVStreams::StreamCtrl_ptr | bind (AVStreams::MMDevice_ptr peer_device, AVStreams::streamQoS &the_qos, CORBA::Boolean_out is_met, const AVStreams::flowSpec &the_spec) |
| virtual AVStreams::StreamCtrl_ptr | bind_mcast (AVStreams::MMDevice_ptr first_peer, AVStreams::streamQoS &the_qos, CORBA::Boolean_out is_met, const AVStreams::flowSpec &the_spec) |
| Multicast bind. | |
| virtual AVStreams::StreamEndPoint_A_ptr | create_A (AVStreams::StreamCtrl_ptr the_requester, AVStreams::VDev_out the_vdev, AVStreams::streamQoS &the_qos, CORBA::Boolean_out met_qos, char *&named_vdev, const AVStreams::flowSpec &the_spec) |
| Called by StreamCtrl to create a "A" type streamandpoint and vdev. | |
| virtual AVStreams::StreamEndPoint_B_ptr | create_B (AVStreams::StreamCtrl_ptr the_requester, AVStreams::VDev_out the_vdev, AVStreams::streamQoS &the_qos, CORBA::Boolean_out met_qos, char *&named_vdev, const AVStreams::flowSpec &the_spec) |
| Called by StreamCtrl to create a "B" type streamandpoint and vdev. | |
| virtual void | destroy (AVStreams::StreamEndPoint_ptr the_ep, const char *vdev_name) |
| Remove the StreamEndPoint and the related vdev. | |
| virtual char * | add_fdev (CORBA::Object_ptr the_fdev) |
| Not supported in the light profile, raises notsupported. | |
| virtual CORBA::Object_ptr | get_fdev (const char *flow_name) |
| Not supported in the light profile, raises notsupported. | |
| virtual void | remove_fdev (const char *flow_name) |
| Not supported in the light profile, raises notsupported. | |
| virtual | ~TAO_MMDevice (void) |
| Destructor. | |
Protected Types | |
| typedef ACE_Hash_Map_Manager < ACE_CString, AVStreams::FDev_var, ACE_Null_Mutex > | FDev_Map |
| typedef ACE_Hash_Map_Iterator < ACE_CString, AVStreams::FDev_var, ACE_Null_Mutex > | FDev_Map_Iterator |
| typedef ACE_Hash_Map_Entry < ACE_CString, AVStreams::FDev_var > | FDev_Map_Entry |
Protected Member Functions | |
| char * | add_fdev_i (AVStreams::FDev_ptr fdev) |
| Helper method to implement add_fdev(). | |
Protected Attributes | |
| TAO_AV_Endpoint_Strategy * | endpoint_strategy_ |
| u_int | flow_count_ |
| u_int | flow_num_ |
| current flow number used for system generation of flow names. | |
| FDev_Map | fdev_map_ |
| AVStreams::flowSpec | flows_ |
| sequence of supported flow names. | |
| TAO_StreamCtrl * | stream_ctrl_ |
Detailed Description
Implements a factory to create Endpoints and VDevs.Member Typedef Documentation
typedef ACE_Hash_Map_Manager<ACE_CString,AVStreams::FDev_var,ACE_Null_Mutex> TAO_MMDevice::FDev_Map [protected] |
typedef ACE_Hash_Map_Iterator<ACE_CString,AVStreams::FDev_var,ACE_Null_Mutex> TAO_MMDevice::FDev_Map_Iterator [protected] |
typedef ACE_Hash_Map_Entry<ACE_CString,AVStreams::FDev_var> TAO_MMDevice::FDev_Map_Entry [protected] |
Member Enumeration Documentation
Constructor & Destructor Documentation
| TAO_MMDevice::TAO_MMDevice | ( | TAO_AV_Endpoint_Strategy * | endpoint_strategy_ | ) |
| TAO_MMDevice::~TAO_MMDevice | ( | void | ) | [virtual] |
Destructor.
Member Function Documentation
| AVStreams::StreamEndPoint_ptr TAO_MMDevice::create_A_B | ( | MMDevice_Type | type, | |
| AVStreams::StreamCtrl_ptr | the_requester, | |||
| AVStreams::VDev_out | the_vdev, | |||
| AVStreams::streamQoS & | the_qos, | |||
| CORBA::Boolean_out | met_qos, | |||
| char *& | named_vdev, | |||
| const AVStreams::flowSpec & | the_spec | |||
| ) | [virtual] |
| AVStreams::StreamCtrl_ptr TAO_MMDevice::bind | ( | AVStreams::MMDevice_ptr | peer_device, | |
| AVStreams::streamQoS & | the_qos, | |||
| CORBA::Boolean_out | is_met, | |||
| const AVStreams::flowSpec & | the_spec | |||
| ) | [virtual] |
Can be used to request the MMDevice to create a new StreamCtrl, and call bind_devs on it
| AVStreams::StreamCtrl_ptr TAO_MMDevice::bind_mcast | ( | AVStreams::MMDevice_ptr | first_peer, | |
| AVStreams::streamQoS & | the_qos, | |||
| CORBA::Boolean_out | is_met, | |||
| const AVStreams::flowSpec & | the_spec | |||
| ) | [virtual] |
Multicast bind.
| AVStreams::StreamEndPoint_A_ptr TAO_MMDevice::create_A | ( | AVStreams::StreamCtrl_ptr | the_requester, | |
| AVStreams::VDev_out | the_vdev, | |||
| AVStreams::streamQoS & | the_qos, | |||
| CORBA::Boolean_out | met_qos, | |||
| char *& | named_vdev, | |||
| const AVStreams::flowSpec & | the_spec | |||
| ) | [virtual] |
Called by StreamCtrl to create a "A" type streamandpoint and vdev.
| AVStreams::StreamEndPoint_B_ptr TAO_MMDevice::create_B | ( | AVStreams::StreamCtrl_ptr | the_requester, | |
| AVStreams::VDev_out | the_vdev, | |||
| AVStreams::streamQoS & | the_qos, | |||
| CORBA::Boolean_out | met_qos, | |||
| char *& | named_vdev, | |||
| const AVStreams::flowSpec & | the_spec | |||
| ) | [virtual] |
Called by StreamCtrl to create a "B" type streamandpoint and vdev.
| void TAO_MMDevice::destroy | ( | AVStreams::StreamEndPoint_ptr | the_ep, | |
| const char * | vdev_name | |||
| ) | [virtual] |
Remove the StreamEndPoint and the related vdev.
| char * TAO_MMDevice::add_fdev | ( | CORBA::Object_ptr | the_fdev | ) | [virtual] |
Not supported in the light profile, raises notsupported.
| CORBA::Object_ptr TAO_MMDevice::get_fdev | ( | const char * | flow_name | ) | [virtual] |
Not supported in the light profile, raises notsupported.
| void TAO_MMDevice::remove_fdev | ( | const char * | flow_name | ) | [virtual] |
Not supported in the light profile, raises notsupported.
| char * TAO_MMDevice::add_fdev_i | ( | AVStreams::FDev_ptr | fdev | ) | [protected] |
Helper method to implement add_fdev().
Member Data Documentation
TAO_AV_Endpoint_Strategy* TAO_MMDevice::endpoint_strategy_ [protected] |
u_int TAO_MMDevice::flow_count_ [protected] |
Count of the number of flows in this MMDevice , used to generate unique names for the flows.
u_int TAO_MMDevice::flow_num_ [protected] |
current flow number used for system generation of flow names.
FDev_Map TAO_MMDevice::fdev_map_ [protected] |
hash table for the flownames and its corresponding flowEndpoint reference.
AVStreams::flowSpec TAO_MMDevice::flows_ [protected] |
sequence of supported flow names.
TAO_StreamCtrl* TAO_MMDevice::stream_ctrl_ [protected] |
The documentation for this class was generated from the following files:
