TAO_FlowEndPoint Class Reference
This class is used per flow e.g video flow and an audio flow to encapsulate the transport details. More...
#include <AVStreams_i.h>

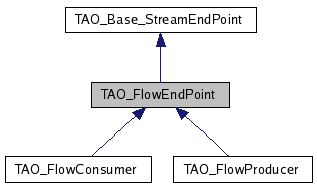

Inheritance diagram for TAO_FlowEndPoint:

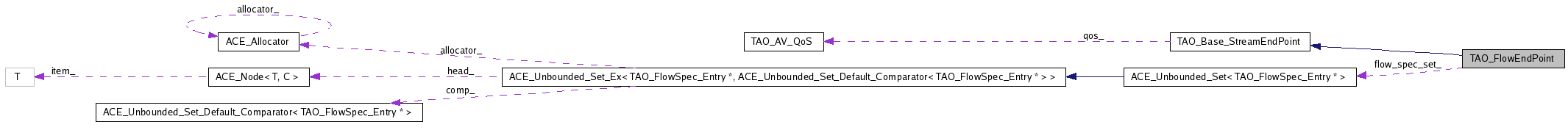

Collaboration diagram for TAO_FlowEndPoint:
Public Member Functions | |
| TAO_FlowEndPoint (void) | |
| default constructor. | |
| TAO_FlowEndPoint (const char *flowname, AVStreams::protocolSpec &protocols, const char *format) | |
| int | open (const char *flowname, AVStreams::protocolSpec &protocols, const char *format) |
| int | set_flowname (const char *flowname) |
| virtual void | set_flow_handler (const char *flowname, TAO_AV_Flow_Handler *handler) |
| virtual int | set_protocol_object (const char *flowname, TAO_AV_Protocol_Object *object) |
| virtual CORBA::Boolean | lock (void) |
| lock the flow endpoint for a particular flow. | |
| virtual void | unlock (void) |
| unlock the flow endpoint for subsequent use. | |
| virtual void | destroy (void) |
| destroy this flow. | |
| virtual AVStreams::StreamEndPoint_ptr | related_sep (void) |
| virtual void | related_sep (AVStreams::StreamEndPoint_ptr related_sep) |
| virtual AVStreams::FlowConnection_ptr | related_flow_connection (void) |
| virtual void | related_flow_connection (AVStreams::FlowConnection_ptr related_flow_connection) |
| set method for the related flow connection attribute. | |
| virtual AVStreams::FlowEndPoint_ptr | get_connected_fep (void) |
| returns the other flowendpoint to which this is connected. | |
| virtual CORBA::Boolean | use_flow_protocol (const char *fp_name, const CORBA::Any &fp_settings) |
| virtual void | set_format (const char *format) |
| sets the data format. | |
| virtual void | set_dev_params (const CosPropertyService::Properties &new_settings) |
| sets the device parameters. | |
| virtual void | set_protocol_restriction (const AVStreams::protocolSpec &the_spec) |
| sets the list of protocols to be used. | |
| virtual CORBA::Boolean | is_fep_compatible (AVStreams::FlowEndPoint_ptr fep) |
| checks whether the passed flowendpoint is compatible with this. | |
| virtual CORBA::Boolean | set_peer (AVStreams::FlowConnection_ptr the_fc, AVStreams::FlowEndPoint_ptr the_peer_fep, AVStreams::QoS &the_qos) |
| sets the peer flowendpoint. | |
| virtual CORBA::Boolean | set_Mcast_peer (AVStreams::FlowConnection_ptr the_fc, AVStreams::MCastConfigIf_ptr a_mcastconfigif, AVStreams::QoS &the_qos) |
| sets the multicast peer flowendpoint, not implemented. | |
| virtual CORBA::Boolean | connect_to_peer (AVStreams::QoS &the_qos, const char *address, const char *use_flow_protocol)=0 |
| virtual CORBA::Boolean | connect_to_peer_i (TAO_FlowSpec_Entry::Role role, AVStreams::QoS &the_qos, const char *address, const char *use_flow_protocol) |
| connect to the peer endpoint. | |
| virtual char * | go_to_listen (AVStreams::QoS &the_qos, CORBA::Boolean is_mcast, AVStreams::FlowEndPoint_ptr peer, char *&flowProtocol)=0 |
| virtual char * | go_to_listen_i (TAO_FlowSpec_Entry::Role role, AVStreams::QoS &the_qos, CORBA::Boolean is_mcast, AVStreams::FlowEndPoint_ptr peer, char *&flowProtocol) |
| listen request from the peer. | |
Protected Attributes | |
| AVStreams::StreamEndPoint_var | related_sep_ |
| The related streamendpoint. | |
| AVStreams::FlowConnection_var | related_flow_connection_ |
| The related flow connection reference. | |
| AVStreams::FlowEndPoint_var | peer_fep_ |
| The peer flowendpoint reference. | |
| AVStreams::protocolSpec | protocols_ |
| Available protocols for this flowendpoint. | |
| AVStreams::protocolSpec | protocol_addresses_ |
| Address information for the protocols. | |
| AVStreams::MCastConfigIf_var | mcast_peer_ |
| The multicast peer endpoint. | |
| CORBA::Boolean | lock_ |
| Lock. | |
| CORBA::String_var | format_ |
| CORBA::String_var | flowname_ |
| CosPropertyService::Properties | dev_params_ |
| TAO_AV_FlowSpecSet | flow_spec_set_ |
| CORBA::String_var | reverse_channel_ |
Detailed Description
This class is used per flow e.g video flow and an audio flow to encapsulate the transport details.Constructor & Destructor Documentation
| TAO_FlowEndPoint::TAO_FlowEndPoint | ( | void | ) |
default constructor.
| TAO_FlowEndPoint::TAO_FlowEndPoint | ( | const char * | flowname, | |
| AVStreams::protocolSpec & | protocols, | |||
| const char * | format | |||
| ) |
Member Function Documentation
| int TAO_FlowEndPoint::open | ( | const char * | flowname, | |
| AVStreams::protocolSpec & | protocols, | |||
| const char * | format | |||
| ) |
| int TAO_FlowEndPoint::set_flowname | ( | const char * | flowname | ) |
| void TAO_FlowEndPoint::set_flow_handler | ( | const char * | flowname, | |
| TAO_AV_Flow_Handler * | handler | |||
| ) | [virtual] |
Reimplemented from TAO_Base_StreamEndPoint.
| int TAO_FlowEndPoint::set_protocol_object | ( | const char * | flowname, | |
| TAO_AV_Protocol_Object * | object | |||
| ) | [virtual] |
Reimplemented from TAO_Base_StreamEndPoint.
| CORBA::Boolean TAO_FlowEndPoint::lock | ( | void | ) | [virtual] |
lock the flow endpoint for a particular flow.
| void TAO_FlowEndPoint::unlock | ( | void | ) | [virtual] |
unlock the flow endpoint for subsequent use.
| void TAO_FlowEndPoint::destroy | ( | void | ) | [virtual] |
destroy this flow.
| AVStreams::StreamEndPoint_ptr TAO_FlowEndPoint::related_sep | ( | void | ) | [virtual] |
get method for the related streamendpoint under which this flowendpoint is.
| void TAO_FlowEndPoint::related_sep | ( | AVStreams::StreamEndPoint_ptr | related_sep | ) | [virtual] |
set method for the related streamendpoint under which this flowendpoint is.
| AVStreams::FlowConnection_ptr TAO_FlowEndPoint::related_flow_connection | ( | void | ) | [virtual] |
| void TAO_FlowEndPoint::related_flow_connection | ( | AVStreams::FlowConnection_ptr | related_flow_connection | ) | [virtual] |
set method for the related flow connection attribute.
| AVStreams::FlowEndPoint_ptr TAO_FlowEndPoint::get_connected_fep | ( | void | ) | [virtual] |
returns the other flowendpoint to which this is connected.
| CORBA::Boolean TAO_FlowEndPoint::use_flow_protocol | ( | const char * | fp_name, | |
| const CORBA::Any & | fp_settings | |||
| ) | [virtual] |
| void TAO_FlowEndPoint::set_format | ( | const char * | format | ) | [virtual] |
sets the data format.
| void TAO_FlowEndPoint::set_dev_params | ( | const CosPropertyService::Properties & | new_settings | ) | [virtual] |
sets the device parameters.
| void TAO_FlowEndPoint::set_protocol_restriction | ( | const AVStreams::protocolSpec & | the_spec | ) | [virtual] |
sets the list of protocols to be used.
| CORBA::Boolean TAO_FlowEndPoint::is_fep_compatible | ( | AVStreams::FlowEndPoint_ptr | fep | ) | [virtual] |
checks whether the passed flowendpoint is compatible with this.
| CORBA::Boolean TAO_FlowEndPoint::set_peer | ( | AVStreams::FlowConnection_ptr | the_fc, | |
| AVStreams::FlowEndPoint_ptr | the_peer_fep, | |||
| AVStreams::QoS & | the_qos | |||
| ) | [virtual] |
sets the peer flowendpoint.
| CORBA::Boolean TAO_FlowEndPoint::set_Mcast_peer | ( | AVStreams::FlowConnection_ptr | the_fc, | |
| AVStreams::MCastConfigIf_ptr | a_mcastconfigif, | |||
| AVStreams::QoS & | the_qos | |||
| ) | [virtual] |
sets the multicast peer flowendpoint, not implemented.
| virtual CORBA::Boolean TAO_FlowEndPoint::connect_to_peer | ( | AVStreams::QoS & | the_qos, | |
| const char * | address, | |||
| const char * | use_flow_protocol | |||
| ) | [pure virtual] |
This should be implemented in both the FlowProducer and consumer and hence is pure virtual since we need to know the role of the flowendpoint to create appropriate protocol objects. eg. in SFP to create Producer Object/ Consumer Object.
Implemented in TAO_FlowProducer, and TAO_FlowConsumer.
| CORBA::Boolean TAO_FlowEndPoint::connect_to_peer_i | ( | TAO_FlowSpec_Entry::Role | role, | |
| AVStreams::QoS & | the_qos, | |||
| const char * | address, | |||
| const char * | use_flow_protocol | |||
| ) | [virtual] |
connect to the peer endpoint.
| virtual char* TAO_FlowEndPoint::go_to_listen | ( | AVStreams::QoS & | the_qos, | |
| CORBA::Boolean | is_mcast, | |||
| AVStreams::FlowEndPoint_ptr | peer, | |||
| char *& | flowProtocol | |||
| ) | [pure virtual] |
This should be implemented in both the FlowProducer and consumer and hence is pure virtual since we need to know the role of the flowendpoint to create appropriate protocol objects. eg. in SFP to create Producer Object/ Consumer Object.
Implemented in TAO_FlowProducer, and TAO_FlowConsumer.
| char * TAO_FlowEndPoint::go_to_listen_i | ( | TAO_FlowSpec_Entry::Role | role, | |
| AVStreams::QoS & | the_qos, | |||
| CORBA::Boolean | is_mcast, | |||
| AVStreams::FlowEndPoint_ptr | peer, | |||
| char *& | flowProtocol | |||
| ) | [virtual] |
listen request from the peer.
Member Data Documentation
AVStreams::StreamEndPoint_var TAO_FlowEndPoint::related_sep_ [protected] |
The related streamendpoint.
AVStreams::FlowConnection_var TAO_FlowEndPoint::related_flow_connection_ [protected] |
The related flow connection reference.
AVStreams::FlowEndPoint_var TAO_FlowEndPoint::peer_fep_ [protected] |
The peer flowendpoint reference.
AVStreams::protocolSpec TAO_FlowEndPoint::protocols_ [protected] |
Available protocols for this flowendpoint.
Address information for the protocols.
AVStreams::MCastConfigIf_var TAO_FlowEndPoint::mcast_peer_ [protected] |
The multicast peer endpoint.
CORBA::Boolean TAO_FlowEndPoint::lock_ [protected] |
Lock.
CORBA::String_var TAO_FlowEndPoint::format_ [protected] |
CORBA::String_var TAO_FlowEndPoint::flowname_ [protected] |
CosPropertyService::Properties TAO_FlowEndPoint::dev_params_ [protected] |
TAO_AV_FlowSpecSet TAO_FlowEndPoint::flow_spec_set_ [protected] |
CORBA::String_var TAO_FlowEndPoint::reverse_channel_ [protected] |
The documentation for this class was generated from the following files:
