ACE::Monitor_Control::Monitor_Base Class Reference

Base class from which the template monitor point class is derived. More...

#include <Monitor_Base.h>

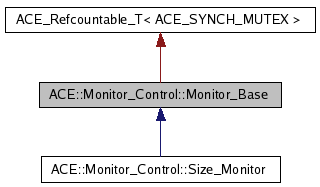

Inheritance diagram for ACE::Monitor_Control::Monitor_Base:

[legend]

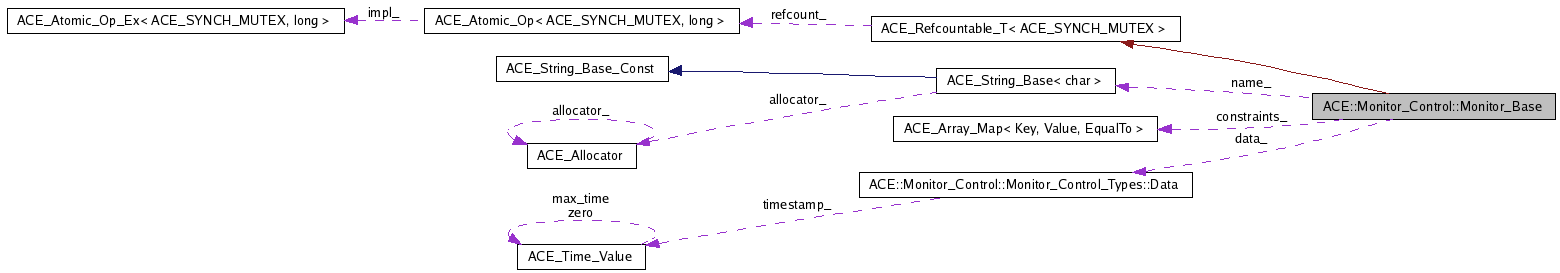

Collaboration diagram for ACE::Monitor_Control::Monitor_Base:

[legend]

List of all members.

Public Types
typedef Monitor_Control_Types::ConstraintList	CONSTRAINTS
typedef CONSTRAINTS::const_iterator	CONSTRAINT_ITERATOR
Public Member Functions
virtual void	update (void)=0
virtual void	receive (double value)
	Updates the monitor's data if it is a numeric floating point.
virtual void	receive (size_t value)
	Updates the monitor's data if it is an integer size.
long	add_constraint (const char *expression, Control_Action *action=0)
	Add a constraint, returns a unique constraint id.
Control_Action *	remove_constraint (const long constraint_id)
CONSTRAINTS &	constraints (void)
	Get all constraints.
void	clear (void)
	Reset function.
void	retrieve (Monitor_Control_Types::Data &data) const
	Data accessors.
void	retrieve_and_clear (Monitor_Control_Types::Data &data)
void	add_to_registry (const ACE_Time_Value &time=ACE_Time_Value::zero)
	Common to all monitors.
void	remove_from_registry (void)
const char *	name (void) const
void	name (const char *new_name)
void	add_ref (void)
void	remove_ref (void)
Protected Member Functions
	Monitor_Base (void)
	Monitor_Base (const char *name)
virtual	~Monitor_Base (void)
virtual void	clear_i (void)
Protected Attributes
Monitor_Control_Types::Data	data_
ACE_SYNCH_MUTEX	mutex_
CONSTRAINTS	constraints_
Private Attributes
ACE_CString	name_

---

Detailed Description

Base class from which the template monitor point class is derived.

All the operations are pure virtual so they can be implemented in the 'disabled' template specialization as no-ops.

---

Member Typedef Documentation

typedef Monitor_Control_Types::ConstraintList ACE::Monitor_Control::Monitor_Base::CONSTRAINTS

typedef CONSTRAINTS::const_iterator ACE::Monitor_Control::Monitor_Base::CONSTRAINT_ITERATOR

---

Constructor & Destructor Documentation

ACE::Monitor_Control::Monitor_Base::Monitor_Base

(

void

)

[protected]

ACE::Monitor_Control::Monitor_Base::Monitor_Base

(

const char *

name

)

[protected]

ACE::Monitor_Control::Monitor_Base::~Monitor_Base

(

void

)

[protected, virtual]

---

Member Function Documentation

virtual void ACE::Monitor_Control::Monitor_Base::update

(

void

)

[pure virtual]

Implemented by the most-derived class. Does the actual work of fetching the monitored value.

Implemented in ACE::Monitor_Control::Size_Monitor.

void ACE::Monitor_Control::Monitor_Base::receive

(

double

value

)

[virtual]

Updates the monitor's data if it is a numeric floating point.

void ACE::Monitor_Control::Monitor_Base::receive

(

size_t

value

)

[virtual]

Updates the monitor's data if it is an integer size.

long ACE::Monitor_Control::Monitor_Base::add_constraint	(	const char *	expression,
		Control_Action *	action = 0
	)

Add a constraint, returns a unique constraint id.

Thread-safe and guaranteed to be unique.

This is thread-safe on its own so we don't have to guard it here.

Since we know external key is unique, we don't check for failure.

Control_Action * ACE::Monitor_Control::Monitor_Base::remove_constraint

(

const long

constraint_id

)

Remove a constraint and return the associated control action, which may be shared, for deletion or further use.

Monitor_Base::CONSTRAINTS & ACE::Monitor_Control::Monitor_Base::constraints

(

void

)

Get all constraints.

void ACE::Monitor_Control::Monitor_Base::clear

(

void

)

Reset function.

Reimplemented in ACE::Monitor_Control::Size_Monitor.

void ACE::Monitor_Control::Monitor_Base::retrieve

(

Monitor_Control_Types::Data &

data

)

const

Data accessors.

void ACE::Monitor_Control::Monitor_Base::retrieve_and_clear

(

Monitor_Control_Types::Data &

data

)

void ACE::Monitor_Control::Monitor_Base::add_to_registry

(

const ACE_Time_Value &

time = ACE_Time_Value::zero

)

Common to all monitors.

void ACE::Monitor_Control::Monitor_Base::remove_from_registry

(

void

)

ACE_INLINE const char * ACE::Monitor_Control::Monitor_Base::name

(

void

)

const

ACE_INLINE void ACE::Monitor_Control::Monitor_Base::name

(

const char *

new_name

)

void ACE::Monitor_Control::Monitor_Base::add_ref

(

void

)

void ACE::Monitor_Control::Monitor_Base::remove_ref

(

void

)

void ACE::Monitor_Control::Monitor_Base::clear_i

(

void

)

[protected, virtual]

Overridden in some monitors (for example the OS monitors) where clearing requires monitor-specific actions.

---

Member Data Documentation

Monitor_Control_Types::Data ACE::Monitor_Control::Monitor_Base::data_ [protected]

ACE_SYNCH_MUTEX ACE::Monitor_Control::Monitor_Base::mutex_ [mutable, protected]

CONSTRAINTS ACE::Monitor_Control::Monitor_Base::constraints_ [protected]

ACE_CString ACE::Monitor_Control::Monitor_Base::name_ [private]

---

The documentation for this class was generated from the following files:

• Monitor_Base.h
• Monitor_Base.cpp
• Monitor_Base.inl
