CIAO_RepositoryManagerDaemon_i Class Reference

#include <RepositoryManager_Impl.h>

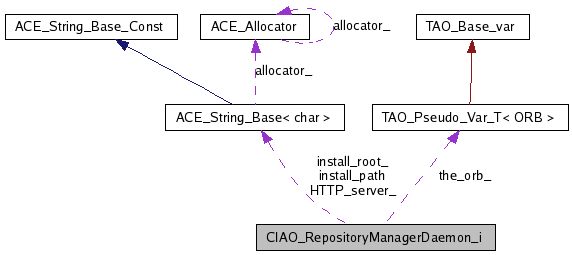

Collaboration diagram for CIAO_RepositoryManagerDaemon_i:

List of all members.

Public Member Functions

CIAO_RepositoryManagerDaemon_i (CORBA::ORB_ptr the_orb, const char *server="localhost:5432", const char *install_dir="RepositoryManager")

Constructor.

virtual ~CIAO_RepositoryManagerDaemon_i (void)

Destructor.

virtual void shutdown ()

virtual void installPackage (const char *installationName, const char *location,::CORBA::Boolean replace)

virtual void createPackage (const char *installationName, const ::Deployment::PackageConfiguration &package, const char *baseLocation,::CORBA::Boolean replace)

virtual
::Deployment::PackageConfiguration * findPackageByName (const char *name)

virtual
::Deployment::PackageConfiguration * findPackageByUUID (const char *UUID)

virtual ::CORBA::StringSeq * findNamesByType (const char *type)

virtual ::CORBA::StringSeq * getAllNames ()

virtual ::CORBA::StringSeq * getAllTypes ()

virtual void deletePackage (const char *installationName)

Protected Member Functions

Deployment::PackageConfiguration * retrieve_PC_from_package (char *package)

void find_PC_name (char *package, ACE_CString &pcd_name)

Find out what the name of the PackageConfiguration file is.

Deployment::PackageConfiguration * retrieve_PC_from_descriptors (const char *pc_name, const char *descriptor_dir)

int HTTP_Get (const char *URL, ACE_Message_Block &mb)

int extract_descriptor_files (char *package, ACE_CString &pcd_name)

int remove_descriptor_files (char *package)

retval on success retval on
error *int remove_extracted_package (const char *package_path)

int add_type (::Deployment::PackageConfiguration &pc, const char *name)

int remove_type (::Deployment::PackageConfiguration &pc, const char *name)

void dump (void)

Function to dump the state of the RepositoryManager.

void save (void)

Function to save the package info of the RepositoryManager.

Private Types

typedef
ACE_Hash_Map_Manager_Ex
< ACE_CString, ACE_CString,
ACE_Hash< ACE_CString >
, ACE_Equal_To< ACE_CString >
, ACE_RW_Mutex > PCMap

typedef PCMap::ITERATOR PCMap_Iterator

typedef PCMap::ENTRY PCEntry

typedef
ACE_Hash_Multi_Map_Manager
< ACE_CString, ACE_CString,
ACE_Hash< ACE_CString >
, ACE_Equal_To< ACE_CString >
, ACE_RW_Mutex > CIMap

typedef CIMap::ITERATOR CIMap_Iterator

typedef CIMap::ENTRY CIEntry

typedef CIEntry::VALUE_SET CISet

typedef CIEntry::VALUE_SET_ITERATOR CISet_Iterator

Private Attributes

PCMap names_

PCMap uuids_

CIMap types_

CORBA::ORB_var the_orb_

The ORB.

char cwd_ [TEMP_LEN]

Will hold the current working directory.

ACE_CString install_root_

Full path for the install directory.

ACE_CString HTTP_server_

Location of the server.

ACE_CString install_path

Directory where the packages will be stored locally.

Member Typedef Documentation

typedef ACE_Hash_Map_Manager_Ex<ACE_CString, ACE_CString, ACE_Hash<ACE_CString>, ACE_Equal_To<ACE_CString>, ACE_RW_Mutex> CIAO_RepositoryManagerDaemon_i::PCMap [private]

Cached information about the installed PackageConfigurations A separate map for the installation names and their UUID's Key: PackageConfiguration name or its UUID (CString type) Value: The location of the local copy of the package Based on the synchronization needed we can parametrize this with either ACE_Null_Mutex or ACE_RW_Mutex

typedef PCMap::ITERATOR CIAO_RepositoryManagerDaemon_i::PCMap_Iterator [private]

typedef PCMap::ENTRY CIAO_RepositoryManagerDaemon_i::PCEntry [private]

typedef ACE_Hash_Multi_Map_Manager<ACE_CString, ACE_CString, ACE_Hash<ACE_CString>, ACE_Equal_To<ACE_CString>, ACE_RW_Mutex> CIAO_RepositoryManagerDaemon_i::CIMap [private]

Cached information about the installed Component Interfaces A map which associates Component supportedType with the names of packages which implement this component type Key: Component supportedType Value: Unbounded set of the names of installed packages which implement this component type Based on the synchronization needed we can parametrize this with either ACE_Null_Mutex or ACE_RW_Mutex

typedef CIMap::ITERATOR CIAO_RepositoryManagerDaemon_i::CIMap_Iterator [private]

typedef CIMap::ENTRY CIAO_RepositoryManagerDaemon_i::CIEntry [private]

typedef CIEntry::VALUE_SET CIAO_RepositoryManagerDaemon_i::CISet [private]

typedef CIEntry::VALUE_SET_ITERATOR CIAO_RepositoryManagerDaemon_i::CISet_Iterator [private]

Constructor & Destructor Documentation

CIAO_RepositoryManagerDaemon_i::CIAO_RepositoryManagerDaemon_i	(	CORBA::ORB_ptr	the_orb,
		const char *	server = `"localhost:5432"`,
		const char *	install_dir = `"RepositoryManager"`
	)

Constructor.

CIAO_RepositoryManagerDaemon_i::~CIAO_RepositoryManagerDaemon_i ( void ) [virtual]

Destructor.

Member Function Documentation

void CIAO_RepositoryManagerDaemon_i::shutdown ( ) [virtual]

void CIAO_RepositoryManagerDaemon_i::installPackage	(	const char *	installationName,
		const char *	location,
		::CORBA::Boolean	replace
	)			`[virtual]`

void CIAO_RepositoryManagerDaemon_i::createPackage	(	const char *	installationName,
		const ::Deployment::PackageConfiguration &	package,
		const char *	baseLocation,
		::CORBA::Boolean	replace
	)			`[virtual]`

Deployment::PackageConfiguration * CIAO_RepositoryManagerDaemon_i::findPackageByName ( const char * name )

Deployment::PackageConfiguration * CIAO_RepositoryManagerDaemon_i::findPackageByUUID ( const char * UUID )

CORBA::StringSeq * CIAO_RepositoryManagerDaemon_i::findNamesByType ( const char * type )

CORBA::StringSeq * CIAO_RepositoryManagerDaemon_i::getAllNames ( )

CORBA::StringSeq * CIAO_RepositoryManagerDaemon_i::getAllTypes ( )

void CIAO_RepositoryManagerDaemon_i::deletePackage ( const char * installationName ) [virtual]

Deployment::PackageConfiguration * CIAO_RepositoryManagerDaemon_i::retrieve_PC_from_package ( char * package ) [protected]

Function to parse and return the PackageConfiguration from a specified package

void CIAO_RepositoryManagerDaemon_i::find_PC_name	(	char *	package,
		ACE_CString &	pcd_name
	)			`[protected]`

Find out what the name of the PackageConfiguration file is.

Deployment::PackageConfiguration * CIAO_RepositoryManagerDaemon_i::retrieve_PC_from_descriptors	(	const char *	pc_name,
		const char *	descriptor_dir
	)			`[protected]`

Function to parse and return the PackageConfiguration from the already extracted descriptor files

int CIAO_RepositoryManagerDaemon_i::HTTP_Get	(	const char *	URL,
		ACE_Message_Block &	mb
	)			`[protected]`

Function to retrieve a file via HTTP stores the file in the passed preallocated ACE_Message_Block

Return values:

	1	success
	0	error

int CIAO_RepositoryManagerDaemon_i::extract_descriptor_files	(	char *	package,
		ACE_CString &	pcd_name
	)			`[protected]`

Function to extract all necessary files for parsing the PackageConfiguration descriptor and populating the idl struct.

Return values:

	1	success
	0	error

Note:: ACE_CString& pcd_name is an out parameter

int CIAO_RepositoryManagerDaemon_i::remove_descriptor_files ( char * package ) [protected]

Function to remove the files extracted for parsing the PackageConfiguration descriptor and populating the idl struct. It reads the names of the files from the package. They correspond to the names on disk.

Return values:

	1	on success
	0	on error

int CIAO_RepositoryManagerDaemon_i::remove_extracted_package ( const char * package_path ) [protected]

Function to remove the files extracted from the package upon istallation It reads the names of the files from the package. They correspond to the names on disk. It deletes each file, then it deletes the directories that contain them.

Note:: extraction location is path/*archive_name

int CIAO_RepositoryManagerDaemon_i::add_type	(	::Deployment::PackageConfiguration &	pc,
		const char *	name
	)			`[protected]`

Function to extract the type of the component from the PackageConfiguration and update the interface map

Return values:

	1	on success
	0	on error

int CIAO_RepositoryManagerDaemon_i::remove_type	(	::Deployment::PackageConfiguration &	pc,
		const char *	name
	)			`[protected]`

Function to remove the interface type of the component being removed from the interface map

Return values:

	1	on success
	0	on error

void CIAO_RepositoryManagerDaemon_i::dump ( void ) [protected]

Function to dump the state of the RepositoryManager.

void CIAO_RepositoryManagerDaemon_i::save ( void ) [protected]

Function to save the package info of the RepositoryManager.

Member Data Documentation

PCMap CIAO_RepositoryManagerDaemon_i::names_ [private]

A hash map that associates the names of PackageConfigurations with their location

PCMap CIAO_RepositoryManagerDaemon_i::uuids_ [private]

a hash map that associates the UUIDs of PackageConfigurations with their location

CIMap CIAO_RepositoryManagerDaemon_i::types_ [private]

a hash map which associates Component Interface UUIDs with their implementations

CORBA::ORB_var CIAO_RepositoryManagerDaemon_i::the_orb_ [private]

The ORB.

char CIAO_RepositoryManagerDaemon_i::cwd_[TEMP_LEN] [private]

Will hold the current working directory.

ACE_CString CIAO_RepositoryManagerDaemon_i::install_root_ [private]

Full path for the install directory.

ACE_CString CIAO_RepositoryManagerDaemon_i::HTTP_server_ [private]

Location of the server.

ACE_CString CIAO_RepositoryManagerDaemon_i::install_path [private]

Directory where the packages will be stored locally.

The documentation for this class was generated from the following files:


Public Member Functions
	CIAO_RepositoryManagerDaemon_i (CORBA::ORB_ptr the_orb, const char server="localhost:5432", const char install_dir="RepositoryManager")
	Constructor.
virtual	~CIAO_RepositoryManagerDaemon_i (void)
	Destructor.
virtual void	shutdown ()
virtual void	installPackage (const char installationName, const char location,::CORBA::Boolean replace)
virtual void	createPackage (const char installationName, const ::Deployment::PackageConfiguration &package, const char baseLocation,::CORBA::Boolean replace)
virtual ::Deployment::PackageConfiguration *	findPackageByName (const char *name)
virtual ::Deployment::PackageConfiguration *	findPackageByUUID (const char *UUID)
virtual ::CORBA::StringSeq *	findNamesByType (const char *type)
virtual ::CORBA::StringSeq *	getAllNames ()
virtual ::CORBA::StringSeq *	getAllTypes ()
virtual void	deletePackage (const char *installationName)
Protected Member Functions
Deployment::PackageConfiguration *	retrieve_PC_from_package (char *package)
void	find_PC_name (char *package, ACE_CString &pcd_name)
	Find out what the name of the PackageConfiguration file is.
Deployment::PackageConfiguration *	retrieve_PC_from_descriptors (const char pc_name, const char descriptor_dir)
int	HTTP_Get (const char *URL, ACE_Message_Block &mb)
int	extract_descriptor_files (char *package, ACE_CString &pcd_name)
int	remove_descriptor_files (char *package)
retval on success retval on error *int	remove_extracted_package (const char *package_path)
int	add_type (::Deployment::PackageConfiguration &pc, const char *name)
int	remove_type (::Deployment::PackageConfiguration &pc, const char *name)
void	dump (void)
	Function to dump the state of the RepositoryManager.
void	save (void)
	Function to save the package info of the RepositoryManager.
Private Types
typedef ACE_Hash_Map_Manager_Ex < ACE_CString, ACE_CString, ACE_Hash< ACE_CString > , ACE_Equal_To< ACE_CString > , ACE_RW_Mutex >	PCMap
typedef PCMap::ITERATOR	PCMap_Iterator
typedef PCMap::ENTRY	PCEntry
typedef ACE_Hash_Multi_Map_Manager < ACE_CString, ACE_CString, ACE_Hash< ACE_CString > , ACE_Equal_To< ACE_CString > , ACE_RW_Mutex >	CIMap
typedef CIMap::ITERATOR	CIMap_Iterator
typedef CIMap::ENTRY	CIEntry
typedef CIEntry::VALUE_SET	CISet
typedef CIEntry::VALUE_SET_ITERATOR	CISet_Iterator
Private Attributes
PCMap	names_
PCMap	uuids_
CIMap	types_
CORBA::ORB_var	the_orb_
	The ORB.
char	cwd_ [TEMP_LEN]
	Will hold the current working directory.
ACE_CString	install_root_
	Full path for the install directory.
ACE_CString	HTTP_server_
	Location of the server.
ACE_CString	install_path
	Directory where the packages will be stored locally.
