TAO_OC_Endpoint_Selector_Factory Class Reference

Factory for initializing <endpoint_selection_state> and obtaining appropriate <invocation_endpoint_selector>. More...

#include <OC_Endpoint_Selector_Factory.h>

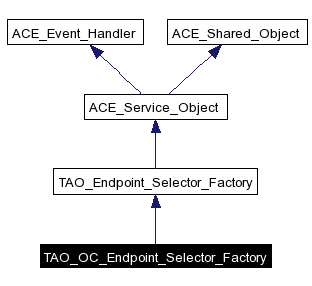

Inheritance diagram for TAO_OC_Endpoint_Selector_Factory:

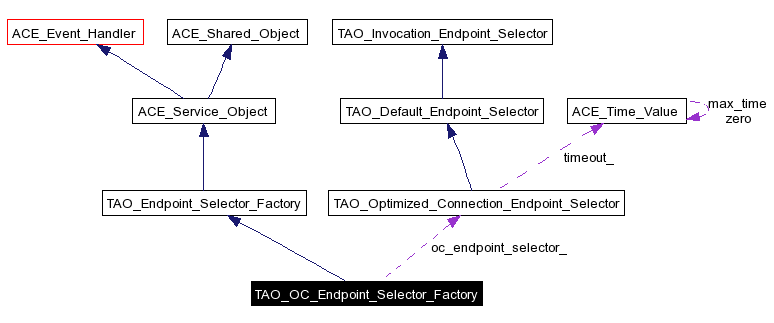

[legend]Collaboration diagram for TAO_OC_Endpoint_Selector_Factory:

[legend]List of all members.

Public Member Functions
	TAO_OC_Endpoint_Selector_Factory (void)
	Constructor.
virtual	~TAO_OC_Endpoint_Selector_Factory (void)
	Destructor.
virtual int	init (int argc, ACE_TCHAR *argv[])
virtual TAO_Invocation_Endpoint_Selector *	get_selector ()
Protected Attributes
TAO_Optimized_Connection_Endpoint_Selector *	oc_endpoint_selector_

---

Detailed Description

Factory for initializing <endpoint_selection_state> and obtaining appropriate <invocation_endpoint_selector>.

Used by Invocation classes to intialize its endpoint selection strategy and state based on the effective policies. Endpoint selection strategies are stateless objects - all the state they need is contained by Invocation in <endpoint_selection_state>. Thus, rather than allocating an endpoint selection strategy object for each Invocation, the factory simply returns the appropriate one from the set preallocated in the ORB_Core. One endpoint selection strategy object can be used by many invocations concurrently.

---

Constructor & Destructor Documentation

TAO_BEGIN_VERSIONED_NAMESPACE_DECL TAO_OC_Endpoint_Selector_Factory::TAO_OC_Endpoint_Selector_Factory (  void   )

Constructor.

TAO_OC_Endpoint_Selector_Factory::~TAO_OC_Endpoint_Selector_Factory (  void   )  [virtual]

Destructor.

---

Member Function Documentation

virtual TAO_Invocation_Endpoint_Selector* TAO_OC_Endpoint_Selector_Factory::get_selector (   )  [virtual]

Get an Invocation's endpoint selection strategy and initialize the endpoint selection state instance. Implements TAO_Endpoint_Selector_Factory.

int TAO_OC_Endpoint_Selector_Factory::init (  int  argc, ACE_TCHAR *  argv[] )  [virtual]

Reimplemented from ACE_Shared_Object.

---

Member Data Documentation

TAO_Optimized_Connection_Endpoint_Selector* TAO_OC_Endpoint_Selector_Factory::oc_endpoint_selector_ [protected]

The possible endpoint selector strategies that can be returned by this factory

---

The documentation for this class was generated from the following files:

• OC_Endpoint_Selector_Factory.h
• OC_Endpoint_Selector_Factory.cpp

---
