CORBA::Request Class Reference

CORBA::Request. More...

#include <Request.h>

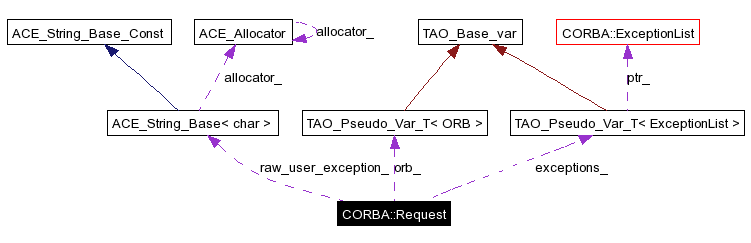

Collaboration diagram for CORBA::Request:

[legend]List of all members.

Public Types
typedef CORBA::Request_ptr	_ptr_type
typedef CORBA::Request_var	_var_type
Public Member Functions
CORBA::Object_ptr	target (void) const
	Return the target of this request.
const CORBA::Char *	operation (void) const
	Return the operation name for the request.
CORBA::NVList_ptr	arguments (void)
	Return the arguments for the request.
CORBA::NamedValue_ptr	result (void)
	Return the result for the request.
CORBA::ExceptionList_ptr	exceptions (void)
	Return the exceptions resulting from this request.
CORBA::Context_ptr	ctx (void) const
	Accessor for the Context member.
void	ctx (CORBA::Context_ptr)
	Mutator for the Context member.
CORBA::ContextList_ptr	contexts (void)
void	set_return_type (CORBA::TypeCode_ptr tc)
	Initialize the return type.
CORBA::Any &	return_value (void)
	Returns reference to Any for extraction using >>=.
void	invoke ()
	Perform method resolution and invoke an appropriate method.
void	send_oneway ()
	Send a oneway request.
void	handle_response (TAO_InputCDR &incoming, CORBA::ULong reply_status)
	Callback method for deferred synchronous requests.
CORBA::ULong	_incr_refcnt (void)
CORBA::ULong	_decr_refcnt (void)
void	_tao_lazy_evaluation (bool lazy_evaluation)
	Set the lazy evaluation flag.
int	_tao_byte_order (void) const
	Get the byte order member.
void	_tao_byte_order (int byte_order)
	Set the byte order member.
void	raw_user_exception (TAO_InputCDR &cdr)
ACE_CString &	raw_user_exception (void)
	Accessor for the input stream containing the exception.
CORBA::Boolean	response_received (void)
Argument manipulation helper functions.
Arg adders, one for each type of parameter, with and without optional name. Returns reference to Any for insertion using <<=.
CORBA::Any &	add_in_arg (void)
CORBA::Any &	add_in_arg (const char *name)
CORBA::Any &	add_inout_arg (void)
CORBA::Any &	add_inout_arg (const char *name)
CORBA::Any &	add_out_arg (void)
CORBA::Any &	add_out_arg (const char *name)
The 'deferred synchronous' methods.
The 'deferred synchronous' methods.
void	send_deferred ()
void	get_response ()
CORBA::Boolean	poll_response ()
Static Public Member Functions
CORBA::Request *	_duplicate (CORBA::Request *)
	Pseudo object methods.
CORBA::Request *	_nil (void)
Private Member Functions
	Request (CORBA::Object_ptr obj, CORBA::ORB_ptr orb, const CORBA::Char *op, CORBA::NVList_ptr args, CORBA::NamedValue_ptr result, CORBA::Flags flags, CORBA::ExceptionList_ptr exceptions)
	Request (CORBA::Object_ptr obj, CORBA::ORB_ptr orb, const CORBA::Char *op)
	~Request (void)
Private Attributes
CORBA::Object_ptr	target_
	Target object.
CORBA::ORB_var	orb_
	Pointer to our ORB.
const char *	opname_
	Operation name.
CORBA::NVList_ptr	args_
	Parameter list.
CORBA::NamedValue_ptr	result_
	Result of the operation.
CORBA::Flags	flags_
	Invocation flags.
CORBA::ExceptionList_var	exceptions_
	List of exceptions raised by the operation.
CORBA::ContextList_ptr	contexts_
	List of the request's result's contexts.
CORBA::Context_ptr	ctx_
	Context associated with this request.
CORBA::ULong	refcount_
	Reference counting.
TAO_SYNCH_MUTEX	lock_
	Protect the refcount_ and response_received_.
bool	lazy_evaluation_
	If not zero then the NVList is not evaluated by default.
CORBA::Boolean	response_received_
	Set to TRUE upon completion of invoke() or handle_response().
int	byte_order_
	Can be reset by a gateway when passing along a request.
ACE_CString	raw_user_exception_
Friends
class	::TAO_Dynamic_Adapter_Impl

---

Detailed Description

CORBA::Request.

Provides a way to create requests and populate it with parameters for use in the Dynamic Invocation Interface.

---

Member Typedef Documentation

typedef CORBA::Request_ptr CORBA::Request::_ptr_type

typedef CORBA::Request_var CORBA::Request::_var_type

---

Constructor & Destructor Documentation

CORBA::Request::Request (  CORBA::Object_ptr  obj, CORBA::ORB_ptr  orb, const CORBA::Char *  op, CORBA::NVList_ptr  args, CORBA::NamedValue_ptr  result, CORBA::Flags  flags, CORBA::ExceptionList_ptr  exceptions )  [private]

CORBA::Request::Request (  CORBA::Object_ptr  obj, CORBA::ORB_ptr  orb, const CORBA::Char *  op )  [private]

CORBA::Request::~Request (  void   )  [private]

---

Member Function Documentation

CORBA::ULong CORBA::Request::_decr_refcnt (  void   )

CORBA::Request* CORBA::Request::_duplicate (  CORBA::Request *   )  [static]

Pseudo object methods.

TAO_BEGIN_VERSIONED_NAMESPACE_DECL CORBA::ULong CORBA::Request::_incr_refcnt (  void   )

ACE_INLINE CORBA::Request_ptr CORBA::Request::_nil (  void   )  [static]

ACE_INLINE void CORBA::Request::_tao_byte_order (  int  byte_order  )

Set the byte order member.

ACE_INLINE int CORBA::Request::_tao_byte_order (  void   )  const

Get the byte order member.

ACE_INLINE void CORBA::Request::_tao_lazy_evaluation (  bool  lazy_evaluation  )

Set the lazy evaluation flag.

CORBA::Any& CORBA::Request::add_in_arg (  const char *  name  )

ACE_INLINE CORBA::Any & CORBA::Request::add_in_arg (  void   )

CORBA::Any& CORBA::Request::add_inout_arg (  const char *  name  )

ACE_INLINE CORBA::Any & CORBA::Request::add_inout_arg (  void   )

CORBA::Any& CORBA::Request::add_out_arg (  const char *  name  )

ACE_INLINE CORBA::Any & CORBA::Request::add_out_arg (  void   )

ACE_INLINE CORBA::NVList_ptr CORBA::Request::arguments (  void   )

Return the arguments for the request.

ACE_INLINE CORBA::ContextList_ptr CORBA::Request::contexts (  void   )

Return a list of the request's result's contexts. Since TAO does not implement Contexts, this will always be 0.

ACE_INLINE void CORBA::Request::ctx (  CORBA::Context_ptr   )

Mutator for the Context member.

ACE_INLINE CORBA::Context_ptr CORBA::Request::ctx (  void   )  const

Accessor for the Context member.

ACE_INLINE CORBA::ExceptionList_ptr CORBA::Request::exceptions (  void   )

Return the exceptions resulting from this request.

void CORBA::Request::get_response (   )

void CORBA::Request::handle_response (  TAO_InputCDR &  incoming, CORBA::ULong  reply_status )

Callback method for deferred synchronous requests.

void CORBA::Request::invoke (   )

Perform method resolution and invoke an appropriate method. If the method returns successfully, its result is placed in the result argument specified on create_request. The behavior is undefined if this Request has already been used with a previous call to invoke>, send>, or . Note: A default argument is set, but please note that this not recommended as the user may not be able to propagate the exceptions.

ACE_INLINE const CORBA::Char * CORBA::Request::operation (  void   )  const

Return the operation name for the request.

CORBA::Boolean CORBA::Request::poll_response (   )

ACE_INLINE ACE_CString & CORBA::Request::raw_user_exception (  void   )

Accessor for the input stream containing the exception.

ACE_INLINE void CORBA::Request::raw_user_exception (  TAO_InputCDR &  cdr  )

ACE_INLINE CORBA::Boolean CORBA::Request::response_received (  void   )

Proprietary method to check whether a response has been received.

ACE_INLINE CORBA::NamedValue_ptr CORBA::Request::result (  void   )

Return the result for the request.

ACE_INLINE CORBA::Any & CORBA::Request::return_value (  void   )

Returns reference to Any for extraction using >>=.

void CORBA::Request::send_deferred (   )

void CORBA::Request::send_oneway (   )

Send a oneway request. Note: A default argument is set, but please note that this not recommended as the user may not be able to propagate the exceptions.

ACE_INLINE void CORBA::Request::set_return_type (  CORBA::TypeCode_ptr  tc  )

Initialize the return type.

ACE_INLINE CORBA::Object_ptr CORBA::Request::target (  void   )  const

Return the target of this request.

---

Friends And Related Function Documentation

friend class ::TAO_Dynamic_Adapter_Impl [friend]

---

Member Data Documentation

CORBA::NVList_ptr CORBA::Request::args_ [private]

Parameter list.

int CORBA::Request::byte_order_ [private]

Can be reset by a gateway when passing along a request.

CORBA::ContextList_ptr CORBA::Request::contexts_ [private]

List of the request's result's contexts.

CORBA::Context_ptr CORBA::Request::ctx_ [private]

Context associated with this request.

CORBA::ExceptionList_var CORBA::Request::exceptions_ [private]

List of exceptions raised by the operation. Deprecated: Holds exceptions.

CORBA::Flags CORBA::Request::flags_ [private]

Invocation flags.

bool CORBA::Request::lazy_evaluation_ [private]

If not zero then the NVList is not evaluated by default.

TAO_SYNCH_MUTEX CORBA::Request::lock_ [private]

Protect the refcount_ and response_received_.

const char* CORBA::Request::opname_ [private]

Operation name.

CORBA::ORB_var CORBA::Request::orb_ [private]

Pointer to our ORB.

ACE_CString CORBA::Request::raw_user_exception_ [private]

Stores user exception as a CDR stream when this request is used in a TAO gateway.

CORBA::ULong CORBA::Request::refcount_ [private]

Reference counting.

CORBA::Boolean CORBA::Request::response_received_ [private]

Set to TRUE upon completion of invoke() or handle_response().

CORBA::NamedValue_ptr CORBA::Request::result_ [private]

Result of the operation.

CORBA::Object_ptr CORBA::Request::target_ [private]

Target object.

---

The documentation for this class was generated from the following files:

• Request.h
• Request.cpp
• Request.inl

---
