TAO_Notify_Proxy Class Reference

Base class proxy for all proxys in NS. More...

#include <Proxy.h>

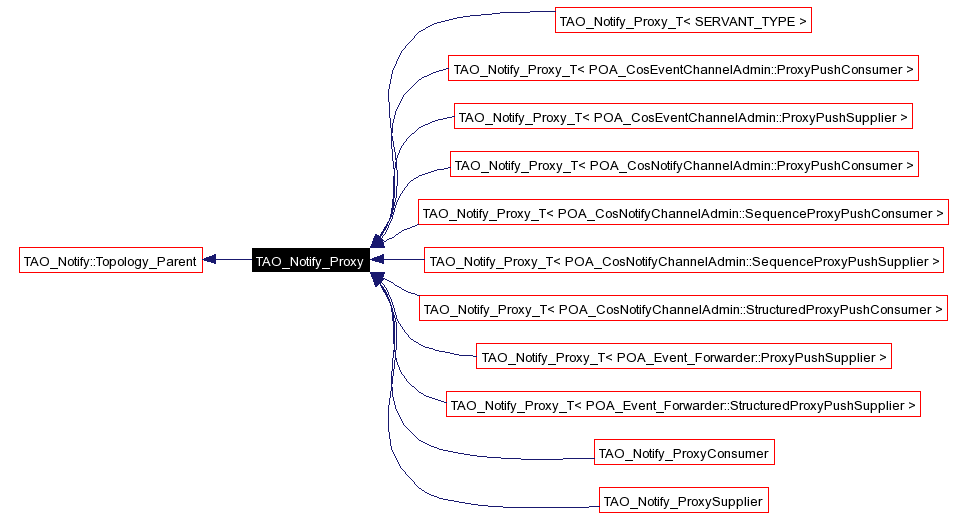

Inheritance diagram for TAO_Notify_Proxy:

Inheritance graph
[legend]

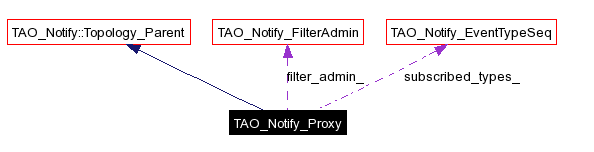

Collaboration diagram for TAO_Notify_Proxy:

Collaboration graph
[legend]
List of all members.

Public Types

typedef TAO_Notify_Refcountable_Guard_T<
TAO_Notify_Proxy > 		Ptr
typedef CosNotifyChannelAdmin::ProxyIDSeq SEQ
typedef CosNotifyChannelAdmin::ProxyIDSeq_var SEQ_VAR

Public Member Functions

 TAO_Notify_Proxy (void)
 Constuctor.
virtual ~TAO_Notify_Proxy ()
 Destructor.
virtual CORBA::Object_ptr activate (PortableServer::Servant servant)
 Activate.
virtual CORBA::Object_ptr activate (PortableServer::Servant servant, CORBA::Long id)
 Activate with a given ID.
void deactivate ()
 Deactivate.
void subscribed_types (TAO_Notify_EventTypeSeq &subscribed_types)
 Obtain the Proxy's subscribed types.
CORBA::Boolean check_filters (const TAO_Notify_Event *event, TAO_Notify_FilterAdmin &parent_filter_admin, CosNotifyChannelAdmin::InterFilterGroupOperator filter_operator)
 Check if this event passes the admin and proxy filters.
void types_changed (const TAO_Notify_EventTypeSeq &added, const TAO_Notify_EventTypeSeq &removed)
 Inform this proxy that the following types are being advertised.
CORBA::Boolean updates_off (void)
 Have updates been turned off.
virtual void destroy ()=0
 Destroy this object.
virtual TAO_Notify_Peer * peer (void)=0
 Access our Peer.
virtual CosNotification::EventTypeSeq * obtain_types (CosNotifyChannelAdmin::ObtainInfoMode mode, const TAO_Notify_EventTypeSeq &types) throw (CORBA::SystemException)
 Implement the Obtain Types.
virtual void admin_types_changed (const CosNotification::EventTypeSeq &added, const CosNotification::EventTypeSeq &removed)=0
 Notification of subscriptions/offers set at the admin.
virtual void qos_changed (const TAO_Notify_QoSProperties &qos_properties)
 Override, TAO_Notify_Object::qos_changed.
virtual void save_persistent (TAO_Notify::Topology_Saver &saver)
virtual void save_attrs (TAO_Notify::NVPList &attrs)
virtual const char * get_proxy_type_name (void) const =0
virtual TAO_Notify::Topology_Object * load_child (const ACE_CString &type, CORBA::Long id, const TAO_Notify::NVPList &attrs)

Protected Attributes

TAO_Notify_FilterAdmin filter_admin_
 Filter Administration.
TAO_Notify_EventTypeSeq subscribed_types_
 The types that we're subscribed with the event manager.
CORBA::Boolean updates_off_
 True if updates have been turned off.

Friends

class TAO_Notify_Peer

Detailed Description

Base class proxy for all proxys in NS.

Member Typedef Documentation

typedef TAO_Notify_Refcountable_Guard_T<TAO_Notify_Proxy> TAO_Notify_Proxy::Ptr


Reimplemented from TAO_Notify_Refcountable.

Reimplemented in TAO_Notify_ProxyConsumer, and TAO_Notify_ProxySupplier.

typedef CosNotifyChannelAdmin::ProxyIDSeq TAO_Notify_Proxy::SEQ


typedef CosNotifyChannelAdmin::ProxyIDSeq_var TAO_Notify_Proxy::SEQ_VAR


Constructor & Destructor Documentation

TAO_BEGIN_VERSIONED_NAMESPACE_DECL TAO_Notify_Proxy::TAO_Notify_Proxy (  void   )


Constuctor.

TAO_Notify_Proxy::~TAO_Notify_Proxy (   )  [virtual]


Destructor.

Member Function Documentation

CORBA::Object_ptr TAO_Notify_Proxy::activate (  PortableServer::Servant  servant,
CORBA::Long  id
)  [virtual]


Activate with a given ID.

Reimplemented from TAO_Notify_Object.

Reimplemented in TAO_Notify_RT_StructuredProxyPushSupplier.

CORBA::Object_ptr TAO_Notify_Proxy::activate (  PortableServer::Servant  servant  )  [virtual]


Activate.

Reimplemented from TAO_Notify_Object.

Reimplemented in TAO_Notify_RT_StructuredProxyPushSupplier.

virtual void TAO_Notify_Proxy::admin_types_changed (  const CosNotification::EventTypeSeq &  added,
const CosNotification::EventTypeSeq &  removed
)  [pure virtual]


Notification of subscriptions/offers set at the admin.

Implemented in TAO_Notify_ProxyConsumer_T< SERVANT_TYPE >, TAO_Notify_ProxySupplier_T< SERVANT_TYPE >, TAO_Notify_ProxyConsumer_T< POA_CosNotifyChannelAdmin::ProxyPushConsumer >, TAO_Notify_ProxyConsumer_T< POA_CosNotifyChannelAdmin::SequenceProxyPushConsumer >, TAO_Notify_ProxyConsumer_T< POA_CosEventChannelAdmin::ProxyPushConsumer >, TAO_Notify_ProxyConsumer_T< POA_CosNotifyChannelAdmin::StructuredProxyPushConsumer >, TAO_Notify_ProxySupplier_T< POA_Event_Forwarder::ProxyPushSupplier >, TAO_Notify_ProxySupplier_T< POA_CosNotifyChannelAdmin::SequenceProxyPushSupplier >, TAO_Notify_ProxySupplier_T< POA_Event_Forwarder::StructuredProxyPushSupplier >, and TAO_Notify_ProxySupplier_T< POA_CosEventChannelAdmin::ProxyPushSupplier >.

ACE_INLINE CORBA::Boolean TAO_Notify_Proxy::check_filters (  const TAO_Notify_Event *  event,
TAO_Notify_FilterAdmin &  parent_filter_admin,
CosNotifyChannelAdmin::InterFilterGroupOperator  filter_operator
)


Check if this event passes the admin and proxy filters.

void TAO_Notify_Proxy::deactivate (   )


Deactivate.

Reimplemented from TAO_Notify_Object.

virtual void TAO_Notify_Proxy::destroy (   )  [pure virtual]


Destroy this object.

Implemented in TAO_Notify_ProxyConsumer, and TAO_Notify_ProxySupplier.

virtual const char* TAO_Notify_Proxy::get_proxy_type_name (  void   )  const [pure virtual]


Implemented in TAO_Notify_CosEC_ProxyPushConsumer, TAO_Notify_CosEC_ProxyPushSupplier, TAO_Notify_ProxyPushConsumer, TAO_Notify_ProxyPushSupplier, TAO_Notify_SequenceProxyPushConsumer, TAO_Notify_SequenceProxyPushSupplier, TAO_Notify_StructuredProxyPushConsumer, and TAO_Notify_StructuredProxyPushSupplier.

TAO_Notify::Topology_Object * TAO_Notify_Proxy::load_child (  const ACE_CString &  type,
CORBA::Long  id,
const TAO_Notify::NVPList &  attrs
)  [virtual]


CosNotification::EventTypeSeq * TAO_Notify_Proxy::obtain_types (  CosNotifyChannelAdmin::ObtainInfoMode  mode,
const TAO_Notify_EventTypeSeq &  types
)  throw (CORBA::SystemException) [virtual]


Implement the Obtain Types.

virtual TAO_Notify_Peer* TAO_Notify_Proxy::peer (  void   )  [pure virtual]


Access our Peer.

Implemented in TAO_Notify_ProxyConsumer, and TAO_Notify_ProxySupplier.

void TAO_Notify_Proxy::qos_changed (  const TAO_Notify_QoSProperties &  qos_properties  )  [virtual]


Override, TAO_Notify_Object::qos_changed.

Reimplemented from TAO_Notify_Object.

Reimplemented in TAO_Notify_ProxySupplier.

void TAO_Notify_Proxy::save_attrs (  TAO_Notify::NVPList &  attrs  )  [virtual]


Called by derived types to save their attributes. Each derived type should call its superclass version before saving its own attrs.

Reimplemented from TAO_Notify_Object.

void TAO_Notify_Proxy::save_persistent (  TAO_Notify::Topology_Saver &  saver  )  [virtual]


void TAO_Notify_Proxy::subscribed_types (  TAO_Notify_EventTypeSeq &  subscribed_types  )


Obtain the Proxy's subscribed types.

void TAO_Notify_Proxy::types_changed (  const TAO_Notify_EventTypeSeq &  added,
const TAO_Notify_EventTypeSeq &  removed
)


Inform this proxy that the following types are being advertised.

TAO_BEGIN_VERSIONED_NAMESPACE_DECL ACE_INLINE CORBA::Boolean TAO_Notify_Proxy::updates_off (  void   )


Have updates been turned off.

Friends And Related Function Documentation

friend class TAO_Notify_Peer [friend]


Member Data Documentation

TAO_Notify_FilterAdmin TAO_Notify_Proxy::filter_admin_ [protected]


Filter Administration.

TAO_Notify_EventTypeSeq TAO_Notify_Proxy::subscribed_types_ [protected]


The types that we're subscribed with the event manager.

CORBA::Boolean TAO_Notify_Proxy::updates_off_ [protected]


True if updates have been turned off.

The documentation for this class was generated from the following files:
