TAO::Synch_Twoway_Invocation Class Reference

All the action for a synchronous twoway invocation happen here. More...

#include <Synch_Invocation.h>

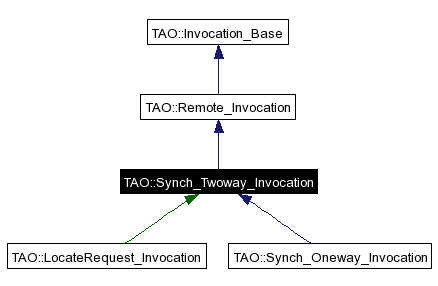

Inheritance diagram for TAO::Synch_Twoway_Invocation:

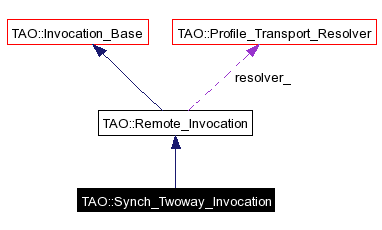

[legend]Collaboration diagram for TAO::Synch_Twoway_Invocation:

[legend]List of all members.

Public Member Functions
	Synch_Twoway_Invocation (CORBA::Object_ptr otarget, Profile_Transport_Resolver &resolver, TAO_Operation_Details &detail, bool response_expected=true)
	Constructor used by TAO::Invocation_Adapter.
Invocation_Status	remote_twoway (ACE_Time_Value *max_wait_time) throw (CORBA::Exception)
Protected Member Functions
virtual Invocation_Status	handle_user_exception (TAO_InputCDR &cdr) throw (CORBA::Exception)
Invocation_Status	location_forward (TAO_InputCDR &cdr) throw (CORBA::SystemException)
	Helper method used to handle location forwarded replies.
Invocation_Status	handle_system_exception (TAO_InputCDR &cdr) throw (CORBA::SystemException)
Invocation_Status	wait_for_reply (ACE_Time_Value *max_wait_time, TAO_Synch_Reply_Dispatcher &rd, TAO_Bind_Dispatcher_Guard &bd) throw (CORBA::SystemException)
	As the name suggests waits for a reply from the remote ORB.
Private Member Functions
Invocation_Status	check_reply_status (TAO_Synch_Reply_Dispatcher &rd)

---

Detailed Description

All the action for a synchronous twoway invocation happen here.

An object of this type is created by TAO::Invocation_Adapter and invokes a method on this class. The method takes care of creating and sending a request, waiting for a reply and demarshalling the reply for the client.

---

Constructor & Destructor Documentation

TAO::Synch_Twoway_Invocation::Synch_Twoway_Invocation (  CORBA::Object_ptr  otarget, Profile_Transport_Resolver &  resolver, TAO_Operation_Details &  detail, bool  response_expected = true )

Constructor used by TAO::Invocation_Adapter. Parameters: otarget  The original target on which this invocation was started. This is there to be passed up to its parent class. resolver  The profile and transport holder. detail  Operation details of the invocation on the target response_expected  Flag to indicate whether the operation encapsulated by op returns a response or not.

---

Member Function Documentation

Invocation_Status TAO::Synch_Twoway_Invocation::check_reply_status (  TAO_Synch_Reply_Dispatcher &  rd  )  [private]

This method returns an exception when there is an error.

Invocation_Status TAO::Synch_Twoway_Invocation::handle_system_exception (  TAO_InputCDR &  cdr  )  throw (CORBA::SystemException) [protected]

Helper method used to handle system exceptions from the remote objects.

Invocation_Status TAO::Synch_Twoway_Invocation::handle_user_exception (  TAO_InputCDR &  cdr  )  throw (CORBA::Exception) [protected, virtual]

This method is selectively made virtual, so that inherited classes can overload the user exception handling type. For example the DII needs a totally different method of user exception exception handling

Invocation_Status TAO::Synch_Twoway_Invocation::location_forward (  TAO_InputCDR &  cdr  )  throw (CORBA::SystemException) [protected]

Helper method used to handle location forwarded replies.

Invocation_Status TAO::Synch_Twoway_Invocation::remote_twoway (  ACE_Time_Value *  max_wait_time  )  throw (CORBA::Exception)

There is a exception declaration in this method which ensures that the exceptions propogated by the remote objects are converted a CORBA exceptions for the clients. This method does a bunch of things necessary to create and send the invocation. This method is also nerve centre for the interceptor invocation points.

Invocation_Status TAO::Synch_Twoway_Invocation::wait_for_reply (  ACE_Time_Value *  max_wait_time, TAO_Synch_Reply_Dispatcher &  rd, TAO_Bind_Dispatcher_Guard &  bd )  throw (CORBA::SystemException) [protected]

As the name suggests waits for a reply from the remote ORB. This method returns an exception when there is an error.

---

The documentation for this class was generated from the following files:

• Synch_Invocation.h
• Synch_Invocation.cpp

---
