TAO_Notify_Event_Map_T< PROXY, ACE_LOCK > Class Template Reference

Template class for storing the collection of Proxys. More...

#include <Event_Map_T.h>

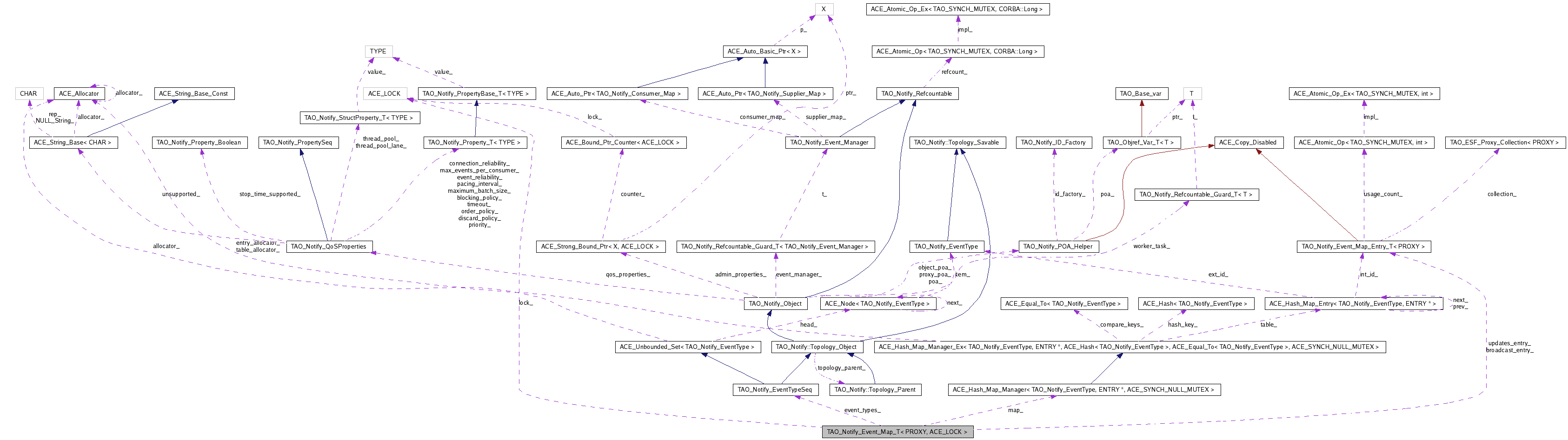

Collaboration diagram for TAO_Notify_Event_Map_T< PROXY, ACE_LOCK >:

[legend]List of all members.

Public Types
typedef TAO_Notify_Event_Map_Entry_T< PROXY >	ENTRY
Public Member Functions
	TAO_Notify_Event_Map_T (void)
	Constuctor.
	~TAO_Notify_Event_Map_T ()
	Destructor.
void	init (void)
	Init.
void	connect (PROXY *proxy)
	Connect a PROXY.
void	disconnect (PROXY *proxy)
	Disconnect a PROXY.
int	insert (PROXY *proxy, const TAO_Notify_EventType &event_type)
int	remove (PROXY *proxy, const TAO_Notify_EventType &event_type)
ENTRY *	find (const TAO_Notify_EventType &event_type)
ENTRY::COLLECTION *	broadcast_collection (void)
	Find the default broadcast list.
ENTRY::COLLECTION *	updates_collection (void)
	Find the update list. This is all the PROXYS connected to this Map.
void	release (ENTRY *entry)
	Release the usage count on this entry.
const TAO_Notify_EventTypeSeq &	event_types (void)
	Access all the event types available.
int	proxy_count (void)
	Access number of proxys connected in all.
Protected Attributes
ACE_Hash_Map_Manager< TAO_Notify_EventType, ENTRY *, ACE_SYNCH_NULL_MUTEX >	map_
	The Map that stores eventtype to entry mapping.
ACE_LOCK	lock_
	The lock to use.
int	proxy_count_
	Count of proxys connected.
ENTRY	broadcast_entry_
	The default broadcast list for EventType::special.
ENTRY	updates_entry_
	Update Entry - Keeps a list of all PROXY's connected to this Map. Updates are send to this list.
TAO_Notify_EventTypeSeq	event_types_
	The event types that are available in this map.

---

Detailed Description

template<class PROXY, class ACE_LOCK>
class TAO_Notify_Event_Map_T< PROXY, ACE_LOCK >

Template class for storing the collection of Proxys.

---

Member Typedef Documentation

template<class PROXY, class ACE_LOCK>

typedef TAO_Notify_Event_Map_Entry_T<PROXY> TAO_Notify_Event_Map_T< PROXY, ACE_LOCK >::ENTRY

---

Constructor & Destructor Documentation

template<class PROXY, class ACE_LOCK>

TAO_BEGIN_VERSIONED_NAMESPACE_DECL TAO_Notify_Event_Map_T< PROXY, ACE_LOCK >::TAO_Notify_Event_Map_T

(

void

)

[inline]

Constuctor.

template<class PROXY, class ACE_LOCK>

TAO_Notify_Event_Map_T< PROXY, ACE_LOCK >::~TAO_Notify_Event_Map_T

(

)

[inline]

Destructor.

---

Member Function Documentation

template<class PROXY, class ACE_LOCK>

void TAO_Notify_Event_Map_T< PROXY, ACE_LOCK >::init

(

void

)

[inline]

Init.

template<class PROXY, class ACE_LOCK>

void TAO_Notify_Event_Map_T< PROXY, ACE_LOCK >::connect

(

PROXY *

proxy

)

[inline]

Connect a PROXY.

template<class PROXY, class ACE_LOCK>

void TAO_Notify_Event_Map_T< PROXY, ACE_LOCK >::disconnect

(

PROXY *

proxy

)

[inline]

Disconnect a PROXY.

template<class PROXY, class ACE_LOCK>

int TAO_Notify_Event_Map_T< PROXY, ACE_LOCK >::insert	(	PROXY *	proxy,
		const TAO_Notify_EventType &	event_type
	)			[inline]

Associate PROXY and event_type. Returns 1 if <event_type> is being seem for the 1st time otherwise returns 0. Returns -1 on error.

template<class PROXY, class ACE_LOCK>

int TAO_Notify_Event_Map_T< PROXY, ACE_LOCK >::remove	(	PROXY *	proxy,
		const TAO_Notify_EventType &	event_type
	)			[inline]

Remove association of PROXY and event_type. Returns 1 if <event_type> is being seem for the last time otherwise returns 0. Returns -1 on error.

Exec a strategy for removing entries. Strategy 1: remove_immediately Strategy 2: remove a bunch_after crossing a threshold Strategy 3: use cached allocator and 1

template<class PROXY, class ACE_LOCK>

TAO_BEGIN_VERSIONED_NAMESPACE_DECL ACE_INLINE TAO_Notify_Event_Map_Entry_T< PROXY > * TAO_Notify_Event_Map_T< PROXY, ACE_LOCK >::find

(

const TAO_Notify_EventType &

event_type

)

[inline]

Find the collection mapped to the <event_type> The usage_count on the entry returned is incremented.

template<class PROXY, class ACE_LOCK>

ACE_INLINE TAO_Notify_Event_Map_Entry_T< PROXY >::COLLECTION * TAO_Notify_Event_Map_T< PROXY, ACE_LOCK >::broadcast_collection

(

void

)

[inline]

Find the default broadcast list.

template<class PROXY, class ACE_LOCK>

ACE_INLINE TAO_Notify_Event_Map_Entry_T< PROXY >::COLLECTION * TAO_Notify_Event_Map_T< PROXY, ACE_LOCK >::updates_collection

(

void

)

[inline]

Find the update list. This is all the PROXYS connected to this Map.

template<class PROXY, class ACE_LOCK>

ACE_INLINE void TAO_Notify_Event_Map_T< PROXY, ACE_LOCK >::release

(

ENTRY *

entry

)

[inline]

Release the usage count on this entry.

template<class PROXY, class ACE_LOCK>

ACE_INLINE const TAO_Notify_EventTypeSeq & TAO_Notify_Event_Map_T< PROXY, ACE_LOCK >::event_types

(

void

)

[inline]

Access all the event types available.

template<class PROXY, class ACE_LOCK>

ACE_INLINE int TAO_Notify_Event_Map_T< PROXY, ACE_LOCK >::proxy_count

(

void

)

[inline]

Access number of proxys connected in all.

---

Member Data Documentation

template<class PROXY, class ACE_LOCK>

ACE_Hash_Map_Manager<TAO_Notify_EventType, ENTRY*, ACE_SYNCH_NULL_MUTEX> TAO_Notify_Event_Map_T< PROXY, ACE_LOCK >::map_ [protected]

The Map that stores eventtype to entry mapping.

template<class PROXY, class ACE_LOCK>

ACE_LOCK TAO_Notify_Event_Map_T< PROXY, ACE_LOCK >::lock_ [protected]

The lock to use.

template<class PROXY, class ACE_LOCK>

int TAO_Notify_Event_Map_T< PROXY, ACE_LOCK >::proxy_count_ [protected]

Count of proxys connected.

template<class PROXY, class ACE_LOCK>

ENTRY TAO_Notify_Event_Map_T< PROXY, ACE_LOCK >::broadcast_entry_ [protected]

The default broadcast list for EventType::special.

template<class PROXY, class ACE_LOCK>

ENTRY TAO_Notify_Event_Map_T< PROXY, ACE_LOCK >::updates_entry_ [protected]

Update Entry - Keeps a list of all PROXY's connected to this Map. Updates are send to this list.

template<class PROXY, class ACE_LOCK>

TAO_Notify_EventTypeSeq TAO_Notify_Event_Map_T< PROXY, ACE_LOCK >::event_types_ [protected]

The event types that are available in this map.

---

The documentation for this class was generated from the following files:

• Event_Map_T.h
• Event_Map_T.cpp
• Event_Map_T.inl

---
