TAO_Notify_Event Class Reference

Base class abstraction for Events flowing through the EventChannel. More...

#include <Event.h>

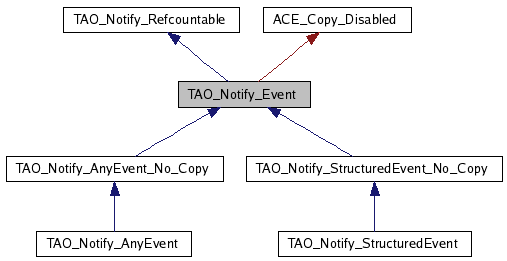

Inheritance diagram for TAO_Notify_Event:

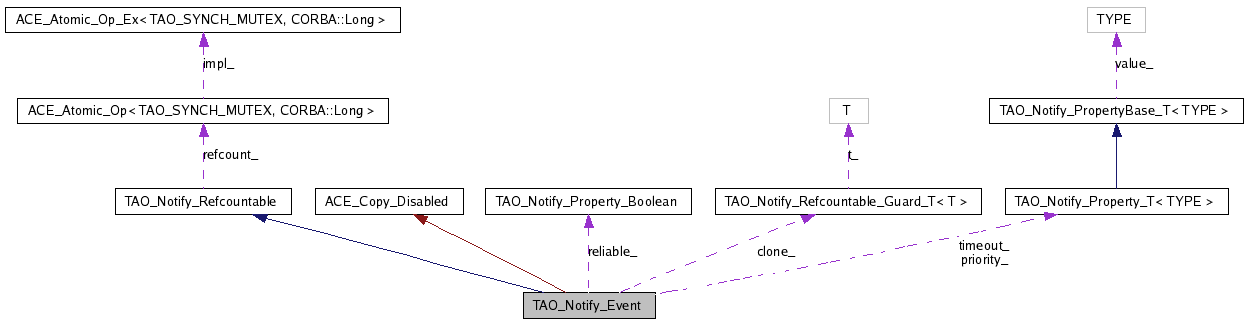

[legend]Collaboration diagram for TAO_Notify_Event:

[legend]List of all members.

Public Types
enum	{ MARSHAL_ANY = 1, MARSHAL_STRUCTURED = 2 }
typedef TAO_Notify_Refcountable_Guard_T< TAO_Notify_Event >	Ptr
Public Member Functions
	TAO_Notify_Event (void)
	Constuctor.
virtual	~TAO_Notify_Event ()
	Destructor.
virtual const TAO_Notify_EventType &	type (void) const=0
	Get the event type.
virtual CORBA::Boolean	do_match (CosNotifyFilter::Filter_ptr filter) const=0
	Returns true if the filter matches.
virtual void	convert (CosNotification::StructuredEvent &notification) const=0
	Convert to CosNotification::Structured type.
virtual void	push (TAO_Notify_Consumer *consumer) const =0
	Push event to consumer.
virtual void	push (Event_Forwarder::StructuredProxyPushSupplier_ptr forwarder) const=0
	Push event to the Event_Forwarder interface.
virtual void	push_no_filtering (Event_Forwarder::StructuredProxyPushSupplier_ptr forwarder) const=0
	Push event to the Event_Forwarder interface.
virtual void	push (Event_Forwarder::ProxyPushSupplier_ptr forwarder) const=0
	Push event to the Event_Forwarder interface.
virtual void	push_no_filtering (Event_Forwarder::ProxyPushSupplier_ptr forwarder) const=0
	Push event to the Event_Forwarder interface.
TAO_Notify_Event *	queueable_copy (void) const
	Return a pointer to a copy of this event on the heap.
virtual void	marshal (TAO_OutputCDR &cdr) const=0
	marshal this event into a CDR buffer (for persistence)
const TAO_Notify_Property_Short &	priority (void) const
const TAO_Notify_Property_Time &	timeout (void) const
	Timeout.
const TAO_Notify_Property_Boolean &	reliable (void) const
	Reliable.
Static Public Member Functions
static void	translate (const CORBA::Any &any, CosNotification::StructuredEvent &notification)
	Translate Any to Structured.
static void	translate (const CosNotification::StructuredEvent &notification, CORBA::Any &any)
	Translate Structured to Any.
static TAO_Notify_Event *	unmarshal (TAO_InputCDR &cdr)
	Unmarshal an event from a CDR. (for persistence).
Protected Attributes
TAO_Notify_Property_Short	priority_
	Priority.
TAO_Notify_Property_Time	timeout_
	Timeout.
TAO_Notify_Property_Boolean	reliable_
	Reliability.
Private Member Functions
virtual TAO_Notify_Event *	copy (void) const=0
	Return a pointer to a copy of this event on the heap.
virtual void	release (void)
	The release method is called when the refcount reaches 0.
Private Attributes
Ptr	clone_
bool	is_on_heap_

---

Detailed Description

Base class abstraction for Events flowing through the EventChannel.

---

Member Typedef Documentation

typedef TAO_Notify_Refcountable_Guard_T<TAO_Notify_Event> TAO_Notify_Event::Ptr

Reimplemented from TAO_Notify_Refcountable.

---

Member Enumeration Documentation

anonymous enum

Enumerator:

MARSHAL_ANY
MARSHAL_STRUCTURED

---

Constructor & Destructor Documentation

TAO_BEGIN_VERSIONED_NAMESPACE_DECL TAO_Notify_Event::TAO_Notify_Event

(

void

)

Constuctor.

TAO_Notify_Event::~TAO_Notify_Event

(

)

[virtual]

Destructor.

---

Member Function Documentation

void TAO_Notify_Event::translate	(	const CORBA::Any &	any,
		CosNotification::StructuredEvent &	notification
	)			[static]

Translate Any to Structured.

void TAO_Notify_Event::translate	(	const CosNotification::StructuredEvent &	notification,
		CORBA::Any &	any
	)			[static]

Translate Structured to Any.

virtual const TAO_Notify_EventType& TAO_Notify_Event::type

(

void

)

const [pure virtual]

Get the event type.

Implemented in TAO_Notify_AnyEvent_No_Copy, and TAO_Notify_StructuredEvent_No_Copy.

virtual CORBA::Boolean TAO_Notify_Event::do_match

(

CosNotifyFilter::Filter_ptr

filter

)

const [pure virtual]

Returns true if the filter matches.

Implemented in TAO_Notify_AnyEvent_No_Copy, and TAO_Notify_StructuredEvent_No_Copy.

virtual void TAO_Notify_Event::convert

(

CosNotification::StructuredEvent &

notification

)

const [pure virtual]

Convert to CosNotification::Structured type.

Implemented in TAO_Notify_AnyEvent_No_Copy, and TAO_Notify_StructuredEvent_No_Copy.

virtual void TAO_Notify_Event::push

(

TAO_Notify_Consumer *

consumer

)

const [pure virtual]

Push event to consumer.

Implemented in TAO_Notify_AnyEvent_No_Copy, and TAO_Notify_StructuredEvent_No_Copy.

virtual void TAO_Notify_Event::push

(

Event_Forwarder::StructuredProxyPushSupplier_ptr

forwarder

)

const [pure virtual]

Push event to the Event_Forwarder interface.

Implemented in TAO_Notify_AnyEvent_No_Copy, and TAO_Notify_StructuredEvent_No_Copy.

virtual void TAO_Notify_Event::push_no_filtering

(

Event_Forwarder::StructuredProxyPushSupplier_ptr

forwarder

)

const [pure virtual]

Push event to the Event_Forwarder interface.

Implemented in TAO_Notify_AnyEvent_No_Copy, and TAO_Notify_StructuredEvent_No_Copy.

virtual void TAO_Notify_Event::push

(

Event_Forwarder::ProxyPushSupplier_ptr

forwarder

)

const [pure virtual]

Push event to the Event_Forwarder interface.

Implemented in TAO_Notify_AnyEvent_No_Copy, and TAO_Notify_StructuredEvent_No_Copy.

virtual void TAO_Notify_Event::push_no_filtering

(

Event_Forwarder::ProxyPushSupplier_ptr

forwarder

)

const [pure virtual]

Push event to the Event_Forwarder interface.

Implemented in TAO_Notify_AnyEvent_No_Copy, and TAO_Notify_StructuredEvent_No_Copy.

ACE_INLINE TAO_Notify_Event * TAO_Notify_Event::queueable_copy

(

void

)

const

Return a pointer to a copy of this event on the heap.

virtual void TAO_Notify_Event::marshal

(

TAO_OutputCDR &

cdr

)

const [pure virtual]

marshal this event into a CDR buffer (for persistence)

Implemented in TAO_Notify_AnyEvent_No_Copy, and TAO_Notify_StructuredEvent_No_Copy.

TAO_Notify_Event * TAO_Notify_Event::unmarshal

(

TAO_InputCDR &

cdr

)

[static]

Unmarshal an event from a CDR. (for persistence).

Reimplemented in TAO_Notify_AnyEvent_No_Copy, and TAO_Notify_StructuredEvent_No_Copy.

TAO_BEGIN_VERSIONED_NAMESPACE_DECL ACE_INLINE const TAO_Notify_Property_Short & TAO_Notify_Event::priority

(

void

)

const

= Accessors Priority

ACE_INLINE const TAO_Notify_Property_Time & TAO_Notify_Event::timeout

(

void

)

const

Timeout.

ACE_INLINE const TAO_Notify_Property_Boolean & TAO_Notify_Event::reliable

(

void

)

const

Reliable.

virtual TAO_Notify_Event* TAO_Notify_Event::copy

(

void

)

const [private, pure virtual]

Return a pointer to a copy of this event on the heap.

Implemented in TAO_Notify_AnyEvent_No_Copy, and TAO_Notify_StructuredEvent_No_Copy.

void TAO_Notify_Event::release

(

void

)

[private, virtual]

The release method is called when the refcount reaches 0.

Implements TAO_Notify_Refcountable.

---

Member Data Documentation

TAO_Notify_Property_Short TAO_Notify_Event::priority_ [protected]

Priority.

TAO_Notify_Property_Time TAO_Notify_Event::timeout_ [protected]

Timeout.

TAO_Notify_Property_Boolean TAO_Notify_Event::reliable_ [protected]

Reliability.

Ptr TAO_Notify_Event::clone_ [mutable, private]

bool TAO_Notify_Event::is_on_heap_ [private]

---

The documentation for this class was generated from the following files:

• Event.h
• Event.cpp
• Event.inl

---
