TAO_Notify_Buffering_Strategy Class Reference

Base Strategy to enqueue and dequeue items from a Message Queue. More...

#include <Buffering_Strategy.h>

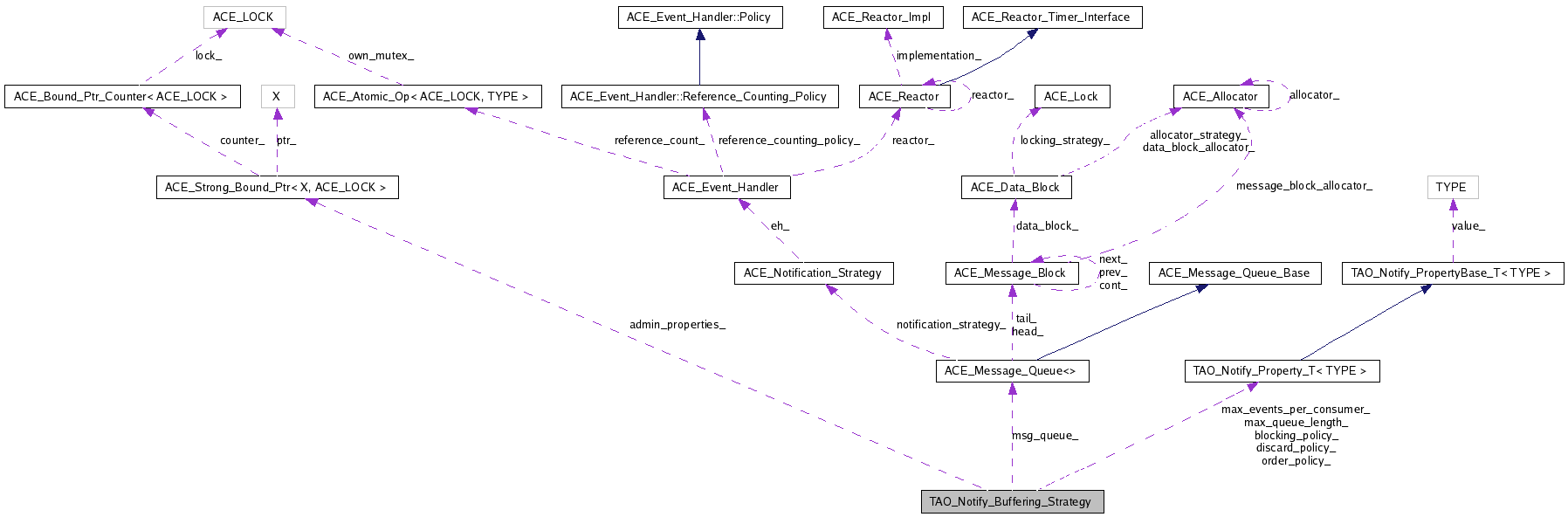

Collaboration diagram for TAO_Notify_Buffering_Strategy:


Public Member Functions
	TAO_Notify_Buffering_Strategy (TAO_Notify_Message_Queue &msg_queue, const TAO_Notify_AdminProperties::Ptr &admin_properties)
	~TAO_Notify_Buffering_Strategy ()
void	update_qos_properties (const TAO_Notify_QoSProperties &qos_properties)
int	enqueue (TAO_Notify_Method_Request_Queueable *method_request)
int	dequeue (TAO_Notify_Method_Request_Queueable &method_request, const ACE_Time_Value abstime)
void	shutdown (void)
	Shutdown.
Private Member Functions
int	queue (TAO_Notify_Method_Request_Queueable *method_request)
	Apply the Order Policy and queue. return -1 on error.
bool	discard (TAO_Notify_Method_Request_Queueable *method_request)
	Discard as per the Discard Policy.
Private Attributes
TAO_Notify_Message_Queue &	msg_queue_
	The local Message Queue.
TAO_Notify_AdminProperties::Ptr	admin_properties_
	Reference to the properties per event channel.
ACE_SYNCH_MUTEX &	global_queue_lock_
	The shared global lock used by all the queues.
CORBA::Long &	global_queue_length_
	The global queue length - queue length accross all the queues.
const TAO_Notify_Property_Long &	max_queue_length_
	The maximum events that can be queued overall.
TAO_Notify_Property_Short	order_policy_
	Order of events in internal buffers.
TAO_Notify_Property_Short	discard_policy_
	Policy to discard when buffers are full.
TAO_Notify_Property_Long	max_events_per_consumer_
TAO_Notify_Property_Time	blocking_policy_
TAO_SYNCH_CONDITION &	global_not_full_
TAO_SYNCH_CONDITION	local_not_full_
TAO_SYNCH_CONDITION	local_not_empty_
	Condition that batch size reached.
bool	shutdown_
	Flag to shutdown.

Detailed Description

Base Strategy to enqueue and dequeue items from a Message Queue.

Constructor & Destructor Documentation

TAO_BEGIN_VERSIONED_NAMESPACE_DECL TAO_Notify_Buffering_Strategy::TAO_Notify_Buffering_Strategy	(	TAO_Notify_Message_Queue &	msg_queue,
		const TAO_Notify_AdminProperties::Ptr &	admin_properties
	)

TAO_Notify_Buffering_Strategy::~TAO_Notify_Buffering_Strategy ( )

Member Function Documentation

void TAO_Notify_Buffering_Strategy::update_qos_properties ( const TAO_Notify_QoSProperties & qos_properties )

Update state with the following QoS Properties: Order Policy Discard Policy MaxEventsPerConsumer

int TAO_Notify_Buffering_Strategy::enqueue ( TAO_Notify_Method_Request_Queueable * method_request )

Enqueue according the enqueing strategy. Return -1 on error else the number of items in the queue.

int TAO_Notify_Buffering_Strategy::dequeue	(	TAO_Notify_Method_Request_Queueable *&	method_request,
		const ACE_Time_Value *	abstime
	)

Dequeue batch. This method will block for abstime if non-zero or else blocks till an item is available. Return -1 on error or if nothing is available, else the number of items actually dequeued (1).

void TAO_Notify_Buffering_Strategy::shutdown ( void )

Shutdown.

int TAO_Notify_Buffering_Strategy::queue ( TAO_Notify_Method_Request_Queueable * method_request ) [private]

Apply the Order Policy and queue. return -1 on error.

bool TAO_Notify_Buffering_Strategy::discard ( TAO_Notify_Method_Request_Queueable * method_request ) [private]

Discard as per the Discard Policy.
