TAO_IIOP_Connection_Handler Class Reference

Handles requests on a single connection. More...

#include <IIOP_Connection_Handler.h>

Inheritance diagram for TAO_IIOP_Connection_Handler:

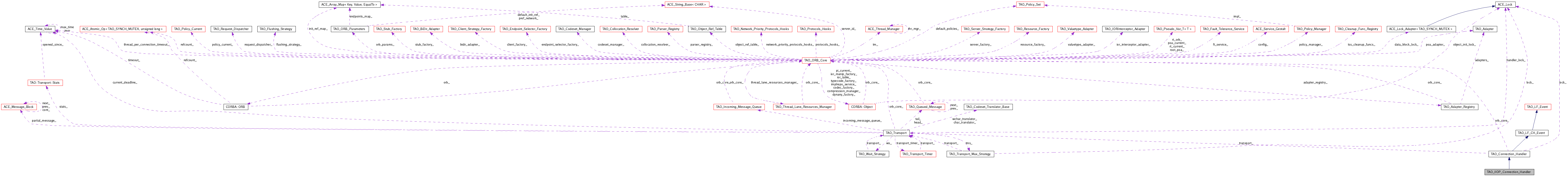

[legend]Collaboration diagram for TAO_IIOP_Connection_Handler:

[legend]List of all members.

Public Member Functions
	TAO_IIOP_Connection_Handler (ACE_Thread_Manager *=0)
	TAO_IIOP_Connection_Handler (TAO_ORB_Core *orb_core, CORBA::Boolean flag)
	Constructor.
	~TAO_IIOP_Connection_Handler (void)
	Destructor.
virtual int	open (void *)
int	close (u_long=0)
int	add_transport_to_cache (void)
	Add ourselves to Cache.
int	process_listen_point_list (IIOP::ListenPointList &listen_list)
	Process the listen_list.
int	enable_network_priority (void)
	Check if network priority needs to be enabled.
int	set_dscp_codepoint (CORBA::Boolean set_network_priority)
	Set Diff-Serv codepoint on outgoing packets.
int	set_dscp_codepoint (CORBA::Long dscp_codepoint)
virtual int	open_handler (void *)
	A open () hook.
void	abort (void)
Event Handler overloads
virtual int	resume_handler (void)
virtual int	close_connection (void)
	Close the underlying connection.
virtual int	handle_input (ACE_HANDLE)
virtual int	handle_output (ACE_HANDLE)
virtual int	handle_close (ACE_HANDLE, ACE_Reactor_Mask)
virtual int	handle_timeout (const ACE_Time_Value &current_time, const void *act=0)
Protected Member Functions
	TAO_IIOP_Connection_Handler (TAO_ORB_Core *orb_core)
	Constructor that could be used by the derived classes.
int	set_tos (int tos)
TAO_Connection Handler overloads
virtual int	release_os_resources (void)
	Release the OS resources related to this handler.
Private Attributes
int	dscp_codepoint_
	Stores the type of service value.

---

Detailed Description

Handles requests on a single connection.

The Connection handler which is common for the Acceptor and the Connector

---

Constructor & Destructor Documentation

TAO_BEGIN_VERSIONED_NAMESPACE_DECL TAO_IIOP_Connection_Handler::TAO_IIOP_Connection_Handler

(

ACE_Thread_Manager *

= 0

)

TAO_IIOP_Connection_Handler::TAO_IIOP_Connection_Handler	(	TAO_ORB_Core *	orb_core,
		CORBA::Boolean	flag
	)

Constructor.

TAO_IIOP_Connection_Handler::~TAO_IIOP_Connection_Handler

(

void

)

Destructor.

TAO_IIOP_Connection_Handler::TAO_IIOP_Connection_Handler

(

TAO_ORB_Core *

orb_core

)

[protected]

Constructor that could be used by the derived classes.

Sometimes new pluggable protocols which have similarities with IIOP may be tempted to this class for their use. Classical example being that of IIOP_SSL_Connection_Handler. This constructor just initializes its base class and sets all of its contents to the default value, if any

---

Member Function Documentation

int TAO_IIOP_Connection_Handler::open

(

void *

)

[virtual]

Called by the Strategy_Acceptor when the handler is completely connected. Argument is unused.

int TAO_IIOP_Connection_Handler::close

(

u_long

= 0

)

Close called by the Acceptor or Connector when connection establishment fails.

int TAO_IIOP_Connection_Handler::resume_handler

(

void

)

[virtual]

int TAO_IIOP_Connection_Handler::close_connection

(

void

)

[virtual]

Close the underlying connection.

Used by the ORB to actively close connections that are idle, stale or somehow are determined to be broken before the Reactor does.

Returns:

Return 0 if the connection was already closed, non-zero otherwise.

Implements TAO_Connection_Handler.

int TAO_IIOP_Connection_Handler::handle_input

(

ACE_HANDLE

fd

)

[virtual]

The event handler calls, here so that other objects who hold a reference to this object can call the event handler methods.

Implements TAO_Connection_Handler.

int TAO_IIOP_Connection_Handler::handle_output

(

ACE_HANDLE

)

[virtual]

int TAO_IIOP_Connection_Handler::handle_close	(	ACE_HANDLE	,
		ACE_Reactor_Mask
	)			[virtual]

int TAO_IIOP_Connection_Handler::handle_timeout	(	const ACE_Time_Value &	current_time,
		const void *	act = 0
	)			[virtual]

int TAO_IIOP_Connection_Handler::add_transport_to_cache

(

void

)

Add ourselves to Cache.

int TAO_IIOP_Connection_Handler::process_listen_point_list

(

IIOP::ListenPointList &

listen_list

)

Process the listen_list.

int TAO_IIOP_Connection_Handler::enable_network_priority

(

void

)

Check if network priority needs to be enabled.

int TAO_IIOP_Connection_Handler::set_dscp_codepoint

(

CORBA::Boolean

set_network_priority

)

[virtual]

Set Diff-Serv codepoint on outgoing packets.

Reimplemented from TAO_Connection_Handler.

int TAO_IIOP_Connection_Handler::set_dscp_codepoint

(

CORBA::Long

dscp_codepoint

)

[virtual]

Reimplemented from TAO_Connection_Handler.

int TAO_IIOP_Connection_Handler::open_handler

(

void *

)

[virtual]

A open () hook.

See Thread_Per_Connection_Handler for a use case

Implements TAO_Connection_Handler.

void TAO_IIOP_Connection_Handler::abort

(

void

)

This is used during a canceled connection attempt. Force the SO_LINGER timeout to 0 so that when the peer is closed, it won't hang around.

int TAO_IIOP_Connection_Handler::release_os_resources

(

void

)

[protected, virtual]

Release the OS resources related to this handler.

Reimplemented from TAO_Connection_Handler.

int TAO_IIOP_Connection_Handler::set_tos

(

int

tos

)

[protected]

---

Member Data Documentation

int TAO_IIOP_Connection_Handler::dscp_codepoint_ [private]

Stores the type of service value.

---

The documentation for this class was generated from the following files:

• IIOP_Connection_Handler.h
• IIOP_Connection_Handler.cpp

---
