TAO_EC_Gateway_IIOP_Factory Class Reference

Factory for the EC_Gateway_IIOP settings. More...

#include <EC_Gateway_IIOP_Factory.h>

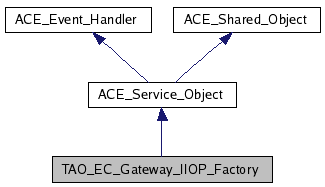

Inheritance diagram for TAO_EC_Gateway_IIOP_Factory:

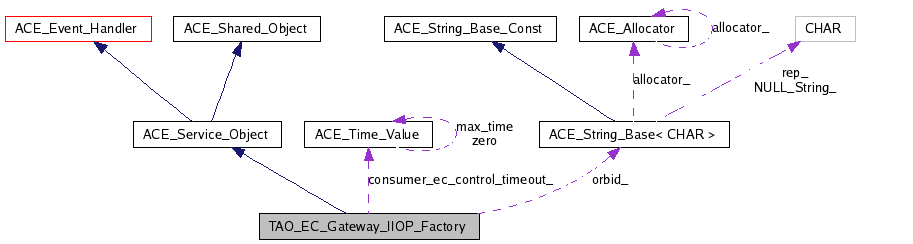

[legend]Collaboration diagram for TAO_EC_Gateway_IIOP_Factory:

[legend]List of all members.

Public Member Functions
	TAO_EC_Gateway_IIOP_Factory (void)
virtual	~TAO_EC_Gateway_IIOP_Factory (void)
TAO_ECG_ConsumerEC_Control *	create_consumerec_control (TAO_EC_Gateway_IIOP *gateway)
	Create the consumer event channel control.
void	destroy_consumerec_control (TAO_ECG_ConsumerEC_Control *x)
	Destroy consumer event channel control.
int	use_ttl (void) const
	Accessors to use_ttl flag.
int	use_consumer_proxy_map (void) const
	Accessors to use_consumer_proxy_map flag.
virtual int	init (int argc, char *argv[])
	The Service_Object entry points.
virtual int	fini (void)
	The Service_Object entry points.
Static Public Member Functions
static int	init_svcs (void)
Protected Attributes
ACE_CString	orbid_
	Use this ORB to locate global resources.
int	consumer_ec_control_
	The control policy for the consumer event channel.
int	consumer_ec_control_period_
	The consumer event channel control periods in usecs.
ACE_Time_Value	consumer_ec_control_timeout_
	The control timeout in usecs for the consumer event channel.
int	use_ttl_
int	use_consumer_proxy_map_
Private Member Functions
void	unsupported_option_value (const char *option_name, const char *option_value)

---

Detailed Description

Factory for the EC_Gateway_IIOP settings.

Default configuration values can be found in ECG_Defaults.h

---

Constructor & Destructor Documentation

TAO_EC_Gateway_IIOP_Factory::TAO_EC_Gateway_IIOP_Factory

(

void

)

TAO_EC_Gateway_IIOP_Factory::~TAO_EC_Gateway_IIOP_Factory

(

void

)

[virtual]

---

Member Function Documentation

TAO_ECG_ConsumerEC_Control * TAO_EC_Gateway_IIOP_Factory::create_consumerec_control

(

TAO_EC_Gateway_IIOP *

gateway

)

Create the consumer event channel control.

void TAO_EC_Gateway_IIOP_Factory::destroy_consumerec_control

(

TAO_ECG_ConsumerEC_Control *

x

)

Destroy consumer event channel control.

int TAO_EC_Gateway_IIOP_Factory::fini

(

void

)

[virtual]

The Service_Object entry points.

Reimplemented from ACE_Shared_Object.

int TAO_EC_Gateway_IIOP_Factory::init	(	int	argc,
		char *	argv[]
	)			[virtual]

The Service_Object entry points.

Reimplemented from ACE_Shared_Object.

TAO_BEGIN_VERSIONED_NAMESPACE_DECL int TAO_EC_Gateway_IIOP_Factory::init_svcs

(

void

)

[static]

Helper function to register the Gateway into the service configurator.

void TAO_EC_Gateway_IIOP_Factory::unsupported_option_value	(	const char *	option_name,
		const char *	option_value
	)			[private]

Helper for agrument parsing. Prints out an error message about unsupported option value.

ACE_INLINE int TAO_EC_Gateway_IIOP_Factory::use_consumer_proxy_map

(

void

)

const

Accessors to use_consumer_proxy_map flag.

TAO_BEGIN_VERSIONED_NAMESPACE_DECL ACE_INLINE int TAO_EC_Gateway_IIOP_Factory::use_ttl

(

void

)

const

Accessors to use_ttl flag.

---

Member Data Documentation

int TAO_EC_Gateway_IIOP_Factory::consumer_ec_control_ [protected]

The control policy for the consumer event channel.

int TAO_EC_Gateway_IIOP_Factory::consumer_ec_control_period_ [protected]

The consumer event channel control periods in usecs.

ACE_Time_Value TAO_EC_Gateway_IIOP_Factory::consumer_ec_control_timeout_ [protected]

The control timeout in usecs for the consumer event channel.

ACE_CString TAO_EC_Gateway_IIOP_Factory::orbid_ [protected]

Use this ORB to locate global resources.

int TAO_EC_Gateway_IIOP_Factory::use_consumer_proxy_map_ [protected]

The flag for using the consumer proxy map. With 1 the consumer proxy map is used, meaning that for each unique source id we use a different proxy push consumer, if 0, we only use one proxy push consumer for all source ids.

int TAO_EC_Gateway_IIOP_Factory::use_ttl_ [protected]

If 1, we use the TTL flags, if 0, we just ignore TTL.

Note:

When this flag is set to 0, make sure that no recursive structures exists in the gateway setup for the same source/type combination, else one event will flow continuosly through all gateways.

---

The documentation for this class was generated from the following files:

• EC_Gateway_IIOP_Factory.h
• EC_Gateway_IIOP_Factory.cpp
• EC_Gateway_IIOP_Factory.inl

---
