TAO_RT_ORBInitializer Class Reference

RTCORBA ORB initializer. More...

#include <RT_ORBInitializer.h>

Inheritance diagram for TAO_RT_ORBInitializer:

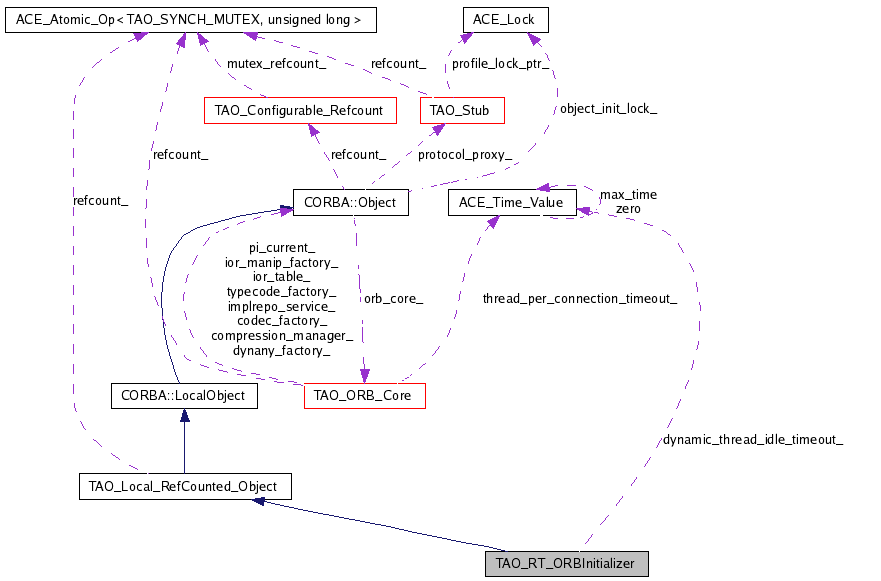

[legend]Collaboration diagram for TAO_RT_ORBInitializer:

[legend]List of all members.

Public Types
	TAO_PRIORITY_MAPPING_CONTINUOUS
	TAO_PRIORITY_MAPPING_LINEAR
	TAO_PRIORITY_MAPPING_DIRECT
	TAO_NETWORK_PRIORITY_MAPPING_LINEAR
enum	{ TAO_PRIORITY_MAPPING_CONTINUOUS, TAO_PRIORITY_MAPPING_LINEAR, TAO_PRIORITY_MAPPING_DIRECT }
	Priority mapping types. More...
enum	{ TAO_NETWORK_PRIORITY_MAPPING_LINEAR }
Public Member Functions
	TAO_RT_ORBInitializer (int priority_mapping_type, int network_priority_mapping_type, int ace_sched_policy, long sched_policy, long scope_policy, ACE_Time_Value const &dynamic_thread_idle_timeout)
virtual void	pre_init (PortableInterceptor::ORBInitInfo_ptr info)
virtual void	post_init (PortableInterceptor::ORBInitInfo_ptr info)
Private Member Functions
void	register_policy_factories (PortableInterceptor::ORBInitInfo_ptr info)
	Register RTCORBA policy factories.
Private Attributes
PortableInterceptor::PolicyFactory_var	policy_factory_
	Instance of the RTCorba policy factory.
int const	priority_mapping_type_
	Priority mapping type.
int const	network_priority_mapping_type_
	Network Priority mapping type.
int const	ace_sched_policy_
	Scheduling policy.
long const	sched_policy_
	Scheduling policy flag.
long const	scope_policy_
	Scheduling scope flag.
ACE_Time_Value const	dynamic_thread_idle_timeout_
	Dynamic thread idle timeout.

---

Detailed Description

RTCORBA ORB initializer.

---

Member Enumeration Documentation

anonymous enum

Priority mapping types.

Enumerator:

TAO_PRIORITY_MAPPING_CONTINUOUS
TAO_PRIORITY_MAPPING_LINEAR
TAO_PRIORITY_MAPPING_DIRECT

anonymous enum

Enumerator:

TAO_NETWORK_PRIORITY_MAPPING_LINEAR

---

Constructor & Destructor Documentation

TAO_BEGIN_VERSIONED_NAMESPACE_DECL TAO_RT_ORBInitializer::TAO_RT_ORBInitializer	(	int	priority_mapping_type,
		int	network_priority_mapping_type,
		int	ace_sched_policy,
		long	sched_policy,
		long	scope_policy,
		ACE_Time_Value const &	dynamic_thread_idle_timeout
	)

---

Member Function Documentation

void TAO_RT_ORBInitializer::post_init

(

PortableInterceptor::ORBInitInfo_ptr

info

)

[virtual]

void TAO_RT_ORBInitializer::pre_init

(

PortableInterceptor::ORBInitInfo_ptr

info

)

[virtual]

void TAO_RT_ORBInitializer::register_policy_factories

(

PortableInterceptor::ORBInitInfo_ptr

info

)

[private]

Register RTCORBA policy factories.

---

Member Data Documentation

int const TAO_RT_ORBInitializer::ace_sched_policy_ [private]

Scheduling policy.

Scheduling policy specified by the user through the -ORBSchedPolicy option. This value is typically used by functions like ACE_OS::thr_setprio() and ACE_Sched_Params::priority_min(). Legal values are ACE_SCHED_RR, ACE_SCHED_FIFO, and ACE_SCHED_OTHER.

ACE_Time_Value const TAO_RT_ORBInitializer::dynamic_thread_idle_timeout_ [private]

Dynamic thread idle timeout.

When using thread pool a certain number of dynamic threads can be created. By default these threads are created when needed but never end, when this timeout is specified the threads end themselves at the moment they have not been serving any requests for the specified amount of time

int const TAO_RT_ORBInitializer::network_priority_mapping_type_ [private]

Network Priority mapping type.

PortableInterceptor::PolicyFactory_var TAO_RT_ORBInitializer::policy_factory_ [private]

Instance of the RTCorba policy factory.

The RTCorba policy factory is stateless and reentrant, so share a single instance between all ORBs.

int const TAO_RT_ORBInitializer::priority_mapping_type_ [private]

Priority mapping type.

long const TAO_RT_ORBInitializer::sched_policy_ [private]

Scheduling policy flag.

Scheduling policy specified by the user through the -ORBSchedPolicy option. This value is typically used by ACE thread creation functions. Legal values are THR_SCHED_RR, THR_SCHED_FIFO, and THR_SCHED_DEFAULT.

long const TAO_RT_ORBInitializer::scope_policy_ [private]

Scheduling scope flag.

Scheduling policy specified by the user through the -ORBScopePolicy option. This value is typically used by ACE thread creation functions. Legal values are THR_SCOPE_SYSTEM and THR_SCOPE_PROCESS.

---

The documentation for this class was generated from the following files:

• RT_ORBInitializer.h
• RT_ORBInitializer.cpp

---
