TAO_UIPMC_Connection_Handler Class Reference

Handles requests on a single connection. More...

#include <UIPMC_Connection_Handler.h>

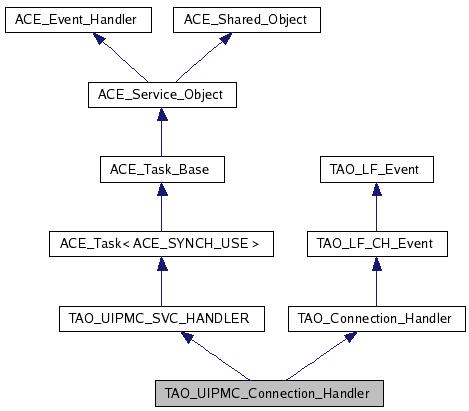

Inheritance diagram for TAO_UIPMC_Connection_Handler:

[legend]Collaboration diagram for TAO_UIPMC_Connection_Handler:

[legend]List of all members.

Public Member Functions
	TAO_UIPMC_Connection_Handler (ACE_Thread_Manager *t=0)
	TAO_UIPMC_Connection_Handler (TAO_ORB_Core *orb_core)
	~TAO_UIPMC_Connection_Handler (void)
	Destructor.
virtual int	open_server (void)
int	close (u_long=0)
int	add_transport_to_cache (void)
	Add ourselves to Cache.
ACE_HANDLE	get_handle (void) const
const ACE_INET_Addr &	addr (void)
void	addr (const ACE_INET_Addr &addr)
const ACE_INET_Addr &	local_addr (void)
void	local_addr (const ACE_INET_Addr &addr)
const ACE_INET_Addr &	server_addr (void)
void	server_addr (const ACE_INET_Addr &addr)
const ACE_SOCK_Dgram &	dgram (void)
const ACE_SOCK_Dgram_Mcast &	mcast_dgram (void)
Connection Handler overloads
virtual int	open_handler (void *v)
Event Handler overloads
virtual int	resume_handler (void)
virtual int	close_connection (void)
virtual int	handle_input (ACE_HANDLE)
virtual int	handle_output (ACE_HANDLE)
virtual int	handle_close (ACE_HANDLE, ACE_Reactor_Mask)
virtual int	handle_timeout (const ACE_Time_Value &current_time, const void *act=0)
virtual int	open (void *)
Protected Member Functions
TAO_Connection Handler overloads
virtual int	release_os_resources (void)
Protected Attributes
ACE_SOCK_Dgram	udp_socket_
	Client side UDP socket (send only).
ACE_SOCK_Dgram_Mcast	mcast_socket_
	Server side Mcast UDP socket (receive only).
CORBA::Boolean	using_mcast_
	Flag that specifies whether multicast is in use or not.
ACE_INET_Addr	addr_
ACE_INET_Addr	local_addr_

---

Detailed Description

Handles requests on a single connection.

The Connection handler which is common for the Acceptor and the Connector

---

Constructor & Destructor Documentation

TAO_BEGIN_VERSIONED_NAMESPACE_DECL TAO_UIPMC_Connection_Handler::TAO_UIPMC_Connection_Handler

(

ACE_Thread_Manager *

t = 0

)

TAO_UIPMC_Connection_Handler::TAO_UIPMC_Connection_Handler

(

TAO_ORB_Core *

orb_core

)

Constructor. <arg> parameter is used by the Acceptor to pass the protocol configuration properties for this connection.

TAO_UIPMC_Connection_Handler::~TAO_UIPMC_Connection_Handler

(

void

)

Destructor.

---

Member Function Documentation

int TAO_UIPMC_Connection_Handler::add_transport_to_cache

(

void

)

Add ourselves to Cache.

void TAO_UIPMC_Connection_Handler::addr

(

const ACE_INET_Addr &

addr

)

const ACE_INET_Addr & TAO_UIPMC_Connection_Handler::addr

(

void

)

int TAO_UIPMC_Connection_Handler::close

(

u_long

= 0

)

[virtual]

Close called by the Acceptor or Connector when connection establishment fails.

Reimplemented from ACE_Svc_Handler< ACE_SOCK_STREAM, ACE_NULL_SYNCH >.

int TAO_UIPMC_Connection_Handler::close_connection

(

void

)

[virtual]

Implements TAO_Connection_Handler.

const ACE_SOCK_Dgram & TAO_UIPMC_Connection_Handler::dgram

(

void

)

ACE_HANDLE TAO_UIPMC_Connection_Handler::get_handle

(

void

)

const [virtual]

Reimplemented from ACE_Svc_Handler< ACE_SOCK_STREAM, ACE_NULL_SYNCH >.

int TAO_UIPMC_Connection_Handler::handle_close	(	ACE_HANDLE	,
		ACE_Reactor_Mask
	)			[virtual]

Reimplemented from ACE_Svc_Handler< ACE_SOCK_STREAM, ACE_NULL_SYNCH >.

int TAO_UIPMC_Connection_Handler::handle_input

(

ACE_HANDLE

)

[virtual]

Implements TAO_Connection_Handler.

int TAO_UIPMC_Connection_Handler::handle_output

(

ACE_HANDLE

)

[virtual]

Reimplemented from ACE_Event_Handler.

int TAO_UIPMC_Connection_Handler::handle_timeout	(	const ACE_Time_Value &	current_time,
		const void *	act = 0
	)			[virtual]

Reimplemented from ACE_Svc_Handler< ACE_SOCK_STREAM, ACE_NULL_SYNCH >.

void TAO_UIPMC_Connection_Handler::local_addr

(

const ACE_INET_Addr &

addr

)

const ACE_INET_Addr & TAO_UIPMC_Connection_Handler::local_addr

(

void

)

const ACE_SOCK_Dgram_Mcast & TAO_UIPMC_Connection_Handler::mcast_dgram

(

void

)

int TAO_UIPMC_Connection_Handler::open

(

void *

)

[virtual]

Reimplemented from ACE_Svc_Handler< ACE_SOCK_STREAM, ACE_NULL_SYNCH >.

int TAO_UIPMC_Connection_Handler::open_handler

(

void *

v

)

[virtual]

Implements TAO_Connection_Handler.

int TAO_UIPMC_Connection_Handler::open_server

(

void

)

[virtual]

int TAO_UIPMC_Connection_Handler::release_os_resources

(

void

)

[protected, virtual]

Reimplemented from TAO_Connection_Handler.

int TAO_UIPMC_Connection_Handler::resume_handler

(

void

)

[virtual]

Reimplemented from ACE_Event_Handler.

void TAO_UIPMC_Connection_Handler::server_addr

(

const ACE_INET_Addr &

addr

)

const ACE_INET_Addr& TAO_UIPMC_Connection_Handler::server_addr

(

void

)

---

Member Data Documentation

ACE_INET_Addr TAO_UIPMC_Connection_Handler::addr_ [protected]

ACE_INET_Addr TAO_UIPMC_Connection_Handler::local_addr_ [protected]

ACE_SOCK_Dgram_Mcast TAO_UIPMC_Connection_Handler::mcast_socket_ [protected]

Server side Mcast UDP socket (receive only).

ACE_SOCK_Dgram TAO_UIPMC_Connection_Handler::udp_socket_ [protected]

Client side UDP socket (send only).

CORBA::Boolean TAO_UIPMC_Connection_Handler::using_mcast_ [protected]

Flag that specifies whether multicast is in use or not.

---

The documentation for this class was generated from the following files:

• UIPMC_Connection_Handler.h
• UIPMC_Connection_Handler.cpp

---
