TAO_Notify_Consumer Class Reference

Astract Base class for wrapping consumer objects that connect to the EventChannel. More...

#include <Consumer.h>

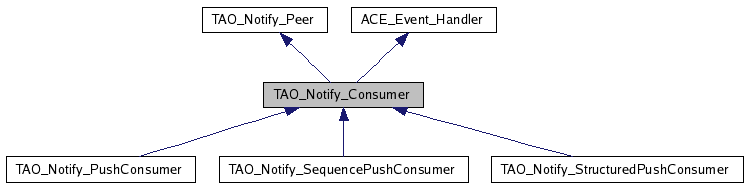

Inheritance diagram for TAO_Notify_Consumer:

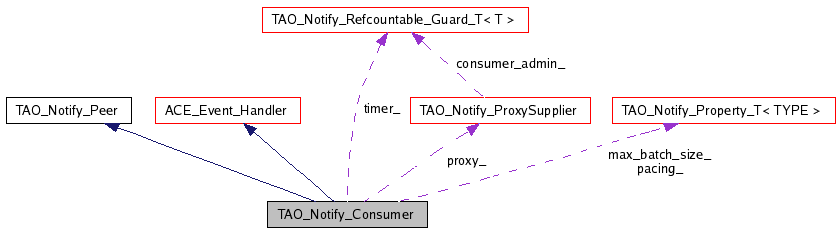

[legend]Collaboration diagram for TAO_Notify_Consumer:


Public Types
	DISPATCH_SUCCESS
	DISPATCH_RETRY
	DISPATCH_DISCARD
	DISPATCH_FAIL
enum	DispatchStatus { DISPATCH_SUCCESS, DISPATCH_RETRY, DISPATCH_DISCARD, DISPATCH_FAIL }
	Status returned from dispatch attempts. More...
Public Member Functions
	TAO_Notify_Consumer (TAO_Notify_ProxySupplier *proxy)
	Constuctor.
virtual	~TAO_Notify_Consumer ()
	Destructor.
TAO_Notify_ProxySupplier *	proxy_supplier (void)
	Access Specific Proxy.
virtual TAO_Notify_Proxy *	proxy (void)
	Access Base Proxy.
void	deliver (TAO_Notify_Method_Request_Event *request)
	Dispatch Event to consumer.
virtual void	push (const CORBA::Any &event)=0
	Push <event> to this consumer.
virtual void	push (const CosNotification::StructuredEvent &event)=0
	Push <event> to this consumer.
virtual void	push (const CosNotification::EventBatch &event)=0
	Push a batch of events to this consumer.
DispatchStatus	dispatch_batch (const CosNotification::EventBatch &batch)
	Dispatch the batch of events to the attached consumer.
void	dispatch_pending (void)
	Dispatch the pending events.
CORBA::Boolean	is_suspended (void)
	Is the connection suspended?
void	suspend (void)
	Suspend Connection.
void	resume (void)
	Resume Connection.
virtual void	shutdown (void)
	Shutdown the consumer.
virtual void	reconnect_from_consumer (TAO_Notify_Consumer *old_consumer)=0
virtual void	qos_changed (const TAO_Notify_QoSProperties &qos_properties)
	Override, Peer::qos_changed.
Protected Types
typedef ACE_Unbounded_Queue< TAO_Notify_Method_Request_Event_Queueable * >	Request_Queue
Protected Member Functions
DispatchStatus	dispatch_request (TAO_Notify_Method_Request_Event *request)
virtual bool	dispatch_from_queue (Request_Queue &requests, ACE_Guard< TAO_SYNCH_MUTEX > &ace_mon)
	Attempt to dispatch event from a queue.
void	enqueue_request (TAO_Notify_Method_Request_Event *request)
virtual bool	enqueue_if_necessary (TAO_Notify_Method_Request_Event *request)
virtual void	dispatch_updates_i (const CosNotification::EventTypeSeq &added, const CosNotification::EventTypeSeq &removed)
	Implementation of Peer specific dispatch_updates.
TAO_SYNCH_MUTEX *	proxy_lock (void)
	Get the shared Proxy Lock.
virtual int	handle_timeout (const ACE_Time_Value &current_time, const void *act=0)
void	schedule_timer (bool is_error=false)
	Schedule timer.
void	cancel_timer (void)
	Cancel timer.
Request_Queue &	pending_events ()
	= Protected Data Members
Protected Attributes
TAO_Notify_ProxySupplier *	proxy_
	The Proxy that we associate with.
CORBA::Boolean	is_suspended_
	Suspended Flag.
CosNotifyComm::NotifyPublish_var	publish_
	Interface that accepts offer_changes.
bool	have_not_yet_verified_publish_
const TAO_Notify_Property_Time &	pacing_
	The Pacing Interval.
TAO_Notify_Property_Long	max_batch_size_
	Max. batch size.
long	timer_id_
	Timer Id.
TAO_Notify_Timer::Ptr	timer_
	The Timer Manager that we use.
Private Attributes
ACE_Auto_Ptr< Request_Queue >	pending_events_
	Events pending to be delivered.

Detailed Description

Astract Base class for wrapping consumer objects that connect to the EventChannel.

Member Typedef Documentation

typedef ACE_Unbounded_Queue<TAO_Notify_Method_Request_Event_Queueable *> TAO_Notify_Consumer::Request_Queue [protected]

Member Enumeration Documentation

enum TAO_Notify_Consumer::DispatchStatus

Status returned from dispatch attempts.

Enumerator:

DISPATCH_SUCCESS
DISPATCH_RETRY
DISPATCH_DISCARD
DISPATCH_FAIL

Constructor & Destructor Documentation

TAO_BEGIN_VERSIONED_NAMESPACE_DECL TAO_Notify_Consumer::TAO_Notify_Consumer ( TAO_Notify_ProxySupplier * proxy )

Constuctor.

TAO_Notify_Consumer::~TAO_Notify_Consumer ( ) [virtual]

Destructor.

Member Function Documentation

void TAO_Notify_Consumer::cancel_timer ( void ) [protected]

Cancel timer.

void TAO_Notify_Consumer::deliver ( TAO_Notify_Method_Request_Event * request )

Dispatch Event to consumer.

TAO_Notify_Consumer::DispatchStatus TAO_Notify_Consumer::dispatch_batch ( const CosNotification::EventBatch & batch )

Dispatch the batch of events to the attached consumer.

bool TAO_Notify_Consumer::dispatch_from_queue	(	Request_Queue &	requests,
		ACE_Guard< TAO_SYNCH_MUTEX > &	ace_mon
	)			`[protected, virtual]`

Attempt to dispatch event from a queue.

Called by dispatch_pending. Deliver one or more events to the Consumer. If delivery fails, events are left in the queue (or discarded depending on QoS parameters.) Undelivered, undiscarded requests are left at the front of the queue. Overridden in sequence consumer to dispatch as an EventBatch.

Returns:: false if delivery failed and the request(s) cannot be discarded.

void TAO_Notify_Consumer::dispatch_pending ( void )

Dispatch the pending events.

TAO_Notify_Consumer::DispatchStatus TAO_Notify_Consumer::dispatch_request ( TAO_Notify_Method_Request_Event * request ) [protected]

void TAO_Notify_Consumer::dispatch_updates_i	(	const CosNotification::EventTypeSeq &	added,
		const CosNotification::EventTypeSeq &	removed
	)			`[protected, virtual]`

Implementation of Peer specific dispatch_updates.

Implements TAO_Notify_Peer.

bool TAO_Notify_Consumer::enqueue_if_necessary ( TAO_Notify_Method_Request_Event * request ) [protected, virtual]

Add request to a queue if necessary. Overridden by sequence consumer to "always" put incoming events into the queue.

Returns:: true the request has been enqueued; false the request should be handled now.

Reimplemented in TAO_Notify_SequencePushConsumer.

void TAO_Notify_Consumer::enqueue_request ( TAO_Notify_Method_Request_Event * request ) [protected]

int TAO_Notify_Consumer::handle_timeout	(	const ACE_Time_Value &	current_time,
		const void *	act = `0`
	)			`[protected, virtual]`

Reimplemented from ACE_Event_Handler.

ACE_INLINE CORBA::Boolean TAO_Notify_Consumer::is_suspended ( void )

Is the connection suspended?

TAO_BEGIN_VERSIONED_NAMESPACE_DECL ACE_INLINE TAO_Notify_Consumer::Request_Queue & TAO_Notify_Consumer::pending_events ( ) [protected]

= Protected Data Members

TAO_Notify_Proxy * TAO_Notify_Consumer::proxy ( void ) [virtual]

Access Base Proxy.

Implements TAO_Notify_Peer.

TAO_SYNCH_MUTEX * TAO_Notify_Consumer::proxy_lock ( void ) [protected]

Get the shared Proxy Lock.

TAO_Notify_ProxySupplier * TAO_Notify_Consumer::proxy_supplier ( void )

Access Specific Proxy.

virtual void TAO_Notify_Consumer::push ( const CosNotification::EventBatch & event ) [pure virtual]

Push a batch of events to this consumer.

Implemented in TAO_Notify_PushConsumer, TAO_Notify_SequencePushConsumer, and TAO_Notify_StructuredPushConsumer.

virtual void TAO_Notify_Consumer::push ( const CosNotification::StructuredEvent & event ) [pure virtual]

Push <event> to this consumer.

Implemented in TAO_Notify_PushConsumer, TAO_Notify_SequencePushConsumer, and TAO_Notify_StructuredPushConsumer.

virtual void TAO_Notify_Consumer::push ( const CORBA::Any & event ) [pure virtual]

Push <event> to this consumer.

Implemented in TAO_Notify_PushConsumer, TAO_Notify_SequencePushConsumer, and TAO_Notify_StructuredPushConsumer.

void TAO_Notify_Consumer::qos_changed ( const TAO_Notify_QoSProperties & qos_properties ) [virtual]

Override, Peer::qos_changed.

Reimplemented from TAO_Notify_Peer.

virtual void TAO_Notify_Consumer::reconnect_from_consumer ( TAO_Notify_Consumer * old_consumer ) [pure virtual]

on reconnect we need to move events from the old consumer to the new one

Implemented in TAO_Notify_PushConsumer, TAO_Notify_SequencePushConsumer, and TAO_Notify_StructuredPushConsumer.

void TAO_Notify_Consumer::resume ( void )

Resume Connection.

void TAO_Notify_Consumer::schedule_timer ( bool is_error = false ) [protected]

Schedule timer.

void TAO_Notify_Consumer::shutdown ( void ) [virtual]

Shutdown the consumer.

Reimplemented from TAO_Notify_Peer.

ACE_INLINE void TAO_Notify_Consumer::suspend ( void )

Suspend Connection.

Member Data Documentation

bool TAO_Notify_Consumer::have_not_yet_verified_publish_ [protected]

CORBA::Boolean TAO_Notify_Consumer::is_suspended_ [protected]

Suspended Flag.

TAO_Notify_Property_Long TAO_Notify_Consumer::max_batch_size_ [protected]

Max. batch size.

const TAO_Notify_Property_Time& TAO_Notify_Consumer::pacing_ [protected]

The Pacing Interval.

ACE_Auto_Ptr< Request_Queue > TAO_Notify_Consumer::pending_events_ [private]

Events pending to be delivered.

TAO_Notify_ProxySupplier* TAO_Notify_Consumer::proxy_ [protected]

The Proxy that we associate with.

CosNotifyComm::NotifyPublish_var TAO_Notify_Consumer::publish_ [protected]

Interface that accepts offer_changes.

TAO_Notify_Timer::Ptr TAO_Notify_Consumer::timer_ [protected]

The Timer Manager that we use.

long TAO_Notify_Consumer::timer_id_ [protected]

Timer Id.

The documentation for this class was generated from the following files:
