TAO_Notify_Buffering_Strategy Class Reference

Base Strategy to enqueue and dequeue items from a Message Queue. More...

#include <Buffering_Strategy.h>

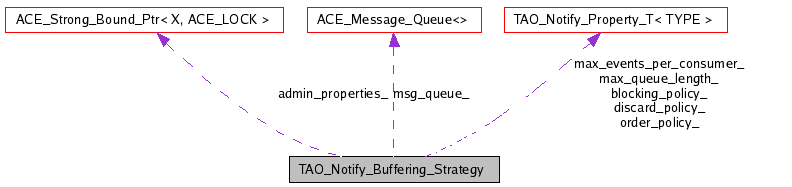

Collaboration diagram for TAO_Notify_Buffering_Strategy:

[legend]List of all members.

Public Member Functions
	TAO_Notify_Buffering_Strategy (TAO_Notify_Message_Queue &msg_queue, const TAO_Notify_AdminProperties::Ptr &admin_properties)
	~TAO_Notify_Buffering_Strategy ()
void	update_qos_properties (const TAO_Notify_QoSProperties &qos_properties)
int	enqueue (TAO_Notify_Method_Request_Queueable *method_request)
int	dequeue (TAO_Notify_Method_Request_Queueable *&method_request, const ACE_Time_Value *abstime)
void	shutdown (void)
	Shutdown.
Private Member Functions
int	queue (TAO_Notify_Method_Request_Queueable *method_request)
	Apply the Order Policy and queue. return -1 on error.
bool	discard (TAO_Notify_Method_Request_Queueable *method_request)
	Discard as per the Discard Policy.
Private Attributes
TAO_Notify_Message_Queue &	msg_queue_
	The local Message Queue.
TAO_Notify_AdminProperties::Ptr	admin_properties_
	Reference to the properties per event channel.
ACE_SYNCH_MUTEX &	global_queue_lock_
	The shared global lock used by all the queues.
CORBA::Long &	global_queue_length_
	The global queue length - queue length accross all the queues.
const TAO_Notify_Property_Long &	max_queue_length_
	The maximum events that can be queued overall.
TAO_Notify_Property_Short	order_policy_
	Order of events in internal buffers.
TAO_Notify_Property_Short	discard_policy_
	Policy to discard when buffers are full.
TAO_Notify_Property_Long	max_events_per_consumer_
TAO_Notify_Property_Time	blocking_policy_
TAO_SYNCH_CONDITION &	global_not_full_
TAO_SYNCH_CONDITION	local_not_full_
TAO_SYNCH_CONDITION	local_not_empty_
	Condition that batch size reached.
bool	shutdown_
	Flag to shutdown.

---

Detailed Description

Base Strategy to enqueue and dequeue items from a Message Queue.

---

Constructor & Destructor Documentation

TAO_BEGIN_VERSIONED_NAMESPACE_DECL TAO_Notify_Buffering_Strategy::TAO_Notify_Buffering_Strategy	(	TAO_Notify_Message_Queue &	msg_queue,
		const TAO_Notify_AdminProperties::Ptr &	admin_properties
	)

TAO_Notify_Buffering_Strategy::~TAO_Notify_Buffering_Strategy

(

)

---

Member Function Documentation

int TAO_Notify_Buffering_Strategy::dequeue	(	TAO_Notify_Method_Request_Queueable *&	method_request,
		const ACE_Time_Value *	abstime
	)

Dequeue batch. This method will block for abstime if non-zero or else blocks till an item is available. Return -1 on error or if nothing is available, else the number of items actually dequeued (1).

bool TAO_Notify_Buffering_Strategy::discard

(

TAO_Notify_Method_Request_Queueable *

method_request

)

[private]

Discard as per the Discard Policy.

int TAO_Notify_Buffering_Strategy::enqueue

(

TAO_Notify_Method_Request_Queueable *

method_request

)

Enqueue according the enqueing strategy. Return -1 on error else the number of items in the queue.

int TAO_Notify_Buffering_Strategy::queue

(

TAO_Notify_Method_Request_Queueable *

method_request

)

[private]

Apply the Order Policy and queue. return -1 on error.

void TAO_Notify_Buffering_Strategy::shutdown

(

void

)

Shutdown.

void TAO_Notify_Buffering_Strategy::update_qos_properties

(

const TAO_Notify_QoSProperties &

qos_properties

)

Update state with the following QoS Properties: Order Policy Discard Policy MaxEventsPerConsumer

---

Member Data Documentation

TAO_Notify_AdminProperties::Ptr TAO_Notify_Buffering_Strategy::admin_properties_ [private]

Reference to the properties per event channel.

TAO_Notify_Property_Time TAO_Notify_Buffering_Strategy::blocking_policy_ [private]

TAO_Notify_Property_Short TAO_Notify_Buffering_Strategy::discard_policy_ [private]

Policy to discard when buffers are full.

TAO_SYNCH_CONDITION& TAO_Notify_Buffering_Strategy::global_not_full_ [private]

CORBA::Long& TAO_Notify_Buffering_Strategy::global_queue_length_ [private]

The global queue length - queue length accross all the queues.

ACE_SYNCH_MUTEX& TAO_Notify_Buffering_Strategy::global_queue_lock_ [private]

The shared global lock used by all the queues.

TAO_SYNCH_CONDITION TAO_Notify_Buffering_Strategy::local_not_empty_ [private]

Condition that batch size reached.

TAO_SYNCH_CONDITION TAO_Notify_Buffering_Strategy::local_not_full_ [private]

TAO_Notify_Property_Long TAO_Notify_Buffering_Strategy::max_events_per_consumer_ [private]

const TAO_Notify_Property_Long& TAO_Notify_Buffering_Strategy::max_queue_length_ [private]

The maximum events that can be queued overall.

TAO_Notify_Message_Queue& TAO_Notify_Buffering_Strategy::msg_queue_ [private]

The local Message Queue.

TAO_Notify_Property_Short TAO_Notify_Buffering_Strategy::order_policy_ [private]

Order of events in internal buffers.

bool TAO_Notify_Buffering_Strategy::shutdown_ [private]

Flag to shutdown.

---

The documentation for this class was generated from the following files:

• Buffering_Strategy.h
• Buffering_Strategy.cpp

---
