TAO_CEC_Reactive_SupplierControl Class Reference

SupplierControl. More...

#include <CEC_Reactive_SupplierControl.h>

Inheritance diagram for TAO_CEC_Reactive_SupplierControl:

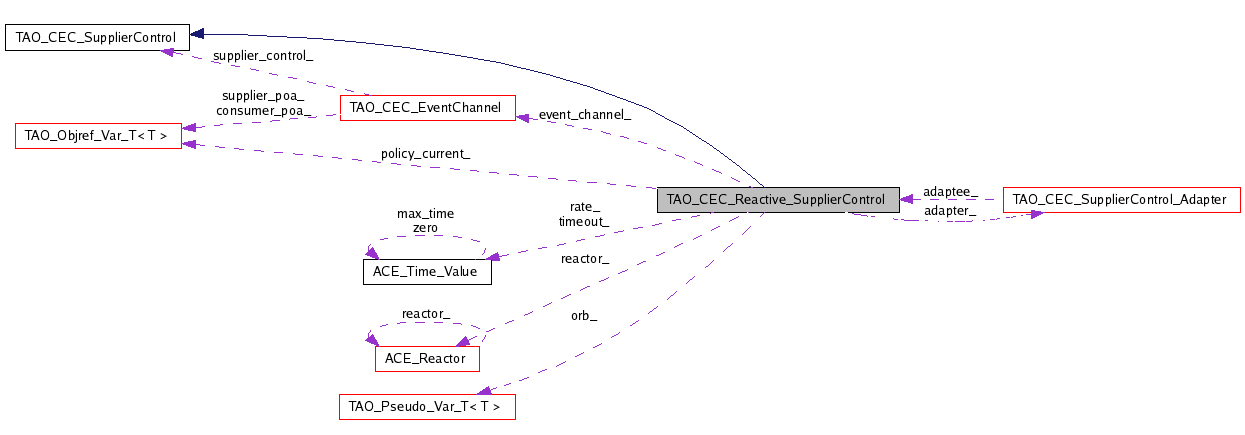

[legend]Collaboration diagram for TAO_CEC_Reactive_SupplierControl:


Public Member Functions
	TAO_CEC_Reactive_SupplierControl (const ACE_Time_Value &rate, const ACE_Time_Value &timeout, unsigned int retries, TAO_CEC_EventChannel *event_channel, CORBA::ORB_ptr orb)
virtual	~TAO_CEC_Reactive_SupplierControl (void)
	destructor...
void	handle_timeout (const ACE_Time_Value &tv, const void *arg)
	Receive the timeout from the adapter.
virtual int	activate (void)
virtual int	shutdown (void)
virtual void	supplier_not_exist (TAO_CEC_ProxyPushConsumer *proxy)
virtual void	supplier_not_exist (TAO_CEC_ProxyPullConsumer *proxy)
virtual void	system_exception (TAO_CEC_ProxyPullConsumer *proxy, CORBA::SystemException &)
	Some system exception was rasied while trying to push an event.
virtual bool	need_to_disconnect (PortableServer::ServantBase *proxy)
virtual void	successful_transmission (PortableServer::ServantBase *proxy)
	Allow others to inform us when a send or receive was successful.
Private Member Functions
void	query_suppliers (void)
Private Attributes
ACE_Time_Value	rate_
	The polling rate.
ACE_Time_Value	timeout_
	The polling timeout.
unsigned int	retries_
	The number of retries per proxy until it is disconnected.
TAO_CEC_SupplierControl_Adapter	adapter_
	The Adapter for the reactor events.
TAO_CEC_EventChannel *	event_channel_
	The event channel.
CORBA::ORB_var	orb_
	The ORB.
CORBA::PolicyCurrent_var	policy_current_
	To control the timeout policy in the thread.
CORBA::PolicyList	policy_list_
	Precomputed policy list to the set timeout.
ACE_Reactor *	reactor_
	The ORB reactor.
long	timer_id_
	The timer id.

Detailed Description

SupplierControl.

Defines the interface for the supplier control strategy. This strategy handles misbehaving or failing suppliers. = MEMORY MANAGMENT = LOCKING = TODO

Constructor & Destructor Documentation

TAO_BEGIN_VERSIONED_NAMESPACE_DECL TAO_CEC_Reactive_SupplierControl::TAO_CEC_Reactive_SupplierControl	(	const ACE_Time_Value &	rate,
		const ACE_Time_Value &	timeout,
		unsigned int	retries,
		TAO_CEC_EventChannel *	event_channel,
		CORBA::ORB_ptr	orb
	)

Constructor. It does not assume ownership of the <event_channel> parameter.

TAO_CEC_Reactive_SupplierControl::~TAO_CEC_Reactive_SupplierControl ( void ) [virtual]

destructor...

Member Function Documentation

int TAO_CEC_Reactive_SupplierControl::activate ( void ) [virtual]

Activate any internal threads or timers used to poll the state of the suppliers

Reimplemented from TAO_CEC_SupplierControl.

void TAO_CEC_Reactive_SupplierControl::handle_timeout	(	const ACE_Time_Value &	tv,
		const void *	arg
	)

Receive the timeout from the adapter.

bool TAO_CEC_Reactive_SupplierControl::need_to_disconnect ( PortableServer::ServantBase * proxy ) [virtual]

Do we need to disconnect this supplier? The parameter type for proxy is PortableServer::ServantBase* due to the fact that this method will be used for TAO_CEC_ProxyPushSupplier's and TAO_CEC_ProxyPullSupplier's.

Reimplemented from TAO_CEC_SupplierControl.

void TAO_CEC_Reactive_SupplierControl::query_suppliers ( void ) [private]

Check if the suppliers still exists. It is a helper method for handle_timeout() to isolate the exceptions.

int TAO_CEC_Reactive_SupplierControl::shutdown ( void ) [virtual]

Reimplemented from TAO_CEC_SupplierControl.

void TAO_CEC_Reactive_SupplierControl::successful_transmission ( PortableServer::ServantBase * proxy ) [virtual]

Allow others to inform us when a send or receive was successful.

Reimplemented from TAO_CEC_SupplierControl.

void TAO_CEC_Reactive_SupplierControl::supplier_not_exist ( TAO_CEC_ProxyPullConsumer * proxy ) [virtual]

Invoked by helper classes when they detect that a supplier does not exists (i.e. _non_existent() returns true and/or the CORBA::OBJECT_NOT_EXIST exception has been raised).

Reimplemented from TAO_CEC_SupplierControl.

void TAO_CEC_Reactive_SupplierControl::supplier_not_exist ( TAO_CEC_ProxyPushConsumer * proxy ) [virtual]

Invoked by helper classes when they detect that a supplier does not exists (i.e. _non_existent() returns true and/or the CORBA::OBJECT_NOT_EXIST exception has been raised).

Reimplemented from TAO_CEC_SupplierControl.
