CIAO::RTResource_Config_Manager Class Reference

RTResource_Config_Manager maintains a collection of RTCORBA related resources. More...

#include <RTConfig_Manager.h>

Inheritance diagram for CIAO::RTResource_Config_Manager:

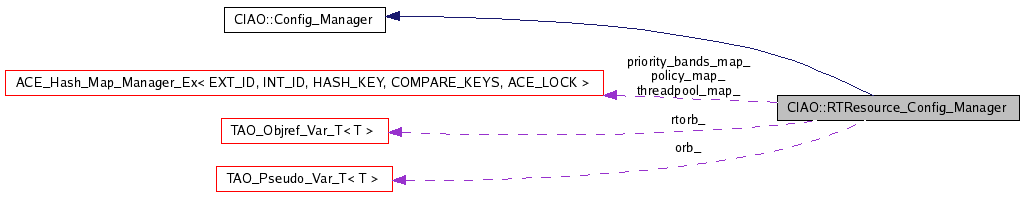

[legend]Collaboration diagram for CIAO::RTResource_Config_Manager:

[legend]List of all members.

Public Member Functions
	RTResource_Config_Manager (void)
	~RTResource_Config_Manager (void)
virtual void	init (CORBA::ORB_ptr orb)
virtual int	pre_orb_initialize (void)
virtual int	post_orb_initialize (CORBA::ORB_ptr o)
virtual void	init_resources (const CIAO::DAnCE::ServerResource &info)
	Initializing the RTResource_Config_Manager.
void	fini ()
virtual CORBA::PolicyList *	find_policies_by_name (const char *name)
	Query a policy set by name.
virtual bool	policy_exists (const char *name)
Protected Member Functions
void	print_resources (const CIAO::DAnCE::ServerResource &info)
RTCORBA::ThreadpoolId	find_threadpool_by_name (const char *name)
	Query a thread pool by name.
RTCORBA::PriorityBands *	find_priority_bands_by_name (const char *name)
	Query a priority bands info by name.
Private Types
typedef ACE_Hash_Map_Manager_Ex< ACE_CString, RTCORBA::ThreadpoolId, ACE_Hash< ACE_CString >, ACE_Equal_To< ACE_CString >, ACE_Null_Mutex >	TP_MAP
	Hash_Map stuff.
typedef ACE_Hash_Map_Manager_Ex< ACE_CString, RTCORBA::PriorityBands_var, ACE_Hash< ACE_CString >, ACE_Equal_To< ACE_CString >, ACE_Null_Mutex >	PB_MAP
typedef ACE_Hash_Map_Manager_Ex< ACE_CString, CORBA::PolicyList_var, ACE_Hash< ACE_CString >, ACE_Equal_To< ACE_CString >, ACE_Null_Mutex >	POLICY_MAP
	Hash_Map stuff.
Private Member Functions
CORBA::Policy_ptr	create_single_policy (const CIAO::DAnCE::PolicyDef &policy_def)
	create a single policy
Private Attributes
CORBA::ORB_var	orb_
	Cached an ORB reference.
RTCORBA::RTORB_var	rtorb_
TP_MAP	threadpool_map_
	Internal TP name to id map.
PB_MAP	priority_bands_map_
	Internal PB name to priority bands map.
POLICY_MAP	policy_map_
	Internal TP names to id map.

---

Detailed Description

RTResource_Config_Manager maintains a collection of RTCORBA related resources.

This class is responsible to create and manage a list of RTCORBA related resources that are global to an RT ComponentServer. The information required to create and configure these resources are passed in via the info argument in the init method. These resources are identified by names and can be used to associate these resources with related RTPolicies. These resources are destoryed along with this class.

Currently, the only resources supported (and managed) by this class are Threadpool and Threadpool_with_Lanes.

---

Member Typedef Documentation

typedef ACE_Hash_Map_Manager_Ex<ACE_CString, RTCORBA::PriorityBands_var, ACE_Hash<ACE_CString>, ACE_Equal_To<ACE_CString>, ACE_Null_Mutex> CIAO::RTResource_Config_Manager::PB_MAP [private]

typedef ACE_Hash_Map_Manager_Ex<ACE_CString, CORBA::PolicyList_var, ACE_Hash<ACE_CString>, ACE_Equal_To<ACE_CString>, ACE_Null_Mutex> CIAO::RTResource_Config_Manager::POLICY_MAP [private]

Hash_Map stuff.

typedef ACE_Hash_Map_Manager_Ex<ACE_CString, RTCORBA::ThreadpoolId, ACE_Hash<ACE_CString>, ACE_Equal_To<ACE_CString>, ACE_Null_Mutex> CIAO::RTResource_Config_Manager::TP_MAP [private]

Hash_Map stuff.

---

Constructor & Destructor Documentation

ACE_INLINE CIAO::RTResource_Config_Manager::RTResource_Config_Manager

(

void

)

CIAO::RTResource_Config_Manager::~RTResource_Config_Manager

(

void

)

---

Member Function Documentation

CORBA::Policy_ptr CIAO::RTResource_Config_Manager::create_single_policy

(

const CIAO::DAnCE::PolicyDef &

policy_def

)

[private]

create a single policy

CORBA::PolicyList * CIAO::RTResource_Config_Manager::find_policies_by_name

(

const char *

name

)

[virtual]

Query a policy set by name.

Implements CIAO::Config_Manager.

RTCORBA::PriorityBands * CIAO::RTResource_Config_Manager::find_priority_bands_by_name

(

const char *

name

)

[protected]

Query a priority bands info by name.

RTCORBA::ThreadpoolId CIAO::RTResource_Config_Manager::find_threadpool_by_name

(

const char *

name

)

[protected]

Query a thread pool by name.

void CIAO::RTResource_Config_Manager::fini

(

)

Finalizing the RTResource_Config_Manager and the resources it manages.

void CIAO::RTResource_Config_Manager::init

(

CORBA::ORB_ptr

orb

)

[virtual]

Implements CIAO::Config_Manager.

void CIAO::RTResource_Config_Manager::init_resources

(

const CIAO::DAnCE::ServerResource &

info

)

[virtual]

Initializing the RTResource_Config_Manager.

Implements CIAO::Config_Manager.

bool CIAO::RTResource_Config_Manager::policy_exists

(

const char *

name

)

[virtual]

Implements CIAO::Config_Manager.

int CIAO::RTResource_Config_Manager::post_orb_initialize

(

CORBA::ORB_ptr

o

)

[virtual]

Implements CIAO::Config_Manager.

int CIAO::RTResource_Config_Manager::pre_orb_initialize

(

void

)

[virtual]

Implements CIAO::Config_Manager.

void CIAO::RTResource_Config_Manager::print_resources

(

const CIAO::DAnCE::ServerResource &

info

)

[protected]

---

Member Data Documentation

CORBA::ORB_var CIAO::RTResource_Config_Manager::orb_ [private]

Cached an ORB reference.

POLICY_MAP CIAO::RTResource_Config_Manager::policy_map_ [private]

Internal TP names to id map.

PB_MAP CIAO::RTResource_Config_Manager::priority_bands_map_ [private]

Internal PB name to priority bands map.

RTCORBA::RTORB_var CIAO::RTResource_Config_Manager::rtorb_ [private]

TP_MAP CIAO::RTResource_Config_Manager::threadpool_map_ [private]

Internal TP name to id map.

---

The documentation for this class was generated from the following files:

• RTConfig_Manager.h
• RTConfig_Manager.cpp
• RTConfig_Manager.inl

---
