TAO_Basic_StreamCtrl Class Reference

Base class for StreamCtrl, implements basic stream start and stop functionality. More...

#include <AVStreams_i.h>

Inheritance diagram for TAO_Basic_StreamCtrl:

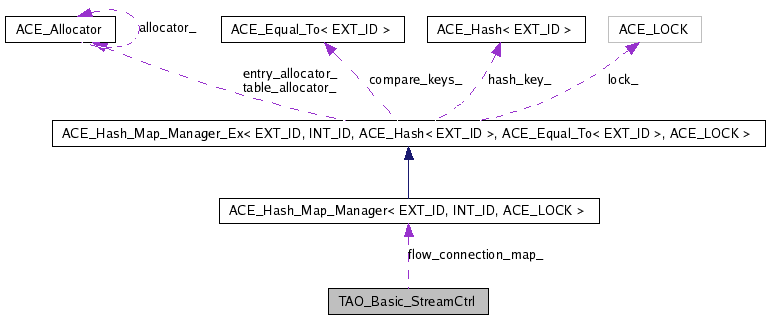

[legend]Collaboration diagram for TAO_Basic_StreamCtrl:

[legend]List of all members.

Public Member Functions
	TAO_Basic_StreamCtrl (void)
	Default Constructor.
virtual void	stop (const AVStreams::flowSpec &the_spec)
virtual void	start (const AVStreams::flowSpec &the_spec)
virtual void	destroy (const AVStreams::flowSpec &the_spec)
virtual CORBA::Boolean	modify_QoS (AVStreams::streamQoS &new_qos, const AVStreams::flowSpec &the_spec)
virtual void	push_event (const struct CosPropertyService::Property &the_event)
virtual void	set_FPStatus (const AVStreams::flowSpec &the_spec, const char *fp_name, const CORBA::Any &fp_settings)
	Used to control the flow protocol parameters.
virtual CORBA::Object_ptr	get_flow_connection (const char *flow_name)
virtual void	set_flow_connection (const char *flow_name, CORBA::Object_ptr flow_connection)
Protected Types
typedef ACE_Hash_Map_Manager< ACE_CString, AVStreams::FlowConnection_var, ACE_Null_Mutex >	FlowConnection_Map
	Hash table for the flow names and its corresponding flowconnection object reference.
typedef ACE_Hash_Map_Iterator< ACE_CString, AVStreams::FlowConnection_var, ACE_Null_Mutex >	FlowConnection_Map_Iterator
typedef ACE_Hash_Map_Entry< ACE_CString, AVStreams::FlowConnection_var >	FlowConnection_Map_Entry
Protected Member Functions
virtual	~TAO_Basic_StreamCtrl (void)
	Destructor.
Protected Attributes
AVStreams::VDev_var	vdev_a_
	The Virtual Devices for this stream.
AVStreams::VDev_var	vdev_b_
AVStreams::StreamEndPoint_A_var	sep_a_
	The Endpoints for this stream.
AVStreams::StreamEndPoint_B_var	sep_b_
FlowConnection_Map	flow_connection_map_
AVStreams::FlowConnection_seq	flowConnections_
u_int	flow_count_
	sequence of flow names.
AVStreams::flowSpec	flows_

---

Detailed Description

Base class for StreamCtrl, implements basic stream start and stop functionality.

---

Member Typedef Documentation

typedef ACE_Hash_Map_Manager<ACE_CString,AVStreams::FlowConnection_var,ACE_Null_Mutex> TAO_Basic_StreamCtrl::FlowConnection_Map [protected]

Hash table for the flow names and its corresponding flowconnection object reference.

typedef ACE_Hash_Map_Entry<ACE_CString,AVStreams::FlowConnection_var> TAO_Basic_StreamCtrl::FlowConnection_Map_Entry [protected]

typedef ACE_Hash_Map_Iterator<ACE_CString,AVStreams::FlowConnection_var,ACE_Null_Mutex> TAO_Basic_StreamCtrl::FlowConnection_Map_Iterator [protected]

---

Constructor & Destructor Documentation

TAO_Basic_StreamCtrl::TAO_Basic_StreamCtrl

(

void

)

Default Constructor.

TAO_Basic_StreamCtrl::~TAO_Basic_StreamCtrl

(

void

)

[protected, virtual]

Destructor.

---

Member Function Documentation

void TAO_Basic_StreamCtrl::destroy

(

const AVStreams::flowSpec &

the_spec

)

[virtual]

Tears down the stream. This will close the connection, and delete the streamendpoint and vdev associated with this stream Empty the_spec means apply operation to all flows

Reimplemented in TAO_StreamCtrl.

CORBA::Object_ptr TAO_Basic_StreamCtrl::get_flow_connection

(

const char *

flow_name

)

[virtual]

Not implemented in the light profile, will raise the notsupported exception

CORBA::Boolean TAO_Basic_StreamCtrl::modify_QoS	(	AVStreams::streamQoS &	new_qos,
		const AVStreams::flowSpec &	the_spec
	)			[virtual]

Changes the QoS associated with the stream Empty the_spec means apply operation to all flows

Reimplemented in TAO_StreamCtrl.

void TAO_Basic_StreamCtrl::push_event

(

const struct CosPropertyService::Property &

the_event

)

[virtual]

Used by StreamEndPoint and VDev to inform StreamCtrl of events. E.g., loss of flow, reestablishment of flow, etc..

void TAO_Basic_StreamCtrl::set_flow_connection	(	const char *	flow_name,
		CORBA::Object_ptr	flow_connection
	)			[virtual]

Not implemented in the light profile, will raise the notsupported exception

void TAO_Basic_StreamCtrl::set_FPStatus	(	const AVStreams::flowSpec &	the_spec,
		const char *	fp_name,
		const CORBA::Any &	fp_settings
	)			[virtual]

Used to control the flow protocol parameters.

void TAO_Basic_StreamCtrl::start

(

const AVStreams::flowSpec &

the_spec

)

[virtual]

Start the transfer of data in the stream. Empty the_spec means apply operation to all flows

Reimplemented in TAO_StreamCtrl.

void TAO_Basic_StreamCtrl::stop

(

const AVStreams::flowSpec &

the_spec

)

[virtual]

Stop the transfer of data of the stream Empty the_spec means apply operation to all flows

Reimplemented in TAO_StreamCtrl.

---

Member Data Documentation

FlowConnection_Map TAO_Basic_StreamCtrl::flow_connection_map_ [protected]

u_int TAO_Basic_StreamCtrl::flow_count_ [protected]

sequence of flow names.

AVStreams::FlowConnection_seq TAO_Basic_StreamCtrl::flowConnections_ [protected]

AVStreams::flowSpec TAO_Basic_StreamCtrl::flows_ [protected]

AVStreams::StreamEndPoint_A_var TAO_Basic_StreamCtrl::sep_a_ [protected]

The Endpoints for this stream.

AVStreams::StreamEndPoint_B_var TAO_Basic_StreamCtrl::sep_b_ [protected]

AVStreams::VDev_var TAO_Basic_StreamCtrl::vdev_a_ [protected]

The Virtual Devices for this stream.

AVStreams::VDev_var TAO_Basic_StreamCtrl::vdev_b_ [protected]

---

The documentation for this class was generated from the following files:

• AVStreams_i.h
• AVStreams_i.cpp

---
