ACEXML_Debug_Element_Builder Class Reference

#include <parser/debug_validator/Debug_Element_Builder.h>

Inheritance diagram for ACEXML_Debug_Element_Builder:

Inheritance graph
[legend]

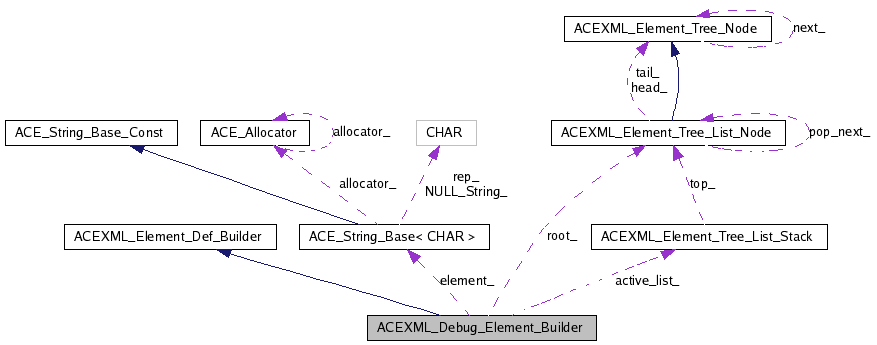

Collaboration diagram for ACEXML_Debug_Element_Builder:

Collaboration graph
[legend]
List of all members.

Public Member Functions

 ACEXML_Debug_Element_Builder ()
virtual ~ACEXML_Debug_Element_Builder ()
virtual int setElementName (const ACEXML_Char *namespaceURI, const ACEXML_Char *localName, const ACEXML_Char *qName ACEXML_ENV_ARG_DECL) ACE_THROW_SPEC((ACEXML_SAXException))
virtual int setContentType (CONTENT_TYPE type ACEXML_ENV_ARG_DECL) ACE_THROW_SPEC((ACEXML_SAXException))
virtual int insertMixedElement (const ACEXML_Char *namespaceURI, const ACEXML_Char *localName, const ACEXML_Char *qName ACEXML_ENV_ARG_DECL) ACE_THROW_SPEC((ACEXML_SAXException))
virtual int startChildGroup ()
virtual int endChildGroup (CARDINALITY card ACEXML_ENV_ARG_DECL)
virtual int setChoice ()
virtual int setSequence ()
virtual int insertElement (const ACEXML_Char *namespaceURI, const ACEXML_Char *localName, const ACEXML_Char *qName ACEXML_ENV_ARG_DECL) ACE_THROW_SPEC((ACEXML_SAXException))
virtual void dump (void)

Private Attributes

CONTENT_TYPE type_
ACEXML_String element_
ACEXML_Element_Tree_List_Noderoot_
ACEXML_Element_Tree_List_Stack active_list_

Detailed Description

This class prints out the element definition for debugging purpose.

Todo:
This class is not namespace-aware.


Constructor & Destructor Documentation

ACEXML_Debug_Element_Builder::ACEXML_Debug_Element_Builder (  )

ACEXML_Debug_Element_Builder::~ACEXML_Debug_Element_Builder (  )  [virtual]


Member Function Documentation

void ACEXML_Debug_Element_Builder::dump ( void   )  [virtual]

Dump the content of the attribute definition.

Implements ACEXML_Element_Def_Builder.

virtual int ACEXML_Debug_Element_Builder::endChildGroup ( CARDINALITY card  ACEXML_ENV_ARG_DECL  )  [virtual]

End a new group of children.

Return values:
0 on success.

int ACEXML_Debug_Element_Builder::insertElement ( const ACEXML_Char namespaceURI,
const ACEXML_Char localName,
const ACEXML_Char *qName  ACEXML_ENV_ARG_DECL
) [virtual]

Insert an new element into the current child group.

Return values:
0 on success, -1 otherwise.

Implements ACEXML_Element_Def_Builder.

int ACEXML_Debug_Element_Builder::insertMixedElement ( const ACEXML_Char namespaceURI,
const ACEXML_Char localName,
const ACEXML_Char *qName  ACEXML_ENV_ARG_DECL
) [virtual]

Insert one more element into Mixed definition.

Implements ACEXML_Element_Def_Builder.

int ACEXML_Debug_Element_Builder::setChoice (  )  [virtual]

Set the type of current child group to Choice.

Return values:
0 on success, -1 if the type of the child group has already been set and this action conflicts with the previous setting.

Implements ACEXML_Element_Def_Builder.

int ACEXML_Debug_Element_Builder::setContentType ( CONTENT_TYPE type  ACEXML_ENV_ARG_DECL  )  [virtual]

Define the content type of the element.

Return values:
0 if valid, -1 otherwise.

int ACEXML_Debug_Element_Builder::setElementName ( const ACEXML_Char namespaceURI,
const ACEXML_Char localName,
const ACEXML_Char *qName  ACEXML_ENV_ARG_DECL
) [virtual]

Define the name of the element.

Return values:
0 if valid, -1 otherwise.

Implements ACEXML_Element_Def_Builder.

int ACEXML_Debug_Element_Builder::setSequence (  )  [virtual]

Set the type of current child group to Sequence.

Return values:
0 on success, -1 if the type of the child group has already been set and this action conflicts with the previous setting.

Implements ACEXML_Element_Def_Builder.

int ACEXML_Debug_Element_Builder::startChildGroup (  )  [virtual]

Start a new group of children.

Implements ACEXML_Element_Def_Builder.


Member Data Documentation

ACEXML_Element_Tree_List_Stack ACEXML_Debug_Element_Builder::active_list_ [private]

ACEXML_String ACEXML_Debug_Element_Builder::element_ [private]

ACEXML_Element_Tree_List_Node* ACEXML_Debug_Element_Builder::root_ [private]

CONTENT_TYPE ACEXML_Debug_Element_Builder::type_ [private]


The documentation for this class was generated from the following files:
Generated on Mon Apr 30 22:54:18 2007 for ACEXML by  doxygen 1.4.7-1
