ACE_SSL_SOCK_Acceptor Class Reference

Defines a factory that creates new ACE_SSL_SOCK_Stream objects passively. More...

#include <SSL_SOCK_Acceptor.h>

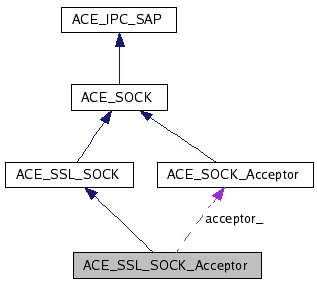

Inheritance diagram for ACE_SSL_SOCK_Acceptor:

Inheritance graph
[legend]
Collaboration diagram for ACE_SSL_SOCK_Acceptor:

Collaboration graph
[legend]
List of all members.

Public Types

typedef ACE_INET_Addr PEER_ADDR
 Meta-type info.
typedef ACE_SSL_SOCK_Stream PEER_STREAM
 Meta-type info.

Public Member Functions

 ACE_SSL_SOCK_Acceptor (void)
 Default constructor.
 ~ACE_SSL_SOCK_Acceptor (void)
 Default destructor.
 ACE_SSL_SOCK_Acceptor (const ACE_Addr &local_sap, int reuse_addr=0, int protocol_family=PF_UNSPEC, int backlog=ACE_DEFAULT_BACKLOG, int protocol=0)
 ACE_SSL_SOCK_Acceptor (const ACE_Addr &local_sap, ACE_Protocol_Info *protocolinfo, ACE_SOCK_GROUP g, u_long flags, int reuse_addr, int protocol_family=PF_UNSPEC, int backlog=ACE_DEFAULT_BACKLOG, int protocol=0)
int open (const ACE_Addr &local_sap, int reuse_addr=0, int protocol_family=PF_UNSPEC, int backlog=ACE_DEFAULT_BACKLOG, int protocol=0)
int close (void)
 Close the listening socket.
Passive Connection "accept" Methods
These are the canonical methods exposed by the Acceptor pattern.

int accept (ACE_SSL_SOCK_Stream &new_stream, ACE_Addr *remote_addr=0, ACE_Time_Value *timeout=0, int restart=1, int reset_new_handle=0) const
int accept (ACE_SSL_SOCK_Stream &new_stream, ACE_Accept_QoS_Params qos_params, ACE_Addr *remote_addr=0, ACE_Time_Value *timeout=0, int restart=1, int reset_new_handle=0) const

Public Attributes

 ACE_ALLOC_HOOK_DECLARE
 Declare the dynamic allocation hooks.

Protected Member Functions

int ssl_accept (ACE_SSL_SOCK_Stream &new_stream, ACE_Time_Value *timeout) const
 Complete SSL passive connection establishment.

Private Attributes

ACE_SOCK_Acceptor acceptor_
 The BSD-socket workhorse.

Detailed Description

Defines a factory that creates new ACE_SSL_SOCK_Stream objects passively.

The ACE_SSL_SOCK_Acceptor has its own ACE_SOCK_Acceptor which handles the basic socket acceptance. This class is a wrapper which adds the SSL acceptance handshake handling. Since SSL is record oriented, some additional steps must be taken after the basic socket acceptance to complete the SSL handshake that takes place at session establishment.

Note:
The user must currently ensure that only one thread services a given SSL session at any given time since some underlying SSL implementations, such as OpenSSL, are not entirely thread-safe or reentrant.


Member Typedef Documentation

typedef ACE_INET_Addr ACE_SSL_SOCK_Acceptor::PEER_ADDR

Meta-type info.

typedef ACE_SSL_SOCK_Stream ACE_SSL_SOCK_Acceptor::PEER_STREAM

Meta-type info.


Constructor & Destructor Documentation

ACE_BEGIN_VERSIONED_NAMESPACE_DECL ACE_INLINE ACE_SSL_SOCK_Acceptor::ACE_SSL_SOCK_Acceptor ( void   )

Default constructor.

ACE_SSL_SOCK_Acceptor::~ACE_SSL_SOCK_Acceptor ( void   )

Default destructor.

ACE_INLINE ACE_SSL_SOCK_Acceptor::ACE_SSL_SOCK_Acceptor ( const ACE_Addr local_sap,
int  reuse_addr = 0,
int  protocol_family = PF_UNSPEC,
int  backlog = ACE_DEFAULT_BACKLOG,
int  protocol = 0
)

Initiate a passive mode SSL/BSD-style acceptor socket.

Parameters:
local_sap The address that we're going to listen for connections on. If this is ACE_Addr::sap_any, this socket listens on an the "any" IP address and selects an unused port. To find out what port was selected, call this object's ACE_SOCK::get_local_addr(ACE_Addr&) method upon return.

ACE_INLINE ACE_SSL_SOCK_Acceptor::ACE_SSL_SOCK_Acceptor ( const ACE_Addr local_sap,
ACE_Protocol_Info protocolinfo,
ACE_SOCK_GROUP  g,
u_long  flags,
int  reuse_addr,
int  protocol_family = PF_UNSPEC,
int  backlog = ACE_DEFAULT_BACKLOG,
int  protocol = 0
)

Initiate a passive-mode QoS-enabled acceptor socket.

Parameters:
local_sap The address that we're going to listen for connections on. If this is ACE_Addr::sap_any, this socket listens on an the "any" IP address and selects an unused port. To find out what port was selected, call this object's ACE_SOCK::get_local_addr(ACE_Addr&) method upon return.


Member Function Documentation

int ACE_SSL_SOCK_Acceptor::accept ( ACE_SSL_SOCK_Stream new_stream,
ACE_Accept_QoS_Params  qos_params,
ACE_Addr remote_addr = 0,
ACE_Time_Value timeout = 0,
int  restart = 1,
int  reset_new_handle = 0
) const

Accept a new ACE_SSL_SOCK_Stream connection using the RVSP QoS information in qos_params.

Parameters:
new_stream The ACE_SSL_SOCK_Stream object that will receive the new SSL socket.
remote_addr Pointer to an ACE_INET_Addr object that will receive the address of the peer that connected.
timeout The maximum time to wait for the combined socket acceptance and handshake completion. 0 means block forever, a timeout of {0, 0} means poll.
restart 1 means "restart if interrupted," that is, if errno == EINTR.
Returns:
0 if success; -1 for failure (errno contains error code).

int ACE_SSL_SOCK_Acceptor::accept ( ACE_SSL_SOCK_Stream new_stream,
ACE_Addr remote_addr = 0,
ACE_Time_Value timeout = 0,
int  restart = 1,
int  reset_new_handle = 0
) const

Accept a new ACE_SSL_SOCK_Stream connection. On successful return, the socket has been accepted and the SSL handshake has been completed.

Parameters:
new_stream The ACE_SSL_SOCK_Stream object that will receive the new SSL socket.
remote_addr Pointer to an ACE_INET_Addr object that will receive the address of the peer that connected.
timeout The maximum time to wait for the combined socket acceptance and handshake completion. 0 means block forever, a timeout of {0, 0} means poll.
restart 1 means "restart if interrupted," that is, if errno == EINTR.
Returns:
0 if success; -1 for failure (errno contains error code).

ACE_INLINE int ACE_SSL_SOCK_Acceptor::close ( void   )

Close the listening socket.

Reimplemented from ACE_SOCK.

ACE_INLINE int ACE_SSL_SOCK_Acceptor::open ( const ACE_Addr local_sap,
int  reuse_addr = 0,
int  protocol_family = PF_UNSPEC,
int  backlog = ACE_DEFAULT_BACKLOG,
int  protocol = 0
)

Initiate a passive mode SSL/BSD-style acceptor socket.

Parameters:
local_sap The address that we're going to listen for connections on. If this is ACE_Addr::sap_any, this socket listens on an the "any" IP address and selects an unused port. To find out what port was selected, call this object's ACE_SOCK::get_local_addr(ACE_Addr&) method upon return.
Returns:
0 if success; -1 for failure (errno contains error code).

int ACE_SSL_SOCK_Acceptor::ssl_accept ( ACE_SSL_SOCK_Stream new_stream,
ACE_Time_Value timeout
) const [protected]

Complete SSL passive connection establishment.


Member Data Documentation

ACE_SOCK_Acceptor ACE_SSL_SOCK_Acceptor::acceptor_ [private]

The BSD-socket workhorse.

ACE_SSL_SOCK_Acceptor::ACE_ALLOC_HOOK_DECLARE

Declare the dynamic allocation hooks.

Reimplemented from ACE_SOCK.
