ACE_Service_Type_Impl Class Reference

The abstract base class of the hierarchy that defines the contents of the ACE_Service_Repository. The subclasses of this class allow the configuration of ACE_Service_Objects, ACE_Modules, and ACE_Streams. More...

#include <Service_Types.h>

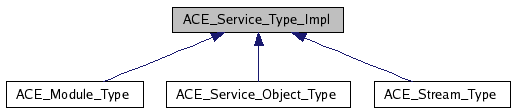

Inheritance diagram for ACE_Service_Type_Impl:

Inheritance graph
[legend]
List of all members.

Public Member Functions

 ACE_Service_Type_Impl (void *object, const ACE_TCHAR *s_name, u_int flags=0, ACE_Service_Object_Exterminator gobbler=0)
virtual ~ACE_Service_Type_Impl (void)
virtual int suspend (void) const =0
virtual int resume (void) const =0
virtual int init (int argc, ACE_TCHAR *argv[]) const =0
virtual int fini (void) const
virtual int info (ACE_TCHAR **str, size_t len) const =0
void * object (void) const
 The pointer to the service.
const ACE_TCHARname (void) const
 Get the name of the service.
void name (const ACE_TCHAR *)
 Set the name of the service.
void dump (void) const
 Dump the state of an object.

Public Attributes

 ACE_ALLOC_HOOK_DECLARE
 Declare the dynamic allocation hooks.

Protected Attributes

const ACE_TCHARname_
 Name of the service.
void * obj_
ACE_Service_Object_Exterminator gobbler_
 Destroy function to deallocate obj_.
u_int flags_
 Flags that control serivce behavior (particularly deletion).

Detailed Description

The abstract base class of the hierarchy that defines the contents of the ACE_Service_Repository. The subclasses of this class allow the configuration of ACE_Service_Objects, ACE_Modules, and ACE_Streams.

This class provides the root of the implementation hierarchy of the "Bridge" pattern. It maintains a pointer to the appropriate type of service implementation, i.e., ACE_Service_Object, ACE_Module, or ACE_Stream.


Constructor & Destructor Documentation

ACE_Service_Type_Impl::ACE_Service_Type_Impl ( void *  object,
const ACE_TCHAR s_name,
u_int  flags = 0,
ACE_Service_Object_Exterminator  gobbler = 0
)

ACE_Service_Type_Impl::~ACE_Service_Type_Impl ( void   )  [virtual]


Member Function Documentation

void ACE_Service_Type_Impl::dump ( void   )  const

Dump the state of an object.

Reimplemented in ACE_Module_Type, and ACE_Stream_Type.

int ACE_Service_Type_Impl::fini ( void   )  const [virtual]

Reimplemented in ACE_Service_Object_Type, ACE_Module_Type, and ACE_Stream_Type.

virtual int ACE_Service_Type_Impl::info ( ACE_TCHAR **  str,
size_t  len
) const [pure virtual]

Implemented in ACE_Service_Object_Type, ACE_Module_Type, and ACE_Stream_Type.

virtual int ACE_Service_Type_Impl::init ( int  argc,
ACE_TCHAR argv[]
) const [pure virtual]

Implemented in ACE_Service_Object_Type, ACE_Module_Type, and ACE_Stream_Type.

ACE_INLINE void ACE_Service_Type_Impl::name ( const ACE_TCHAR  )

Set the name of the service.

ACE_INLINE const ACE_TCHAR * ACE_Service_Type_Impl::name ( void   )  const

Get the name of the service.

ACE_BEGIN_VERSIONED_NAMESPACE_DECL ACE_INLINE void * ACE_Service_Type_Impl::object ( void   )  const

The pointer to the service.

virtual int ACE_Service_Type_Impl::resume ( void   )  const [pure virtual]

Implemented in ACE_Service_Object_Type, ACE_Module_Type, and ACE_Stream_Type.

virtual int ACE_Service_Type_Impl::suspend ( void   )  const [pure virtual]

Implemented in ACE_Service_Object_Type, ACE_Module_Type, and ACE_Stream_Type.


Member Data Documentation

ACE_Service_Type_Impl::ACE_ALLOC_HOOK_DECLARE

Declare the dynamic allocation hooks.

Reimplemented in ACE_Module_Type, and ACE_Stream_Type.

u_int ACE_Service_Type_Impl::flags_ [protected]

Flags that control serivce behavior (particularly deletion).

ACE_Service_Object_Exterminator ACE_Service_Type_Impl::gobbler_ [protected]

Destroy function to deallocate obj_.

const ACE_TCHAR* ACE_Service_Type_Impl::name_ [protected]

Name of the service.

void* ACE_Service_Type_Impl::obj_ [protected]

Pointer to object that implements the service. This actually points to an ACE_Service_Object, ACE_Module, or ACE_Stream.


The documentation for this class was generated from the following files:
