TAO_UIOP_Transport Class Reference

Specialization of the base TAO_Transport class to handle the UIOP protocol. More...

#include <UIOP_Transport.h>

Inheritance diagram for TAO_UIOP_Transport:

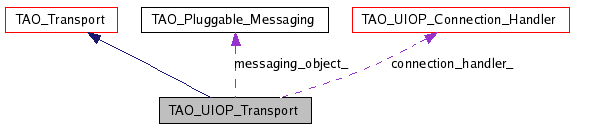

[legend]Collaboration diagram for TAO_UIOP_Transport:

[legend]List of all members.

Overridden Template Methods
These are implementations of template methods declared by TAO_Transport.
virtual int	send_request (TAO_Stub *stub, TAO_ORB_Core *orb_core, TAO_OutputCDR &stream, int message_semantics, ACE_Time_Value *max_wait_time)
virtual int	send_message (TAO_OutputCDR &stream, TAO_Stub *stub=0, int message_semantics=TAO_Transport::TAO_TWOWAY_REQUEST, ACE_Time_Value *max_time_wait=0)
virtual int	messaging_init (CORBA::Octet major, CORBA::Octet minor)
	Initialising the messaging object.
virtual ACE_Event_Handler *	event_handler_i (void)
virtual TAO_Connection_Handler *	connection_handler_i (void)
virtual TAO_Pluggable_Messaging *	messaging_object (void)
virtual ssize_t	send (iovec *iov, int iovcnt, size_t &bytes_transferred, const ACE_Time_Value *timeout=0)
	Write the complete Message_Block chain to the connection.
virtual ssize_t	recv (char *buf, size_t len, const ACE_Time_Value *s=0)
	Read len bytes from into buf.
Public Member Functions
	TAO_UIOP_Transport (TAO_UIOP_Connection_Handler *handler, TAO_ORB_Core *orb_core, CORBA::Boolean flag)
	Constructor.
	~TAO_UIOP_Transport (void)
	Default destructor.
Private Attributes
TAO_UIOP_Connection_Handler *	connection_handler_
TAO_Pluggable_Messaging *	messaging_object_
	Our messaging object.

---

Detailed Description

Specialization of the base TAO_Transport class to handle the UIOP protocol.

---

Constructor & Destructor Documentation

TAO_BEGIN_VERSIONED_NAMESPACE_DECL TAO_UIOP_Transport::TAO_UIOP_Transport	(	TAO_UIOP_Connection_Handler *	handler,
		TAO_ORB_Core *	orb_core,
		CORBA::Boolean	flag
	)

Constructor.

TAO_UIOP_Transport::~TAO_UIOP_Transport

(

void

)

Default destructor.

---

Member Function Documentation

TAO_Connection_Handler * TAO_UIOP_Transport::connection_handler_i

(

void

)

[protected, virtual]

Todo:

These methods IMHO should have more meaningful names. The names seem to indicate nothing.

Implements TAO_Transport.

ACE_Event_Handler * TAO_UIOP_Transport::event_handler_i

(

void

)

[protected, virtual]

Todo:

These methods IMHO should have more meaningful names. The names seem to indicate nothing.

Implements TAO_Transport.

int TAO_UIOP_Transport::messaging_init	(	CORBA::Octet	major,
		CORBA::Octet	minor
	)			[virtual]

Initialising the messaging object.

Implements TAO_Transport.

TAO_Pluggable_Messaging * TAO_UIOP_Transport::messaging_object

(

void

)

[protected, virtual]

Todo:

These methods IMHO should have more meaningful names. The names seem to indicate nothing.

Implements TAO_Transport.

ssize_t TAO_UIOP_Transport::recv	(	char *	buf,
		size_t	len,
		const ACE_Time_Value *	s = 0
	)			[protected, virtual]

Read len bytes from into buf.

Implements TAO_Transport.

ssize_t TAO_UIOP_Transport::send	(	iovec *	iov,
		int	iovcnt,
		size_t &	bytes_transferred,
		const ACE_Time_Value *	timeout = 0
	)			[protected, virtual]

Write the complete Message_Block chain to the connection.

Implements TAO_Transport.

int TAO_UIOP_Transport::send_message	(	TAO_OutputCDR &	stream,
		TAO_Stub *	stub = 0,
		int	message_semantics = TAO_Transport::TAO_TWOWAY_REQUEST,
		ACE_Time_Value *	max_time_wait = 0
	)			[virtual]

Todo:

These methods IMHO should have more meaningful names. The names seem to indicate nothing.

Implements TAO_Transport.

int TAO_UIOP_Transport::send_request	(	TAO_Stub *	stub,
		TAO_ORB_Core *	orb_core,
		TAO_OutputCDR &	stream,
		int	message_semantics,
		ACE_Time_Value *	max_wait_time
	)			[virtual]

Todo:

These methods IMHO should have more meaningful names. The names seem to indicate nothing.

Implements TAO_Transport.

---

Member Data Documentation

TAO_UIOP_Connection_Handler* TAO_UIOP_Transport::connection_handler_ [private]

The connection service handler used for accessing lower layer communication protocols.

TAO_Pluggable_Messaging* TAO_UIOP_Transport::messaging_object_ [private]

Our messaging object.

---

The documentation for this class was generated from the following files:

• UIOP_Transport.h
• UIOP_Transport.cpp

---
