TAO_ECG_UDP_Sender Class Reference

Send events received from a "local" EC using UDP. NOT THREAD-SAFE. This class connect as a consumer to an EventChannel and forwards the events it receives from that EC using UDP. More...

#include <ECG_UDP_Sender.h>

Inheritance diagram for TAO_ECG_UDP_Sender:

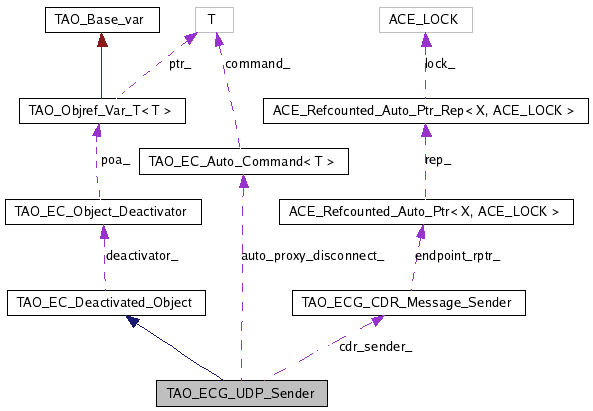

[legend]Collaboration diagram for TAO_ECG_UDP_Sender:

[legend]List of all members.

	~TAO_ECG_UDP_Sender (void)
void	init (RtecEventChannelAdmin::EventChannel_ptr lcl_ec, RtecUDPAdmin::AddrServer_ptr addr_server, TAO_ECG_Refcounted_Endpoint endpoint_rptr)
void	connect (const RtecEventChannelAdmin::ConsumerQOS &sub)
	Connect or reconnect to the EC with the given subscriptions.
void	shutdown (void)
static TAO_EC_Servant_Var< TAO_ECG_UDP_Sender >	create (CORBA::Boolean crc=0)
	Initialization and termination methods.
Public Member Functions
int	mtu (CORBA::ULong mtu)
	Accessors.
CORBA::ULong	mtu (void) const
	Accessors.
int	get_local_addr (ACE_INET_Addr &addr)
	Get the local endpoint used to send the events.
virtual void	disconnect_push_consumer (void) throw (CORBA::SystemException)
	The PushConsumer methods.
virtual void	push (const RtecEventComm::EventSet &events) throw (CORBA::SystemException)
	The PushConsumer methods.
Protected Member Functions
	TAO_ECG_UDP_Sender (CORBA::Boolean crc=0)
Private Types
typedef TAO_EC_Auto_Command< TAO_ECG_UDP_Sender_Disconnect_Command >	ECG_Sender_Auto_Proxy_Disconnect
Private Member Functions
void	new_connect (const RtecEventChannelAdmin::ConsumerQOS &sub)
	Helpers for the connect() method.
void	reconnect (const RtecEventChannelAdmin::ConsumerQOS &sub)
	Helpers for the connect() method.
Private Attributes
RtecEventChannelAdmin::ProxyPushSupplier_var	supplier_proxy_
	Proxy used to receive events from the Event Channel.
RtecEventChannelAdmin::EventChannel_var	lcl_ec_
	Event Channel to which we act as a consumer.
RtecUDPAdmin::AddrServer_var	addr_server_
	We query this object to determine where the events should be sent.
TAO_ECG_CDR_Message_Sender	cdr_sender_
	Helper for fragmenting and sending cdr-encoded events using udp.
ECG_Sender_Auto_Proxy_Disconnect	auto_proxy_disconnect_
	Manages our connection to Supplier Proxy.

---

Detailed Description

Send events received from a "local" EC using UDP. NOT THREAD-SAFE. This class connect as a consumer to an EventChannel and forwards the events it receives from that EC using UDP.

---

Member Typedef Documentation

typedef TAO_EC_Auto_Command<TAO_ECG_UDP_Sender_Disconnect_Command> TAO_ECG_UDP_Sender::ECG_Sender_Auto_Proxy_Disconnect [private]

---

Constructor & Destructor Documentation

TAO_BEGIN_VERSIONED_NAMESPACE_DECL TAO_ECG_UDP_Sender::~TAO_ECG_UDP_Sender

(

void

)

TAO_ECG_UDP_Sender::TAO_ECG_UDP_Sender

(

CORBA::Boolean

crc = 0

)

[protected]

Constructor (protected). Clients can create new TAO_ECG_UDP_Sender objects using the static create() method.

---

Member Function Documentation

void TAO_ECG_UDP_Sender::connect

(

const RtecEventChannelAdmin::ConsumerQOS &

sub

)

Connect or reconnect to the EC with the given subscriptions.

NOTE: if we are already connected to EC and a reconnection is necessary, the EC must have reconnects enabled in order for this method to succeed.

static TAO_EC_Servant_Var<TAO_ECG_UDP_Sender> TAO_ECG_UDP_Sender::create

(

CORBA::Boolean

crc = 0

)

[static]

Initialization and termination methods.

Create a new TAO_ECG_UDP_Sender object. (Constructor access is restricted to insure that all TAO_ECG_UDP_Sender objects are heap-allocated.)

void TAO_ECG_UDP_Sender::disconnect_push_consumer

(

void

)

throw (CORBA::SystemException) [virtual]

The PushConsumer methods.

Invokes shutdown (), which may result in the object being deleted, if refcounting is used to manage its lifetime.

int TAO_ECG_UDP_Sender::get_local_addr

(

ACE_INET_Addr &

addr

)

Get the local endpoint used to send the events.

void TAO_ECG_UDP_Sender::init	(	RtecEventChannelAdmin::EventChannel_ptr	lcl_ec,
		RtecUDPAdmin::AddrServer_ptr	addr_server,
		TAO_ECG_Refcounted_Endpoint	endpoint_rptr
	)

Parameters:

	lcl_ec	Event Channel to which we will act as a consumer of events.
	addr_server	Address server used to obtain event type to multicast group mapping.
	endpoint_rptr	Endpoint for sending udp/multicast messages. Endpoint's dgram must be open!

To insure proper resource clean up, if init () is successful, shutdown () must be called when the sender is no longer needed. This is done by disconnect_push_consumer() method. If disconnect_push_consumer() will not be called, it is the responsibility of the user. Furthermore, if shutdown() is not explicitly called by either disconnect_push_consumer () or the user, the sender will clean up the resources in its destructor, however, certain entities involved in cleanup must still exist at that point, e.g., POA.

CORBA::ULong TAO_ECG_UDP_Sender::mtu

(

void

)

const

Accessors.

The sender may need to fragment the message, otherwise the network may drop the packets. Setting the MTU can fail if the value is too small (at least the header + 8 bytes must fit).

int TAO_ECG_UDP_Sender::mtu

(

CORBA::ULong

mtu

)

Accessors.

The sender may need to fragment the message, otherwise the network may drop the packets. Setting the MTU can fail if the value is too small (at least the header + 8 bytes must fit).

void TAO_ECG_UDP_Sender::new_connect

(

const RtecEventChannelAdmin::ConsumerQOS &

sub

)

[private]

Helpers for the connect() method.

void TAO_ECG_UDP_Sender::push

(

const RtecEventComm::EventSet &

events

)

throw (CORBA::SystemException) [virtual]

The PushConsumer methods.

Invokes shutdown (), which may result in the object being deleted, if refcounting is used to manage its lifetime.

void TAO_ECG_UDP_Sender::reconnect

(

const RtecEventChannelAdmin::ConsumerQOS &

sub

)

[private]

Helpers for the connect() method.

void TAO_ECG_UDP_Sender::shutdown

(

void

)

Calling this method may result in decrementing of the reference count (due to deactivation) and deletion of the object.

---

Member Data Documentation

RtecUDPAdmin::AddrServer_var TAO_ECG_UDP_Sender::addr_server_ [private]

We query this object to determine where the events should be sent.

ECG_Sender_Auto_Proxy_Disconnect TAO_ECG_UDP_Sender::auto_proxy_disconnect_ [private]

Manages our connection to Supplier Proxy.

TAO_ECG_CDR_Message_Sender TAO_ECG_UDP_Sender::cdr_sender_ [private]

Helper for fragmenting and sending cdr-encoded events using udp.

RtecEventChannelAdmin::EventChannel_var TAO_ECG_UDP_Sender::lcl_ec_ [private]

Event Channel to which we act as a consumer.

RtecEventChannelAdmin::ProxyPushSupplier_var TAO_ECG_UDP_Sender::supplier_proxy_ [private]

Proxy used to receive events from the Event Channel.

---

The documentation for this class was generated from the following files:

• ECG_UDP_Sender.h
• ECG_UDP_Sender.cpp

---
