RTCP_Channel_In Class Reference

The RTCP_Channel_In class represents a single incoming data channel, or stream. The class has several responsibilities. When the class is instantiated, the incoming RTP traffic must be declared a valid source based on the RTP packets received. Once declared valie, this class is responsible for keeping up with reception statistics and other information. When an SR or RR is created (outside of this class), this class is used to get the Receiver Report block for this particular stream. More...

#include <RTCP_Channel.h>

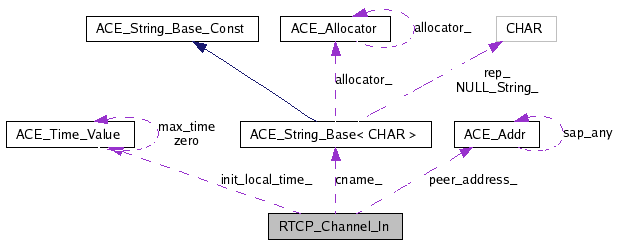

Collaboration diagram for RTCP_Channel_In:

[legend]List of all members.

Public Member Functions
	RTCP_Channel_In (ACE_UINT32 ssrc, const ACE_Addr *addr)
	~RTCP_Channel_In (void)
	Destructor.
void	recv_rtp_packet (ACE_Message_Block *mb, const ACE_Addr *peer_addr)
RR_Block *	getRRBlock (void)
	Takes statistics of incoming RTP traffic and creates a receiver report block.
ACE_UINT32	dlsr (void)
	Returns the delay since last sender report.
ACE_UINT32	lsr (void)
	Returns the last sender report timestamp.
int	updateStatistics (RTCP_SR_Packet *sr)
	Updates channel information with incoming sender report.
int	updateStatistics (RTCP_RR_Packet *rr)
	Updates channel information with incoming receiver report.
int	sender (void)
	Returns 1 if data has been sent since the last report, 0 if not.
int	active (void)
	Returns 1 if this is an active source, 0 if not.
Private Member Functions
	RTCP_Channel_In (void)
	Don't want default constructor.
	RTCP_Channel_In (const RTCP_Channel_In &ch)
	Don't want copy constructor.
void	updateStatistics (RTP_Packet *pkt)
	This operation is used update statistics for the incoming RTP packet.
void	init_seq (ACE_UINT16 seq)
	This is called when the first RTP packet is received.
int	update_seq (ACE_UINT16 seq)
Private Attributes
ACE_UINT32	remote_ssrc_
	The synchronization source id of the source this channel represents.
ACE_CString	cname_
	The canonical name of the source this channel represents.
ACE_UINT16	max_seq_
	The highest sequence number seen.
ACE_UINT32	cycles_
	The shifted count of sequence number cycles (ie when sequence number wraps).
ACE_UINT32	base_seq_
	The first sequence number received.
ACE_UINT32	bad_seq_
	last 'bad' sequence number + 1
ACE_UINT32	probation_
	The number of in sequence packets until a source is declared valid.
ACE_UINT32	received_
	The number of packets received.
ACE_UINT32	expected_prior_
	The packet expected at last interval.
ACE_UINT32	received_prior_
	The packet received at last interval.
ACE_UINT32	transit_
	The last transit time.
double	jitter_
	The inter-arrival jitter measured in timestamp units.
char	first_data_packet_
	Flag to indicate the first data packet received.
ACE_UINT32	init_time_stamp_
	The first timestamp received.
ACE_Time_Value	init_local_time_
	The local time that the initial packet was received.
ACE_Addr *	peer_address_
	The address that the first RTP packet was received from.
ACE_UINT32	ntp_ts_msw_
	The most significant word of the last sender report NTP timestamp.
ACE_UINT32	ntp_ts_lsw_
	The least significant word of the last sender report NTP timestamp.
ACE_UINT32	rtp_ts_
	The last sender report RTP timestamp.
ACE_UINT32	last_sr_time_
int	active_
	Flag to indicate whether or not the source is active.
int	no_data_counter_
char	data_since_last_report_
int	payload_type_
	The RTP payload type.

---

Detailed Description

The RTCP_Channel_In class represents a single incoming data channel, or stream. The class has several responsibilities. When the class is instantiated, the incoming RTP traffic must be declared a valid source based on the RTP packets received. Once declared valie, this class is responsible for keeping up with reception statistics and other information. When an SR or RR is created (outside of this class), this class is used to get the Receiver Report block for this particular stream.

---

Constructor & Destructor Documentation

TAO_BEGIN_VERSIONED_NAMESPACE_DECL RTCP_Channel_In::RTCP_Channel_In	(	ACE_UINT32	ssrc,
		const ACE_Addr *	addr
	)

Constructor for an incoming channel. Requires the synchronization source id and address of the sender.

RTCP_Channel_In::~RTCP_Channel_In

(

void

)

Destructor.

RTCP_Channel_In::RTCP_Channel_In

(

void

)

[private]

Don't want default constructor.

RTCP_Channel_In::RTCP_Channel_In

(

const RTCP_Channel_In &

ch

)

[private]

Don't want copy constructor.

---

Member Function Documentation

int RTCP_Channel_In::active

(

void

)

[inline]

Returns 1 if this is an active source, 0 if not.

ACE_UINT32 RTCP_Channel_In::dlsr

(

void

)

Returns the delay since last sender report.

RR_Block * RTCP_Channel_In::getRRBlock

(

void

)

Takes statistics of incoming RTP traffic and creates a receiver report block.

void RTCP_Channel_In::init_seq

(

ACE_UINT16

seq

)

[private]

This is called when the first RTP packet is received.

ACE_UINT32 RTCP_Channel_In::lsr

(

void

)

Returns the last sender report timestamp.

void RTCP_Channel_In::recv_rtp_packet	(	ACE_Message_Block *	mb,
		const ACE_Addr *	peer_addr
	)

This operation takes the incoming ACE_Message_Block, converts it to an RTP_Packet and calls updateStatistics. It also uses compares the peer_addr to the stored peer_address_ to check for loops.

int RTCP_Channel_In::sender

(

void

)

[inline]

Returns 1 if data has been sent since the last report, 0 if not.

int RTCP_Channel_In::update_seq

(

ACE_UINT16

seq

)

[private]

This is called when each RTP packet is received. It is used to declare a source as valid.

void RTCP_Channel_In::updateStatistics

(

RTP_Packet *

pkt

)

[private]

This operation is used update statistics for the incoming RTP packet.

int RTCP_Channel_In::updateStatistics

(

RTCP_RR_Packet *

rr

)

Updates channel information with incoming receiver report.

int RTCP_Channel_In::updateStatistics

(

RTCP_SR_Packet *

sr

)

Updates channel information with incoming sender report.

---

Member Data Documentation

int RTCP_Channel_In::active_ [private]

Flag to indicate whether or not the source is active.

ACE_UINT32 RTCP_Channel_In::bad_seq_ [private]

last 'bad' sequence number + 1

ACE_UINT32 RTCP_Channel_In::base_seq_ [private]

The first sequence number received.

ACE_CString RTCP_Channel_In::cname_ [private]

The canonical name of the source this channel represents.

ACE_UINT32 RTCP_Channel_In::cycles_ [private]

The shifted count of sequence number cycles (ie when sequence number wraps).

char RTCP_Channel_In::data_since_last_report_ [private]

This flag indicates that data has been received since the last report was sent.

ACE_UINT32 RTCP_Channel_In::expected_prior_ [private]

The packet expected at last interval.

char RTCP_Channel_In::first_data_packet_ [private]

Flag to indicate the first data packet received.

ACE_Time_Value RTCP_Channel_In::init_local_time_ [private]

The local time that the initial packet was received.

ACE_UINT32 RTCP_Channel_In::init_time_stamp_ [private]

The first timestamp received.

double RTCP_Channel_In::jitter_ [private]

The inter-arrival jitter measured in timestamp units.

ACE_UINT32 RTCP_Channel_In::last_sr_time_ [private]

The last time a sender report was received in 1/65536 seconds. Used to calculate DLSR.

ACE_UINT16 RTCP_Channel_In::max_seq_ [private]

The highest sequence number seen.

int RTCP_Channel_In::no_data_counter_ [private]

This is a counter to indicate the number of reporting intervals that have passed since data has been received. After 32, declare the source inactive.

ACE_UINT32 RTCP_Channel_In::ntp_ts_lsw_ [private]

The least significant word of the last sender report NTP timestamp.

ACE_UINT32 RTCP_Channel_In::ntp_ts_msw_ [private]

The most significant word of the last sender report NTP timestamp.

int RTCP_Channel_In::payload_type_ [private]

The RTP payload type.

ACE_Addr* RTCP_Channel_In::peer_address_ [private]

The address that the first RTP packet was received from.

ACE_UINT32 RTCP_Channel_In::probation_ [private]

The number of in sequence packets until a source is declared valid.

ACE_UINT32 RTCP_Channel_In::received_ [private]

The number of packets received.

ACE_UINT32 RTCP_Channel_In::received_prior_ [private]

The packet received at last interval.

ACE_UINT32 RTCP_Channel_In::remote_ssrc_ [private]

The synchronization source id of the source this channel represents.

ACE_UINT32 RTCP_Channel_In::rtp_ts_ [private]

The last sender report RTP timestamp.

ACE_UINT32 RTCP_Channel_In::transit_ [private]

The last transit time.

---

The documentation for this class was generated from the following files:

• RTCP_Channel.h
• RTCP_Channel.cpp

---
