TAO_SCIOP_Transport Class Reference

Specialization of the base TAO_Transport class to handle the SCIOP protocol. More...

#include <SCIOP_Transport.h>

Inheritance diagram for TAO_SCIOP_Transport:

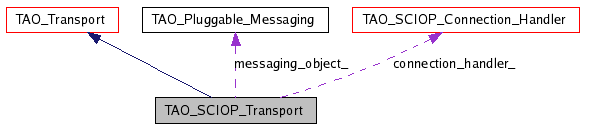

[legend]Collaboration diagram for TAO_SCIOP_Transport:

[legend]List of all members.

Overridden Template Methods
Please check the documentation in "tao/Transport.h" for more details.
virtual int	send_request (TAO_Stub *stub, TAO_ORB_Core *orb_core, TAO_OutputCDR &association, int message_semantics, ACE_Time_Value *max_wait_time)
virtual int	send_message (TAO_OutputCDR &association, TAO_Stub *stub=0, int message_semantics=TAO_Transport::TAO_TWOWAY_REQUEST, ACE_Time_Value *max_time_wait=0)
virtual int	generate_request_header (TAO_Operation_Details &opdetails, TAO_Target_Specification &spec, TAO_OutputCDR &msg)
virtual int	messaging_init (CORBA::Octet major, CORBA::Octet minor)
virtual int	tear_listen_point_list (TAO_InputCDR &cdr)
virtual TAO_Connection_Handler *	connection_handler_i (void)
virtual ACE_Event_Handler *	event_handler_i (void)
virtual TAO_Pluggable_Messaging *	messaging_object (void)
	Access the underlying messaging object.
virtual ssize_t	send (iovec *iov, int iovcnt, size_t &bytes_transferred, const ACE_Time_Value *timeout=0)
virtual ssize_t	recv (char *buf, size_t len, const ACE_Time_Value *s=0)
virtual int	send_message_shared (TAO_Stub *stub, int message_semantics, const ACE_Message_Block *message_block, ACE_Time_Value *max_wait_time)
Public Member Functions
	TAO_SCIOP_Transport (TAO_SCIOP_Connection_Handler *handler, TAO_ORB_Core *orb_core, CORBA::Boolean flag)
	Constructor.
Protected Member Functions
virtual	~TAO_SCIOP_Transport (void)
	Destructor.
Private Member Functions
void	set_bidir_context_info (TAO_Operation_Details &opdetails)
	Set the Bidirectional context info in the service context list.
int	get_listen_point (IIOP::ListenPointList &listen_point_list, TAO_Acceptor *acceptor)
Private Attributes
TAO_SCIOP_Connection_Handler *	connection_handler_
TAO_Pluggable_Messaging *	messaging_object_
	Our messaging object.

---

Detailed Description

Specialization of the base TAO_Transport class to handle the SCIOP protocol.

Specialization of the base TAO_Transport class to handle the SCIOP protocol.

---

Constructor & Destructor Documentation

TAO_BEGIN_VERSIONED_NAMESPACE_DECL TAO_SCIOP_Transport::TAO_SCIOP_Transport	(	TAO_SCIOP_Connection_Handler *	handler,
		TAO_ORB_Core *	orb_core,
		CORBA::Boolean	flag
	)

Constructor.

TAO_SCIOP_Transport::~TAO_SCIOP_Transport

(

void

)

[protected, virtual]

Destructor.

Protected destructor to enforce proper memory management through the reference counting mechanism.

---

Member Function Documentation

TAO_Connection_Handler * TAO_SCIOP_Transport::connection_handler_i

(

void

)

[virtual]

Todo:

These methods IMHO should have more meaningful names. The names seem to indicate nothing.

Implements TAO_Transport.

ACE_Event_Handler * TAO_SCIOP_Transport::event_handler_i

(

void

)

[protected, virtual]

Todo:

These methods IMHO should have more meaningful names. The names seem to indicate nothing.

Implements TAO_Transport.

int TAO_SCIOP_Transport::generate_request_header	(	TAO_Operation_Details &	opdetails,
		TAO_Target_Specification &	spec,
		TAO_OutputCDR &	msg
	)			[virtual]

Todo:

These methods IMHO should have more meaningful names. The names seem to indicate nothing.

Reimplemented from TAO_Transport.

int TAO_SCIOP_Transport::get_listen_point	(	IIOP::ListenPointList &	listen_point_list,
		TAO_Acceptor *	acceptor
	)			[private]

Add the listen points in <acceptor> to the <listen_point_list> if this connection is in the same interface as that of the endpoints in the <acceptor>

int TAO_SCIOP_Transport::messaging_init	(	CORBA::Octet	major,
		CORBA::Octet	minor
	)			[virtual]

Todo:

These methods IMHO should have more meaningful names. The names seem to indicate nothing.

Implements TAO_Transport.

TAO_Pluggable_Messaging * TAO_SCIOP_Transport::messaging_object

(

void

)

[protected, virtual]

Access the underlying messaging object.

Implements TAO_Transport.

ssize_t TAO_SCIOP_Transport::recv	(	char *	buf,
		size_t	len,
		const ACE_Time_Value *	s = 0
	)			[protected, virtual]

Todo:

These methods IMHO should have more meaningful names. The names seem to indicate nothing.

Implements TAO_Transport.

ssize_t TAO_SCIOP_Transport::send	(	iovec *	iov,
		int	iovcnt,
		size_t &	bytes_transferred,
		const ACE_Time_Value *	timeout = 0
	)			[protected, virtual]

Todo:

These methods IMHO should have more meaningful names. The names seem to indicate nothing.

Implements TAO_Transport.

int TAO_SCIOP_Transport::send_message	(	TAO_OutputCDR &	association,
		TAO_Stub *	stub = 0,
		int	message_semantics = TAO_Transport::TAO_TWOWAY_REQUEST,
		ACE_Time_Value *	max_time_wait = 0
	)			[virtual]

Todo:

These methods IMHO should have more meaningful names. The names seem to indicate nothing.

Implements TAO_Transport.

int TAO_SCIOP_Transport::send_message_shared	(	TAO_Stub *	stub,
		int	message_semantics,
		const ACE_Message_Block *	message_block,
		ACE_Time_Value *	max_wait_time
	)			[protected, virtual]

Todo:

These methods IMHO should have more meaningful names. The names seem to indicate nothing.

Reimplemented from TAO_Transport.

int TAO_SCIOP_Transport::send_request	(	TAO_Stub *	stub,
		TAO_ORB_Core *	orb_core,
		TAO_OutputCDR &	association,
		int	message_semantics,
		ACE_Time_Value *	max_wait_time
	)			[virtual]

Todo:

These methods IMHO should have more meaningful names. The names seem to indicate nothing.

Implements TAO_Transport.

void TAO_SCIOP_Transport::set_bidir_context_info

(

TAO_Operation_Details &

opdetails

)

[private]

Set the Bidirectional context info in the service context list.

int TAO_SCIOP_Transport::tear_listen_point_list

(

TAO_InputCDR &

cdr

)

[virtual]

Todo:

These methods IMHO should have more meaningful names. The names seem to indicate nothing.

Reimplemented from TAO_Transport.

---

Member Data Documentation

TAO_SCIOP_Connection_Handler* TAO_SCIOP_Transport::connection_handler_ [private]

The connection service handler used for accessing lower layer communication protocols.

TAO_Pluggable_Messaging* TAO_SCIOP_Transport::messaging_object_ [private]

Our messaging object.

---

The documentation for this class was generated from the following files:

• SCIOP_Transport.h
• SCIOP_Transport.cpp

---
