#include <SSLIOP_Endpoint.h>

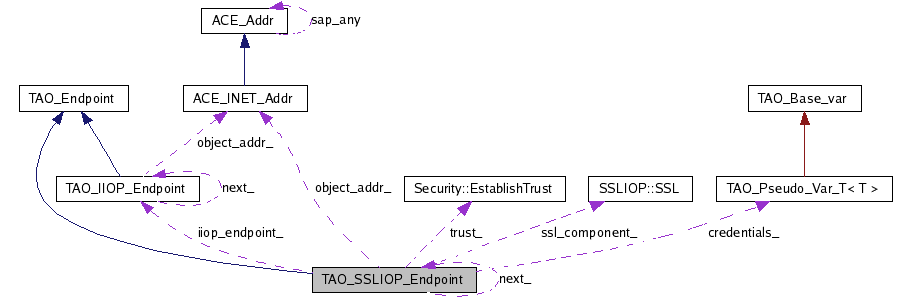

Inheritance diagram for TAO_SSLIOP_Endpoint:
Public Member Functions | |
| TAO_SSLIOP_Endpoint (const ::SSLIOP::SSL *ssl_component, TAO_IIOP_Endpoint *iiop_endp) | |
| Constructor. | |
| virtual | ~TAO_SSLIOP_Endpoint (void) |
| Destructor. | |
| int | credentials_set (void) const |
TAO_Endpoint Methods | |
| virtual TAO_Endpoint * | next (void) |
| virtual int | addr_to_string (char *buffer, size_t length) |
| CORBA::Boolean | is_equivalent (const TAO_Endpoint *other_endpoint) |
| virtual TAO_Endpoint * | duplicate (void) |
| virtual CORBA::ULong | hash (void) |
SSLIOP_Endpoint-specific Methods | |
| const ::SSLIOP::SSL & | ssl_component (void) const |
| Return SSL component corresponding to this endpoint. | |
| TAO_IIOP_Endpoint * | iiop_endpoint (void) const |
| Accessor to our IIOP counterpart. | |
| void | iiop_endpoint (TAO_IIOP_Endpoint *endpoint, bool destroy) |
| Mutator to our IIOP counterpart. | |
| const ACE_INET_Addr & | object_addr (void) const |
| Return the SSLIOP-specific ACE_INET_Addr. | |
| void | set_sec_attrs (::Security::QOP qop, const ::Security::EstablishTrust &trust, const TAO::SSLIOP::OwnCredentials_ptr creds) |
| ::Security::QOP | qop (void) const |
| Get the Quality-of-Protection settings for this endpoint. | |
| ::Security::EstablishTrust | trust (void) const |
| Get the establishment of trust settings for this endpoint. | |
| TAO::SSLIOP::OwnCredentials * | credentials (void) const |
| Get the credentials for this endpoint. | |
Protected Attributes | |
| ::SSLIOP::SSL | ssl_component_ |
Private Attributes | |
| ACE_INET_Addr | object_addr_ |
| TAO_SSLIOP_Endpoint * | next_ |
| TAO_IIOP_Endpoint * | iiop_endpoint_ |
| IIOP counterpart. | |
| bool | destroy_iiop_endpoint_ |
| ::Security::QOP | qop_ |
| Quailty-of-Protection settings for this endpoint object. | |
| ::Security::EstablishTrust | trust_ |
| Establishment of trust settings for this endpoint object. | |
| TAO::SSLIOP::OwnCredentials_var | credentials_ |
| SSLIOP-specific credentials for this endpoint object. | |
| int | credentials_set_ |
| A flag indicating that credentials_ was explicitly initialized. | |
Friends | |
| class | TAO_SSLIOP_Profile |
| TAO_BEGIN_VERSIONED_NAMESPACE_DECL TAO_SSLIOP_Endpoint::TAO_SSLIOP_Endpoint | ( | const ::SSLIOP::SSL * | ssl_component, | |
| TAO_IIOP_Endpoint * | iiop_endp | |||
| ) |
Constructor.
| TAO_SSLIOP_Endpoint::~TAO_SSLIOP_Endpoint | ( | void | ) | [virtual] |
Destructor.
| int TAO_SSLIOP_Endpoint::addr_to_string | ( | char * | buffer, | |
| size_t | length | |||
| ) | [virtual] |
Implements TAO_Endpoint.
| ACE_INLINE TAO::SSLIOP::OwnCredentials * TAO_SSLIOP_Endpoint::credentials | ( | void | ) | const |
Get the credentials for this endpoint.
| ACE_INLINE int TAO_SSLIOP_Endpoint::credentials_set | ( | void | ) | const |
Credentials are not supplied by the constructor, and it is valid to have a nil credential, for instance if the SSL_use_certificate() method returns 0. Therefore it is necessary to have a new method to distinguish between a credential that is nil because it has not been set, vs one that was set to nil explicitly.
| TAO_Endpoint * TAO_SSLIOP_Endpoint::duplicate | ( | void | ) | [virtual] |
Return a copy of the corresponding endpoints by allocating memory.
Implements TAO_Endpoint.
Reimplemented in TAO_SSLIOP_Synthetic_Endpoint.
| CORBA::ULong TAO_SSLIOP_Endpoint::hash | ( | void | ) | [virtual] |
Return a hash value for this object. Note that only the IP address and port are used to generate the hash value. This may cause a few more hash table collisions in the transport cache, because a synthesized SSLIOP endpoints for an address will have the same hash value as a fully qualified one. The redeeming feature is that it makes / bi-directional SSLIOP work by allowing descendent class (Synthetic_Endpoint) instances to be used as keys in the cache manager and match other fully qualified endpoint. (which were used earlier to cache a particular transport)
Implements TAO_Endpoint.
| ACE_INLINE void TAO_SSLIOP_Endpoint::iiop_endpoint | ( | TAO_IIOP_Endpoint * | endpoint, | |
| bool | destroy | |||
| ) |
Mutator to our IIOP counterpart.
| destroy | If set to true, the TAO::SSLIOP::Endpoint object retains ownership of the given TAO_IIOP_Endpoint. |
| TAO_BEGIN_VERSIONED_NAMESPACE_DECL ACE_INLINE TAO_IIOP_Endpoint * TAO_SSLIOP_Endpoint::iiop_endpoint | ( | void | ) | const |
Accessor to our IIOP counterpart.
| CORBA::Boolean TAO_SSLIOP_Endpoint::is_equivalent | ( | const TAO_Endpoint * | other_endpoint | ) | [virtual] |
Return true if this endpoint is equivalent to
| other_endpoint. | The relationship is defined as equivalency of their qop, hostname and ssl ports (if non-zero). Two endpoints may be equivalent even if their iiop counterparts are not. In fact, there are cases (as with the LPL processing) when those counterparts are not known at all. |
Implements TAO_Endpoint.
Reimplemented in TAO_SSLIOP_Synthetic_Endpoint.
| TAO_Endpoint * TAO_SSLIOP_Endpoint::next | ( | void | ) | [virtual] |
Implements TAO_Endpoint.
| const ACE_INET_Addr & TAO_SSLIOP_Endpoint::object_addr | ( | void | ) | const |
Return the SSLIOP-specific ACE_INET_Addr.
| ACE_INLINE::Security::QOP TAO_SSLIOP_Endpoint::qop | ( | void | ) | const |
Get the Quality-of-Protection settings for this endpoint.
| void TAO_SSLIOP_Endpoint::set_sec_attrs | ( | ::Security::QOP | qop, | |
| const ::Security::EstablishTrust & | trust, | |||
| const TAO::SSLIOP::OwnCredentials_ptr | creds | |||
| ) |
Set the Quality-of-Protection, establishment of trust, and credentials for this endpoint. This is all done in one function so that the guard may be used uniformly.
| ACE_INLINEconst ::SSLIOP::SSL & TAO_SSLIOP_Endpoint::ssl_component | ( | void | ) | const |
Return SSL component corresponding to this endpoint.
| ACE_INLINE::Security::EstablishTrust TAO_SSLIOP_Endpoint::trust | ( | void | ) | const |
Get the establishment of trust settings for this endpoint.
friend class TAO_SSLIOP_Profile [friend] |
SSLIOP-specific credentials for this endpoint object.
int TAO_SSLIOP_Endpoint::credentials_set_ [private] |
A flag indicating that credentials_ was explicitly initialized.
bool TAO_SSLIOP_Endpoint::destroy_iiop_endpoint_ [private] |
Flag that determines whether or not the iiop_endpoint_ member is deallocated with delete().
TAO_SSLIOP_Endpoint* TAO_SSLIOP_Endpoint::next_ [private] |
IIOP Endpoints can be stringed into a list. Return the next endpoint in the list, if any.
ACE_INET_Addr TAO_SSLIOP_Endpoint::object_addr_ [mutable, private] |
Cached instance of ACE_INET_Addr for use in making invocations, etc.
::Security::QOP TAO_SSLIOP_Endpoint::qop_ [private] |
Quailty-of-Protection settings for this endpoint object.
::SSLIOP::SSL TAO_SSLIOP_Endpoint::ssl_component_ [protected] |
Cache the SSL tagged component in a decoded format. Notice that we do not need to marshal this object!
::Security::EstablishTrust TAO_SSLIOP_Endpoint::trust_ [private] |
Establishment of trust settings for this endpoint object.
