TAO_EC_Event_Channel_Base Class Reference

The RtecEventChannelAdmin::EventChannel implementation. More...

#include <EC_Event_Channel_Base.h>

Inheritance diagram for TAO_EC_Event_Channel_Base:

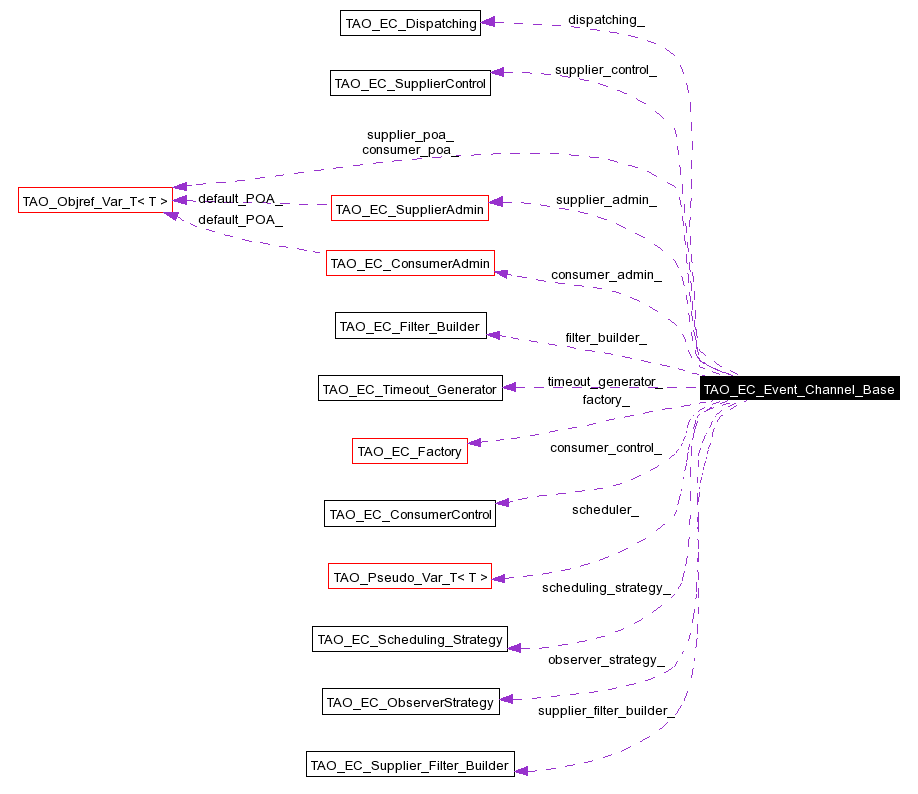

[legend]Collaboration diagram for TAO_EC_Event_Channel_Base:


Public Member Functions
virtual	~TAO_EC_Event_Channel_Base (void)
	destructor
virtual void	activate (ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS)
virtual void	shutdown (ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS)
virtual void	for_each_consumer (TAO_ESF_Worker< TAO_EC_ProxyPushSupplier > *worker ACE_ENV_ARG_DECL) throw (CORBA::SystemException)
virtual void	for_each_supplier (TAO_ESF_Worker< TAO_EC_ProxyPushConsumer > *worker ACE_ENV_ARG_DECL) throw (CORBA::SystemException)
TAO_EC_Dispatching *	dispatching (void) const
	Access the dispatching module....
TAO_EC_Filter_Builder *	filter_builder (void) const
	Access the filter builder....
TAO_EC_Supplier_Filter_Builder *	supplier_filter_builder (void) const
	Access the filter builder....
TAO_EC_ConsumerAdmin *	consumer_admin (void) const
TAO_EC_SupplierAdmin *	supplier_admin (void) const
TAO_EC_Timeout_Generator *	timeout_generator (void) const
	Access the timer module...
TAO_EC_Scheduling_Strategy *	scheduling_strategy (void) const
	Access the scheduling strategy.
TAO_EC_ConsumerControl *	consumer_control (void) const
	Access the client control strategies.
TAO_EC_SupplierControl *	supplier_control (void) const
void	create_proxy (TAO_EC_ProxyPushSupplier *&)
	Create and destroy a ProxyPushSupplier.
void	destroy_proxy (TAO_EC_ProxyPushSupplier *)
void	create_proxy (TAO_EC_ProxyPushConsumer *&)
	Create and destroy a ProxyPushConsumer.
void	destroy_proxy (TAO_EC_ProxyPushConsumer *)
void	create_proxy_collection (TAO_EC_ProxyPushSupplier_Collection *&)
void	destroy_proxy_collection (TAO_EC_ProxyPushSupplier_Collection *)
void	create_proxy_collection (TAO_EC_ProxyPushConsumer_Collection *&)
void	destroy_proxy_collection (TAO_EC_ProxyPushConsumer_Collection *)
PortableServer::POA_ptr	supplier_poa (void)
	Access the supplier and consumer POAs from the factory.
PortableServer::POA_ptr	consumer_poa (void)
ACE_Lock *	create_consumer_lock (void)
void	destroy_consumer_lock (ACE_Lock *)
ACE_Lock *	create_supplier_lock (void)
void	destroy_supplier_lock (ACE_Lock *)
virtual void	connected (TAO_EC_ProxyPushConsumer *ACE_ENV_ARG_DECL_NOT_USED)
virtual void	reconnected (TAO_EC_ProxyPushConsumer *ACE_ENV_ARG_DECL_NOT_USED)
virtual void	disconnected (TAO_EC_ProxyPushConsumer *ACE_ENV_ARG_DECL_NOT_USED)
virtual void	connected (TAO_EC_ProxyPushSupplier *ACE_ENV_ARG_DECL_NOT_USED)
virtual void	reconnected (TAO_EC_ProxyPushSupplier *ACE_ENV_ARG_DECL_NOT_USED)
virtual void	disconnected (TAO_EC_ProxyPushSupplier *ACE_ENV_ARG_DECL_NOT_USED)
int	consumer_reconnect (void) const
	Can the consumers reconnect to the EC?
int	supplier_reconnect (void) const
	Can the suppliers reconnect to the EC?
int	disconnect_callbacks (void) const
CORBA::Object_ptr	scheduler (void)
	Obtain the scheduler, the user must release.
virtual RtecEventChannelAdmin::ConsumerAdmin_ptr	for_consumers (ACE_ENV_SINGLE_ARG_DECL) throw (CORBA::SystemException)
virtual RtecEventChannelAdmin::SupplierAdmin_ptr	for_suppliers (ACE_ENV_SINGLE_ARG_DECL) throw (CORBA::SystemException)
virtual void	destroy (ACE_ENV_SINGLE_ARG_DECL) throw (CORBA::SystemException)
	Commit suicide.
virtual RtecEventChannelAdmin::Observer_Handle	append_observer (RtecEventChannelAdmin::Observer_ptr ACE_ENV_ARG_DECL) throw ( CORBA::SystemException, RtecEventChannelAdmin::EventChannel::SYNCHRONIZATION_ERROR, RtecEventChannelAdmin::EventChannel::CANT_APPEND_OBSERVER)
virtual void	remove_observer (RtecEventChannelAdmin::Observer_Handle ACE_ENV_ARG_DECL) throw ( CORBA::SystemException, RtecEventChannelAdmin::EventChannel::SYNCHRONIZATION_ERROR, RtecEventChannelAdmin::EventChannel::CANT_REMOVE_OBSERVER)
int	destroyed (void)
	Return 1 if the event channel is already destroyed.
Protected Types
enum	{ EC_S_IDLE, EC_S_ACTIVATING, EC_S_ACTIVE, EC_S_DESTROYING, EC_S_DESTROYED }
	Flag to track the status of the event channel. More...
Protected Member Functions
	TAO_EC_Event_Channel_Base (const TAO_EC_Event_Channel_Attributes &attributes, TAO_EC_Factory *factory=0, int own_factory=0)
TAO_EC_Factory *	factory (void) const
void	factory (TAO_EC_Factory *factory, int own_factory=0)
void	create_strategies (void)

void	deactivate_supplier_admin (void)
void	deactivate_consumer_admin (void)
Protected Attributes
PortableServer::POA_var	supplier_poa_
PortableServer::POA_var	consumer_poa_
TAO_EC_Factory *	factory_
int	own_factory_
	Flag that indicates if we own the factory.
TAO_EC_Dispatching *	dispatching_
	The dispatching "module".
TAO_EC_Filter_Builder *	filter_builder_
	The filter builder.
TAO_EC_Supplier_Filter_Builder *	supplier_filter_builder_
	The filter builder for suppliers.
TAO_EC_ConsumerAdmin *	consumer_admin_
	The ConsumerAdmin implementation.
TAO_EC_SupplierAdmin *	supplier_admin_
	The SupplierAdmin implementation.
TAO_EC_Timeout_Generator *	timeout_generator_
	The timeout generator.
TAO_EC_ObserverStrategy *	observer_strategy_
	The observer strategy.
CORBA::Object_var	scheduler_
	The scheduler (may be nil).
TAO_EC_Scheduling_Strategy *	scheduling_strategy_
	The scheduling strategy.
int	consumer_reconnect_
	Consumer reconnection flags.
int	supplier_reconnect_
	Supplier reconnection flags.
int	disconnect_callbacks_
	If not zero we send callbacks when a proxy is disconnected.
TAO_EC_ConsumerControl *	consumer_control_
	Strategies to disconnect misbehaving or destroyed consumers.
TAO_EC_SupplierControl *	supplier_control_
	Strategies to disconnect misbehaving or destroyed suppliers.
TAO_SYNCH_MUTEX	mutex_
	Mutex to protect the internal state.
int	status_

Detailed Description

The RtecEventChannelAdmin::EventChannel implementation.

This class is the Mediator between all the classes in the EC implementation, its main task is to redirect the messages to the right components, to hold and manage the lifetime of the long lived objects (Timer_Module, SupplierAdmin, ConsumerAdmin and Dispatching) and to provide a simpler interface to the EC_Factory.

Member Enumeration Documentation

anonymous enum [protected]

Flag to track the status of the event channel.

Enumerator:

EC_S_IDLE
EC_S_ACTIVATING
EC_S_ACTIVE
EC_S_DESTROYING
EC_S_DESTROYED

Constructor & Destructor Documentation

TAO_EC_Event_Channel_Base::~TAO_EC_Event_Channel_Base ( void ) [virtual]

destructor

TAO_BEGIN_VERSIONED_NAMESPACE_DECL TAO_EC_Event_Channel_Base::TAO_EC_Event_Channel_Base	(	const TAO_EC_Event_Channel_Attributes &	attributes,
		TAO_EC_Factory *	factory = `0`,
		int	own_factory = `0`
	)			`[protected]`

Constructor If own_factory is not 0 it assumes ownership of the factory. If the factory is nil it uses the Service_Configurator to load the Factory, if not found it uses TAO_EC_Default_Resource_Factory

Member Function Documentation

virtual void TAO_EC_Event_Channel_Base::activate ( ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS ) [virtual]

Start the internal threads (if any), etc. After this call the EC can be used.

RtecEventChannelAdmin::Observer_Handle TAO_EC_Event_Channel_Base::append_observer ( RtecEventChannelAdmin::Observer_ptr ACE_ENV_ARG_DECL ) throw ( CORBA::SystemException, RtecEventChannelAdmin::EventChannel::SYNCHRONIZATION_ERROR, RtecEventChannelAdmin::EventChannel::CANT_APPEND_OBSERVER) [virtual]

void TAO_EC_Event_Channel_Base::connected ( TAO_EC_ProxyPushSupplier * ACE_ENV_ARG_DECL_NOT_USED ) [virtual]

Used to inform the EC that a Supplier has connected or disconnected from it.

void TAO_EC_Event_Channel_Base::connected ( TAO_EC_ProxyPushConsumer * ACE_ENV_ARG_DECL_NOT_USED ) [virtual]

Used to inform the EC that a Consumer has connected or disconnected from it.

ACE_INLINE TAO_EC_ConsumerAdmin * TAO_EC_Event_Channel_Base::consumer_admin ( void ) const

Access the consumer admin implementation, useful for controlling the activation...

ACE_INLINE TAO_EC_ConsumerControl * TAO_EC_Event_Channel_Base::consumer_control ( void ) const

Access the client control strategies.

ACE_INLINE PortableServer::POA_ptr TAO_EC_Event_Channel_Base::consumer_poa ( void )

ACE_INLINE int TAO_EC_Event_Channel_Base::consumer_reconnect ( void ) const

Can the consumers reconnect to the EC?

ACE_INLINE ACE_Lock * TAO_EC_Event_Channel_Base::create_consumer_lock ( void )

Locking strategies for the ProxyPushConsumer and ProxyPushSupplier objects

ACE_INLINE void TAO_EC_Event_Channel_Base::create_proxy ( TAO_EC_ProxyPushConsumer *& )

Create and destroy a ProxyPushConsumer.

ACE_INLINE void TAO_EC_Event_Channel_Base::create_proxy ( TAO_EC_ProxyPushSupplier *& )

Create and destroy a ProxyPushSupplier.

ACE_INLINE void TAO_EC_Event_Channel_Base::create_proxy_collection ( TAO_EC_ProxyPushConsumer_Collection *& )

Create and destroy a the collections used to store ProxyPushConsumers

ACE_INLINE void TAO_EC_Event_Channel_Base::create_proxy_collection ( TAO_EC_ProxyPushSupplier_Collection *& )

Create and destroy a the collections used to store ProxyPushSuppliers

void TAO_EC_Event_Channel_Base::create_strategies ( void ) [protected]

Create all strategies

ACE_INLINE ACE_Lock * TAO_EC_Event_Channel_Base::create_supplier_lock ( void )

void TAO_EC_Event_Channel_Base::deactivate_consumer_admin ( void ) [protected]

Helpers. Deactivate admins from their POAs, ignoring any CORBA exceptions.

void TAO_EC_Event_Channel_Base::deactivate_supplier_admin ( void ) [protected]

Helpers. Deactivate admins from their POAs, ignoring any CORBA exceptions.

virtual void TAO_EC_Event_Channel_Base::destroy ( ACE_ENV_SINGLE_ARG_DECL ) throw (CORBA::SystemException) [virtual]

Commit suicide.

ACE_INLINE void TAO_EC_Event_Channel_Base::destroy_consumer_lock ( ACE_Lock * )

ACE_INLINE void TAO_EC_Event_Channel_Base::destroy_proxy ( TAO_EC_ProxyPushConsumer * )

ACE_INLINE void TAO_EC_Event_Channel_Base::destroy_proxy ( TAO_EC_ProxyPushSupplier * )

ACE_INLINE void TAO_EC_Event_Channel_Base::destroy_proxy_collection ( TAO_EC_ProxyPushConsumer_Collection * )

ACE_INLINE void TAO_EC_Event_Channel_Base::destroy_proxy_collection ( TAO_EC_ProxyPushSupplier_Collection * )

ACE_INLINE void TAO_EC_Event_Channel_Base::destroy_supplier_lock ( ACE_Lock * )

ACE_INLINE int TAO_EC_Event_Channel_Base::destroyed ( void )

Return 1 if the event channel is already destroyed.

ACE_INLINE int TAO_EC_Event_Channel_Base::disconnect_callbacks ( void ) const

Should we send callback disconnect messages when a proxy is disconnected by the client

void TAO_EC_Event_Channel_Base::disconnected ( TAO_EC_ProxyPushSupplier * ACE_ENV_ARG_DECL_NOT_USED ) [virtual]

void TAO_EC_Event_Channel_Base::disconnected ( TAO_EC_ProxyPushConsumer * ACE_ENV_ARG_DECL_NOT_USED ) [virtual]

ACE_INLINE TAO_EC_Dispatching * TAO_EC_Event_Channel_Base::dispatching ( void ) const

Access the dispatching module....

ACE_INLINE void TAO_EC_Event_Channel_Base::factory	(	TAO_EC_Factory *	factory,
		int	own_factory = `0`
	)			`[protected]`

Set the factory, if own_factory is not 0 it assumes ownership of the factory.

ACE_INLINE TAO_EC_Factory * TAO_EC_Event_Channel_Base::factory ( void ) const [protected]

Get the factory.

ACE_INLINE TAO_EC_Filter_Builder * TAO_EC_Event_Channel_Base::filter_builder ( void ) const

Access the filter builder....

virtual RtecEventChannelAdmin::ConsumerAdmin_ptr TAO_EC_Event_Channel_Base::for_consumers ( ACE_ENV_SINGLE_ARG_DECL ) throw (CORBA::SystemException) [virtual]

The default implementation is: this->consumer_admin ()->_this (ACE_ENV_SINGLE_ARG_PARAMETER);

virtual void TAO_EC_Event_Channel_Base::for_each_consumer ( TAO_ESF_Worker< TAO_EC_ProxyPushSupplier > *worker ACE_ENV_ARG_DECL ) throw (CORBA::SystemException) [virtual]

virtual void TAO_EC_Event_Channel_Base::for_each_supplier ( TAO_ESF_Worker< TAO_EC_ProxyPushConsumer > *worker ACE_ENV_ARG_DECL ) throw (CORBA::SystemException) [virtual]

virtual RtecEventChannelAdmin::SupplierAdmin_ptr TAO_EC_Event_Channel_Base::for_suppliers ( ACE_ENV_SINGLE_ARG_DECL ) throw (CORBA::SystemException) [virtual]

The default implementation is: this->supplier_admin ()->_this (ACE_ENV_SINGLE_ARG_PARAMETER);

void TAO_EC_Event_Channel_Base::reconnected ( TAO_EC_ProxyPushSupplier * ACE_ENV_ARG_DECL_NOT_USED ) [virtual]

void TAO_EC_Event_Channel_Base::reconnected ( TAO_EC_ProxyPushConsumer * ACE_ENV_ARG_DECL_NOT_USED ) [virtual]

void TAO_EC_Event_Channel_Base::remove_observer ( RtecEventChannelAdmin::Observer_Handle ACE_ENV_ARG_DECL ) throw ( CORBA::SystemException, RtecEventChannelAdmin::EventChannel::SYNCHRONIZATION_ERROR, RtecEventChannelAdmin::EventChannel::CANT_REMOVE_OBSERVER) [virtual]

ACE_INLINE CORBA::Object_ptr TAO_EC_Event_Channel_Base::scheduler ( void )

Obtain the scheduler, the user must release.

ACE_INLINE TAO_EC_Scheduling_Strategy * TAO_EC_Event_Channel_Base::scheduling_strategy ( void ) const

Access the scheduling strategy.

virtual void TAO_EC_Event_Channel_Base::shutdown ( ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS ) [virtual]

Shutdown any internal threads, cleanup all the internal structures, flush all the messages, etc.

ACE_INLINE TAO_EC_SupplierAdmin * TAO_EC_Event_Channel_Base::supplier_admin ( void ) const

Access the supplier admin implementation, useful for controlling the activation...

ACE_INLINE TAO_EC_SupplierControl * TAO_EC_Event_Channel_Base::supplier_control ( void ) const

ACE_INLINE TAO_EC_Supplier_Filter_Builder * TAO_EC_Event_Channel_Base::supplier_filter_builder ( void ) const

Access the filter builder....

ACE_INLINE PortableServer::POA_ptr TAO_EC_Event_Channel_Base::supplier_poa ( void )

Access the supplier and consumer POAs from the factory.

ACE_INLINE int TAO_EC_Event_Channel_Base::supplier_reconnect ( void ) const

Can the suppliers reconnect to the EC?

ACE_INLINE TAO_EC_Timeout_Generator * TAO_EC_Event_Channel_Base::timeout_generator ( void ) const

Access the timer module...

Member Data Documentation

TAO_EC_ConsumerAdmin* TAO_EC_Event_Channel_Base::consumer_admin_ [protected]

The ConsumerAdmin implementation.

TAO_EC_ConsumerControl* TAO_EC_Event_Channel_Base::consumer_control_ [protected]

Strategies to disconnect misbehaving or destroyed consumers.

PortableServer::POA_var TAO_EC_Event_Channel_Base::consumer_poa_ [protected]

int TAO_EC_Event_Channel_Base::consumer_reconnect_ [protected]

Consumer reconnection flags.

int TAO_EC_Event_Channel_Base::disconnect_callbacks_ [protected]

If not zero we send callbacks when a proxy is disconnected.

TAO_EC_Dispatching* TAO_EC_Event_Channel_Base::dispatching_ [protected]

The dispatching "module".

TAO_EC_Factory* TAO_EC_Event_Channel_Base::factory_ [protected]

This is the abstract factory that creates all the objects that compose an event channel, the event channel simply acts as a Mediator among them.

TAO_EC_Filter_Builder* TAO_EC_Event_Channel_Base::filter_builder_ [protected]

The filter builder.

TAO_SYNCH_MUTEX TAO_EC_Event_Channel_Base::mutex_ [protected]

Mutex to protect the internal state.

TAO_EC_ObserverStrategy* TAO_EC_Event_Channel_Base::observer_strategy_ [protected]

The observer strategy.

int TAO_EC_Event_Channel_Base::own_factory_ [protected]

Flag that indicates if we own the factory.

CORBA::Object_var TAO_EC_Event_Channel_Base::scheduler_ [protected]

The scheduler (may be nil).

TAO_EC_Scheduling_Strategy* TAO_EC_Event_Channel_Base::scheduling_strategy_ [protected]

The scheduling strategy.

int TAO_EC_Event_Channel_Base::status_ [protected]

TAO_EC_SupplierAdmin* TAO_EC_Event_Channel_Base::supplier_admin_ [protected]

The SupplierAdmin implementation.

TAO_EC_SupplierControl* TAO_EC_Event_Channel_Base::supplier_control_ [protected]

Strategies to disconnect misbehaving or destroyed suppliers.

TAO_EC_Supplier_Filter_Builder* TAO_EC_Event_Channel_Base::supplier_filter_builder_ [protected]

The filter builder for suppliers.

PortableServer::POA_var TAO_EC_Event_Channel_Base::supplier_poa_ [protected]

The POAs used to activate "supplier-side" and "consumer-side" objects.

int TAO_EC_Event_Channel_Base::supplier_reconnect_ [protected]

Supplier reconnection flags.

TAO_EC_Timeout_Generator* TAO_EC_Event_Channel_Base::timeout_generator_ [protected]

The timeout generator.

The documentation for this class was generated from the following files:

Generated on Wed Apr 19 03:39:29 2006 for TAO_RTEvent by

1.4.6-4

TAO_EC_Event_Channel_Base Class Reference

Public Member Functions

Protected Types

Protected Member Functions

Protected Attributes

Detailed Description

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
