TAO_Asynch_Reply_Dispatcher_Base Class Reference

Base class for TAO_Asynch_Reply_Dispatcher and TAO_DII_Deferred_Reply_Dispatcher. More...

#include <Asynch_Reply_Dispatcher_Base.h>

Inheritance diagram for TAO_Asynch_Reply_Dispatcher_Base:

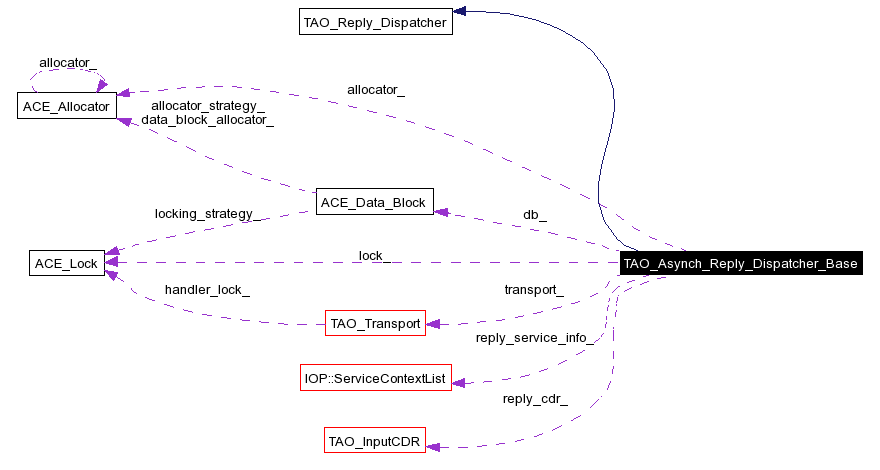

[legend]Collaboration diagram for TAO_Asynch_Reply_Dispatcher_Base:

[legend]List of all members.

Public Member Functions
	TAO_Asynch_Reply_Dispatcher_Base (TAO_ORB_Core *orb_core, ACE_Allocator *allocator=0)
	Default constructor.
void	transport (TAO_Transport *t)
	Sets the transport for this invocation.
virtual void	reply_timed_out (void)=0
	Inform that the reply timed out.
virtual long	schedule_timer (CORBA::ULong, const ACE_Time_Value &)=0
	Install the timeout handler.
bool	try_dispatch_reply (void)
	A helper method that can be used by the subclasses.
The Reply Dispatcher methods
virtual int	dispatch_reply (TAO_Pluggable_Reply_Params &)=0
virtual void	connection_closed (void)=0
Mutators for refcount
long	incr_refcount (void)
long	decr_refcount (void)
Protected Member Functions
virtual	~TAO_Asynch_Reply_Dispatcher_Base (void)
	Destructor.
Protected Attributes
IOP::ServiceContextList	reply_service_info_
	The service context list.
char	buf_ [ACE_CDR::DEFAULT_BUFSIZE]
	The buffer that is used to initialise the data block.
ACE_Data_Block	db_
TAO_InputCDR	reply_cdr_
TAO_Transport *	transport_
	This invocation is using this transport, may change...
Private Attributes
ACE_Lock *	lock_
	Lock to protect refcount and is_reply_dispatched_ flag.
long	refcount_
	Refcount paraphernalia for this class.
bool	is_reply_dispatched_
	Has the reply been dispatched?
ACE_Allocator *	allocator_

---

Detailed Description

Base class for TAO_Asynch_Reply_Dispatcher and TAO_DII_Deferred_Reply_Dispatcher.

---

Constructor & Destructor Documentation

TAO_BEGIN_VERSIONED_NAMESPACE_DECL TAO_Asynch_Reply_Dispatcher_Base::TAO_Asynch_Reply_Dispatcher_Base	(	TAO_ORB_Core *	orb_core,
		ACE_Allocator *	allocator = 0
	)

Default constructor.

TAO_Asynch_Reply_Dispatcher_Base::~TAO_Asynch_Reply_Dispatcher_Base

(

void

)

[protected, virtual]

Destructor.

---

Member Function Documentation

void TAO_Asynch_Reply_Dispatcher_Base::connection_closed

(

void

)

[pure virtual]

The used for the pending reply has been closed. No reply is expected.

Todo:

If the connection was closed due to a CloseConnection message then we could re-issue the request instead of raising the exception, it would a matter of simply adding a boolean argument to this function.

Implements TAO_Reply_Dispatcher.

long TAO_Asynch_Reply_Dispatcher_Base::decr_refcount

(

void

)

int TAO_Asynch_Reply_Dispatcher_Base::dispatch_reply

(

TAO_Pluggable_Reply_Params &

)

[pure virtual]

Dispatch the reply. Return 1 on sucess, -1 on error.

Todo:

Pluggable Messaging: this method has too many arguments, the "Right Thing"[tm] is for the Transport Object to create a "ClientReply" that encapsulates all we need to process a reply. Naturally it is possible that different messaging protocols implement different variants of such ClientReply class.

Implements TAO_Reply_Dispatcher.

long TAO_Asynch_Reply_Dispatcher_Base::incr_refcount

(

void

)

void TAO_Asynch_Reply_Dispatcher_Base::reply_timed_out

(

void

)

[pure virtual]

Inform that the reply timed out.

virtual long TAO_Asynch_Reply_Dispatcher_Base::schedule_timer	(	CORBA::ULong	,
		const ACE_Time_Value &
	)			[pure virtual]

Install the timeout handler.

void TAO_Asynch_Reply_Dispatcher_Base::transport

(

TAO_Transport *

t

)

Sets the transport for this invocation.

bool TAO_Asynch_Reply_Dispatcher_Base::try_dispatch_reply

(

void

)

A helper method that can be used by the subclasses.

The semantics of this helper method needs careful attention. A call to this method will do the following

• If the reply has already been dispatched, the return value will be false to signify not to try.

• If the reply has not been dispatched, this method will set the flag to be true and return a true value to signify that the caller thread can go ahead and dispatch reply.

Why are we clumping everything in one method. Answer is we need atomicity?

---

Member Data Documentation

ACE_Allocator* TAO_Asynch_Reply_Dispatcher_Base::allocator_ [private]

Allocator that was used to allocate this reply dispatcher. In case of zero we come from the heap.

char TAO_Asynch_Reply_Dispatcher_Base::buf_[ACE_CDR::DEFAULT_BUFSIZE] [protected]

The buffer that is used to initialise the data block.

ACE_Data_Block TAO_Asynch_Reply_Dispatcher_Base::db_ [protected]

Datablock that is created on the stack to initialise the CDR stream underneath.

bool TAO_Asynch_Reply_Dispatcher_Base::is_reply_dispatched_ [private]

Has the reply been dispatched?

ACE_Lock* TAO_Asynch_Reply_Dispatcher_Base::lock_ [private]

Lock to protect refcount and is_reply_dispatched_ flag.

long TAO_Asynch_Reply_Dispatcher_Base::refcount_ [private]

Refcount paraphernalia for this class.

TAO_InputCDR TAO_Asynch_Reply_Dispatcher_Base::reply_cdr_ [protected]

CDR stream which has the reply information that needs to be demarshalled by the stubs

IOP::ServiceContextList TAO_Asynch_Reply_Dispatcher_Base::reply_service_info_ [protected]

The service context list.

Note, that this is not a reference as in the synchronous case. We own the reply_service_info because our TAO_Asynch_Invocation or TAO_DII_Deferred_Invocation will go out of scope before we are done.

TAO_Transport* TAO_Asynch_Reply_Dispatcher_Base::transport_ [protected]

This invocation is using this transport, may change...

---

The documentation for this class was generated from the following files:

• Asynch_Reply_Dispatcher_Base.h
• Asynch_Reply_Dispatcher_Base.cpp

---
