TAO_SCIOP_Profile Class Reference

This class defines the protocol specific attributes required for locating ORBs over a TCP/IP network. More...

#include <SCIOP_Profile.h>

Inheritance diagram for TAO_SCIOP_Profile:

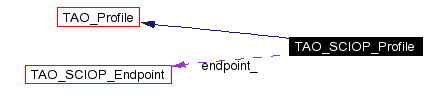

[legend]Collaboration diagram for TAO_SCIOP_Profile:

[legend]List of all members.

Public Methods
virtual char	object_key_delimiter (void) const
	TAO_SCIOP_Profile (const ACE_INET_Addr &addr, const TAO::ObjectKey &object_key, const TAO_GIOP_Message_Version &version, TAO_ORB_Core *orb_core)
	TAO_SCIOP_Profile (const char *host, CORBA::UShort port, const TAO::ObjectKey &object_key, const ACE_INET_Addr &addr, const TAO_GIOP_Message_Version &version, TAO_ORB_Core *orb_core)
	TAO_SCIOP_Profile (TAO_ORB_Core *orb_core)
	Profile constructor, default.
	~TAO_SCIOP_Profile (void)
	Destructor is to be called only through <_decr_refcnt>.
virtual char *	to_string (ACE_ENV_SINGLE_ARG_DECL)
	Template methods. Please see Profile.h for documentation.
virtual int	encode_endpoints (void)
virtual TAO_Endpoint *	endpoint (void)
virtual CORBA::ULong	endpoint_count (void) const
virtual CORBA::ULong	hash (CORBA::ULong max ACE_ENV_ARG_DECL)
void	add_endpoint (TAO_SCIOP_Endpoint *endp)
Static Public Methods
const char *	prefix (void)
	Return the char string prefix.
Static Public Attributes
const char	object_key_delimiter_ = '/'
	The object key delimiter that SCIOP uses or expects.
Protected Methods
virtual int	decode_profile (TAO_InputCDR &cdr)
	Template methods. Please see Profile.h for the documentation.
virtual int	decode_endpoints (void)
virtual void	parse_string_i (const char *string ACE_ENV_ARG_DECL)
virtual void	create_profile_body (TAO_OutputCDR &cdr) const
virtual CORBA::Boolean	do_is_equivalent (const TAO_Profile *other_profile)
Protected Attributes
TAO_SCIOP_Endpoint	endpoint_
CORBA::ULong	count_
	Number of endpoints in the list headed by <endpoint_>.

---

Detailed Description

This class defines the protocol specific attributes required for locating ORBs over a TCP/IP network.

This class defines the SCIOP profile as specified in the CORBA specification.

---

Constructor & Destructor Documentation

TAO_SCIOP_Profile::TAO_SCIOP_Profile (  const ACE_INET_Addr &    addr, const TAO::ObjectKey &    object_key, const TAO_GIOP_Message_Version &    version, TAO_ORB_Core *    orb_core )

Profile constructor, same as above except the object_key has already been marshaled.

TAO_SCIOP_Profile::TAO_SCIOP_Profile (  const char *    host, CORBA::UShort    port, const TAO::ObjectKey &    object_key, const ACE_INET_Addr &    addr, const TAO_GIOP_Message_Version &    version, TAO_ORB_Core *    orb_core )

Profile constructor, this is the most efficient since it doesn't require any address resolution processing.

TAO_SCIOP_Profile::TAO_SCIOP_Profile (  TAO_ORB_Core *    orb_core )

Profile constructor, default.

TAO_SCIOP_Profile::~TAO_SCIOP_Profile (  void    )

Destructor is to be called only through <_decr_refcnt>.

---

Member Function Documentation

void TAO_SCIOP_Profile::add_endpoint (  TAO_SCIOP_Endpoint *    endp )

Add <endp> to this profile's list of endpoints (it is inserted next to the head of the list). This profiles takes ownership of <endp>.

void TAO_SCIOP_Profile::create_profile_body (  TAO_OutputCDR &    cdr )  const [protected, virtual]

Implements TAO_Profile.

int TAO_SCIOP_Profile::decode_endpoints (  void    )  [protected, virtual]

Implements TAO_Profile.

int TAO_SCIOP_Profile::decode_profile (  TAO_InputCDR &    cdr )  [protected, virtual]

Template methods. Please see Profile.h for the documentation. Implements TAO_Profile.

CORBA::Boolean TAO_SCIOP_Profile::do_is_equivalent (  const TAO_Profile *    other_profile )  [protected, virtual]

Implements TAO_Profile.

int TAO_SCIOP_Profile::encode_endpoints (  void    )  [virtual]

Implements TAO_Profile.

TAO_Endpoint * TAO_SCIOP_Profile::endpoint (  void    )  [virtual]

Implements TAO_Profile.

CORBA::ULong TAO_SCIOP_Profile::endpoint_count (  void    )  const [virtual]

Implements TAO_Profile.

CORBA::ULong TAO_SCIOP_Profile::hash (  CORBA::ULong max    ACE_ENV_ARG_DECL )  [virtual]

Implements TAO_Profile.

char TAO_SCIOP_Profile::object_key_delimiter (  void    )  const [virtual]

Implements TAO_Profile.

virtual void TAO_SCIOP_Profile::parse_string_i (  const char *string    ACE_ENV_ARG_DECL )  [protected, virtual]

Implements TAO_Profile.

const char * TAO_SCIOP_Profile::prefix (  void    )  [static]

Return the char string prefix.

char * TAO_SCIOP_Profile::to_string (  ACE_ENV_SINGLE_ARG_DECL    )  [virtual]

Template methods. Please see Profile.h for documentation. Implements TAO_Profile.

---

Member Data Documentation

CORBA::ULong TAO_SCIOP_Profile::count_ [protected]

Number of endpoints in the list headed by <endpoint_>.

TAO_SCIOP_Endpoint TAO_SCIOP_Profile::endpoint_ [protected]

Head of this profile's list of endpoints. This endpoint is not dynamically allocated because a profile always contains at least one endpoint. Currently, a profile contains more than one endpoint, i.e., list contains more than just the head, only when RTCORBA is enabled. However, in the near future, this will be used in nonRT mode as well, e.g., to support TAG_ALTERNATE_SCIOP_ADDRESS feature. Addressing info of the default endpoint, i.e., head of the list, is transmitted using standard SCIOP ProfileBody components. See <encode_endpoints> method documentation above for how the rest of the endpoint list is transmitted.

const char TAO_SCIOP_Profile::object_key_delimiter_ = '/' [static]

The object key delimiter that SCIOP uses or expects.

---

The documentation for this class was generated from the following files:

• SCIOP_Profile.h
• SCIOP_Profile.cpp

---
