TAO_SSLIOP_Credentials Class Reference

SSLIOP-specific implementation of the SecurityLevel2::Credentials interface. More...

#include <SSLIOP_Credentials.h>

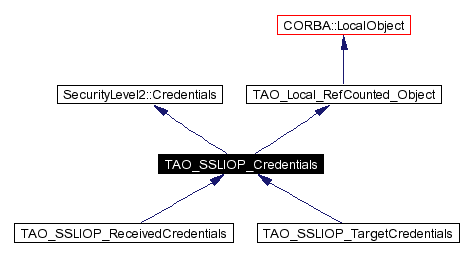

Inheritance diagram for TAO_SSLIOP_Credentials:

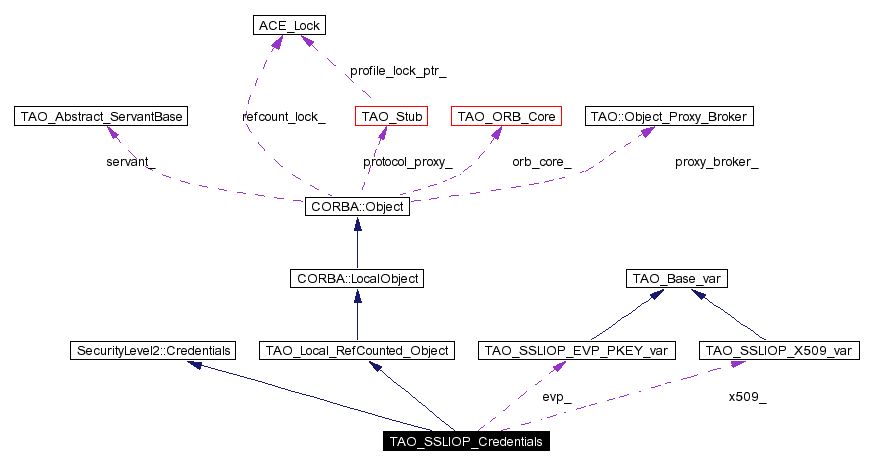

[legend]Collaboration diagram for TAO_SSLIOP_Credentials:

[legend]List of all members.

[NOHEADER]
typedef TAO_SSLIOP_Credentials_ptr	_ptr_type
typedef TAO_SSLIOP_Credentials_var	_var_type
TAO_SSLIOP_Credentials_ptr	_duplicate (TAO_SSLIOP_Credentials_ptr obj)
TAO_SSLIOP_Credentials_ptr	_narrow (CORBA::Object_ptr obj ACE_ENV_ARG_DECL_WITH_DEFAULTS)
TAO_SSLIOP_Credentials_ptr	_nil (void)
int	_tao_class_id = 0
Public Methods
	TAO_SSLIOP_Credentials (X509 *cert, EVP_PKEY *evp)
	Constructor.
virtual SecurityLevel2::Credentials_ptr	copy (ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException)
virtual void	destroy (ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException)
virtual Security::InvocationCredentialsType	credentials_type (ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException)
	Return the invocation credentials type this object is.
virtual Security::AuthenticationStatus	authentication_state (ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException)
virtual char *	mechanism (ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException)
virtual Security::AssociationOptions	accepting_options_supported (ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException)
virtual void	accepting_options_supported (Security::AssociationOptions accepting_options_supported ACE_ENV_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException)
virtual Security::AssociationOptions	accepting_options_required (ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException)
virtual void	accepting_options_required (Security::AssociationOptions accepting_options_required ACE_ENV_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException)
virtual Security::AssociationOptions	invocation_options_supported (ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException)
virtual void	invocation_options_supported (Security::AssociationOptions invocation_options_supported ACE_ENV_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException)
virtual Security::AssociationOptions	invocation_options_required (ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException)
virtual void	invocation_options_required (Security::AssociationOptions invocation_options_required ACE_ENV_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException)
virtual CORBA::Boolean	get_security_feature (Security::CommunicationDirection direction, Security::SecurityFeature feature ACE_ENV_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException)
virtual CORBA::Boolean	set_attributes (const Security::AttributeList &requested_attributes, Security::AttributeList_out actual_attributes ACE_ENV_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException)
virtual Security::AttributeList *	get_attributes (const Security::AttributeTypeList &attributes ACE_ENV_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException)
virtual CORBA::Boolean	is_valid (Security::UtcT_out expiry_time ACE_ENV_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException)
	Verify that this credential is still valid.
virtual CORBA::Boolean	refresh (const CORBA::Any &refresh_data ACE_ENV_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException)
EVP_PKEY *	evp (void)
	Return a pointer to the underlying private key.
CORBA::Boolean	operator== (const TAO_SSLIOP_Credentials &rhs)
CORBA::ULong	hash (void) const
More TAO_Connector methods
X509 *	x509 (void)
	Return a pointer to the underlying X.509 certificate.
Protected Methods
	~TAO_SSLIOP_Credentials (void)
	Destructor.
Protected Attributes
Security::AssociationOptions	accepting_options_supported_
Security::AssociationOptions	accepting_options_required_
Security::AssociationOptions	invocation_options_supported_
Security::AssociationOptions	invocation_options_required_
TAO_SSLIOP_X509_var	x509_
TAO_SSLIOP_EVP_PKEY_var	evp_

---

Detailed Description

SSLIOP-specific implementation of the SecurityLevel2::Credentials interface.

This class encapsulates the X.509 certificate associated with a given a principal.

---

Member Typedef Documentation

typedef TAO_SSLIOP_Credentials_ptr TAO_SSLIOP_Credentials::_ptr_type

Reimplemented from CORBA::LocalObject. Reimplemented in TAO_SSLIOP_ReceivedCredentials, and TAO_SSLIOP_TargetCredentials.

typedef TAO_SSLIOP_Credentials_var TAO_SSLIOP_Credentials::_var_type

Reimplemented from CORBA::LocalObject.

---

Constructor & Destructor Documentation

TAO_SSLIOP_Credentials::TAO_SSLIOP_Credentials (  X509 *    cert, EVP_PKEY *    evp )

Constructor.

TAO_SSLIOP_Credentials::~TAO_SSLIOP_Credentials (  void    )  [protected]

Destructor. Destructor is protected to enforce proper reference counting. Specifically, this reference counted object should only be deallocated by the reference counting mechanism.

---

Member Function Documentation

TAO_SSLIOP_Credentials_ptr TAO_SSLIOP_Credentials::_duplicate (  TAO_SSLIOP_Credentials_ptr    obj )  [static]

TAO_SSLIOP_Credentials_ptr TAO_SSLIOP_Credentials::_narrow (  CORBA::Object_ptr obj    ACE_ENV_ARG_DECL_WITH_DEFAULTS )  [static]

Reimplemented from CORBA::LocalObject. Reimplemented in TAO_SSLIOP_ReceivedCredentials, and TAO_SSLIOP_TargetCredentials.

TAO_SSLIOP_Credentials_ptr TAO_SSLIOP_Credentials::_nil (  void    )  [inline, static]

Reimplemented from CORBA::LocalObject. Reimplemented in TAO_SSLIOP_ReceivedCredentials, and TAO_SSLIOP_TargetCredentials.

void TAO_SSLIOP_Credentials::accepting_options_required (  Security::AssociationOptions accepting_options_required    ACE_ENV_ARG_DECL_WITH_DEFAULTS )  throw (CORBA::SystemException) [virtual]

Security::AssociationOptions TAO_SSLIOP_Credentials::accepting_options_required (  ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS    )  throw (CORBA::SystemException) [virtual]

void TAO_SSLIOP_Credentials::accepting_options_supported (  Security::AssociationOptions accepting_options_supported    ACE_ENV_ARG_DECL_WITH_DEFAULTS )  throw (CORBA::SystemException) [virtual]

Security::AssociationOptions TAO_SSLIOP_Credentials::accepting_options_supported (  ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS    )  throw (CORBA::SystemException) [virtual]

Security::AuthenticationStatus TAO_SSLIOP_Credentials::authentication_state (  ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS    )  throw (CORBA::SystemException) [virtual]

SecurityLevel2::Credentials_ptr TAO_SSLIOP_Credentials::copy (  ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS    )  throw (CORBA::SystemException) [virtual]

Return a duplicate (specifically a deep copy) of this credential object. Reimplemented in TAO_SSLIOP_ReceivedCredentials, and TAO_SSLIOP_TargetCredentials.

Security::InvocationCredentialsType TAO_SSLIOP_Credentials::credentials_type (  ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS    )  throw (CORBA::SystemException) [virtual]

Return the invocation credentials type this object is. If this Credentials object was created by the PrincipalAuthenticator then the "own" credentials type (i.e. Security::SecOwnCredentials) is returned. Specifically, the credentials represented by this Credentials object are our own, not the peer's credentials. If this Credentials object corresponds to the credentials received from the peer, then the "received" credentials type (i.e. Security::SecReceivedCredentials) is returned. If this Credentials object corresponds to the target object's credentials then the "target" credentials type (i.e. Security::SecTargetCredentials) is returned. Reimplemented in TAO_SSLIOP_ReceivedCredentials, and TAO_SSLIOP_TargetCredentials.

void TAO_SSLIOP_Credentials::destroy (  ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS    )  throw (CORBA::SystemException) [virtual]

ACE_INLINE EVP_PKEY * TAO_SSLIOP_Credentials::evp (  void    )

Return a pointer to the underlying private key. Returns: Non-zero value if private key is used. Note: Caller owns the returned object. Use a TAO_SSLIOP_EVP_PKEY_var.

virtual Security::AttributeList* TAO_SSLIOP_Credentials::get_attributes (  const Security::AttributeTypeList &attributes    ACE_ENV_ARG_DECL_WITH_DEFAULTS )  throw (CORBA::SystemException) [virtual]

CORBA::Boolean TAO_SSLIOP_Credentials::get_security_feature (  Security::CommunicationDirection    direction, Security::SecurityFeature feature    ACE_ENV_ARG_DECL_WITH_DEFAULTS )  throw (CORBA::SystemException) [virtual]

CORBA::ULong TAO_SSLIOP_Credentials::hash (  void    )  const

void TAO_SSLIOP_Credentials::invocation_options_required (  Security::AssociationOptions invocation_options_required    ACE_ENV_ARG_DECL_WITH_DEFAULTS )  throw (CORBA::SystemException) [virtual]

Security::AssociationOptions TAO_SSLIOP_Credentials::invocation_options_required (  ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS    )  throw (CORBA::SystemException) [virtual]

void TAO_SSLIOP_Credentials::invocation_options_supported (  Security::AssociationOptions invocation_options_supported    ACE_ENV_ARG_DECL_WITH_DEFAULTS )  throw (CORBA::SystemException) [virtual]

Security::AssociationOptions TAO_SSLIOP_Credentials::invocation_options_supported (  ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS    )  throw (CORBA::SystemException) [virtual]

CORBA::Boolean TAO_SSLIOP_Credentials::is_valid (  Security::UtcT_out expiry_time    ACE_ENV_ARG_DECL_WITH_DEFAULTS )  throw (CORBA::SystemException) [virtual]

Verify that this credential is still valid.

char * TAO_SSLIOP_Credentials::mechanism (  ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS    )  throw (CORBA::SystemException) [virtual]

CORBA::Boolean TAO_SSLIOP_Credentials::operator== (  const TAO_SSLIOP_Credentials &    rhs )

virtual CORBA::Boolean TAO_SSLIOP_Credentials::refresh (  const CORBA::Any &refresh_data    ACE_ENV_ARG_DECL_WITH_DEFAULTS )  throw (CORBA::SystemException) [virtual]

CORBA::Boolean TAO_SSLIOP_Credentials::set_attributes (  const Security::AttributeList &    requested_attributes, Security::AttributeList_out actual_attributes    ACE_ENV_ARG_DECL_WITH_DEFAULTS )  throw (CORBA::SystemException) [virtual]

ACE_INLINE X509 * TAO_SSLIOP_Credentials::x509 (  void    )

Return a pointer to the underlying X.509 certificate. Note: Caller owns the returned object. Use a TAO_SSLIOP_X509_var.

---

Member Data Documentation

int TAO_SSLIOP_Credentials::_tao_class_id = 0 [static]

Reimplemented in TAO_SSLIOP_ReceivedCredentials, and TAO_SSLIOP_TargetCredentials.

Security::AssociationOptions TAO_SSLIOP_Credentials::accepting_options_required_ [protected]

This attribute corresponds to the SSLIOP::target_requires field in the security association options in the SSLIOP tagged component that is embedded in IORs created by SSLIOP-enabled server side ORBs.

Security::AssociationOptions TAO_SSLIOP_Credentials::accepting_options_supported_ [protected]

This attribute corresponds to the SSLIOP::target_supports field in the security association options in the SSLIOP tagged component that is embedded in IORs created by SSLIOP-enabled server side ORBs.

TAO_SSLIOP_EVP_PKEY_var TAO_SSLIOP_Credentials::evp_ [protected]

Reference to the private key associated with the X.509 certificate.

Security::AssociationOptions TAO_SSLIOP_Credentials::invocation_options_required_ [protected]

Security association options required by this Credentials object when invoking operations on the target object.

Security::AssociationOptions TAO_SSLIOP_Credentials::invocation_options_supported_ [protected]

Security association options supported by this Credentials object when invoking operations on the target object.

TAO_SSLIOP_X509_var TAO_SSLIOP_Credentials::x509_ [protected]

Reference to the X.509 certificate associated with this SSLIOP Credentials object.

---

The documentation for this class was generated from the following files:

• SSLIOP_Credentials.h
• SSLIOP_Credentials.cpp
• SSLIOP_Credentials.inl

---
