TAO_ECG_Complex_Address_Server Class Reference

Implementation of RtecUDPAdmin idl interface, which returns a different multicast address based on event source (or event type -depending on how the server is configured). More...

#include <ECG_Complex_Address_Server.h>

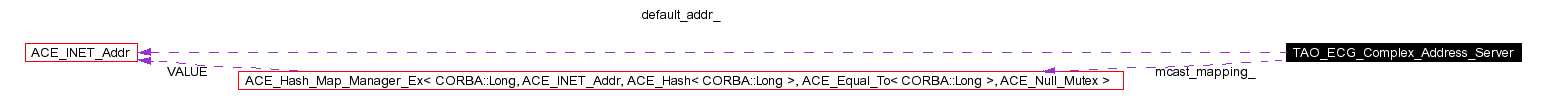

Collaboration diagram for TAO_ECG_Complex_Address_Server:

[legend]List of all members.

Public Methods
virtual	~TAO_ECG_Complex_Address_Server (void)
	Destructor.
int	init (const char *arg)
virtual void	get_addr (const RtecEventComm::EventHeader &header, RtecUDPAdmin::UDP_Addr_out addr ACE_ENV_ARG_DECL) throw (CORBA::SystemException)
void	dump_content (void)
Static Public Methods
TAO_EC_Servant_Var< TAO_ECG_Complex_Address_Server >	create (int is_source_mapping=1)
	Create a new TAO_ECG_Complex_Address_Server object.
Protected Methods
	TAO_ECG_Complex_Address_Server (int is_source_mapping=1)
Private Types
typedef ACE_Hash_Map_Manager_Ex< CORBA::Long, ACE_INET_Addr, ACE_Hash< CORBA::Long >, ACE_Equal_To< CORBA::Long >, ACE_Null_Mutex >	MAP
Private Methods
int	add_entry (const char *key, const char *mcast_addr)
Private Attributes
int	is_source_mapping_
MAP	mcast_mapping_
ACE_INET_Addr	default_addr_

---

Detailed Description

Implementation of RtecUDPAdmin idl interface, which returns a different multicast address based on event source (or event type -depending on how the server is configured).

INITIALIZATION STRING FORMAT

The string is a sequence of <key><value> pairs separated by a single space, where <key> is event source (or type) and <value> is the corresponding mcast address. Example: "34@230.100.0.2:2300 45@230.100.123.43:2300" The string above represents two key-value pairs.

A special key "*" is used to specify the default mcast address, i.e., the one that will be returned for event sources that weren't explicitly specified in the initialization string. Example: "*@230.100.0.2:2300 45@230.100.123.43:2300"

---

Member Typedef Documentation

typedef ACE_Hash_Map_Manager_Ex<CORBA::Long, ACE_INET_Addr, ACE_Hash<CORBA::Long>, ACE_Equal_To<CORBA::Long>, ACE_Null_Mutex> TAO_ECG_Complex_Address_Server::MAP [private]

---

Constructor & Destructor Documentation

TAO_ECG_Complex_Address_Server::~TAO_ECG_Complex_Address_Server (  void    )  [virtual]

Destructor.

TAO_ECG_Complex_Address_Server::TAO_ECG_Complex_Address_Server (  int    is_source_mapping = 1 )  [protected]

Constructor (protected). Clients can create new TAO_ECG_Complex_Address_Server objects using the static create() method. <is_source_mapping> flag indicates whether this server maps based on event header source or event header type.

---

Member Function Documentation

int TAO_ECG_Complex_Address_Server::add_entry (  const char *    key, const char *    mcast_addr )  [private]

Helper. Given key and mcast address in string form, add them to the mapping.

ACE_INLINE TAO_EC_Servant_Var< TAO_ECG_Complex_Address_Server > TAO_ECG_Complex_Address_Server::create (  int    is_source_mapping = 1 )  [static]

Create a new TAO_ECG_Complex_Address_Server object.

void TAO_ECG_Complex_Address_Server::dump_content (  void    )

Prints out complete content of the address server. Useful for debugging.

void TAO_ECG_Complex_Address_Server::get_addr (  const RtecEventComm::EventHeader &    header, RtecUDPAdmin::UDP_Addr_out addr    ACE_ENV_ARG_DECL )  throw (CORBA::SystemException) [virtual]

int TAO_ECG_Complex_Address_Server::init (  const char *    arg )

Initializes the mapping from the <arg> string. See class notes for the expected format.

---

Member Data Documentation

ACE_INET_Addr TAO_ECG_Complex_Address_Server::default_addr_ [private]

Mcast group to be used for all sources (or types) not explicitly mapped.

int TAO_ECG_Complex_Address_Server::is_source_mapping_ [private]

Flag indicating whether this address server maps event source or event type to mcast groups.

MAP TAO_ECG_Complex_Address_Server::mcast_mapping_ [private]

---

The documentation for this class was generated from the following files:

• ECG_Complex_Address_Server.h
• ECG_Complex_Address_Server.cpp
• ECG_Complex_Address_Server.i

---
