ACE_SSL_SOCK_Acceptor Class Reference

Defines a factory that creates new ACE_SSL_SOCK_Stream objects passively. More...

#include <SSL_SOCK_Acceptor.h>

Inheritance diagram for ACE_SSL_SOCK_Acceptor:

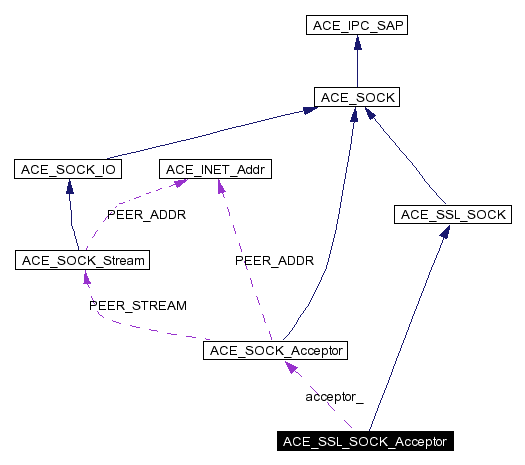

[legend]Collaboration diagram for ACE_SSL_SOCK_Acceptor:

[legend]List of all members.

Public Types
typedef ACE_INET_Addr	PEER_ADDR
typedef ACE_SSL_SOCK_Stream	PEER_STREAM
Public Methods
	ACE_SSL_SOCK_Acceptor (void)
	Default constructor.
	~ACE_SSL_SOCK_Acceptor (void)
	Default destructor.
	ACE_SSL_SOCK_Acceptor (const ACE_Addr &local_sap, int reuse_addr=0, int protocol_family=PF_UNSPEC, int backlog=ACE_DEFAULT_BACKLOG, int protocol=0)
	ACE_SSL_SOCK_Acceptor (const ACE_Addr &local_sap, ACE_Protocol_Info *protocolinfo, ACE_SOCK_GROUP g, u_long flags, int reuse_addr, int protocol_family=PF_UNSPEC, int backlog=ACE_DEFAULT_BACKLOG, int protocol=0)
int	open (const ACE_Addr &local_sap, int reuse_addr=0, int protocol_family=PF_UNSPEC, int backlog=ACE_DEFAULT_BACKLOG, int protocol=0)
int	close (void)
	Close the listening socket.
Passive Connection "accept" Methods
These are the canonical methods exposed by the Acceptor pattern.
int	accept (ACE_SSL_SOCK_Stream &new_stream, ACE_Addr *remote_addr=0, ACE_Time_Value *timeout=0, int restart=1, int reset_new_handle=0) const
int	accept (ACE_SSL_SOCK_Stream &new_stream, ACE_Accept_QoS_Params qos_params, ACE_Addr *remote_addr=0, ACE_Time_Value *timeout=0, int restart=1, int reset_new_handle=0) const
Public Attributes
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks.
Protected Methods
int	ssl_accept (ACE_SSL_SOCK_Stream &new_stream, ACE_Time_Value *timeout) const
	Complete SSL passive connection establishment.
Private Attributes
ACE_SOCK_Acceptor	acceptor_
	The BSD-socket workhorse.

---

Detailed Description

Defines a factory that creates new ACE_SSL_SOCK_Stream objects passively.

The ACE_SSL_SOCK_Acceptor has its own ACE_SOCK_Acceptor which handles the basic socket acceptance. This class is a wrapper which adds the SSL acceptance handshake handling. Since SSL is record oriented, some additional steps must be taken after the basic socket acceptance to complete the SSL handshake that takes place at session establishment.

Note:

The user must currently ensure that only one thread services a given SSL session at any given time since some underlying SSL implementations, such as OpenSSL, are not entirely thread-safe or reentrant.

---

Member Typedef Documentation

typedef ACE_INET_Addr ACE_SSL_SOCK_Acceptor::PEER_ADDR

typedef ACE_SSL_SOCK_Stream ACE_SSL_SOCK_Acceptor::PEER_STREAM

---

Constructor & Destructor Documentation

ASYS_INLINE ACE_SSL_SOCK_Acceptor::ACE_SSL_SOCK_Acceptor (  void    )

Default constructor.

ACE_SSL_SOCK_Acceptor::~ACE_SSL_SOCK_Acceptor (  void    )

Default destructor.

ASYS_INLINE ACE_SSL_SOCK_Acceptor::ACE_SSL_SOCK_Acceptor (  const ACE_Addr &    local_sap, int    reuse_addr = 0, int    protocol_family = PF_UNSPEC, int    backlog = ACE_DEFAULT_BACKLOG, int    protocol = 0 )

Initiate a passive mode SSL/BSD-style acceptor socket. Parameters: local_sap  The address that we're going to listen for connections on. If this is ACE_Addr::sap_any, this socket listens on an the "any" IP address and selects an unused port. To find out what port was selected, call this object's ACE_SOCK::get_local_addr(ACE_Addr&) method upon return.

ASYS_INLINE ACE_SSL_SOCK_Acceptor::ACE_SSL_SOCK_Acceptor (  const ACE_Addr &    local_sap, ACE_Protocol_Info *    protocolinfo, ACE_SOCK_GROUP    g, u_long    flags, int    reuse_addr, int    protocol_family = PF_UNSPEC, int    backlog = ACE_DEFAULT_BACKLOG, int    protocol = 0 )

Initiate a passive-mode QoS-enabled acceptor socket. Parameters: local_sap  The address that we're going to listen for connections on. If this is ACE_Addr::sap_any, this socket listens on an the "any" IP address and selects an unused port. To find out what port was selected, call this object's ACE_SOCK::get_local_addr(ACE_Addr&) method upon return.

---

Member Function Documentation

int ACE_SSL_SOCK_Acceptor::accept (  ACE_SSL_SOCK_Stream &    new_stream, ACE_Accept_QoS_Params    qos_params, ACE_Addr *    remote_addr = 0, ACE_Time_Value *    timeout = 0, int    restart = 1, int    reset_new_handle = 0 )  const

Accept a new ACE_SSL_SOCK_Stream connection using the RVSP QoS information in qos_params. Parameters: new_stream  The ACE_SSL_SOCK_Stream object that will receive the new SSL socket. remote_addr  Pointer to an ACE_INET_Addr object that will receive the address of the peer that connected. timeout  The maximum time to wait for the combined socket acceptance and handshake completion. 0 means block forever, a timeout of {0, 0} means poll. restart  1 means "restart if interrupted," that is, if errno == EINTR. Returns: 0 if success; -1 for failure (errno contains error code).

int ACE_SSL_SOCK_Acceptor::accept (  ACE_SSL_SOCK_Stream &    new_stream, ACE_Addr *    remote_addr = 0, ACE_Time_Value *    timeout = 0, int    restart = 1, int    reset_new_handle = 0 )  const

Accept a new ACE_SSL_SOCK_Stream connection. On successful return, the socket has been accepted and the SSL handshake has been completed. Parameters: new_stream  The ACE_SSL_SOCK_Stream object that will receive the new SSL socket. remote_addr  Pointer to an ACE_INET_Addr object that will receive the address of the peer that connected. timeout  The maximum time to wait for the combined socket acceptance and handshake completion. 0 means block forever, a timeout of {0, 0} means poll. restart  1 means "restart if interrupted," that is, if errno == EINTR. Returns: 0 if success; -1 for failure (errno contains error code).

ASYS_INLINE int ACE_SSL_SOCK_Acceptor::close (  void    )

Close the listening socket. Reimplemented from ACE_SOCK.

ASYS_INLINE int ACE_SSL_SOCK_Acceptor::open (  const ACE_Addr &    local_sap, int    reuse_addr = 0, int    protocol_family = PF_UNSPEC, int    backlog = ACE_DEFAULT_BACKLOG, int    protocol = 0 )

Initiate a passive mode SSL/BSD-style acceptor socket. Parameters: local_sap  The address that we're going to listen for connections on. If this is ACE_Addr::sap_any, this socket listens on an the "any" IP address and selects an unused port. To find out what port was selected, call this object's ACE_SOCK::get_local_addr(ACE_Addr&) method upon return. Returns: 0 if success; -1 for failure (errno contains error code).

int ACE_SSL_SOCK_Acceptor::ssl_accept (  ACE_SSL_SOCK_Stream &    new_stream, ACE_Time_Value *    timeout )  const [protected]

Complete SSL passive connection establishment.

---

Member Data Documentation

ACE_SOCK_Acceptor ACE_SSL_SOCK_Acceptor::acceptor_ [private]

The BSD-socket workhorse.

ACE_SSL_SOCK_Acceptor::ACE_ALLOC_HOOK_DECLARE

Declare the dynamic allocation hooks. Reimplemented from ACE_SOCK.

---

The documentation for this class was generated from the following files:

• SSL_SOCK_Acceptor.h
• SSL_SOCK_Acceptor.cpp
• SSL_SOCK_Acceptor.i

---
