TAO_SSLIOP_Profile Class Reference

#include <SSLIOP_Profile.h>

Inheritance diagram for TAO_SSLIOP_Profile:

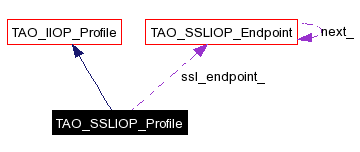

[legend]Collaboration diagram for TAO_SSLIOP_Profile:

[legend]List of all members.

Public Member Functions
	TAO_SSLIOP_Profile (const ACE_INET_Addr &addr, const TAO::ObjectKey &object_key, const TAO_GIOP_Message_Version &version, TAO_ORB_Core *orb_core, const ::SSLIOP::SSL *ssl_component)
	TAO_SSLIOP_Profile (const char *host, CORBA::UShort port, const TAO::ObjectKey &object_key, const ACE_INET_Addr &addr, const TAO_GIOP_Message_Version &version, TAO_ORB_Core *orb_core, const ::SSLIOP::SSL *ssl_component)
	TAO_SSLIOP_Profile (TAO_ORB_Core *orb_core, const ::SSLIOP::SSL *ssl_component)
	Create profile with the given SSLIOP tagged component.
	TAO_SSLIOP_Profile (TAO_ORB_Core *orb_core, int ssl_only=0)
virtual int	decode (TAO_InputCDR &cdr)
virtual int	encode_endpoints (void)
virtual TAO_Endpoint *	endpoint (void)
virtual void	parse_string (const char *string)
void	add_endpoint (TAO_SSLIOP_Endpoint *endp)
Protected Member Functions
	~TAO_SSLIOP_Profile (void)
	Destructor.
virtual CORBA::Boolean	do_is_equivalent (const TAO_Profile *other_profile)
	Profile equivalence template method.
Private Member Functions
int	decode_tagged_endpoints (void)
Private Attributes
TAO_SSLIOP_Endpoint	ssl_endpoint_
int	ssl_only_

---

Constructor & Destructor Documentation

TAO_BEGIN_VERSIONED_NAMESPACE_DECL TAO_SSLIOP_Profile::TAO_SSLIOP_Profile (  const ACE_INET_Addr &  addr, const TAO::ObjectKey &  object_key, const TAO_GIOP_Message_Version &  version, TAO_ORB_Core *  orb_core, const ::SSLIOP::SSL *  ssl_component )

Profile constructor, same as above except the object_key has already been marshaled.

TAO_SSLIOP_Profile::TAO_SSLIOP_Profile (  const char *  host, CORBA::UShort  port, const TAO::ObjectKey &  object_key, const ACE_INET_Addr &  addr, const TAO_GIOP_Message_Version &  version, TAO_ORB_Core *  orb_core, const ::SSLIOP::SSL *  ssl_component )

Profile constructor, this is the most efficient since it doesn't require any address resolution processing.

TAO_SSLIOP_Profile::TAO_SSLIOP_Profile (  TAO_ORB_Core *  orb_core, const ::SSLIOP::SSL *  ssl_component )

Create profile with the given SSLIOP tagged component.

TAO_SSLIOP_Profile::TAO_SSLIOP_Profile (  TAO_ORB_Core *  orb_core, int  ssl_only = 0 )

Profile constructor. ssl_only != 0 will force secure connections, pnly.

TAO_SSLIOP_Profile::~TAO_SSLIOP_Profile (  void   )  [protected]

Destructor. Protected destructor to enforce proper memory management through the reference counting mechanism.

---

Member Function Documentation

void TAO_SSLIOP_Profile::add_endpoint (  TAO_SSLIOP_Endpoint *  endp  )

Add endp to this profile's list of endpoints (it is inserted next to the head of the list). This profiles takes ownership of endp. If endp's iiop_endpoint_ member is not 0, it is added to our parent's class endpoint list.

int TAO_SSLIOP_Profile::decode (  TAO_InputCDR &  cdr  )  [virtual]

Reimplemented from TAO_Profile.

int TAO_SSLIOP_Profile::decode_tagged_endpoints (  void   )  [private]

Helper for decode. Decodes TAO_TAG_SSL_ENDPOINTS from a tagged component. Decode only if RTCORBA is enabled. Returns: 0 on success and -1 on failure. Note: This should be enabled only when RTCORBA is enabled, but sadly others pay the price (of footprint) under normal operations.

CORBA::Boolean TAO_SSLIOP_Profile::do_is_equivalent (  const TAO_Profile *  other_profile  )  [protected, virtual]

Profile equivalence template method. See also: TAO_Profile::do_is_equivalent() Reimplemented from TAO_IIOP_Profile.

int TAO_SSLIOP_Profile::encode_endpoints (  void   )  [virtual]

Reimplemented from TAO_IIOP_Profile.

TAO_Endpoint * TAO_SSLIOP_Profile::endpoint (  void   )  [virtual]

Reimplemented from TAO_IIOP_Profile.

void TAO_SSLIOP_Profile::parse_string (  const char *  string  )  [virtual]

Override parse_string() from the base class to update the SSL endpoint's iiop endpoint once the base class has completed parsing the string. Initialize this object using the given input string. URL-style string contain only one endpoint. Reimplemented from TAO_Profile.

---

Member Data Documentation

TAO_SSLIOP_Endpoint TAO_SSLIOP_Profile::ssl_endpoint_ [private]

Head of this profile's list of endpoints. This endpoint is not dynamically allocated because a profile always contains at least one endpoint. Currently, a profile contains more than one endpoint, i.e., list contains more than just the head, only when RTCORBA is enabled. However, in the near future, this will be used in non-RT mode as well, e.g., to support TAG_ALTERNATE_IIOP_ADDRESS feature. Since SSLIOP profile is an extension of IIOP profile, its addressing info is contained in two places: IIOP parent class contains all iiop addressing while this class contains SSL-specific addressing additions to iiop. This means that there are two lists of endpoints: one maintained in the parent class and one maintained here. Each ssl endpoint maintains a pointer to its counterpart in the parent class endpoint list. For transmission of IIOP addressing information, see TAO_IIOP_Profile. Addressing info of the default SSL endpoint, i.e., head of the list, is transmitted using standard SSLIOP::TAG_SSL_SEC_TRANS tagged component. See encode_endpoints method documentation above for how the rest of the SSL endpoint list is transmitted.

int TAO_SSLIOP_Profile::ssl_only_ [private]

Allways treat this endpoint as secure, even if the constructor did not explicitely specify a tagged component for SSL. Most likely the parse_string() will supply a subset of the attributes - port number, for instance.

---

The documentation for this class was generated from the following files:

• SSLIOP_Profile.h
• SSLIOP_Profile.cpp

---
