TAO::SSLIOP::Transport Class Reference

SSLIOP-specific transport implementation. More...

#include <SSLIOP_Transport.h>

Inheritance diagram for TAO::SSLIOP::Transport:

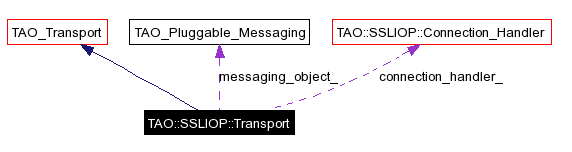

[legend]Collaboration diagram for TAO::SSLIOP::Transport:

[legend]List of all members.

Overridden Template Methods
These are implementations of template methods declared by TAO_Transport.
virtual int	send_request (TAO_Stub *stub, TAO_ORB_Core *orb_core, TAO_OutputCDR &stream, int message_semantics, ACE_Time_Value *max_wait_time)
virtual int	send_message (TAO_OutputCDR &stream, TAO_Stub *stub=0, int message_semantics=TAO_Transport::TAO_TWOWAY_REQUEST, ACE_Time_Value *max_time_wait=0)
virtual int	generate_request_header (TAO_Operation_Details &opdetails, TAO_Target_Specification &spec, TAO_OutputCDR &msg)
virtual int	messaging_init (CORBA::Octet major, CORBA::Octet minor)
	Initialising the messaging object.
virtual int	tear_listen_point_list (TAO_InputCDR &cdr)
	Open teh service context list and process it.
virtual ACE_Event_Handler *	event_handler_i (void)
virtual TAO_Connection_Handler *	connection_handler_i (void)
virtual TAO_Pluggable_Messaging *	messaging_object (void)
virtual ssize_t	send (iovec *iov, int iovcnt, size_t &bytes_transferred, const ACE_Time_Value *timeout=0)
	Write the complete Message_Block chain to the connection.
virtual ssize_t	recv (char *buf, size_t len, const ACE_Time_Value *s=0)
	Read len bytes from into buf.
Public Member Functions
	Transport (Connection_Handler *handler, TAO_ORB_Core *orb_core, CORBA::Boolean flag)
	Constructor.
	~Transport (void)
	Default destructor.
virtual int	handle_input (TAO_Resume_Handle &rh, ACE_Time_Value *max_wait_time=0, int block=0)
Private Member Functions
void	set_bidir_context_info (TAO_Operation_Details &opdetails)
int	get_listen_point (IIOP::ListenPointList &listen_point_list, TAO_Acceptor *acceptor)
Private Attributes
Connection_Handler *	connection_handler_
TAO_Pluggable_Messaging *	messaging_object_
	Our messaging object.

---

Detailed Description

SSLIOP-specific transport implementation.

SSLIOP-specific transport implementation.

---

Constructor & Destructor Documentation

TAO_BEGIN_VERSIONED_NAMESPACE_DECL TAO::SSLIOP::Transport::Transport (  Connection_Handler *  handler, TAO_ORB_Core *  orb_core, CORBA::Boolean  flag )

Constructor.

TAO::SSLIOP::Transport::~Transport (  void   )

Default destructor.

---

Member Function Documentation

TAO_Connection_Handler * TAO::SSLIOP::Transport::connection_handler_i (  void   )  [protected, virtual]

Todo: These methods IMHO should have more meaningful names. The names seem to indicate nothing. Implements TAO_Transport.

ACE_Event_Handler * TAO::SSLIOP::Transport::event_handler_i (  void   )  [protected, virtual]

Todo: These methods IMHO should have more meaningful names. The names seem to indicate nothing. Implements TAO_Transport.

int TAO::SSLIOP::Transport::generate_request_header (  TAO_Operation_Details &  opdetails, TAO_Target_Specification &  spec, TAO_OutputCDR &  msg )  [virtual]

Todo: These methods IMHO should have more meaningful names. The names seem to indicate nothing. Reimplemented from TAO_Transport.

int TAO::SSLIOP::Transport::get_listen_point (  IIOP::ListenPointList &  listen_point_list, TAO_Acceptor *  acceptor )  [private]

Add the listen points in acceptor to the listen_point_list if this connection is in the same interface as that of the endpoints in the acceptor.

int TAO::SSLIOP::Transport::handle_input (  TAO_Resume_Handle &  rh, ACE_Time_Value *  max_wait_time = 0, int  block = 0 )  [virtual]

Overload of the handle_input () in the TAO_Transport class. This is required to set up the state guard. The thread-per-connection and wait on RW strategies call this handle_input (). Reimplemented from TAO_Transport.

int TAO::SSLIOP::Transport::messaging_init (  CORBA::Octet  major, CORBA::Octet  minor )  [virtual]

Initialising the messaging object. Implements TAO_Transport.

TAO_Pluggable_Messaging * TAO::SSLIOP::Transport::messaging_object (  void   )  [protected, virtual]

Todo: These methods IMHO should have more meaningful names. The names seem to indicate nothing. Implements TAO_Transport.

ssize_t TAO::SSLIOP::Transport::recv (  char *  buf, size_t  len, const ACE_Time_Value *  s = 0 )  [protected, virtual]

Read len bytes from into buf. Implements TAO_Transport.

ssize_t TAO::SSLIOP::Transport::send (  iovec *  iov, int  iovcnt, size_t &  bytes_transferred, const ACE_Time_Value *  timeout = 0 )  [protected, virtual]

Write the complete Message_Block chain to the connection. Implements TAO_Transport.

int TAO::SSLIOP::Transport::send_message (  TAO_OutputCDR &  stream, TAO_Stub *  stub = 0, int  message_semantics = TAO_Transport::TAO_TWOWAY_REQUEST, ACE_Time_Value *  max_time_wait = 0 )  [virtual]

Todo: These methods IMHO should have more meaningful names. The names seem to indicate nothing. Implements TAO_Transport.

int TAO::SSLIOP::Transport::send_request (  TAO_Stub *  stub, TAO_ORB_Core *  orb_core, TAO_OutputCDR &  stream, int  message_semantics, ACE_Time_Value *  max_wait_time )  [virtual]

Todo: These methods IMHO should have more meaningful names. The names seem to indicate nothing. Implements TAO_Transport.

void TAO::SSLIOP::Transport::set_bidir_context_info (  TAO_Operation_Details &  opdetails  )  [private]

Set the Bidirectional context info in the service context list.

int TAO::SSLIOP::Transport::tear_listen_point_list (  TAO_InputCDR &  cdr  )  [virtual]

Open teh service context list and process it. Reimplemented from TAO_Transport.

---

Member Data Documentation

Connection_Handler* TAO::SSLIOP::Transport::connection_handler_ [private]

The connection service handler used for accessing lower layer communication protocols.

TAO_Pluggable_Messaging* TAO::SSLIOP::Transport::messaging_object_ [private]

Our messaging object.

---

The documentation for this class was generated from the following files:

• SSLIOP_Transport.h
• SSLIOP_Transport.cpp

---
