TAO::SSLIOP::Protocol_Factory Class Reference

SSLIOP-specific protocol factory implementation. More...

#include <SSLIOP_Factory.h>

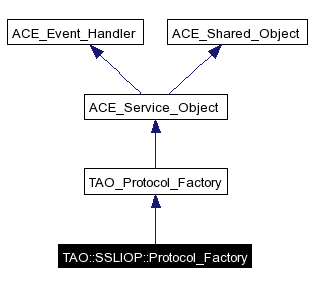

Inheritance diagram for TAO::SSLIOP::Protocol_Factory:

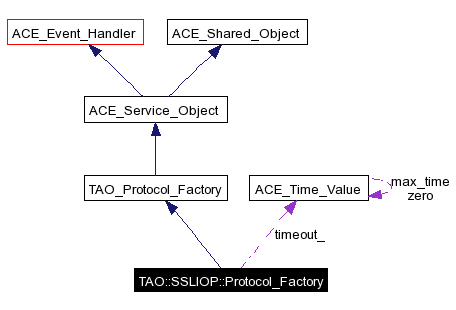

[legend]Collaboration diagram for TAO::SSLIOP::Protocol_Factory:

[legend]List of all members.

Public Member Functions
	Protocol_Factory (void)
	Constructor.
virtual	~Protocol_Factory (void)
	Destructor.
virtual int	init (int argc, char *argv[])
	Dynamic linking hook.
virtual int	match_prefix (const ACE_CString &prefix)
	Verify prefix is a match.
virtual const char *	prefix (void) const
	Returns the prefix used by the protocol.
virtual char	options_delimiter (void) const
virtual TAO_Acceptor *	make_acceptor (void)
virtual TAO_Connector *	make_connector (void)
virtual int	requires_explicit_endpoint (void) const
Private Member Functions
int	register_orb_initializer (CSIIOP::AssociationOptions csiv2_target_supports, CSIIOP::AssociationOptions csiv2_target_requires)
	Create and register the SSLIOP ORB initializer.
Static Private Member Functions
int	parse_x509_file (char *arg, char **path)
Private Attributes
::Security::QOP	qop_
ACE_Time_Value	timeout_
	The accept() timeout.

---

Detailed Description

SSLIOP-specific protocol factory implementation.

This class implements the SSLIOP-specific protocol factory implementation for use in TAO's pluggable protocols framework.

---

Constructor & Destructor Documentation

TAO::SSLIOP::Protocol_Factory::Protocol_Factory (  void   )

Constructor.

TAO::SSLIOP::Protocol_Factory::~Protocol_Factory (  void   )  [virtual]

Destructor.

---

Member Function Documentation

int TAO::SSLIOP::Protocol_Factory::init (  int  argc, char *  argv[] )  [virtual]

Dynamic linking hook.

TAO_Acceptor * TAO::SSLIOP::Protocol_Factory::make_acceptor (  void   )  [virtual]

Reimplemented from TAO_Protocol_Factory.

TAO_Connector * TAO::SSLIOP::Protocol_Factory::make_connector (  void   )  [virtual]

Reimplemented from TAO_Protocol_Factory.

int TAO::SSLIOP::Protocol_Factory::match_prefix (  const ACE_CString &  prefix  )  [virtual]

Verify prefix is a match. Reimplemented from TAO_Protocol_Factory.

char TAO::SSLIOP::Protocol_Factory::options_delimiter (  void   )  const [virtual]

Return the character used to mark where an endpoint ends and where its options begin. Reimplemented from TAO_Protocol_Factory.

int TAO::SSLIOP::Protocol_Factory::parse_x509_file (  char *  arg, char **  path )  [static, private]

Parse an X509 file path, which is expected to looks like: <x509path> ::= <prefix> ':' <path> <prefix> ::= 'PEM' | 'ASN1' <path> ::= any-string Returns either SSL_FILETYPE_ASN1, SSL_FILETYPE_PEM or -1 if the prefix can not be recognized. The *path will point to the part of the original buffer, after the initial ':', or will contain 0, if no path was specified. Beware: This function modifies the buffer pointed to by arg!

const char * TAO::SSLIOP::Protocol_Factory::prefix (  void   )  const [virtual]

Returns the prefix used by the protocol. Reimplemented from TAO_Protocol_Factory.

int TAO::SSLIOP::Protocol_Factory::register_orb_initializer (  CSIIOP::AssociationOptions  csiv2_target_supports, CSIIOP::AssociationOptions  csiv2_target_requires )  [private]

Create and register the SSLIOP ORB initializer.

int TAO::SSLIOP::Protocol_Factory::requires_explicit_endpoint (  void   )  const [virtual]

Implements TAO_Protocol_Factory.

---

Member Data Documentation

::Security::QOP TAO::SSLIOP::Protocol_Factory::qop_ [private]

Default quality-of-protection settings for the SSLIOP pluggable protocol.

ACE_Time_Value TAO::SSLIOP::Protocol_Factory::timeout_ [private]

The accept() timeout. This timeout includes the overall time to complete the SSL handshake. This includes both the TCP handshake and the SSL handshake.

---

The documentation for this class was generated from the following files:

• SSLIOP_Factory.h
• SSLIOP_Factory.cpp

---
